BDSDecapole Class Reference

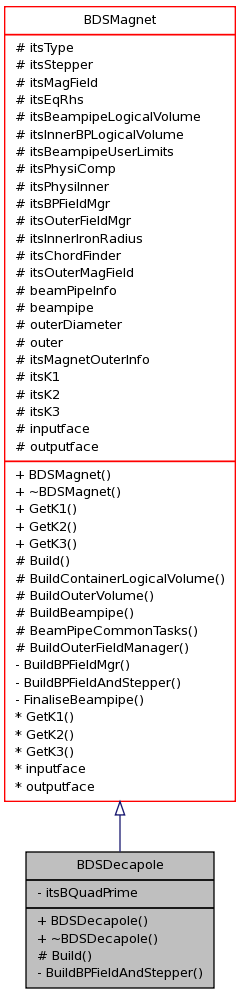

Inheritance diagram for BDSDecapole:

[legend]Collaboration diagram for BDSDecapole:

[legend]

Public Member Functions
	BDSDecapole (G4String name, G4double length, G4double bQuadPrime, BDSBeamPipeInfo *beamPipeInfo, BDSMagnetOuterInfo magnetOuterInfo, BDSTiltOffset tiltOffset=BDSTiltOffset())
	~BDSDecapole ()
Protected Member Functions
virtual void	Build ()
Private Member Functions
virtual void	BuildBPFieldAndStepper ()
	define field and stepper
Private Attributes
G4double	itsBQuadPrime

---

Detailed Description

Definition at line 20 of file BDSDecapole.hh.

---

Member Function Documentation

void BDSDecapole::Build

(

)

[protected, virtual]

Build the container only. Should be overridden by derived class to add more geometry apart from the container volume. The overridden Build() function can however, call make use of this function to call BuildContainerLogicalVolume() by calling BDSAcceleratorComponent::Build() at the beginning.

Reimplemented from BDSMagnet.

Definition at line 38 of file BDSDecapole.cc.

References BDSMagnet::Build(), BDSMagnet::BuildOuterFieldManager(), BDSGlobalConstants::GetComponentBoxSize(), BDSGlobalConstants::GetMagnetPoleRadius(), BDSGlobalConstants::GetMagnetPoleSize(), BDSGlobalConstants::Instance(), and BDSMagnet::itsMagField.

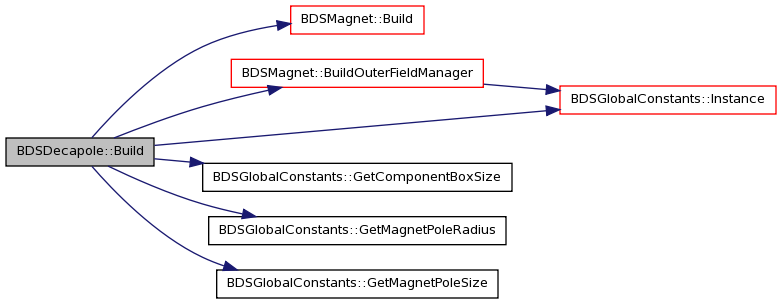

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• /scratch0/jsnuveri/BDSIM/BDSIMgit/bdsim/include/BDSDecapole.hh
• /scratch0/jsnuveri/BDSIM/BDSIMgit/bdsim/src/BDSDecapole.cc

---
