BDSSextupole Class Reference

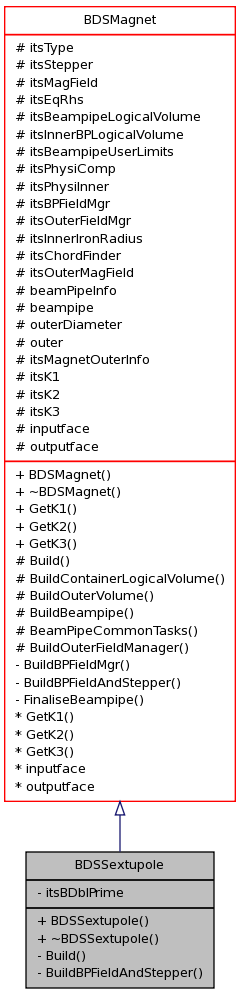

Inheritance diagram for BDSSextupole:

[legend]Collaboration diagram for BDSSextupole:

[legend]

Public Member Functions
	BDSSextupole (G4String name, G4double length, G4double bDblPrime, BDSBeamPipeInfo *beamPipeInfo, BDSMagnetOuterInfo magnetOuterInfo, BDSTiltOffset tiltOffset=BDSTiltOffset())
	~BDSSextupole ()
Private Member Functions
virtual void	Build ()
virtual void	BuildBPFieldAndStepper ()
	define field and stepper
Private Attributes
G4double	itsBDblPrime

---

Detailed Description

Definition at line 20 of file BDSSextupole.hh.

---

Member Function Documentation

void BDSSextupole::Build

(

)

[private, virtual]

Build the container only. Should be overridden by derived class to add more geometry apart from the container volume. The overridden Build() function can however, call make use of this function to call BuildContainerLogicalVolume() by calling BDSAcceleratorComponent::Build() at the beginning.

Reimplemented from BDSMagnet.

Definition at line 40 of file BDSSextupole.cc.

References BDSMagnet::Build(), BDSMagnet::BuildOuterFieldManager(), BDSGlobalConstants::GetComponentBoxSize(), BDSGlobalConstants::GetMagnetPoleRadius(), BDSGlobalConstants::GetMagnetPoleSize(), BDSGlobalConstants::Instance(), and BDSMagnet::itsMagField.

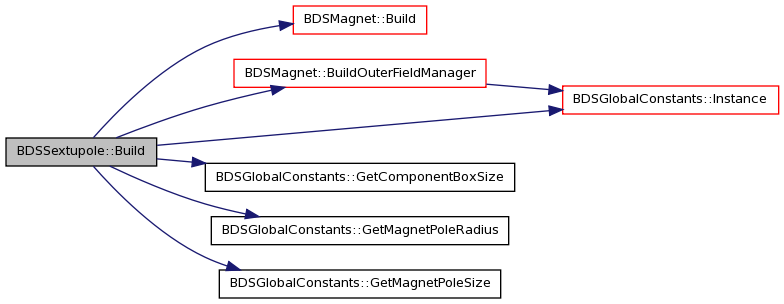

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• /scratch0/jsnuveri/BDSIM/BDSIMgit/bdsim/include/BDSSextupole.hh
• /scratch0/jsnuveri/BDSIM/BDSIMgit/bdsim/src/BDSSextupole.cc

---
