BDSRBend Class Reference

Inheritance diagram for BDSRBend:

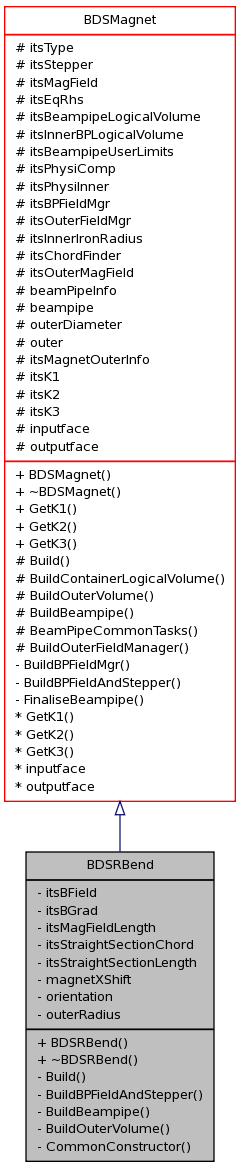

[legend]Collaboration diagram for BDSRBend:

[legend]

Public Member Functions
	BDSRBend (G4String name, G4double length, G4double bField, G4double bGrad, G4double angle, BDSBeamPipeInfo *beamPipeInfo, BDSMagnetOuterInfo magnetOuterInfo, BDSTiltOffset tiltOffset=BDSTiltOffset())
	~BDSRBend ()
Private Member Functions
virtual void	Build ()
virtual void	BuildBPFieldAndStepper ()
	define field and stepper
virtual void	BuildBeampipe ()
	general straight beampipe - can be overloaded by derived classes
virtual void	BuildOuterVolume ()
	method to create outer volume
void	CommonConstructor (G4double aLength)
Private Attributes
G4double	itsBField
G4double	itsBGrad
G4double	itsMagFieldLength
G4double	itsStraightSectionChord
	chord length of straight section (along main chord) [m]
G4double	itsStraightSectionLength
	length of little straight sections on either side of dipole [m]
G4double	magnetXShift
	x shift for magnet and beampipe from chord
G4int	orientation
	orientation of shifts - depends on angle - calculations use absolute value of angle for safety
G4double	outerRadius
	radius of magnet body

---

Detailed Description

Definition at line 12 of file BDSRBend.hh.

---

Member Function Documentation

void BDSRBend::Build

(

)

[private, virtual]

Build the container only. Should be overridden by derived class to add more geometry apart from the container volume. The overridden Build() function can however, call make use of this function to call BuildContainerLogicalVolume() by calling BDSAcceleratorComponent::Build() at the beginning.

Reimplemented from BDSMagnet.

Definition at line 81 of file BDSRBend.cc.

References BDSMagnet::Build(), BDSMagnet::BuildOuterFieldManager(), BDSGlobalConstants::GetComponentBoxSize(), BDSGlobalConstants::GetMagnetPoleRadius(), BDSGlobalConstants::GetMagnetPoleSize(), BDSGlobalConstants::Instance(), and BDSMagnet::itsMagField.

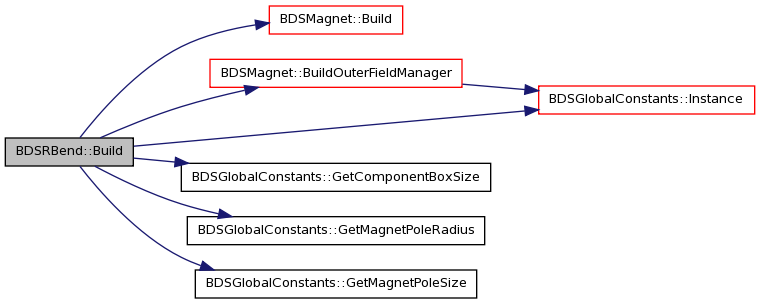

Here is the call graph for this function:

void BDSRBend::CommonConstructor

(

G4double

aLength

)

[private]

temporary function while old constructor still exists - used to avoid duplicating code in the mean time

Definition at line 46 of file BDSRBend.cc.

References BDSAcceleratorComponent::angle, BDS::CalculateOrientation(), BDSAcceleratorComponent::chordLength, BDSMagnet::inputface, itsMagFieldLength, itsStraightSectionChord, itsStraightSectionLength, magnetXShift, orientation, outerRadius, and BDSMagnet::outputface.

Referenced by BDSRBend().

Here is the call graph for this function:

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• /scratch0/jsnuveri/BDSIM/BDSIMgit/bdsim/include/BDSRBend.hh
• /scratch0/jsnuveri/BDSIM/BDSIMgit/bdsim/src/BDSRBend.cc

---
