BDSOctupole Class Reference

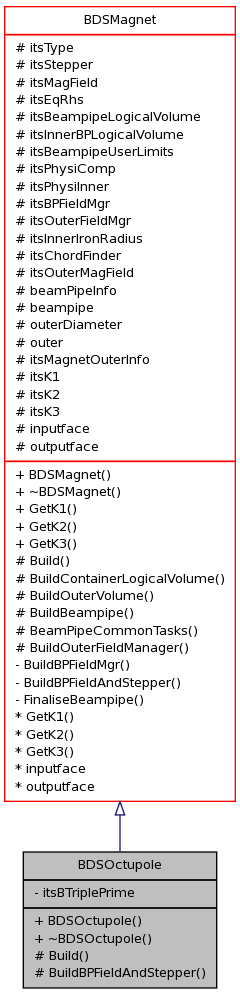

Inheritance diagram for BDSOctupole:

[legend]Collaboration diagram for BDSOctupole:

[legend]

Public Member Functions
	BDSOctupole (G4String name, G4double length, G4double bTriplePrime, BDSBeamPipeInfo *beamPipeInfo, BDSMagnetOuterInfo magnetOuterInfo, BDSTiltOffset tiltOffset=BDSTiltOffset())
	~BDSOctupole ()
Protected Member Functions
virtual void	Build ()
virtual void	BuildBPFieldAndStepper ()
	define field and stepper
Private Attributes
G4double	itsBTriplePrime

---

Detailed Description

Definition at line 19 of file BDSOctupole.hh.

---

Member Function Documentation

void BDSOctupole::Build

(

)

[protected, virtual]

Build the container only. Should be overridden by derived class to add more geometry apart from the container volume. The overridden Build() function can however, call make use of this function to call BuildContainerLogicalVolume() by calling BDSAcceleratorComponent::Build() at the beginning.

Reimplemented from BDSMagnet.

Definition at line 39 of file BDSOctupole.cc.

References BDSMagnet::Build(), BDSMagnet::BuildOuterFieldManager(), BDSGlobalConstants::GetComponentBoxSize(), BDSGlobalConstants::GetMagnetPoleRadius(), BDSGlobalConstants::GetMagnetPoleSize(), BDSGlobalConstants::Instance(), and BDSMagnet::itsMagField.

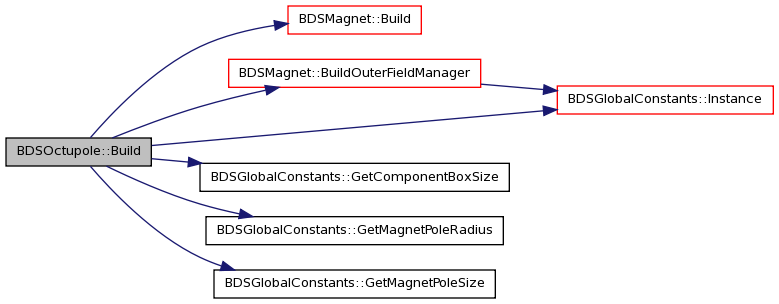

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• /scratch0/jsnuveri/BDSIM/BDSIMgit/bdsim/include/BDSOctupole.hh
• /scratch0/jsnuveri/BDSIM/BDSIMgit/bdsim/src/BDSOctupole.cc

---
