BDSMagnetOuterFactory Class Reference

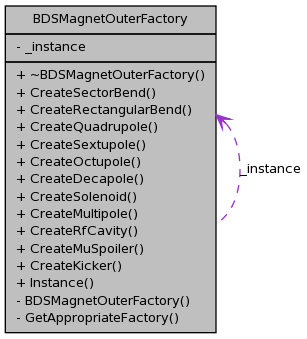

Collaboration diagram for BDSMagnetOuterFactory:

[legend]

Public Member Functions
	~BDSMagnetOuterFactory ()
	singleon pattern
virtual BDSGeometryComponent *	CreateSectorBend (BDSMagnetGeometryType magnetType, G4String name, G4double length, BDSBeamPipe *beamPipe, G4double boxSize, G4double angle, G4Material *outerMaterial=NULL)
	sector bend outer volume
virtual BDSGeometryComponent *	CreateRectangularBend (BDSMagnetGeometryType magnetType, G4String name, G4double length, BDSBeamPipe *beamPipe, G4double boxSize, G4double angle, G4Material *outerMaterial=NULL)
	rectangular bend outer volume
virtual BDSGeometryComponent *	CreateQuadrupole (BDSMagnetGeometryType magnetType, G4String name, G4double length, BDSBeamPipe *beamPipe, G4double boxSize, G4Material *outerMaterial=NULL)
	quadrupole outer volume
virtual BDSGeometryComponent *	CreateSextupole (BDSMagnetGeometryType magnetType, G4String name, G4double length, BDSBeamPipe *beamPipe, G4double boxSize, G4Material *outerMaterial=NULL)
	sextupole outer volume
virtual BDSGeometryComponent *	CreateOctupole (BDSMagnetGeometryType magnetType, G4String name, G4double length, BDSBeamPipe *beamPipe, G4double boxSize, G4Material *outerMaterial=NULL)
	octupole outer volume
virtual BDSGeometryComponent *	CreateDecapole (BDSMagnetGeometryType magnetType, G4String name, G4double length, BDSBeamPipe *beamPipe, G4double boxSize, G4Material *outerMaterial=NULL)
	decapole outer volume
virtual BDSGeometryComponent *	CreateSolenoid (BDSMagnetGeometryType magnetType, G4String name, G4double length, BDSBeamPipe *beamPipe, G4double boxSize, G4Material *outerMaterial=NULL)
	solenoid outer volume
virtual BDSGeometryComponent *	CreateMultipole (BDSMagnetGeometryType magnetType, G4String name, G4double length, BDSBeamPipe *beamPipe, G4double boxSize, G4Material *outerMaterial=NULL)
	general multipole outer volume - could be any 2N order multipole
virtual BDSGeometryComponent *	CreateRfCavity (BDSMagnetGeometryType magnetType, G4String name, G4double length, BDSBeamPipe *beamPipe, G4double boxSize, G4Material *outerMaterial=NULL)
	RF cavity outer volume.
virtual BDSGeometryComponent *	CreateMuSpoiler (BDSMagnetGeometryType magnetType, G4String name, G4double length, BDSBeamPipe *beamPipe, G4double boxSize, G4Material *outerMaterial=NULL)
	muon spoiler outer volume
virtual BDSGeometryComponent *	CreateKicker (BDSMagnetGeometryType magnetType, G4String name, G4double length, BDSBeamPipe *beamPipe, G4double boxSize, G4bool vertical=true, G4Material *outerMaterial=NULL)
	horizontal and vertical kicker outer volume
Static Public Member Functions
static BDSMagnetOuterFactory *	Instance ()
Private Member Functions
	BDSMagnetOuterFactory ()
BDSMagnetOuterFactoryBase *	GetAppropriateFactory (BDSMagnetGeometryType magnetTypeIn)
Static Private Attributes
static BDSMagnetOuterFactory *	_instance = 0

---

Detailed Description

Definition at line 13 of file BDSMagnetOuterFactory.hh.

---

The documentation for this class was generated from the following files:

• /scratch0/jsnuveri/BDSIM/BDSIMgit/bdsim/include/BDSMagnetOuterFactory.hh
• /scratch0/jsnuveri/BDSIM/BDSIMgit/bdsim/src/BDSMagnetOuterFactory.cc

---
