An intermediate layer for any bunch classes that are file based. More...

#include <BDSBunchFileBased.hh>

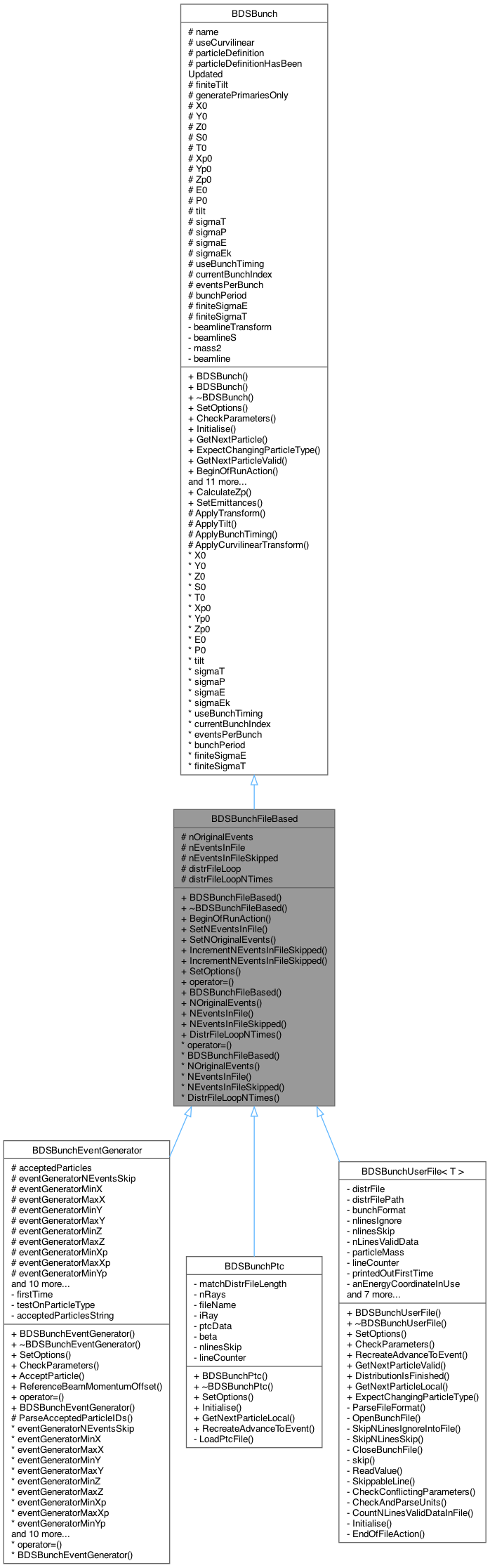

Inheritance diagram for BDSBunchFileBased:

Collaboration diagram for BDSBunchFileBased:

Public Member Functions
	BDSBunchFileBased (const G4String &distributionName)

virtual void	BeginOfRunAction (G4int numberOfEvents, G4bool batchMode)

void	SetNEventsInFile (unsigned long long int nEventsInFileIn)

void	SetNOriginalEvents (unsigned long long int nOriginalEventsIn)

void	IncrementNEventsInFileSkipped ()

void	IncrementNEventsInFileSkipped (unsigned long long int plus)

virtual void	SetOptions (const BDSParticleDefinition *beamParticle, const GMAD::Beam &beam, const BDSBunchType &distrType, G4Transform3D beamlineTransformIn=G4Transform3D::Identity, const G4double beamlineS=0)
	Pull out the relevant options and then pass through to BDSBunch::SetOptions().


BDSBunchFileBased &	operator= (const BDSBunchFileBased &)=delete
	Assignment and copy constructor not implemented nor used.

	BDSBunchFileBased (BDSBunchFileBased &)=delete
	Assignment and copy constructor not implemented nor used.


unsigned long long int	NOriginalEvents () const
	Accessor.

unsigned long long int	NEventsInFile () const
	Accessor.

unsigned long long int	NEventsInFileSkipped () const
	Accessor.

G4int	DistrFileLoopNTimes () const
	Accessor.

Public Member Functions inherited from BDSBunch
	BDSBunch (const G4String &nameIn)

virtual void	SetOptions (const BDSParticleDefinition *beamParticle, const GMAD::Beam &beam, const BDSBunchType &distrType, G4Transform3D beamlineTransformIn=G4Transform3D::Identity, const G4double beamlineS=0)

virtual void	CheckParameters ()

virtual void	Initialise ()
	Any initialisation - to be used after SetOptions, then CheckParameters.

BDSParticleCoordsFullGlobal	GetNextParticle ()

virtual G4bool	ExpectChangingParticleType () const
	A hint of whether we expect to require and extended particle set (ie pions, kaons, muons).

virtual BDSParticleCoordsFullGlobal	GetNextParticleValid (G4int maxTries=100)

virtual void	BeginOfRunAction (G4int numberOfEvents, G4bool batchMode)

virtual const BDSParticleDefinition *	ParticleDefinition () const
	Access the beam particle definition.

virtual void	SetGeneratePrimariesOnly (G4bool generatePrimariesOnlyIn)

virtual BDSParticleCoordsFull	GetNextParticleLocal ()

G4bool	UseCurvilinearTransform () const
	Access whether there's a finite S offset and therefore we're using a CL transform.

virtual void	RecreateAdvanceToEvent (G4int eventOffset)

G4bool	BeamParticleIsAnIon () const
	Access whether the beam particle is an ion or not.

virtual void	UpdateIonDefinition ()

G4bool	ParticleDefinitionHasBeenUpdated () const

G4String	Name () const
	Distribution name.

G4int	CurrentBunchIndex () const
	Get the current bunch index for writing to output.

void	CalculateBunchIndex (G4int eventIndex)
	Calculate which bunch index we should be at given an event index.

Protected Attributes
unsigned long long int	nOriginalEvents
	nOriginalEvents from upstream file if skimmed - need to pass through.

unsigned long long int	nEventsInFile
	The number of entries in the file loaded.

unsigned long long int	nEventsInFileSkipped
	Number that are skipped as we go through the file due to filters.

G4bool	distrFileLoop

G4int	distrFileLoopNTimes

Protected Attributes inherited from BDSBunch
G4String	name
	Name of distribution.

G4bool	useCurvilinear
	Whether to ignore z and use s and transform for curvilinear coordinates.

BDSParticleDefinition *	particleDefinition
	Particle definition for bunch - this class owns it.

G4bool	particleDefinitionHasBeenUpdated

G4bool	finiteTilt

G4bool	generatePrimariesOnly

G4double	X0
	Centre of distributions.

G4double	Y0
	Centre of distributions.

G4double	Z0
	Centre of distributions.

G4double	S0
	Centre of distributions.

G4double	T0
	Centre of distributions.

G4double	Xp0
	Centre of distributions.

G4double	Yp0
	Centre of distributions.

G4double	Zp0
	Centre of distributions.

G4double	E0
	Centre of distributions.

G4double	P0
	central momentum

G4double	tilt
	Centre of distributions.

G4double	sigmaT
	Centre of distributions.

G4double	sigmaP
	Centre of distributions.

G4double	sigmaE
	Centre of distributions.

G4double	sigmaEk
	Centre of distributions.

bool	useBunchTiming
	Bunch offset in time parameters.

G4int	currentBunchIndex
	Bunch offset in time parameters.

G4int	eventsPerBunch
	Bunch offset in time parameters.

G4double	bunchPeriod
	Bunch offset in time parameters.

G4bool	finiteSigmaE
	Flags to ignore random number generator in case of no finite E or T.

G4bool	finiteSigmaT
	Flags to ignore random number generator in case of no finite E or T.

Additional Inherited Members
Static Public Member Functions inherited from BDSBunch
static G4double	CalculateZp (G4double xp, G4double yp, G4double Zp0)
	Calculate zp safely based on other components.

static void	SetEmittances (const BDSParticleDefinition *beamParticle, const GMAD::Beam &beam, G4double &emittGeometricX, G4double &emittGeometricY, G4double &emittNormalisedX, G4double &emittNormalisedY)

Protected Member Functions inherited from BDSBunch
BDSParticleCoordsFullGlobal	ApplyTransform (const BDSParticleCoordsFull &localIn) const

void	ApplyTilt (BDSParticleCoordsFull &localIn) const
	Apply a rotation about unitZ for the local coordinates according to member variable tilt.

void	ApplyBunchTiming (BDSParticleCoordsFullGlobal &localIn) const
	Add on the offset in T for the current bunch number (i*bunchPeriod).

BDSParticleCoordsFullGlobal	ApplyCurvilinearTransform (const BDSParticleCoordsFull &localIn) const
	Calculate the global coordinates from curvilinear coordinates of a beam line.

Detailed Description

An intermediate layer for any bunch classes that are file based.

This class is purely to hold a record of variables that will be passed to the end of run action. Even for 'distributions' like bdsimsampler and hepmc that don't really use the BDSBunch classes fully, they can publish information in the BDSBunchFileBased instance they get.

Author: Laurie Nevay

Definition at line 37 of file BDSBunchFileBased.hh.

Constructor & Destructor Documentation

◆ BDSBunchFileBased()

BDSBunchFileBased::BDSBunchFileBased ( const G4String & distributionName )

explicit

Definition at line 23 of file BDSBunchFileBased.cc.

◆ ~BDSBunchFileBased()

BDSBunchFileBased::~BDSBunchFileBased ( )

virtual

Definition at line 32 of file BDSBunchFileBased.cc.

Member Function Documentation

◆ BeginOfRunAction()

void BDSBunchFileBased::BeginOfRunAction	(	G4int	numberOfEvents,
		G4bool	batchMode
	)

virtual

Customise the beginning of run action to allow file looping always when in interactive mode, i.e. not batch mode.

Reimplemented from BDSBunch.

Definition at line 46 of file BDSBunchFileBased.cc.

◆ DistrFileLoopNTimes()

G4int BDSBunchFileBased::DistrFileLoopNTimes ( ) const

inline

Accessor.

Definition at line 56 of file BDSBunchFileBased.hh.

Referenced by BDSPrimaryGeneratorFileHEPMC::SkipEvents(), BDSPrimaryGeneratorFileSampler::SkipEvents(), and BDSPrimaryGeneratorFile::ThrowExceptionIfRecreateOffsetTooHigh().

Here is the caller graph for this function:

◆ IncrementNEventsInFileSkipped() [1/2]

void BDSBunchFileBased::IncrementNEventsInFileSkipped ( )

inline

Definition at line 62 of file BDSBunchFileBased.hh.

◆ IncrementNEventsInFileSkipped() [2/2]

void BDSBunchFileBased::IncrementNEventsInFileSkipped ( unsigned long long int plus )

inline

Definition at line 63 of file BDSBunchFileBased.hh.

◆ NEventsInFile()

unsigned long long int BDSBunchFileBased::NEventsInFile ( ) const

inline

Accessor.

Definition at line 54 of file BDSBunchFileBased.hh.

References nEventsInFile.

◆ NEventsInFileSkipped()

unsigned long long int BDSBunchFileBased::NEventsInFileSkipped ( ) const

inline

Accessor.

Definition at line 55 of file BDSBunchFileBased.hh.

References nEventsInFileSkipped.

◆ NOriginalEvents()

unsigned long long int BDSBunchFileBased::NOriginalEvents ( ) const

inline

Accessor.

Definition at line 53 of file BDSBunchFileBased.hh.

References nOriginalEvents.

◆ SetNEventsInFile()

void BDSBunchFileBased::SetNEventsInFile ( unsigned long long int nEventsInFileIn )

inline

Definition at line 59 of file BDSBunchFileBased.hh.

◆ SetNOriginalEvents()

void BDSBunchFileBased::SetNOriginalEvents ( unsigned long long int nOriginalEventsIn )

inline

Definition at line 60 of file BDSBunchFileBased.hh.

◆ SetOptions()

void BDSBunchFileBased::SetOptions	(	const BDSParticleDefinition *	beamParticle,
		const GMAD::Beam &	beam,
		const BDSBunchType &	distrType,
		G4Transform3D	beamlineTransformIn = `G4Transform3D::Identity`,
		const G4double	beamlineS = `0`
	)

virtual

Pull out the relevant options and then pass through to BDSBunch::SetOptions().

Reimplemented from BDSBunch.

Reimplemented in BDSBunchPtc, BDSBunchUserFile< T >, and BDSBunchEventGenerator.

Definition at line 35 of file BDSBunchFileBased.cc.

References GMAD::BeamBase::distrFileLoop, GMAD::BeamBase::distrFileLoopNTimes, and BDSBunch::SetOptions().

Referenced by BDSBunchPtc::SetOptions(), BDSBunchUserFile< T >::SetOptions(), and BDSBunchEventGenerator::SetOptions().

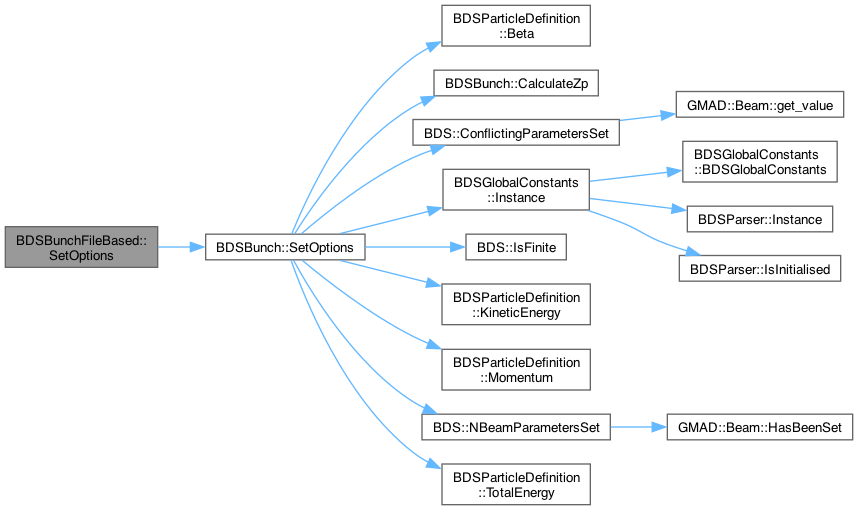

Here is the call graph for this function:

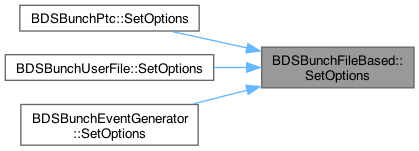

Here is the caller graph for this function:

Field Documentation

◆ distrFileLoop

G4bool BDSBunchFileBased::distrFileLoop

protected

Definition at line 76 of file BDSBunchFileBased.hh.

◆ distrFileLoopNTimes

G4int BDSBunchFileBased::distrFileLoopNTimes

protected

Definition at line 77 of file BDSBunchFileBased.hh.

◆ nEventsInFile

unsigned long long int BDSBunchFileBased::nEventsInFile

protected

The number of entries in the file loaded.

Definition at line 74 of file BDSBunchFileBased.hh.

Referenced by BDSBunchPtc::Initialise(), BDSBunchUserFile< T >::Initialise(), and NEventsInFile().

◆ nEventsInFileSkipped

unsigned long long int BDSBunchFileBased::nEventsInFileSkipped

protected

Number that are skipped as we go through the file due to filters.

Definition at line 75 of file BDSBunchFileBased.hh.

Referenced by NEventsInFileSkipped().

◆ nOriginalEvents

unsigned long long int BDSBunchFileBased::nOriginalEvents

protected

nOriginalEvents from upstream file if skimmed - need to pass through.

Definition at line 73 of file BDSBunchFileBased.hh.

Referenced by NOriginalEvents().

The documentation for this class was generated from the following files:

/Users/lnevay/physics/reps/bdsim/include/BDSBunchFileBased.hh
/Users/lnevay/physics/reps/bdsim/src/BDSBunchFileBased.cc
