Factory for simple parallel geometry for curvilinear coordinates. More...

#include <BDSCurvilinearBuilder.hh>

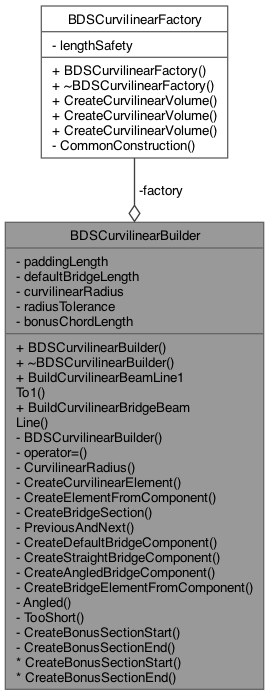

Collaboration diagram for BDSCurvilinearBuilder:

Public Member Functions
BDSBeamline *	BuildCurvilinearBeamLine1To1 (BDSBeamline const *const beamline, const G4bool circular)
	Build a beam line of curvilinear geometry based on another beam line.

BDSBeamline *	BuildCurvilinearBridgeBeamLine (BDSBeamline const *const beamline)
	Build bridging volumes to join the curvilinear ones.

Private Member Functions
	BDSCurvilinearBuilder (const BDSCurvilinearBuilder &)=delete

BDSCurvilinearBuilder &	operator= (const BDSCurvilinearBuilder &)=delete

G4double	CurvilinearRadius (const BDSBeamlineElement *el) const

BDSBeamlineElement *	CreateCurvilinearElement (const G4String &elementName, BDSBeamline::const_iterator startElement, BDSBeamline::const_iterator finishElement, G4int index, G4double crRadius)

BDSBeamlineElement *	CreateElementFromComponent (BDSSimpleComponent *component, BDSBeamline::const_iterator startElement, BDSBeamline::const_iterator finishElement, G4int index)
	Create the BDSBeamlineElement by wrapping a BDSSimpleComponent.

BDSBeamlineElement *	CreateBridgeSection (BDSAcceleratorComponent *defaultBridge, BDSBeamline::const_iterator element, BDSBeamline::const_iterator nextElement, BDSBeamline::const_iterator end, G4int &numberOfUniqueComponents, const G4int beamlineIndex, G4double crRadius)

void	PreviousAndNext (BDSBeamline::const_iterator it, BDSBeamline::const_iterator startIt, BDSBeamline::const_iterator endIt, const BDSBeamlineElement &previous, const BDSBeamlineElement &next) const

BDSAcceleratorComponent *	CreateDefaultBridgeComponent ()

BDSAcceleratorComponent *	CreateStraightBridgeComponent (G4double width, G4int &numberOfUniqueComponents)

BDSAcceleratorComponent *	CreateAngledBridgeComponent (BDSBeamline::const_iterator element, G4int &numberOfUniqueComponents, G4double suggestedRadius)
	Create a unique accelerator component for an element with angled faces.

BDSBeamlineElement *	CreateBridgeElementFromComponent (BDSAcceleratorComponent *component, BDSBeamline::const_iterator element, BDSBeamline::const_iterator nextElement, BDSBeamline::const_iterator end, const G4int beamlineIndex)

G4bool	Angled (BDSBeamlineElement const *const element) const
	Simple interrogation function to determine if an element has a finite angle or not.

G4bool	TooShort (BDSBeamlineElement const *const element) const
	Whether an element is too short for its own curvilinear volume.


BDSBeamlineElement *	CreateBonusSectionStart (BDSBeamline const *const beamline)
	Create a small section to extend a linear beam line.

BDSBeamlineElement *	CreateBonusSectionEnd (BDSBeamline const *const beamline)
	Create a small section to extend a linear beam line.

Private Attributes
G4double	paddingLength
	Length that was used for padding on the beam line we're building with respesct to.

G4double	defaultBridgeLength

G4double	curvilinearRadius
	Radius for curvilinear geometry.

G4double	radiusTolerance

G4double	bonusChordLength
	Length of any possible bonus section added to beginning and end.

BDSCurvilinearFactory *	factory
	Factory to build curvilinear geometry.

Detailed Description

Factory for simple parallel geometry for curvilinear coordinates.

This builds a beam line of geometry w.r.t. a beam line that can be used for curvilinear coordinates.

Author: Laurie Nevay

Definition at line 37 of file BDSCurvilinearBuilder.hh.

Constructor & Destructor Documentation

◆ BDSCurvilinearBuilder()

BDSCurvilinearBuilder::BDSCurvilinearBuilder ( )

Definition at line 42 of file BDSCurvilinearBuilder.cc.

◆ ~BDSCurvilinearBuilder()

BDSCurvilinearBuilder::~BDSCurvilinearBuilder ( )

Definition at line 72 of file BDSCurvilinearBuilder.cc.

Member Function Documentation

◆ Angled()

G4bool BDSCurvilinearBuilder::Angled ( BDSBeamlineElement const *const element ) const

inlineprivate

Simple interrogation function to determine if an element has a finite angle or not.

Definition at line 144 of file BDSCurvilinearBuilder.hh.

References BDSBeamlineElement::GetAngle(), and BDS::IsFinite().

Referenced by CreateCurvilinearElement().

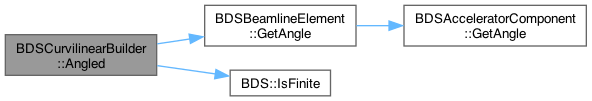

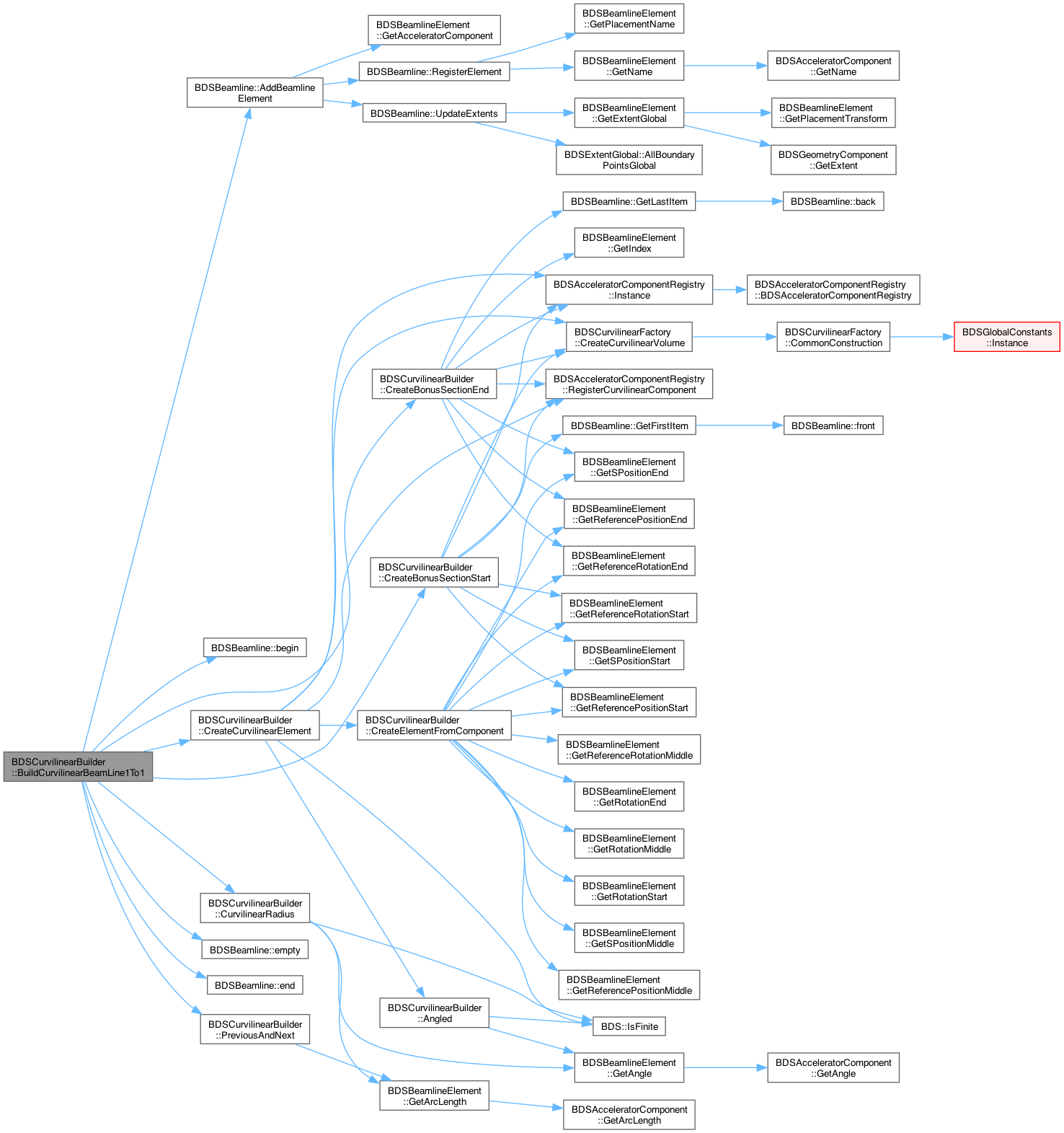

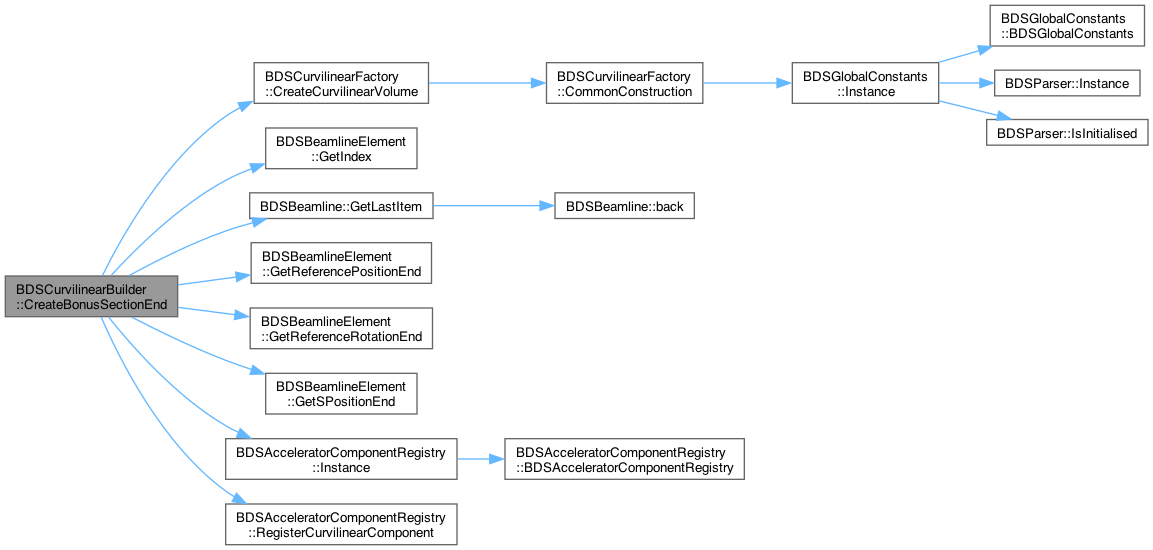

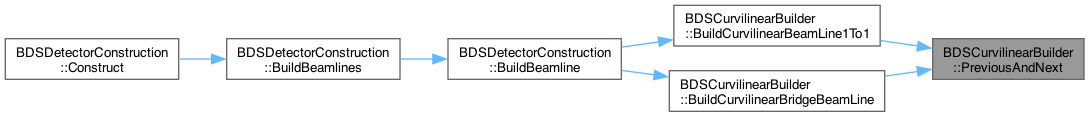

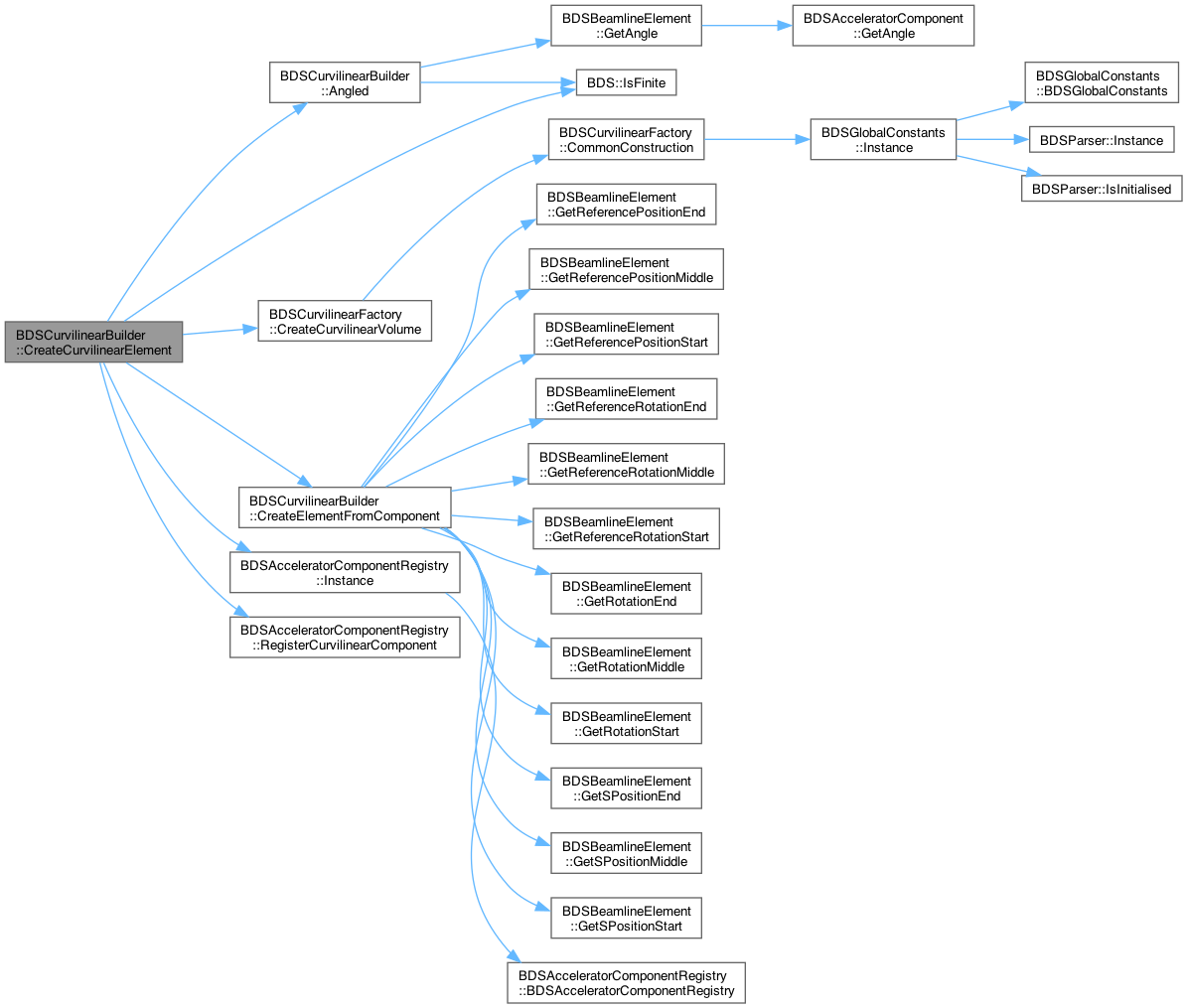

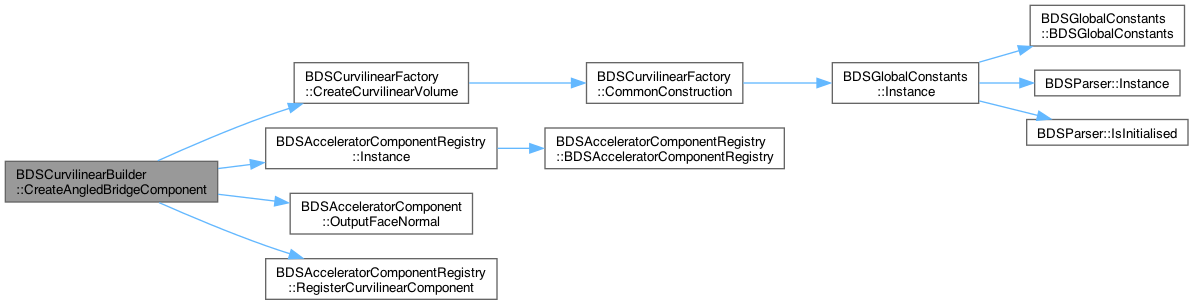

Here is the call graph for this function:

Here is the caller graph for this function:

◆ BuildCurvilinearBeamLine1To1()

BDSBeamline * BDSCurvilinearBuilder::BuildCurvilinearBeamLine1To1	(	BDSBeamline const *const	beamline,
		const G4bool	circular
	)

Build a beam line of curvilinear geometry based on another beam line.

Definition at line 77 of file BDSCurvilinearBuilder.cc.

References BDSBeamline::AddBeamlineElement(), BDSBeamline::begin(), CreateBonusSectionEnd(), CreateBonusSectionStart(), CreateCurvilinearElement(), CurvilinearRadius(), BDSBeamline::empty(), BDSBeamline::end(), and PreviousAndNext().

Referenced by BDSDetectorConstruction::BuildBeamline().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ BuildCurvilinearBridgeBeamLine()

BDSBeamline * BDSCurvilinearBuilder::BuildCurvilinearBridgeBeamLine ( BDSBeamline const *const beamline )

Build bridging volumes to join the curvilinear ones.

Definition at line 154 of file BDSCurvilinearBuilder.cc.

References BDSBeamline::AddBeamlineElement(), BDSBeamline::begin(), CreateBridgeSection(), CreateDefaultBridgeComponent(), CurvilinearRadius(), BDSBeamline::end(), and PreviousAndNext().

Referenced by BDSDetectorConstruction::BuildBeamline().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateAngledBridgeComponent()

BDSAcceleratorComponent * BDSCurvilinearBuilder::CreateAngledBridgeComponent	(	BDSBeamline::const_iterator	element,
		G4int &	numberOfUniqueComponents,
		G4double	suggestedRadius
	)

private

Create a unique accelerator component for an element with angled faces.

Definition at line 309 of file BDSCurvilinearBuilder.cc.

References BDSCurvilinearFactory::CreateCurvilinearVolume(), factory, BDSAcceleratorComponentRegistry::Instance(), BDSAcceleratorComponent::OutputFaceNormal(), and BDSAcceleratorComponentRegistry::RegisterCurvilinearComponent().

Referenced by CreateBridgeSection().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateBonusSectionEnd()

BDSBeamlineElement * BDSCurvilinearBuilder::CreateBonusSectionEnd ( BDSBeamline const *const beamline )

private

Create a small section to extend a linear beam line.

Definition at line 510 of file BDSCurvilinearBuilder.cc.

References bonusChordLength, BDSCurvilinearFactory::CreateCurvilinearVolume(), curvilinearRadius, factory, BDSBeamlineElement::GetIndex(), BDSBeamline::GetLastItem(), BDSBeamlineElement::GetReferencePositionEnd(), BDSBeamlineElement::GetReferenceRotationEnd(), BDSBeamlineElement::GetSPositionEnd(), BDSAcceleratorComponentRegistry::Instance(), paddingLength, and BDSAcceleratorComponentRegistry::RegisterCurvilinearComponent().

Referenced by BuildCurvilinearBeamLine1To1().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateBonusSectionStart()

BDSBeamlineElement * BDSCurvilinearBuilder::CreateBonusSectionStart ( BDSBeamline const *const beamline )

private

Create a small section to extend a linear beam line.

Definition at line 469 of file BDSCurvilinearBuilder.cc.

References bonusChordLength, BDSCurvilinearFactory::CreateCurvilinearVolume(), curvilinearRadius, factory, BDSBeamline::GetFirstItem(), BDSBeamlineElement::GetReferencePositionStart(), BDSBeamlineElement::GetReferenceRotationStart(), BDSBeamlineElement::GetSPositionStart(), BDSAcceleratorComponentRegistry::Instance(), paddingLength, and BDSAcceleratorComponentRegistry::RegisterCurvilinearComponent().

Referenced by BuildCurvilinearBeamLine1To1().

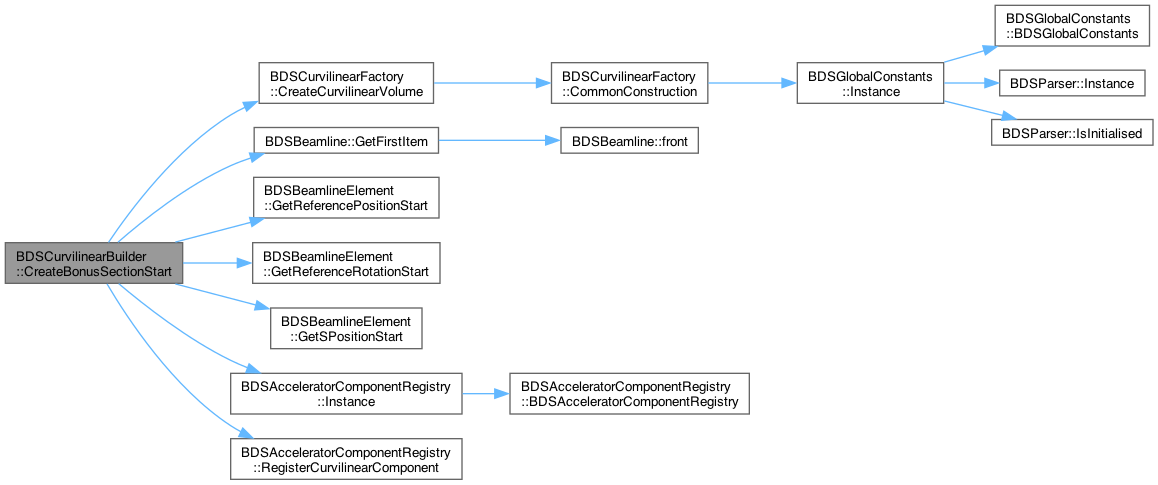

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateBridgeElementFromComponent()

BDSBeamlineElement * BDSCurvilinearBuilder::CreateBridgeElementFromComponent	(	BDSAcceleratorComponent *	component,
		BDSBeamline::const_iterator	element,
		BDSBeamline::const_iterator	nextElement,
		BDSBeamline::const_iterator	end,
		const G4int	beamlineIndex
	)

private

Package an accelerator component into a beam line element w.r.t. two particular elements. Again, can cope with nextElement == end.

Definition at line 335 of file BDSCurvilinearBuilder.cc.

References BDSAcceleratorComponent::GetChordLength(), BDSBeamlineElement::GetReferencePositionEnd(), BDSBeamlineElement::GetReferenceRotationEnd(), BDSBeamlineElement::GetSPositionEnd(), BDSBeamlineElement::GetSPositionStart(), and BDSBeamlineElement::GetTiltOffset().

Referenced by CreateBridgeSection().

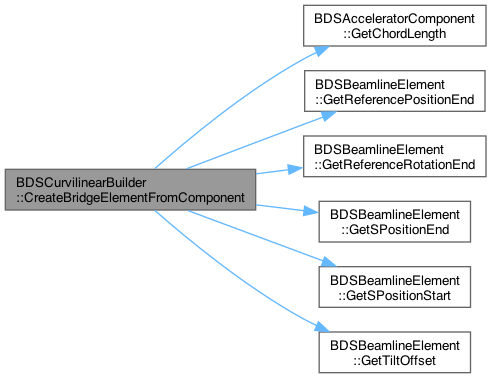

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateBridgeSection()

BDSBeamlineElement * BDSCurvilinearBuilder::CreateBridgeSection	(	BDSAcceleratorComponent *	defaultBridge,
		BDSBeamline::const_iterator	element,
		BDSBeamline::const_iterator	nextElement,
		BDSBeamline::const_iterator	end,
		G4int &	numberOfUniqueComponents,
		const G4int	beamlineIndex,
		G4double	crRadius
	)

private

Create a pre-made beam line element (because it's a non-continuous beam line) for a bridge section between two curvilinear volumes. Can cope if nextElement == end. numberOfUniqueComponents will be incremented if a new accelerator component is required. This is only done if the two components that are being bridged have angled faces. beamlineIndex is the index the element will have in the non-continuous beam line; the indices should be continuous. crRadius controls the radius of the component.

Definition at line 263 of file BDSCurvilinearBuilder.cc.

References CreateAngledBridgeComponent(), CreateBridgeElementFromComponent(), CreateStraightBridgeComponent(), and BDS::IsFinite().

Referenced by BuildCurvilinearBridgeBeamLine().

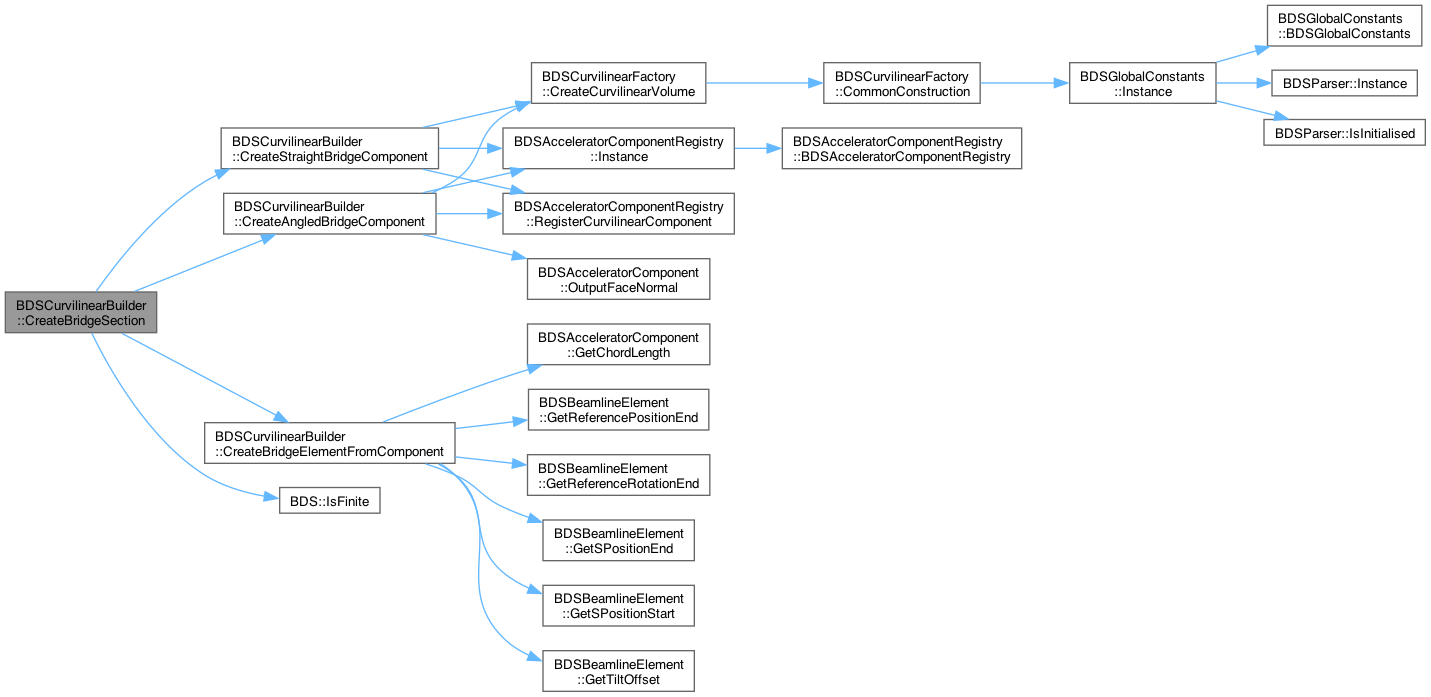

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateCurvilinearElement()

BDSBeamlineElement * BDSCurvilinearBuilder::CreateCurvilinearElement	(	const G4String &	elementName,
		BDSBeamline::const_iterator	startElement,
		BDSBeamline::const_iterator	finishElement,
		G4int	index,
		G4double	crRadius
	)

private

Create a curvilinear element for a beam line that represents the curvilinear coordinates between startElement and finishElement. This creates a BDSSimpleComponent first then wraps it in a pre-made BDSBeamlineElement. This must ONLY be used for a range of elements with the same tilt for the correct coordinate frame to be produced. The tilt is taken from the first element and assumed to be the same for all. The index is the index it'l have in the curvilinear beam line.

Definition at line 197 of file BDSCurvilinearBuilder.cc.

References Angled(), BDSCurvilinearFactory::CreateCurvilinearVolume(), CreateElementFromComponent(), factory, BDSAcceleratorComponentRegistry::Instance(), BDS::IsFinite(), paddingLength, and BDSAcceleratorComponentRegistry::RegisterCurvilinearComponent().

Referenced by BuildCurvilinearBeamLine1To1().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateDefaultBridgeComponent()

BDSAcceleratorComponent * BDSCurvilinearBuilder::CreateDefaultBridgeComponent ( )

private

Create a single flat sided accelerator component for a small bridge volume. Intended to be reused as the default.

Definition at line 286 of file BDSCurvilinearBuilder.cc.

References BDSCurvilinearFactory::CreateCurvilinearVolume(), curvilinearRadius, factory, BDSAcceleratorComponentRegistry::Instance(), and BDSAcceleratorComponentRegistry::RegisterCurvilinearComponent().

Referenced by BuildCurvilinearBridgeBeamLine().

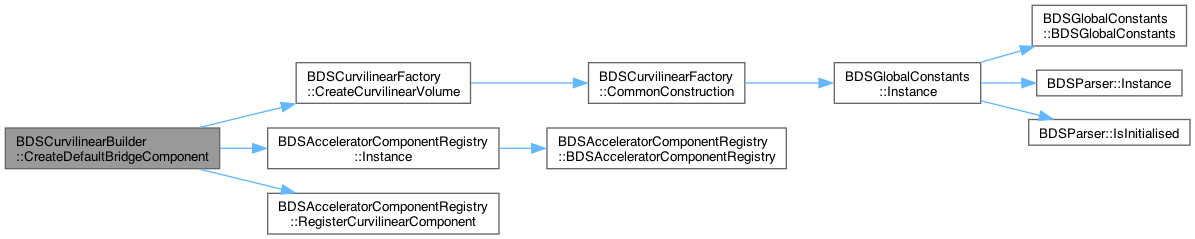

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateElementFromComponent()

BDSBeamlineElement * BDSCurvilinearBuilder::CreateElementFromComponent	(	BDSSimpleComponent *	component,
		BDSBeamline::const_iterator	startElement,
		BDSBeamline::const_iterator	finishElement,
		G4int	index
	)

private

Create the BDSBeamlineElement by wrapping a BDSSimpleComponent.

Definition at line 386 of file BDSCurvilinearBuilder.cc.

Referenced by CreateCurvilinearElement().

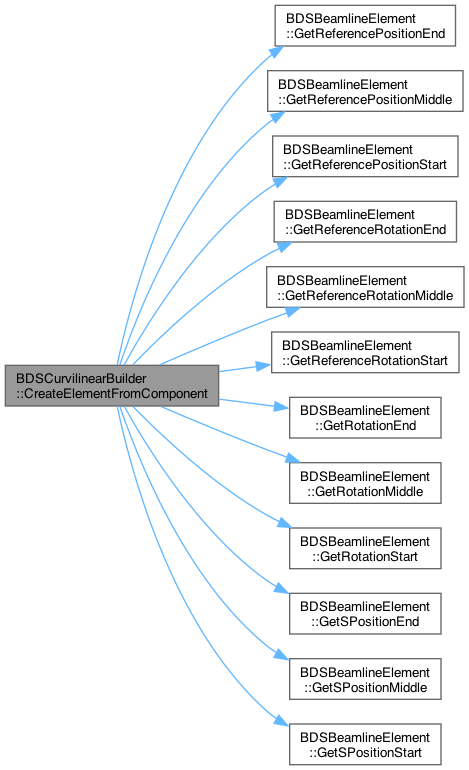

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateStraightBridgeComponent()

BDSAcceleratorComponent * BDSCurvilinearBuilder::CreateStraightBridgeComponent	(	G4double	width,
		G4int &	numberOfUniqueComponents
	)

private

Create a unique accelerator component for an element that's straight, but with a specific width.

Definition at line 298 of file BDSCurvilinearBuilder.cc.

References BDSCurvilinearFactory::CreateCurvilinearVolume(), factory, BDSAcceleratorComponentRegistry::Instance(), and BDSAcceleratorComponentRegistry::RegisterCurvilinearComponent().

Referenced by CreateBridgeSection().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CurvilinearRadius()

G4double BDSCurvilinearBuilder::CurvilinearRadius ( const BDSBeamlineElement * el ) const

private

Return the minimum of the (default) member curvilinearRadius and the radiusTolerance member * the radius from the arc length and the bending angle. If nullptr give, returns curvilinearRadius.

Definition at line 183 of file BDSCurvilinearBuilder.cc.

References curvilinearRadius, BDSBeamlineElement::GetAngle(), BDSBeamlineElement::GetArcLength(), and BDS::IsFinite().

Referenced by BuildCurvilinearBeamLine1To1(), and BuildCurvilinearBridgeBeamLine().

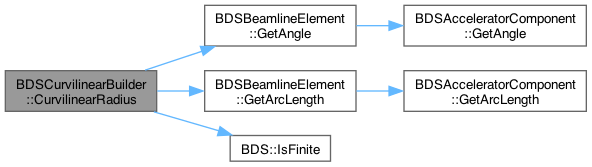

Here is the call graph for this function:

Here is the caller graph for this function:

◆ PreviousAndNext()

void BDSCurvilinearBuilder::PreviousAndNext	(	BDSBeamline::const_iterator	it,
		BDSBeamline::const_iterator	startIt,
		BDSBeamline::const_iterator	endIt,
		const BDSBeamlineElement *&	previous,
		const BDSBeamlineElement *&	next
	)		const

private

Safely give a pointer to the previous and next items, excluding items below 0.1mm (ie short items such as fringes). Sets pointers to nullptr if at beginning or end.

Definition at line 116 of file BDSCurvilinearBuilder.cc.

References BDSBeamlineElement::GetArcLength().

Referenced by BuildCurvilinearBeamLine1To1(), and BuildCurvilinearBridgeBeamLine().

Here is the call graph for this function:

Here is the caller graph for this function:

Field Documentation

◆ bonusChordLength

G4double BDSCurvilinearBuilder::bonusChordLength

private

Length of any possible bonus section added to beginning and end.

Definition at line 138 of file BDSCurvilinearBuilder.hh.

Referenced by CreateBonusSectionEnd(), and CreateBonusSectionStart().

◆ curvilinearRadius

G4double BDSCurvilinearBuilder::curvilinearRadius

private

Radius for curvilinear geometry.

Definition at line 136 of file BDSCurvilinearBuilder.hh.

Referenced by CreateBonusSectionEnd(), CreateBonusSectionStart(), CreateDefaultBridgeComponent(), and CurvilinearRadius().

◆ defaultBridgeLength

G4double BDSCurvilinearBuilder::defaultBridgeLength

private

Definition at line 135 of file BDSCurvilinearBuilder.hh.

◆ factory

BDSCurvilinearFactory* BDSCurvilinearBuilder::factory

private

Factory to build curvilinear geometry.

Definition at line 141 of file BDSCurvilinearBuilder.hh.

Referenced by CreateAngledBridgeComponent(), CreateBonusSectionEnd(), CreateBonusSectionStart(), CreateCurvilinearElement(), CreateDefaultBridgeComponent(), and CreateStraightBridgeComponent().

◆ paddingLength

G4double BDSCurvilinearBuilder::paddingLength

private

Length that was used for padding on the beam line we're building with respesct to.

Definition at line 134 of file BDSCurvilinearBuilder.hh.

Referenced by CreateBonusSectionEnd(), CreateBonusSectionStart(), and CreateCurvilinearElement().

◆ radiusTolerance

G4double BDSCurvilinearBuilder::radiusTolerance

private

Definition at line 137 of file BDSCurvilinearBuilder.hh.

The documentation for this class was generated from the following files:

/Users/lnevay/physics/reps/bdsim/include/BDSCurvilinearBuilder.hh
/Users/lnevay/physics/reps/bdsim/src/BDSCurvilinearBuilder.cc

Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ BDSCurvilinearBuilder()

◆ ~BDSCurvilinearBuilder()

Member Function Documentation

◆ Angled()

◆ BuildCurvilinearBeamLine1To1()

◆ BuildCurvilinearBridgeBeamLine()

◆ CreateAngledBridgeComponent()

◆ CreateBonusSectionEnd()

◆ CreateBonusSectionStart()

◆ CreateBridgeElementFromComponent()

◆ CreateBridgeSection()

◆ CreateCurvilinearElement()

◆ CreateDefaultBridgeComponent()

◆ CreateElementFromComponent()

◆ CreateStraightBridgeComponent()

◆ CurvilinearRadius()

◆ PreviousAndNext()

Field Documentation

◆ bonusChordLength

◆ curvilinearRadius

◆ defaultBridgeLength

◆ factory

◆ paddingLength

◆ radiusTolerance
