Abstract base class that implements features common to all magnets. More...

#include <BDSMagnet.hh>

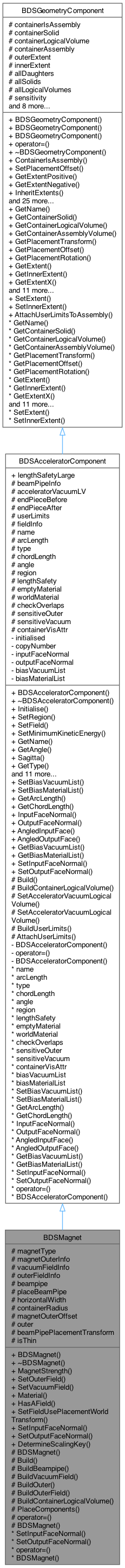

Inheritance diagram for BDSMagnet:

Collaboration diagram for BDSMagnet:

Public Member Functions
	BDSMagnet (BDSMagnetType type, const G4String &name, G4double length, BDSBeamPipeInfo beamPipeInfo, BDSMagnetOuterInfo magnetOuterInfo, BDSFieldInfo vacuumFieldInfoIn, G4double angle=0, BDSFieldInfo outerFieldInfoIn=nullptr, G4bool isThin=false)

const BDSMagnetStrength *	MagnetStrength () const

void	SetOuterField (BDSFieldInfo *outerFieldInfoIn)
	@ { Delete existing field info and replace.

void	SetVacuumField (BDSFieldInfo *vacuumFieldInfoIn)

virtual G4String	Material () const
	Accessor to outer material if it exists.

virtual G4bool	HasAField () const
	Override for a magnet - test on either field definition.

virtual void	SetFieldUsePlacementWorldTransform ()
	Override function as we have different field recipe objects.


virtual void	SetInputFaceNormal (const G4ThreeVector &input)
	Update face normal and also to beam pipe and magnet outer.

virtual void	SetOutputFaceNormal (const G4ThreeVector &output)
	Update face normal and also to beam pipe and magnet outer.

Public Member Functions inherited from BDSAcceleratorComponent
	BDSAcceleratorComponent (const G4String &name, G4double arcLength, G4double angle, const G4String &type, BDSBeamPipeInfo beamPipeInfo=nullptr, const G4ThreeVector &inputFaceNormalIn=G4ThreeVector(0, 0,-1), const G4ThreeVector &outputFaceNormalIn=G4ThreeVector(0, 0, 1), BDSFieldInfo fieldInfoIn=nullptr)

virtual void	Initialise ()

virtual void	SetRegion (const G4String &regionIn)
	Set the region name for this component.

void	SetField (BDSFieldInfo *fieldInfoIn)
	Set the field definition for the whole component.

virtual void	SetMinimumKineticEnergy (G4double)

virtual G4String	GetName () const
	The name of the component without modification.

G4double	GetAngle () const

G4double	Sagitta () const
	Calculate the sagitta - ie the distance between the chord and the arc at the centre.

G4String	GetType () const
	Get a string describing the type of the component.

G4String	GetRegion () const
	Get the region name for this component.

virtual G4bool	HasAField () const
	Whether this component has a field or not (ie is active). Implicit cast of pointer to bool.

virtual void	SetFieldUsePlacementWorldTransform ()

BDSBeamPipeInfo *	GetBeamPipeInfo () const

virtual G4String	Material () const
	Return the name of a material associated with the component - ie the primary material.

virtual std::set< G4LogicalVolume * >	GetAcceleratorVacuumLogicalVolumes () const
	Access the 'vacuum' volume(s) in this component if any. Default is empty set.

virtual std::set< G4LogicalVolume * >	GetAcceleratorMaterialLogicalVolumes () const
	Return a set of logical volumes excluding the ones in the 'vacuum' set.

void	IncrementCopyNumber ()
	Increment (+1) the number of times this component has been copied.

G4int	GetCopyNumber () const
	Get the number of times this component has been copied.

BDSSimpleComponent *	EndPieceBefore () const

BDSSimpleComponent *	EndPieceAfter () const

virtual void	SetBiasVacuumList (const std::list< std::string > &biasVacuumListIn)
	Copy the bias list to this element.

virtual void	SetBiasMaterialList (const std::list< std::string > &biasMaterialListIn)
	Copy the bias list to this element.

virtual G4double	GetArcLength () const

virtual G4double	GetChordLength () const

G4ThreeVector	InputFaceNormal () const

G4ThreeVector	OutputFaceNormal () const

G4bool	AngledInputFace () const
	Whether the face normal is angled at all w.r.t. the incoming / outgoing reference trajectory.

G4bool	AngledOutputFace () const
	Whether the face normal is angled at all w.r.t. the incoming / outgoing reference trajectory.

std::list< std::string >	GetBiasVacuumList () const
	Access the bias list copied from parser.

std::list< std::string >	GetBiasMaterialList () const
	Access the bias list copied from parser.

Public Member Functions inherited from BDSGeometryComponent
	BDSGeometryComponent (G4VSolid containerSolidIn, G4LogicalVolume containerLVIn, const BDSExtent &extentIn=BDSExtent(), const BDSExtent &innerExtentIn=BDSExtent(), const G4ThreeVector &placementOffsetIn=G4ThreeVector(0, 0, 0), G4RotationMatrix *placementRotationIn=nullptr)

	BDSGeometryComponent (G4AssemblyVolume containerAssemblyIn, const BDSExtent &extentIn=BDSExtent(), const BDSExtent &innerExtentIn=BDSExtent(), const G4ThreeVector &placementOffsetIn=G4ThreeVector(0, 0, 0), G4RotationMatrix placementRotationIn=nullptr)

	BDSGeometryComponent (const BDSGeometryComponent &component)
	Copy constructor (no copying of registered objects)

BDSGeometryComponent &	operator= (const BDSGeometryComponent &)=delete
	Assignment operator not used.

G4bool	ContainerIsAssembly () const
	Whether the container is an assembly. If not, it's a logical volume.

void	SetPlacementOffset (const G4ThreeVector &offsetIn)
	Set the offset from 0,0,0 that the object should ideally be placed in its parent.

G4ThreeVector	GetExtentPositive () const
	Get the extent of the object in the positive direction in all dimensions.

G4ThreeVector	GetExtentNegative () const
	Get the extent of the object in the negative direction in all dimensions.

void	InheritExtents (BDSGeometryComponent const *const anotherComponent)
	Update the extents of this object with those of another object.

void	InheritExtents (BDSGeometryComponent const *const anotherComponent, const G4ThreeVector &offset)

void	RegisterDaughter (BDSGeometryComponent *anotherComponent)

void	RegisterSolid (G4VSolid *solid)

void	RegisterSolid (const std::set< G4VSolid * > &solids)
	Similarly for a set of unique solids.

void	RegisterLogicalVolume (G4LogicalVolume *logicalVolume)

void	RegisterLogicalVolume (const std::set< G4LogicalVolume * > &localVolumes)
	Apply RegisterLogicalVolume() to a set of logical volumes.

void	RegisterSensitiveVolume (G4LogicalVolume *sensitiveVolume, BDSSDType sensitivityType)

void	RegisterSensitiveVolume (const std::set< G4LogicalVolume * > &sensitiveVolumes, BDSSDType sensitivityType)

void	RegisterSensitiveVolume (const std::map< G4LogicalVolume *, BDSSDType > &sensitiveVolumes)
	Copy in a mapping of sensitive volumes to sensitive detectors.

void	RegisterPhysicalVolume (G4VPhysicalVolume *physicalVolume)

void	RegisterPhysicalVolume (const std::set< G4VPhysicalVolume * > &physicalVolumes)
	Apply RegisterPhysicalVolume() to a set of physical volumes.

void	RegisterRotationMatrix (G4RotationMatrix *rotationMatrix)

void	RegisterRotationMatrix (const std::set< G4RotationMatrix * > &rotationMatrices)
	Apply Register RotationMatrix() to a set of rotation matrices.

void	RegisterVisAttributes (G4VisAttributes *visAttribute)

void	RegisterVisAttributes (const std::set< G4VisAttributes * > &visAttributes)
	Apply RegisterVisAttribute() to a set of visualisation attributes.

void	RegisterUserLimits (G4UserLimits *userLimit)

void	RegisterUserLimits (const std::set< G4UserLimits * > &userLimits)
	Apply RegisterUserLimit to a set of user limits.

void	InheritObjects (BDSGeometryComponent *component)

virtual std::set< G4LogicalVolume * >	GetAllLogicalVolumes () const
	Access all logical volumes belonging to this component.

virtual std::set< G4LogicalVolume * >	GetAllBiasingVolumes () const
	Return all logical volumes that should be used for biasing minus any that are in the excluded set.

virtual std::map< G4LogicalVolume *, BDSSDType >	GetAllSensitiveVolumes () const
	Access all sensitive volumes belonging to this component.

void	MakeAllVolumesSensitive (BDSSDType stype=BDSSDType::energydep)

virtual void	AttachSensitiveDetectors ()
	Attach a sensitive detector class to all registered sensitive volumes in this component.

virtual void	ExcludeLogicalVolumeFromBiasing (G4LogicalVolume *lv)

void	StripOuterAndMakeAssemblyVolume ()
	Change from a container logical volume to an assembly volume.

G4VSolid *	GetContainerSolid () const
	Accessor - see member for more info.

G4LogicalVolume *	GetContainerLogicalVolume () const
	Accessor - see member for more info.

G4AssemblyVolume *	GetContainerAssemblyVolume () const
	Accessor - see member for more info.

G4Transform3D	GetPlacementTransform () const
	Accessor - see member for more info.

G4ThreeVector	GetPlacementOffset () const
	Accessor - see member for more info.

G4RotationMatrix *	GetPlacementRotation () const
	Accessor - see member for more info.

BDSExtent	GetExtent () const
	Accessor - see member for more info.

BDSExtent	GetInnerExtent () const
	Accessor - see member for more info.

std::pair< G4double, G4double >	GetExtentX () const
	Accessor - see member for more info.

std::pair< G4double, G4double >	GetExtentY () const
	Accessor - see member for more info.

std::pair< G4double, G4double >	GetExtentZ () const
	Accessor - see member for more info.

std::pair< G4double, G4double >	GetInnerExtentX () const
	Accessor - see member for more info.

std::pair< G4double, G4double >	GetInnerExtentY () const
	Accessor - see member for more info.

std::pair< G4double, G4double >	GetInnerExtentZ () const
	Accessor - see member for more info.

virtual std::set< G4VPhysicalVolume * >	GetAllPhysicalVolumes () const
	Accessor - see member for more info.

virtual std::set< G4RotationMatrix * >	GetAllRotationMatrices () const
	Accessor - see member for more info.

virtual std::set< G4VisAttributes * >	GetAllVisAttributes () const
	Accessor - see member for more info.

virtual std::set< G4UserLimits * >	GetAllUserLimits () const
	Accessor - see member for more info.

virtual std::set< BDSGeometryComponent * >	GetAllDaughters () const
	Accessor - see member for more info.

virtual std::set< G4VSolid * >	GetAllSolids () const
	Accessor - see member for more info.

void	SetExtent (const BDSExtent &extIn)
	Set extent.

void	SetInnerExtent (const BDSExtent &extIn)
	Set extent.

Static Public Member Functions
static G4String	DetermineScalingKey (BDSMagnetType typeIn)

Static Public Member Functions inherited from BDSGeometryComponent
static void	AttachUserLimitsToAssembly (G4AssemblyVolume av, G4UserLimits ul)
	Utility function to apply user limits to an assembly volume as there's not interface.

Protected Member Functions
	BDSMagnet ()=delete
	Private default constructor to force the use of the supplied one.

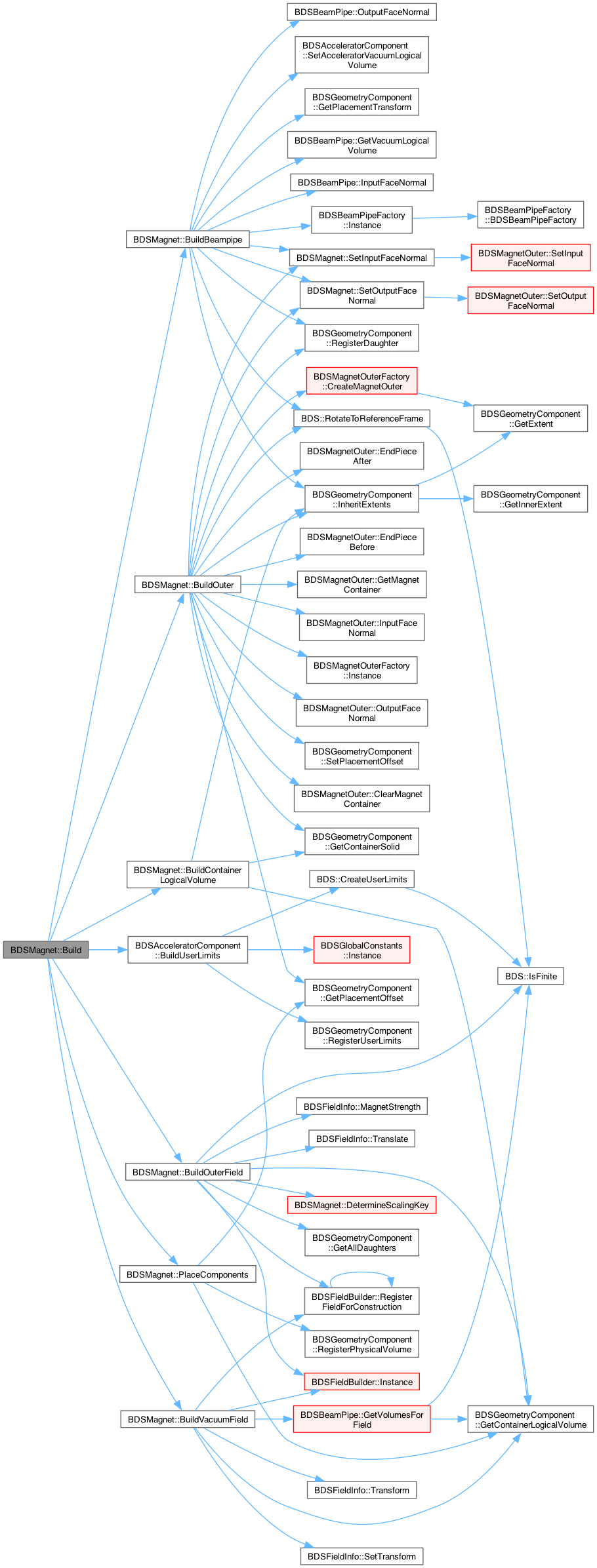

virtual void	Build ()

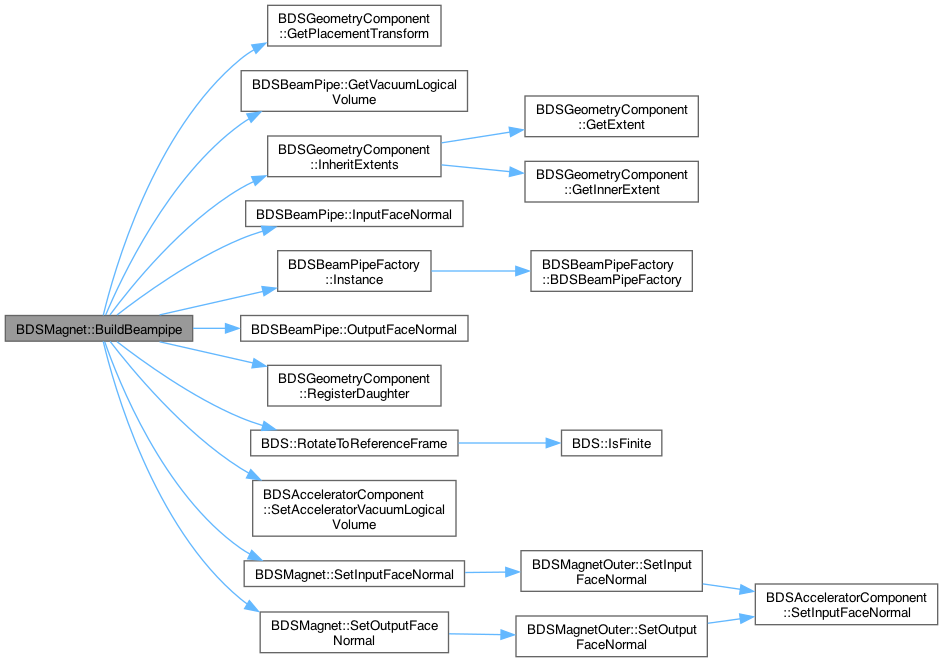

virtual void	BuildBeampipe ()

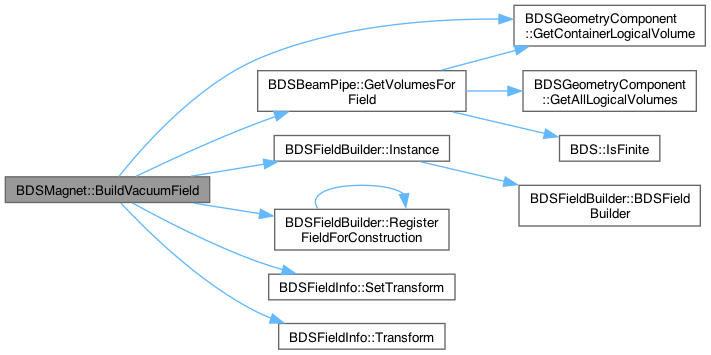

virtual void	BuildVacuumField ()
	Construct the field for the vacuum and attach it.

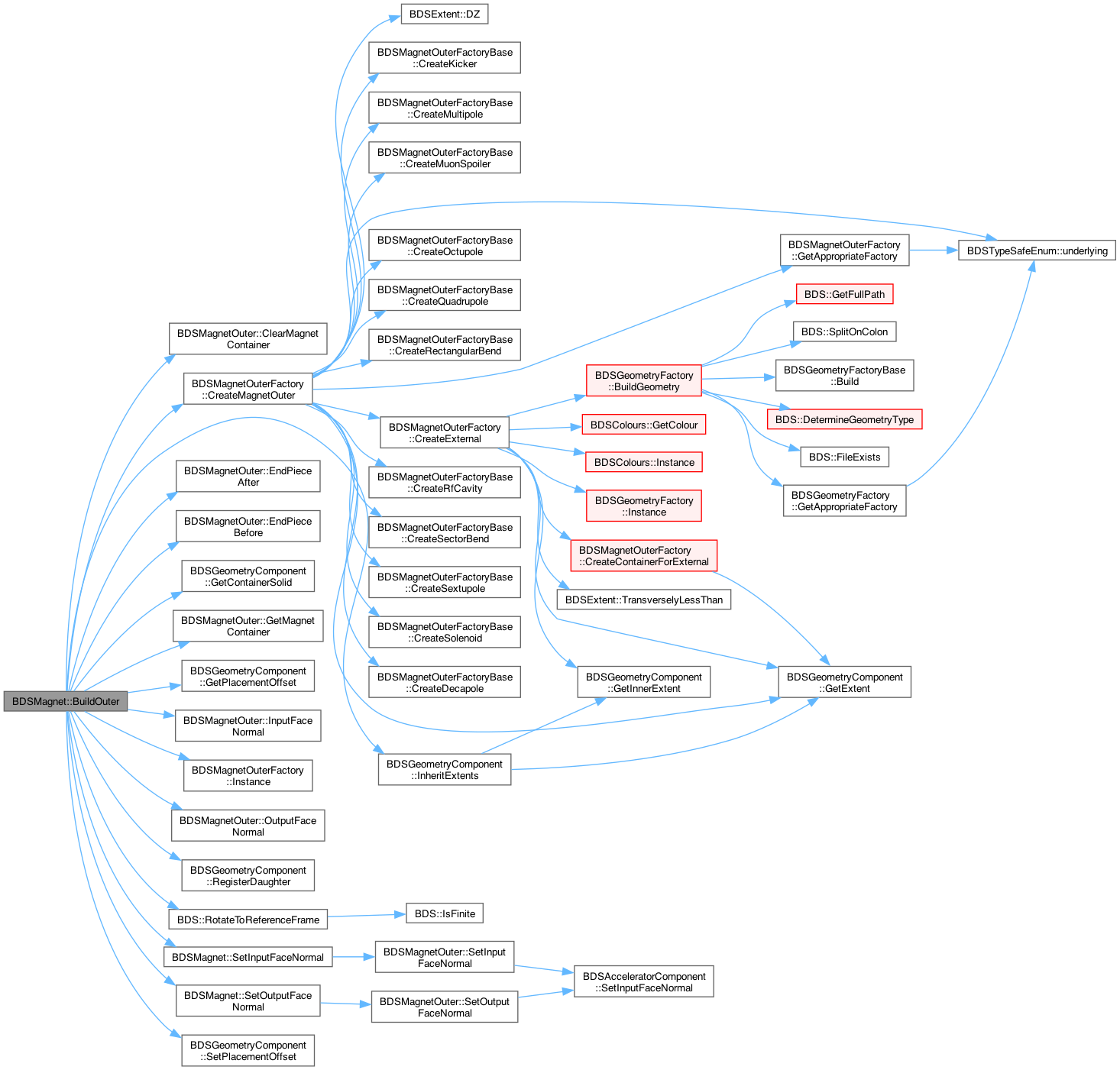

virtual void	BuildOuter ()

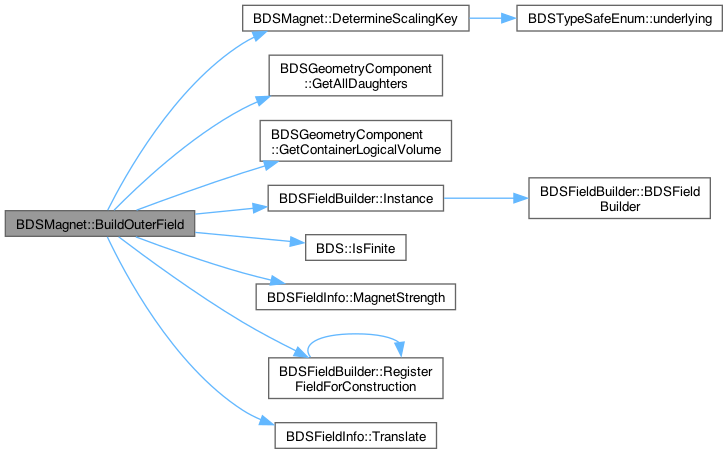

virtual void	BuildOuterField ()
	Construct the magnetic field for the outer magnet geometry.

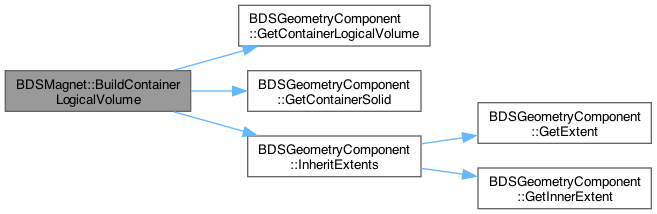

virtual void	BuildContainerLogicalVolume ()

virtual void	PlaceComponents ()


BDSMagnet &	operator= (const BDSMagnet &)=delete
	Assignment and copy constructor not implemented nor used.

	BDSMagnet (BDSMagnet &)=delete
	Assignment and copy constructor not implemented nor used.

Protected Member Functions inherited from BDSAcceleratorComponent
virtual void	Build ()

virtual void	BuildContainerLogicalVolume ()=0

void	SetAcceleratorVacuumLogicalVolume (G4LogicalVolume *accVacLVIn)

void	SetAcceleratorVacuumLogicalVolume (const std::set< G4LogicalVolume * > &accVacLVIn)

virtual void	BuildUserLimits ()

virtual void	AttachUserLimits () const
	Doesn't change member variables, but may change their contents.

Protected Attributes
BDSMagnetType	magnetType
	Magnet type.

BDSMagnetOuterInfo *	magnetOuterInfo
	Model information for the outer volume construction.

BDSFieldInfo *	vacuumFieldInfo
	Field information for vacuum field.

BDSFieldInfo *	outerFieldInfo
	Field information for outer magnetic field (optional)

BDSBeamPipe *	beampipe
	The constructed beampipe.

G4bool	placeBeamPipe

G4double	horizontalWidth
	For outer volume construction.

G4double	containerRadius

G4ThreeVector	magnetOuterOffset

BDSMagnetOuter *	outer
	The assembled outer magnet geometry.

G4Transform3D	beamPipePlacementTransform

G4bool	isThin
	Boolean to store if the element is thin - will have no geometry constructed.

Protected Attributes inherited from BDSAcceleratorComponent
BDSBeamPipeInfo *	beamPipeInfo
	Optional beam pipe recipe that is written out to the survey if it exists.

std::set< G4LogicalVolume * >	acceleratorVacuumLV
	A set of logical volumes we classify as 'vacuum' for biasing purposes.

BDSSimpleComponent *	endPieceBefore

BDSSimpleComponent *	endPieceAfter

G4UserLimits *	userLimits
	Cache of user limits.

BDSFieldInfo *	fieldInfo
	Recipe for field that could overlay this whole component.

const G4String	name
	Const protected member variable that may not be changed by derived classes.

const G4double	arcLength
	Const protected member variable that may not be changed by derived classes.

const G4String	type
	Const protected member variable that may not be changed by derived classes.

G4double	chordLength
	Protected member variable that can be modified by derived classes.

G4double	angle
	Protected member variable that can be modified by derived classes.

G4String	region
	Protected member variable that can be modified by derived classes.

Protected Attributes inherited from BDSGeometryComponent
G4bool	containerIsAssembly
	True if the 'container' is really an assembly; false if an LV.

G4VSolid *	containerSolid

G4LogicalVolume *	containerLogicalVolume

G4AssemblyVolume *	containerAssembly

BDSExtent	outerExtent

BDSExtent	innerExtent

std::set< BDSGeometryComponent * >	allDaughters
	registry of all daughter geometry components

std::set< G4VSolid * >	allSolids
	registry of all solids belonging to this component

std::set< G4LogicalVolume * >	allLogicalVolumes

std::map< G4LogicalVolume *, BDSSDType >	sensitivity

G4bool	overrideSensitivity

std::set< G4VPhysicalVolume * >	allPhysicalVolumes
	registry of all physical volumes belonging to this component

std::set< G4RotationMatrix * >	allRotationMatrices
	registry of all rotation matrices belonging to this component

std::set< G4VisAttributes * >	allVisAttributes
	registry of all visualisation attributes belonging to this component

std::set< G4UserLimits * >	allUserLimits
	registry of all user limits belonging to this component

G4ThreeVector	placementOffset

G4RotationMatrix *	placementRotation

std::set< G4LogicalVolume * > *	lvsExcludedFromBiasing
	Volumes that should not be included when return GetAllBiasingVolumes().

Additional Inherited Members
Static Public Attributes inherited from BDSAcceleratorComponent
static G4double	lengthSafetyLarge = 0

Static Protected Attributes inherited from BDSAcceleratorComponent
static G4double	lengthSafety = -1
	Useful variable often used in construction.

static G4Material *	emptyMaterial = nullptr
	Useful variable often used in construction.

static G4Material *	worldMaterial = nullptr
	Useful variable often used in construction.

static G4bool	checkOverlaps = false
	Useful variable often used in construction.

static G4bool	sensitiveOuter = true
	Useful variable often used in construction.

static G4bool	sensitiveVacuum = false
	Useful variable often used in construction.

static G4VisAttributes *	containerVisAttr = nullptr
	Useful variable often used in construction.

Detailed Description

Abstract base class that implements features common to all magnets.

Magnet consists of a beam pipe (with optional field) and an 'outer' (with optional field) both placed in the same level in a container volume. The outer is typically a yoke but can be any geometry as long as it doesn't overlap with the beam pipe placed at the same level.

Author: Laurie Nevay

Definition at line 44 of file BDSMagnet.hh.

Constructor & Destructor Documentation

◆ BDSMagnet()

BDSMagnet::BDSMagnet	(	BDSMagnetType	type,
		const G4String &	name,
		G4double	length,
		BDSBeamPipeInfo *	beamPipeInfo,
		BDSMagnetOuterInfo *	magnetOuterInfo,
		BDSFieldInfo *	vacuumFieldInfoIn,
		G4double	angle = `0`,
		BDSFieldInfo *	outerFieldInfoIn = `nullptr`,
		G4bool	isThin = `false`
	)

Magnet base class constructor that is for basic geometric information rather magnetic field details, which are handled in the derived classes

Definition at line 50 of file BDSMagnet.cc.

References beampipe, BDSBeamPipeInfo::beamPipeType, containerRadius, BDSAcceleratorComponent::GetBeamPipeInfo(), horizontalWidth, isThin, magnetOuterInfo, outer, and placeBeamPipe.

Here is the call graph for this function:

◆ ~BDSMagnet()

BDSMagnet::~BDSMagnet ( )

virtual

Definition at line 352 of file BDSMagnet.cc.

Member Function Documentation

◆ Build()

void BDSMagnet::Build ( )

protectedvirtual

Overridden method of BDSAcceleratorComponent to not only build container, but first construct field objects. After using BDSAcceleratorComponent::Build() to build the container, the beam pipe and outer geometry are built.

Reimplemented from BDSAcceleratorComponent.

Definition at line 137 of file BDSMagnet.cc.

References BuildBeampipe(), BuildContainerLogicalVolume(), BuildOuter(), BuildOuterField(), BDSAcceleratorComponent::BuildUserLimits(), BuildVacuumField(), and PlaceComponents().

Here is the call graph for this function:

◆ BuildBeampipe()

void BDSMagnet::BuildBeampipe ( )

protectedvirtual

Construct a general straight piece of beampipe. Virtual so it can be overloaded by derived classes as required - such as RBend.

Update record of normal vectors now beam pipe has been constructed.

Definition at line 151 of file BDSMagnet.cc.

References BDSAcceleratorComponent::angle, beampipe, BDSAcceleratorComponent::beamPipeInfo, beamPipePlacementTransform, BDSAcceleratorComponent::chordLength, BDSGeometryComponent::GetPlacementTransform(), BDSBeamPipe::GetVacuumLogicalVolume(), BDSGeometryComponent::InheritExtents(), BDSBeamPipe::InputFaceNormal(), BDSBeamPipeFactory::Instance(), BDSAcceleratorComponent::lengthSafety, BDSAcceleratorComponent::name, BDSBeamPipe::OutputFaceNormal(), BDSGeometryComponent::RegisterDaughter(), BDS::RotateToReferenceFrame(), BDSAcceleratorComponent::SetAcceleratorVacuumLogicalVolume(), SetInputFaceNormal(), and SetOutputFaceNormal().

Referenced by Build().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ BuildContainerLogicalVolume()

void BDSMagnet::BuildContainerLogicalVolume ( )

protectedvirtual

Necessary to provide this function a la BDSAcceleratorComponent. If there's an outer geometry, the containerSolid will have been set and build it into a logical volume. If no outer geometry, use the beam pipe container as this objects container in which case no need to build any logical volumes. Update extents if necessary.

Implements BDSAcceleratorComponent.

Definition at line 277 of file BDSMagnet.cc.

References beampipe, BDSAcceleratorComponent::containerVisAttr, BDSAcceleratorComponent::emptyMaterial, BDSGeometryComponent::GetContainerLogicalVolume(), BDSGeometryComponent::GetContainerSolid(), BDSGeometryComponent::InheritExtents(), BDSAcceleratorComponent::name, outer, placeBeamPipe, and BDSAcceleratorComponent::userLimits.

Referenced by Build().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ BuildOuter()

void BDSMagnet::BuildOuter ( )

protectedvirtual

Construct the outer magnet geometry beit poled geometry or cylinders. This function switches on the member variable of BDSMagnetType type, so is contained in the base class.

Update record of normal vectors now beam pipe has been constructed.

Definition at line 194 of file BDSMagnet.cc.

References BDSAcceleratorComponent::angle, beampipe, BDSAcceleratorComponent::chordLength, BDSMagnetOuter::ClearMagnetContainer(), BDSMagnetOuterFactory::CreateMagnetOuter(), BDSMagnetOuter::EndPieceAfter(), BDSMagnetOuter::EndPieceBefore(), BDSGeometryComponent::GetContainerSolid(), BDSMagnetOuter::GetMagnetContainer(), BDSGeometryComponent::GetPlacementOffset(), BDSGeometryComponent::InheritExtents(), BDSMagnetOuter::InputFaceNormal(), BDSMagnetOuterFactory::Instance(), BDSAcceleratorComponent::lengthSafety, magnetOuterInfo, magnetType, outer, BDSMagnetOuter::OutputFaceNormal(), BDSGeometryComponent::RegisterDaughter(), BDS::RotateToReferenceFrame(), SetInputFaceNormal(), SetOutputFaceNormal(), and BDSGeometryComponent::SetPlacementOffset().

Referenced by Build().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ BuildOuterField()

void BDSMagnet::BuildOuterField ( )

protectedvirtual

Construct the magnetic field for the outer magnet geometry.

Definition at line 231 of file BDSMagnet.cc.

References BDSMagnetOuterFactoryLHC::beamSeparation, DetermineScalingKey(), BDSGeometryComponent::GetAllDaughters(), BDSGeometryComponent::GetContainerLogicalVolume(), BDSFieldBuilder::Instance(), BDS::IsFinite(), magnetOuterInfo, BDSFieldInfo::MagnetStrength(), magnetType, outer, outerFieldInfo, BDSFieldBuilder::RegisterFieldForConstruction(), BDSFieldInfo::Translate(), and vacuumFieldInfo.

Referenced by Build().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ BuildVacuumField()

void BDSMagnet::BuildVacuumField ( )

protectedvirtual

Construct the field for the vacuum and attach it.

Definition at line 169 of file BDSMagnet.cc.

References beampipe, beamPipePlacementTransform, BDSGeometryComponent::GetContainerLogicalVolume(), BDSBeamPipe::GetVolumesForField(), BDSFieldBuilder::Instance(), isThin, BDSFieldBuilder::RegisterFieldForConstruction(), BDSFieldInfo::SetTransform(), BDSFieldInfo::Transform(), and vacuumFieldInfo.

Referenced by Build().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DetermineScalingKey()

G4String BDSMagnet::DetermineScalingKey ( BDSMagnetType typeIn )

static

Determine which is the appropriate key to query a BDSMagnetStrength with for a given type of magnet.

Definition at line 91 of file BDSMagnet.cc.

References BDSTypeSafeEnum< def, inner >::underlying().

Referenced by BuildOuterField().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ HasAField()

virtual G4bool BDSMagnet::HasAField ( ) const

inlinevirtual

Override for a magnet - test on either field definition.

Reimplemented from BDSAcceleratorComponent.

Definition at line 81 of file BDSMagnet.hh.

References outerFieldInfo, and vacuumFieldInfo.

◆ MagnetStrength()

const BDSMagnetStrength * BDSMagnet::MagnetStrength ( ) const

inline

Definition at line 61 of file BDSMagnet.hh.

◆ Material()

G4String BDSMagnet::Material ( ) const

virtual

Accessor to outer material if it exists.

Reimplemented from BDSAcceleratorComponent.

Definition at line 129 of file BDSMagnet.cc.

References magnetOuterInfo, and BDSAcceleratorComponent::Material().

Here is the call graph for this function:

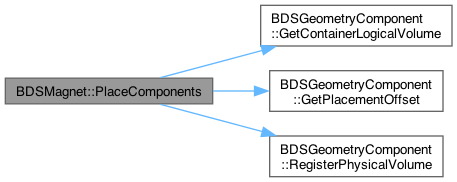

◆ PlaceComponents()

void BDSMagnet::PlaceComponents ( )

protectedvirtual

Place the beam pipe and outer geometry in the overall container. If there's no outer geometry, then we don't need to place either as the beam pipe becomes the container.

Definition at line 303 of file BDSMagnet.cc.

References beampipe, BDSAcceleratorComponent::checkOverlaps, BDSGeometryComponent::GetContainerLogicalVolume(), BDSGeometryComponent::GetPlacementOffset(), BDSAcceleratorComponent::name, outer, placeBeamPipe, and BDSGeometryComponent::RegisterPhysicalVolume().

Referenced by Build().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetFieldUsePlacementWorldTransform()

void BDSMagnet::SetFieldUsePlacementWorldTransform ( )

virtual

Override function as we have different field recipe objects.

Reimplemented from BDSAcceleratorComponent.

Definition at line 359 of file BDSMagnet.cc.

References outerFieldInfo, BDSAcceleratorComponent::SetFieldUsePlacementWorldTransform(), and vacuumFieldInfo.

Here is the call graph for this function:

◆ SetInputFaceNormal()

void BDSMagnet::SetInputFaceNormal ( const G4ThreeVector & input )

virtual

Update face normal and also to beam pipe and magnet outer.

Reimplemented from BDSAcceleratorComponent.

Definition at line 117 of file BDSMagnet.cc.

References outer, and BDSMagnetOuter::SetInputFaceNormal().

Referenced by BuildBeampipe(), and BuildOuter().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetOuterField()

void BDSMagnet::SetOuterField ( BDSFieldInfo * outerFieldInfoIn )

@ { Delete existing field info and replace.

Definition at line 340 of file BDSMagnet.cc.

References outerFieldInfo.

◆ SetOutputFaceNormal()

void BDSMagnet::SetOutputFaceNormal ( const G4ThreeVector & output )

virtual

Update face normal and also to beam pipe and magnet outer.

Reimplemented from BDSAcceleratorComponent.

Definition at line 123 of file BDSMagnet.cc.

References outer, and BDSMagnetOuter::SetOutputFaceNormal().

Referenced by BuildBeampipe(), and BuildOuter().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetVacuumField()

void BDSMagnet::SetVacuumField ( BDSFieldInfo * vacuumFieldInfoIn )

Definition at line 346 of file BDSMagnet.cc.

Field Documentation

◆ beampipe

BDSBeamPipe* BDSMagnet::beampipe

protected

The constructed beampipe.

Definition at line 138 of file BDSMagnet.hh.

Referenced by BDSMagnet(), BuildBeampipe(), BuildContainerLogicalVolume(), BuildOuter(), BuildVacuumField(), and PlaceComponents().

◆ beamPipePlacementTransform

G4Transform3D BDSMagnet::beamPipePlacementTransform

protected

Used to pass the placement offset to the field so that it can be offset from the local coordinates of the solid appropriately.

Definition at line 162 of file BDSMagnet.hh.

Referenced by BuildBeampipe(), and BuildVacuumField().

◆ containerRadius

G4double BDSMagnet::containerRadius

protected

Separate variable for the container radius so it can be changed if required by specific magnet geometry.

Definition at line 150 of file BDSMagnet.hh.

Referenced by BDSMagnet().

◆ horizontalWidth

G4double BDSMagnet::horizontalWidth

protected

For outer volume construction.

Definition at line 146 of file BDSMagnet.hh.

Referenced by BDSMagnet().

◆ isThin

G4bool BDSMagnet::isThin

protected

Boolean to store if the element is thin - will have no geometry constructed.

Definition at line 165 of file BDSMagnet.hh.

Referenced by BDSMagnet(), and BuildVacuumField().

◆ magnetOuterInfo

BDSMagnetOuterInfo* BDSMagnet::magnetOuterInfo

protected

Model information for the outer volume construction.

Definition at line 129 of file BDSMagnet.hh.

Referenced by BDSMagnet(), BuildOuter(), BuildOuterField(), and Material().

◆ magnetOuterOffset

G4ThreeVector BDSMagnet::magnetOuterOffset

protected

Displacement (if required - default 0,0,0) for specific magnet geometry. Allows derived classes to specify different geometry without having to override placement which is provided in base class.

Definition at line 155 of file BDSMagnet.hh.

◆ magnetType

BDSMagnetType BDSMagnet::magnetType

protected

Magnet type.

Definition at line 126 of file BDSMagnet.hh.

Referenced by BuildOuter(), and BuildOuterField().

◆ outer

BDSMagnetOuter* BDSMagnet::outer

protected

The assembled outer magnet geometry.

Definition at line 158 of file BDSMagnet.hh.

Referenced by BDSMagnet(), BuildContainerLogicalVolume(), BuildOuter(), BuildOuterField(), PlaceComponents(), SetInputFaceNormal(), and SetOutputFaceNormal().

◆ outerFieldInfo

BDSFieldInfo* BDSMagnet::outerFieldInfo

protected

Field information for outer magnetic field (optional)

Definition at line 135 of file BDSMagnet.hh.

Referenced by BuildOuterField(), HasAField(), SetFieldUsePlacementWorldTransform(), and SetOuterField().

◆ placeBeamPipe

G4bool BDSMagnet::placeBeamPipe

protected

In the case where there's no magnet outer geometry, we just use the beam pipe and therefore we don't need to place it again. Use this boolean to record that and decide upon it. Default = true.

Definition at line 143 of file BDSMagnet.hh.

Referenced by BDSMagnet(), BuildContainerLogicalVolume(), and PlaceComponents().

◆ vacuumFieldInfo

BDSFieldInfo* BDSMagnet::vacuumFieldInfo

protected

Field information for vacuum field.

Definition at line 132 of file BDSMagnet.hh.

Referenced by BuildOuterField(), BuildVacuumField(), HasAField(), and SetFieldUsePlacementWorldTransform().

The documentation for this class was generated from the following files:

/Users/lnevay/physics/reps/bdsim/include/BDSMagnet.hh
/Users/lnevay/physics/reps/bdsim/src/BDSMagnet.cc

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ BDSMagnet()

◆ ~BDSMagnet()

Member Function Documentation

◆ Build()

◆ BuildBeampipe()

◆ BuildContainerLogicalVolume()

◆ BuildOuter()

◆ BuildOuterField()

◆ BuildVacuumField()

◆ DetermineScalingKey()

◆ HasAField()

◆ MagnetStrength()

◆ Material()

◆ PlaceComponents()

◆ SetFieldUsePlacementWorldTransform()

◆ SetInputFaceNormal()

◆ SetOuterField()

◆ SetOutputFaceNormal()

◆ SetVacuumField()

Field Documentation

◆ beampipe

◆ beamPipePlacementTransform

◆ containerRadius

◆ horizontalWidth

◆ isThin

◆ magnetOuterInfo

◆ magnetOuterOffset

◆ magnetType

◆ outer

◆ outerFieldInfo

◆ placeBeamPipe

◆ vacuumFieldInfo
