Factory that produces cylindrical magnet geometry. More...

#include <BDSMagnetOuterFactoryCylindrical.hh>

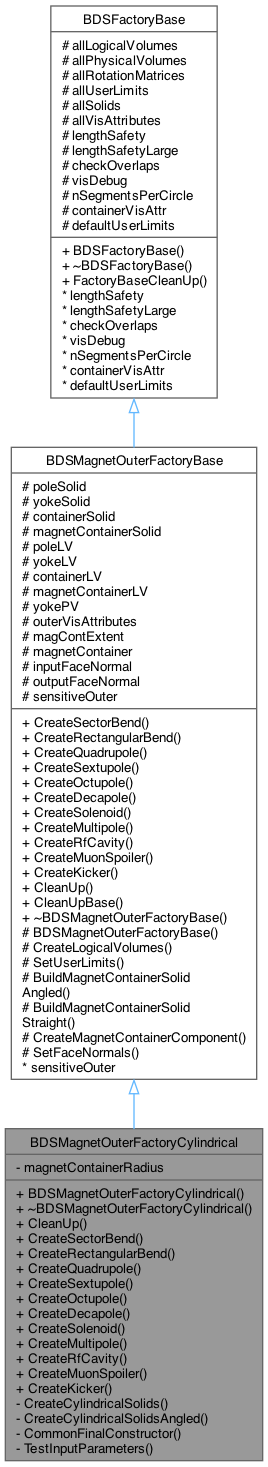

Inheritance diagram for BDSMagnetOuterFactoryCylindrical:

Collaboration diagram for BDSMagnetOuterFactoryCylindrical:

Public Member Functions
virtual void	CleanUp ()
	Empty containers for next use - factories are never deleted so can't rely on scope.

virtual BDSMagnetOuter *	CreateSectorBend (G4String name, G4double length, const BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)
	sector bend outer volume

virtual BDSMagnetOuter *	CreateRectangularBend (G4String name, G4double length, const BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)
	rectangular bend outer volume

virtual BDSMagnetOuter *	CreateQuadrupole (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)
	quadrupole outer volume

virtual BDSMagnetOuter *	CreateSextupole (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)
	sextupole outer volume

virtual BDSMagnetOuter *	CreateOctupole (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)
	octupole outer volume

virtual BDSMagnetOuter *	CreateDecapole (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)
	decapole outer volume

virtual BDSMagnetOuter *	CreateSolenoid (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)
	solenoid outer volume

virtual BDSMagnetOuter *	CreateMultipole (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)
	general multipole outer volume - could be any 2N order multipole

virtual BDSMagnetOuter *	CreateRfCavity (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)
	RF cavity outer volume.

virtual BDSMagnetOuter *	CreateMuonSpoiler (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)
	muon spoiler outer volume

virtual BDSMagnetOuter *	CreateKicker (G4String name, G4double length, const BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe, G4bool vertical)
	horizontal and vertical kicker outer volume

Public Member Functions inherited from BDSMagnetOuterFactoryBase
virtual BDSMagnetOuter *	CreateSectorBend (G4String name, G4double length, const BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)=0
	sector bend outer volume

virtual BDSMagnetOuter *	CreateRectangularBend (G4String name, G4double length, const BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)=0
	rectangular bend outer volume

virtual BDSMagnetOuter *	CreateQuadrupole (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)=0
	quadrupole outer volume

virtual BDSMagnetOuter *	CreateSextupole (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)=0
	sextupole outer volume

virtual BDSMagnetOuter *	CreateOctupole (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)=0
	octupole outer volume

virtual BDSMagnetOuter *	CreateDecapole (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)=0
	decapole outer volume

virtual BDSMagnetOuter *	CreateSolenoid (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)=0
	solenoid outer volume

virtual BDSMagnetOuter *	CreateMultipole (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)=0
	general multipole outer volume - could be any 2N order multipole

virtual BDSMagnetOuter *	CreateRfCavity (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)=0
	RF cavity outer volume.

virtual BDSMagnetOuter *	CreateMuonSpoiler (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)=0
	muon spoiler outer volume

virtual BDSMagnetOuter *	CreateKicker (G4String name, G4double length, const BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe, G4bool vertical)=0
	horizontal and vertical kicker outer volume

virtual void	CleanUp ()
	Empty containers for next use - factories are never deleted so can't rely on scope.

void	CleanUpBase ()
	Non-virtual clean up that can be used in the constructor.

virtual	~BDSMagnetOuterFactoryBase ()
	Virtual base destructor.

Public Member Functions inherited from BDSFactoryBase
virtual void	FactoryBaseCleanUp ()
	Empty containers for next use - factories are never deleted so can't rely on scope.

Private Member Functions
void	CreateCylindricalSolids (G4String name, G4double length, const BDSBeamPipe *beamPipe, G4double magnetContainerLength, G4double boxSize)
	Only really one function needed for this factory private to this factory only.

void	CreateCylindricalSolidsAngled (G4String name, G4double length, const BDSBeamPipe *beamPipe, G4double magnetContainerLength, G4double boxSize)

BDSMagnetOuter *	CommonFinalConstructor (G4String name, G4double length, const BDSMagnetOuterInfo *recipe)

void	TestInputParameters (const BDSBeamPipe *beamPipe, G4double &horizontalWidthIn)
	test inputs for no null pointers or overlapping volumes due to poorly defined sizes

Private Attributes
G4double	magnetContainerRadius

Additional Inherited Members
Protected Member Functions inherited from BDSMagnetOuterFactoryBase
virtual void	CreateLogicalVolumes (const G4String &name, G4Colour colour, G4Material outerMaterial)

virtual void	SetUserLimits ()
	Attach default user limits to all logical volumes.

void	BuildMagnetContainerSolidAngled (const G4String &name, G4double magnetContainerLength, G4double magnetContainerRadius, G4bool flatFaces=false)

void	BuildMagnetContainerSolidStraight (const G4String &name, G4double magnetContainerLength, G4double magnetContainerRadius)

void	CreateMagnetContainerComponent ()

void	SetFaceNormals (BDSMagnetOuter *outer)
	Copy face normals from members to an instance of outer.

Protected Attributes inherited from BDSMagnetOuterFactoryBase
G4VSolid *	poleSolid
	Solid for an individual pole that will be placed multiple times.

G4VSolid *	yokeSolid
	Solid for outer part that connects all poles.

G4VSolid *	containerSolid

G4VSolid *	magnetContainerSolid

G4LogicalVolume *	poleLV

G4LogicalVolume *	yokeLV

G4LogicalVolume *	containerLV

G4LogicalVolume *	magnetContainerLV

G4VPhysicalVolume *	yokePV

G4VisAttributes *	outerVisAttributes

BDSExtent	magContExtent

BDSGeometryComponent *	magnetContainer

G4ThreeVector	inputFaceNormal

G4ThreeVector	outputFaceNormal

G4bool	sensitiveOuter
	Cache of global constants variable.

Protected Attributes inherited from BDSFactoryBase
std::set< G4LogicalVolume * >	allLogicalVolumes

std::set< G4VPhysicalVolume * >	allPhysicalVolumes

std::set< G4RotationMatrix * >	allRotationMatrices

std::set< G4UserLimits * >	allUserLimits

std::set< G4VSolid * >	allSolids

std::set< G4VisAttributes * >	allVisAttributes

G4double	lengthSafety
	Cache of global constants variable.

G4double	lengthSafetyLarge
	Cache of global constants variable.

G4bool	checkOverlaps
	Cache of global constants variable.

G4bool	visDebug
	Cache of global constants variable.

G4int	nSegmentsPerCircle
	Cache of global constants variable.

G4VisAttributes *	containerVisAttr
	Cache of global constants variable.

G4UserLimits *	defaultUserLimits
	Cache of global constants variable.

Detailed Description

Factory that produces cylindrical magnet geometry.

Author: Laurie Nevay

Definition at line 37 of file BDSMagnetOuterFactoryCylindrical.hh.

Constructor & Destructor Documentation

◆ BDSMagnetOuterFactoryCylindrical()

BDSMagnetOuterFactoryCylindrical::BDSMagnetOuterFactoryCylindrical ( )

Definition at line 49 of file BDSMagnetOuterFactoryCylindrical.cc.

◆ ~BDSMagnetOuterFactoryCylindrical()

virtual BDSMagnetOuterFactoryCylindrical::~BDSMagnetOuterFactoryCylindrical ( )

inlinevirtual

Definition at line 41 of file BDSMagnetOuterFactoryCylindrical.hh.

Member Function Documentation

◆ CleanUp()

void BDSMagnetOuterFactoryCylindrical::CleanUp ( )

virtual

Empty containers for next use - factories are never deleted so can't rely on scope.

Reimplemented from BDSMagnetOuterFactoryBase.

Definition at line 53 of file BDSMagnetOuterFactoryCylindrical.cc.

References BDSMagnetOuterFactoryBase::CleanUp().

Referenced by CreateDecapole(), CreateKicker(), CreateMultipole(), CreateMuonSpoiler(), CreateOctupole(), CreateQuadrupole(), CreateRectangularBend(), CreateRfCavity(), CreateSectorBend(), CreateSextupole(), and CreateSolenoid().

Here is the call graph for this function:

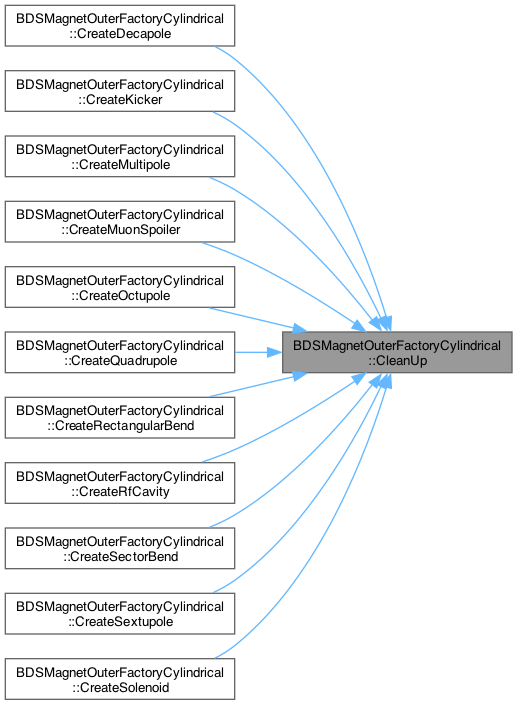

Here is the caller graph for this function:

◆ CommonFinalConstructor()

BDSMagnetOuter * BDSMagnetOuterFactoryCylindrical::CommonFinalConstructor	(	G4String	name,
		G4double	length,
		const BDSMagnetOuterInfo *	recipe
	)

private

Only the solids are unique, once we have those, the logical volumes and placement in the container are the same. Group all this functionality together

Definition at line 427 of file BDSMagnetOuterFactoryCylindrical.cc.

References BDSFactoryBase::checkOverlaps, BDSMagnetOuterFactoryBase::CreateLogicalVolumes(), BDSMaterials::GetMaterial(), BDSGlobalConstants::Instance(), BDSMaterials::Instance(), BDSGeometryComponent::RegisterLogicalVolume(), BDSGeometryComponent::RegisterPhysicalVolume(), BDSGeometryComponent::RegisterSensitiveVolume(), BDSGeometryComponent::RegisterSolid(), BDSGeometryComponent::RegisterVisAttributes(), BDSMagnetOuterFactoryBase::sensitiveOuter, BDSMagnetOuterFactoryBase::SetFaceNormals(), and BDSMagnetOuterFactoryBase::SetUserLimits().

Referenced by CreateDecapole(), CreateKicker(), CreateMultipole(), CreateMuonSpoiler(), CreateOctupole(), CreateQuadrupole(), CreateRectangularBend(), CreateRfCavity(), CreateSectorBend(), CreateSextupole(), and CreateSolenoid().

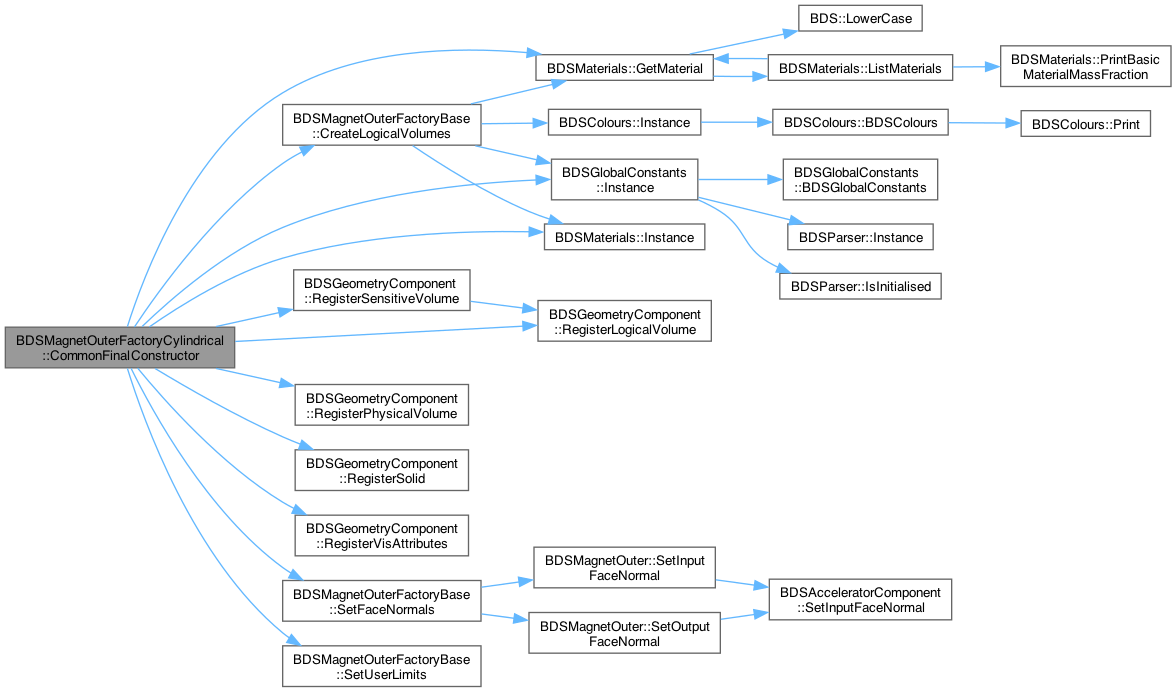

Here is the call graph for this function:

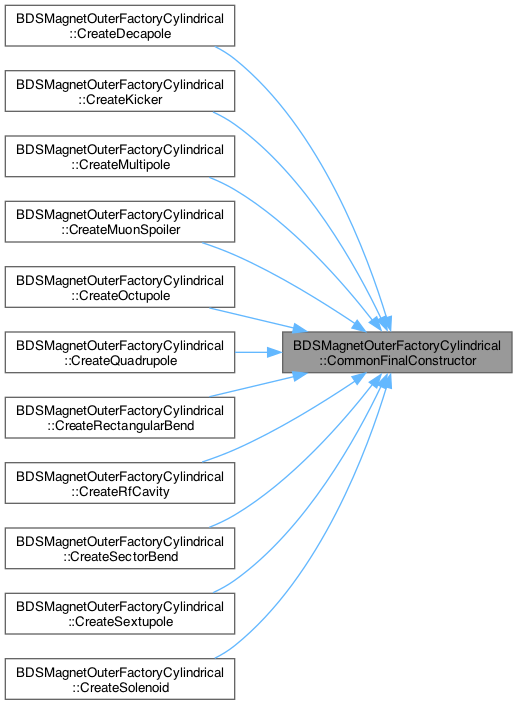

Here is the caller graph for this function:

◆ CreateCylindricalSolids()

void BDSMagnetOuterFactoryCylindrical::CreateCylindricalSolids	(	G4String	name,
		G4double	length,
		const BDSBeamPipe *	beamPipe,
		G4double	magnetContainerLength,
		G4double	boxSize
	)

private

Only really one function needed for this factory private to this factory only.

functions below here are private to this particular factory

Definition at line 278 of file BDSMagnetOuterFactoryCylindrical.cc.

References BDSMagnetOuterFactoryBase::BuildMagnetContainerSolidStraight(), BDSBeamPipe::ContainerIsCircular(), BDSBeamPipe::GetContainerRadius(), BDSBeamPipe::GetContainerSubtractionSolid(), BDSFactoryBase::lengthSafety, BDSFactoryBase::lengthSafetyLarge, and BDSMagnetOuterFactoryBase::yokeSolid.

Referenced by CreateDecapole(), CreateKicker(), CreateMultipole(), CreateMuonSpoiler(), CreateOctupole(), CreateQuadrupole(), CreateRectangularBend(), CreateRfCavity(), CreateSectorBend(), CreateSextupole(), and CreateSolenoid().

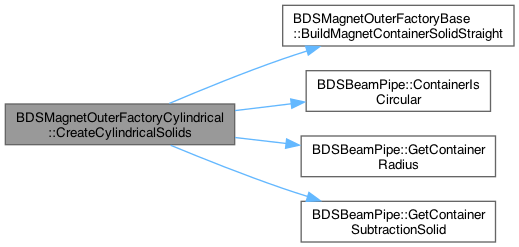

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateCylindricalSolidsAngled()

void BDSMagnetOuterFactoryCylindrical::CreateCylindricalSolidsAngled	(	G4String	name,
		G4double	length,
		const BDSBeamPipe *	beamPipe,
		G4double	magnetContainerLength,
		G4double	boxSize
	)

private

Definition at line 338 of file BDSMagnetOuterFactoryCylindrical.cc.

◆ CreateDecapole()

BDSMagnetOuter * BDSMagnetOuterFactoryCylindrical::CreateDecapole	(	G4String	name,
		G4double	length,
		BDSBeamPipe *	beamPipe,
		G4double	containerLength,
		const BDSMagnetOuterInfo *	recipe
	)

virtual

decapole outer volume

Implements BDSMagnetOuterFactoryBase.

Definition at line 165 of file BDSMagnetOuterFactoryCylindrical.cc.

References CleanUp(), CommonFinalConstructor(), and CreateCylindricalSolids().

Here is the call graph for this function:

◆ CreateKicker()

BDSMagnetOuter * BDSMagnetOuterFactoryCylindrical::CreateKicker	(	G4String	name,
		G4double	length,
		const BDSBeamPipe *	beamPipe,
		G4double	containerLength,
		const BDSMagnetOuterInfo *	recipe,
		G4bool	vertical
	)

virtual

horizontal and vertical kicker outer volume

Implements BDSMagnetOuterFactoryBase.

Definition at line 262 of file BDSMagnetOuterFactoryCylindrical.cc.

References CleanUp(), CommonFinalConstructor(), and CreateCylindricalSolids().

Here is the call graph for this function:

◆ CreateMultipole()

BDSMagnetOuter * BDSMagnetOuterFactoryCylindrical::CreateMultipole	(	G4String	name,
		G4double	length,
		BDSBeamPipe *	beamPipe,
		G4double	containerLength,
		const BDSMagnetOuterInfo *	recipe
	)

virtual

general multipole outer volume - could be any 2N order multipole

Implements BDSMagnetOuterFactoryBase.

Definition at line 226 of file BDSMagnetOuterFactoryCylindrical.cc.

References CleanUp(), CommonFinalConstructor(), and CreateCylindricalSolids().

Here is the call graph for this function:

◆ CreateMuonSpoiler()

BDSMagnetOuter * BDSMagnetOuterFactoryCylindrical::CreateMuonSpoiler	(	G4String	name,
		G4double	length,
		BDSBeamPipe *	beamPipe,
		G4double	containerLength,
		const BDSMagnetOuterInfo *	recipe
	)

virtual

muon spoiler outer volume

Implements BDSMagnetOuterFactoryBase.

Definition at line 250 of file BDSMagnetOuterFactoryCylindrical.cc.

References CleanUp(), CommonFinalConstructor(), and CreateCylindricalSolids().

Here is the call graph for this function:

◆ CreateOctupole()

BDSMagnetOuter * BDSMagnetOuterFactoryCylindrical::CreateOctupole	(	G4String	name,
		G4double	length,
		BDSBeamPipe *	beamPipe,
		G4double	containerLength,
		const BDSMagnetOuterInfo *	recipe
	)

virtual

octupole outer volume

Implements BDSMagnetOuterFactoryBase.

Definition at line 153 of file BDSMagnetOuterFactoryCylindrical.cc.

References CleanUp(), CommonFinalConstructor(), and CreateCylindricalSolids().

Here is the call graph for this function:

◆ CreateQuadrupole()

BDSMagnetOuter * BDSMagnetOuterFactoryCylindrical::CreateQuadrupole	(	G4String	name,
		G4double	length,
		BDSBeamPipe *	beamPipe,
		G4double	containerLength,
		const BDSMagnetOuterInfo *	recipe
	)

virtual

quadrupole outer volume

Implements BDSMagnetOuterFactoryBase.

Definition at line 129 of file BDSMagnetOuterFactoryCylindrical.cc.

References CleanUp(), CommonFinalConstructor(), and CreateCylindricalSolids().

Here is the call graph for this function:

◆ CreateRectangularBend()

BDSMagnetOuter * BDSMagnetOuterFactoryCylindrical::CreateRectangularBend	(	G4String	name,
		G4double	length,
		const BDSBeamPipe *	beamPipe,
		G4double	containerLength,
		const BDSMagnetOuterInfo *	recipe
	)

virtual

rectangular bend outer volume

Implements BDSMagnetOuterFactoryBase.

Definition at line 93 of file BDSMagnetOuterFactoryCylindrical.cc.

References BDSMagnetOuterFactoryBase::BuildMagnetContainerSolidAngled(), BDSMagnetOuterFactoryBase::BuildMagnetContainerSolidStraight(), BDS::CalculateFaces(), CleanUp(), CommonFinalConstructor(), CreateCylindricalSolids(), BDS::IsFinite(), and TestInputParameters().

Here is the call graph for this function:

◆ CreateRfCavity()

BDSMagnetOuter * BDSMagnetOuterFactoryCylindrical::CreateRfCavity	(	G4String	name,
		G4double	length,
		BDSBeamPipe *	beamPipe,
		G4double	containerLength,
		const BDSMagnetOuterInfo *	recipe
	)

virtual

RF cavity outer volume.

Implements BDSMagnetOuterFactoryBase.

Definition at line 238 of file BDSMagnetOuterFactoryCylindrical.cc.

References CleanUp(), CommonFinalConstructor(), and CreateCylindricalSolids().

Here is the call graph for this function:

◆ CreateSectorBend()

BDSMagnetOuter * BDSMagnetOuterFactoryCylindrical::CreateSectorBend	(	G4String	name,
		G4double	length,
		const BDSBeamPipe *	beamPipe,
		G4double	containerLength,
		const BDSMagnetOuterInfo *	recipe
	)

virtual

sector bend outer volume

Implements BDSMagnetOuterFactoryBase.

Definition at line 59 of file BDSMagnetOuterFactoryCylindrical.cc.

References BDSMagnetOuterFactoryBase::BuildMagnetContainerSolidAngled(), BDSMagnetOuterFactoryBase::BuildMagnetContainerSolidStraight(), BDS::CalculateFaces(), CleanUp(), CommonFinalConstructor(), CreateCylindricalSolids(), BDS::IsFinite(), and TestInputParameters().

Here is the call graph for this function:

◆ CreateSextupole()

BDSMagnetOuter * BDSMagnetOuterFactoryCylindrical::CreateSextupole	(	G4String	name,
		G4double	length,
		BDSBeamPipe *	beamPipe,
		G4double	containerLength,
		const BDSMagnetOuterInfo *	recipe
	)

virtual

sextupole outer volume

Implements BDSMagnetOuterFactoryBase.

Definition at line 141 of file BDSMagnetOuterFactoryCylindrical.cc.

References CleanUp(), CommonFinalConstructor(), and CreateCylindricalSolids().

Here is the call graph for this function:

◆ CreateSolenoid()

BDSMagnetOuter * BDSMagnetOuterFactoryCylindrical::CreateSolenoid	(	G4String	name,
		G4double	length,
		BDSBeamPipe *	beamPipe,
		G4double	containerLength,
		const BDSMagnetOuterInfo *	recipe
	)
