Abstract base class for magnet outer volume factories. More...

#include <BDSMagnetOuterFactoryBase.hh>

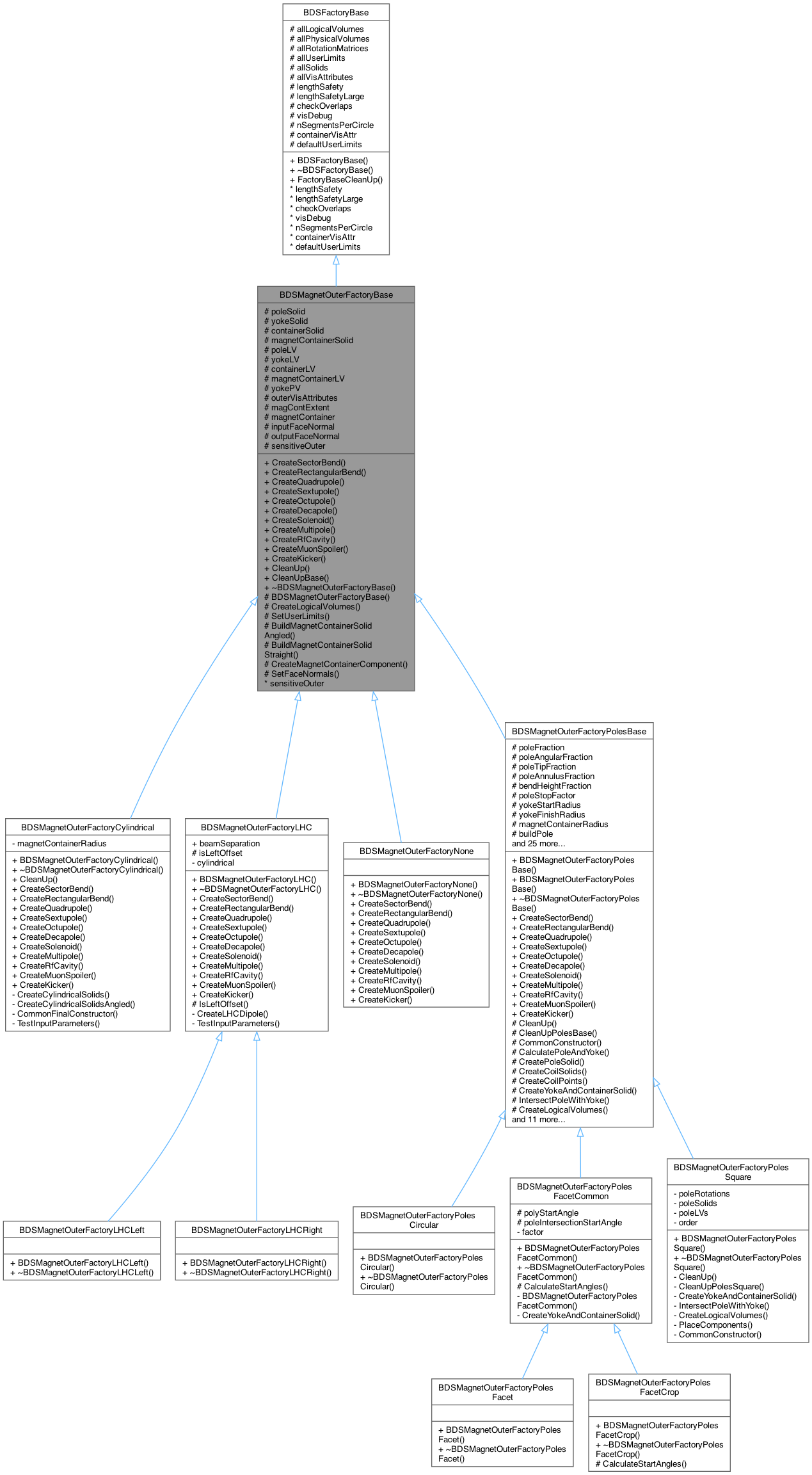

Inheritance diagram for BDSMagnetOuterFactoryBase:

Collaboration diagram for BDSMagnetOuterFactoryBase:

Public Member Functions
virtual BDSMagnetOuter *	CreateSectorBend (G4String name, G4double length, const BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)=0
	sector bend outer volume

virtual BDSMagnetOuter *	CreateRectangularBend (G4String name, G4double length, const BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)=0
	rectangular bend outer volume

virtual BDSMagnetOuter *	CreateQuadrupole (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)=0
	quadrupole outer volume

virtual BDSMagnetOuter *	CreateSextupole (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)=0
	sextupole outer volume

virtual BDSMagnetOuter *	CreateOctupole (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)=0
	octupole outer volume

virtual BDSMagnetOuter *	CreateDecapole (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)=0
	decapole outer volume

virtual BDSMagnetOuter *	CreateSolenoid (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)=0
	solenoid outer volume

virtual BDSMagnetOuter *	CreateMultipole (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)=0
	general multipole outer volume - could be any 2N order multipole

virtual BDSMagnetOuter *	CreateRfCavity (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)=0
	RF cavity outer volume.

virtual BDSMagnetOuter *	CreateMuonSpoiler (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)=0
	muon spoiler outer volume

virtual BDSMagnetOuter *	CreateKicker (G4String name, G4double length, const BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe, G4bool vertical)=0
	horizontal and vertical kicker outer volume

virtual void	CleanUp ()
	Empty containers for next use - factories are never deleted so can't rely on scope.

void	CleanUpBase ()
	Non-virtual clean up that can be used in the constructor.

virtual	~BDSMagnetOuterFactoryBase ()
	Virtual base destructor.

Public Member Functions inherited from BDSFactoryBase
virtual void	FactoryBaseCleanUp ()
	Empty containers for next use - factories are never deleted so can't rely on scope.

Protected Member Functions
virtual void	CreateLogicalVolumes (const G4String &name, G4Colour colour, G4Material outerMaterial)

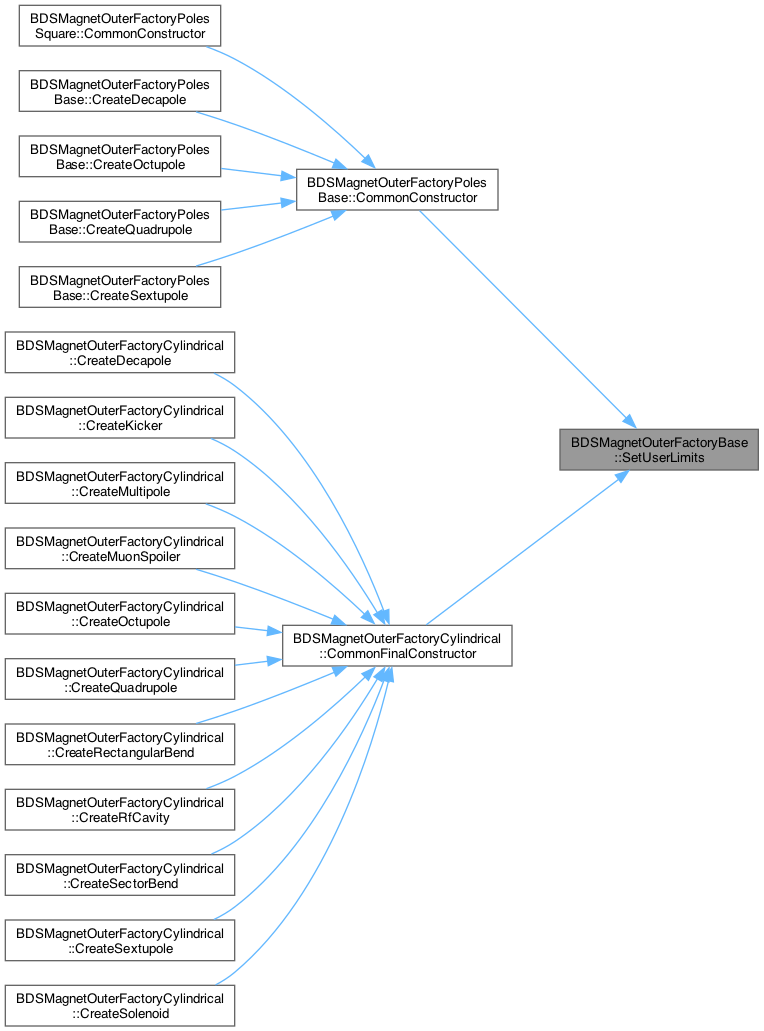

virtual void	SetUserLimits ()
	Attach default user limits to all logical volumes.

void	BuildMagnetContainerSolidAngled (const G4String &name, G4double magnetContainerLength, G4double magnetContainerRadius, G4bool flatFaces=false)

void	BuildMagnetContainerSolidStraight (const G4String &name, G4double magnetContainerLength, G4double magnetContainerRadius)

void	CreateMagnetContainerComponent ()

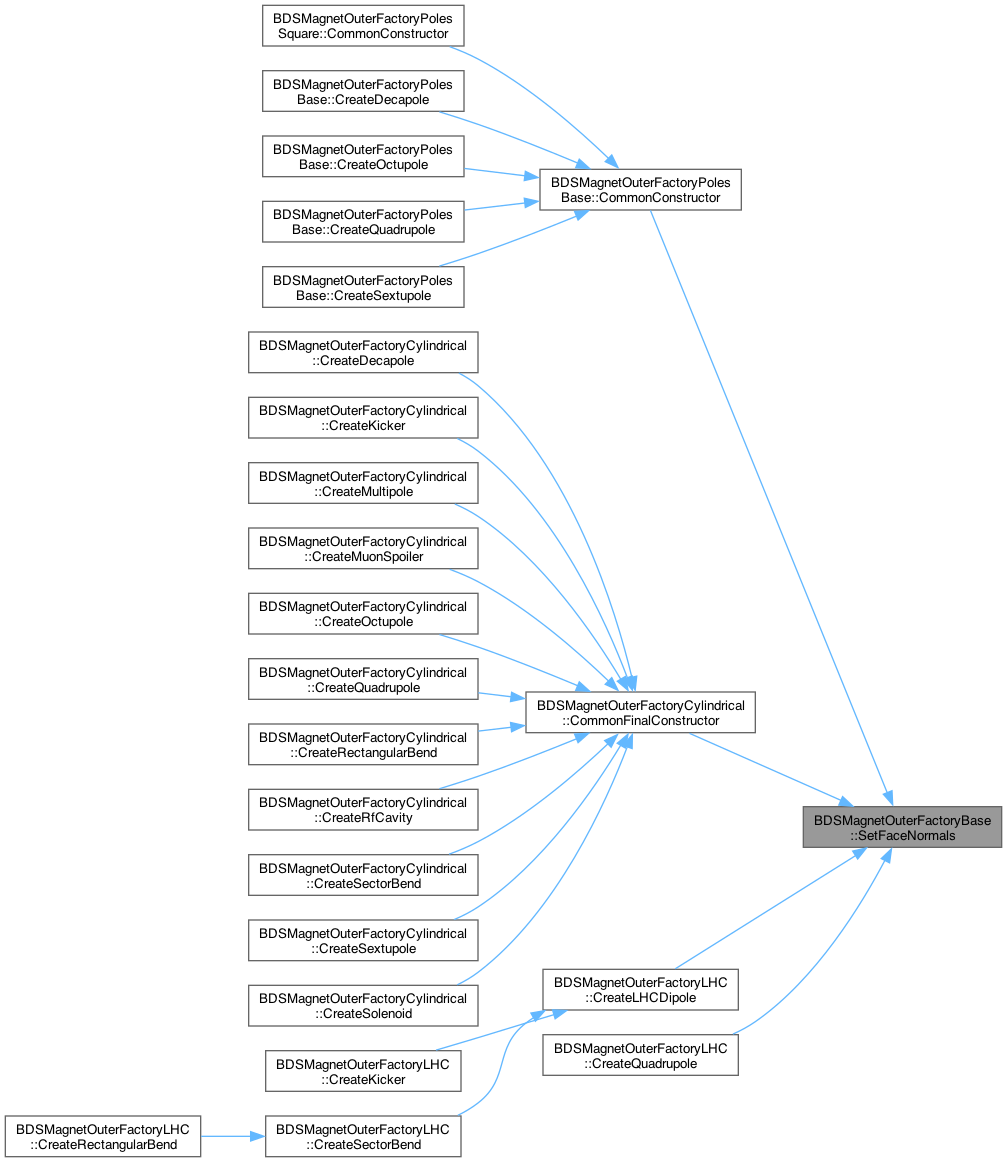

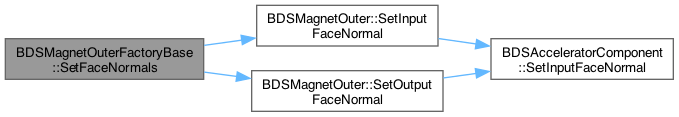

void	SetFaceNormals (BDSMagnetOuter *outer)
	Copy face normals from members to an instance of outer.

Protected Attributes
G4VSolid *	poleSolid
	Solid for an individual pole that will be placed multiple times.

G4VSolid *	yokeSolid
	Solid for outer part that connects all poles.

G4VSolid *	containerSolid

G4VSolid *	magnetContainerSolid

G4LogicalVolume *	poleLV

G4LogicalVolume *	yokeLV

G4LogicalVolume *	containerLV

G4LogicalVolume *	magnetContainerLV

G4VPhysicalVolume *	yokePV

G4VisAttributes *	outerVisAttributes

BDSExtent	magContExtent

BDSGeometryComponent *	magnetContainer

G4ThreeVector	inputFaceNormal

G4ThreeVector	outputFaceNormal


G4bool	sensitiveOuter
	Cache of global constants variable.

Protected Attributes inherited from BDSFactoryBase
std::set< G4LogicalVolume * >	allLogicalVolumes

std::set< G4VPhysicalVolume * >	allPhysicalVolumes

std::set< G4RotationMatrix * >	allRotationMatrices

std::set< G4UserLimits * >	allUserLimits

std::set< G4VSolid * >	allSolids

std::set< G4VisAttributes * >	allVisAttributes

G4double	lengthSafety
	Cache of global constants variable.

G4double	lengthSafetyLarge
	Cache of global constants variable.

G4bool	checkOverlaps
	Cache of global constants variable.

G4bool	visDebug
	Cache of global constants variable.

G4int	nSegmentsPerCircle
	Cache of global constants variable.

G4VisAttributes *	containerVisAttr
	Cache of global constants variable.

G4UserLimits *	defaultUserLimits
	Cache of global constants variable.

Detailed Description

Abstract base class for magnet outer volume factories.

Abstract base class that defines the interface of each factory to build any type of outer logical volume required.

Uses Geant4 default units by default, ie mm, rad (not metres)

Strictly the naming should contain 'Outer' at the end to distinguish that the function doesn't create the whole magnet, however this is implied by the factory name and omitting it will reduce the name length.

Each factory should implement a method for every type of magnet - ie for each class that inherits BDSMagnet.

NOTE each derived class is expected to be a singleton but this can't be specified here as it'd refer to the abstract base class - must be implemented in each derived class. 'In' in argument variables is used to distinguish between that and possible internal member variables with the same name - avoiding 'itsVariable'.

Author: Laurie Nevay

Definition at line 65 of file BDSMagnetOuterFactoryBase.hh.

Constructor & Destructor Documentation

◆ ~BDSMagnetOuterFactoryBase()

virtual BDSMagnetOuterFactoryBase::~BDSMagnetOuterFactoryBase ( )

inlinevirtual

Virtual base destructor.

Definition at line 165 of file BDSMagnetOuterFactoryBase.hh.

◆ BDSMagnetOuterFactoryBase()

BDSMagnetOuterFactoryBase::BDSMagnetOuterFactoryBase ( )

protected

Definition at line 38 of file BDSMagnetOuterFactoryBase.cc.

Member Function Documentation

◆ BuildMagnetContainerSolidAngled()

void BDSMagnetOuterFactoryBase::BuildMagnetContainerSolidAngled	(	const G4String &	name,
		G4double	magnetContainerLength,
		G4double	magnetContainerRadius,
		G4bool	flatFaces = `false`
	)

protected

Utility function to make cylindrical magnetContainerSolid in the case of one with angled faces

Definition at line 126 of file BDSMagnetOuterFactoryBase.cc.

References BDSFactoryBase::lengthSafetyLarge.

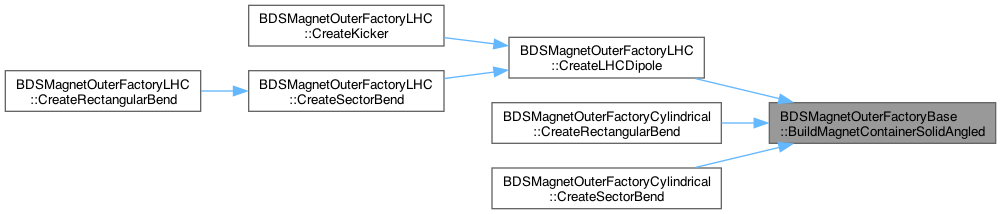

Referenced by BDSMagnetOuterFactoryLHC::CreateLHCDipole(), BDSMagnetOuterFactoryCylindrical::CreateRectangularBend(), and BDSMagnetOuterFactoryCylindrical::CreateSectorBend().

Here is the caller graph for this function:

◆ BuildMagnetContainerSolidStraight()

void BDSMagnetOuterFactoryBase::BuildMagnetContainerSolidStraight	(	const G4String &	name,
		G4double	magnetContainerLength,
		G4double	magnetContainerRadius
	)

protected

Utility function to make cylindrical magnetContainerSolid in the case of flat faces

Definition at line 145 of file BDSMagnetOuterFactoryBase.cc.

References BDSFactoryBase::lengthSafetyLarge.

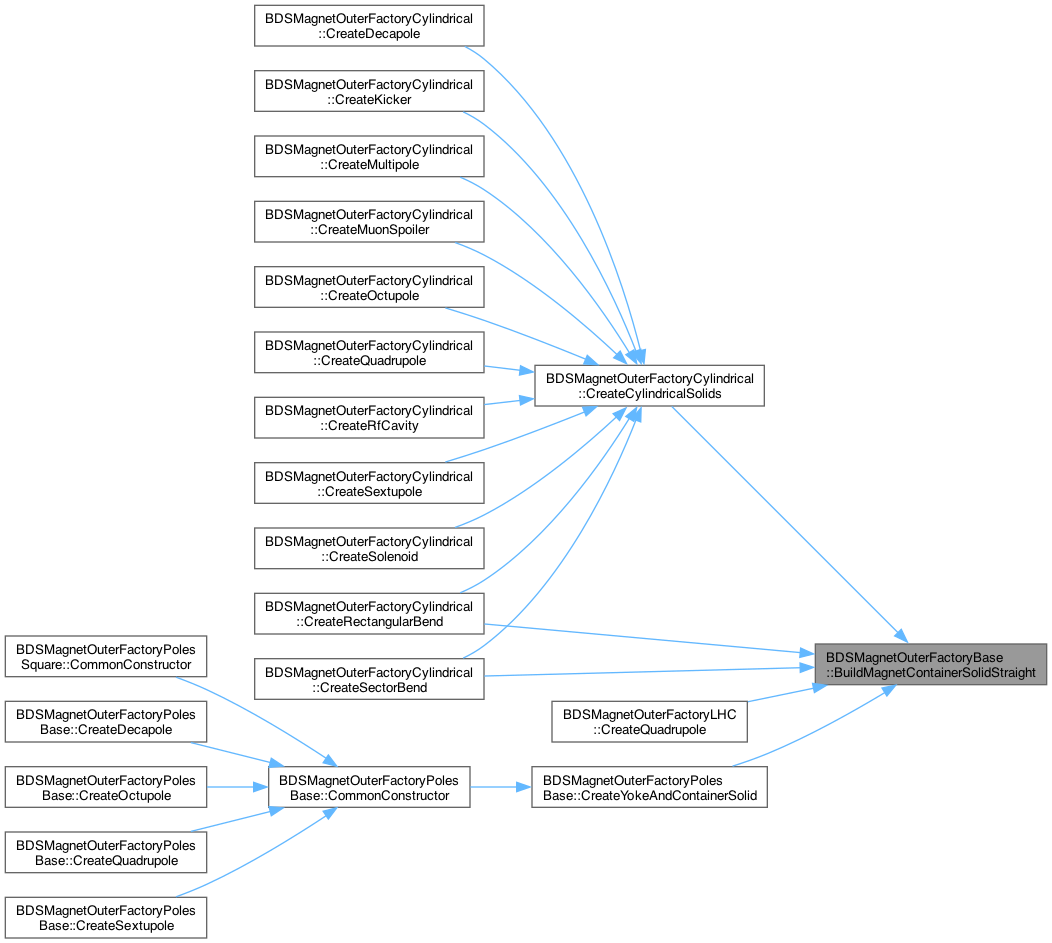

Referenced by BDSMagnetOuterFactoryCylindrical::CreateCylindricalSolids(), BDSMagnetOuterFactoryLHC::CreateQuadrupole(), BDSMagnetOuterFactoryCylindrical::CreateRectangularBend(), BDSMagnetOuterFactoryCylindrical::CreateSectorBend(), and BDSMagnetOuterFactoryPolesBase::CreateYokeAndContainerSolid().

Here is the caller graph for this function:

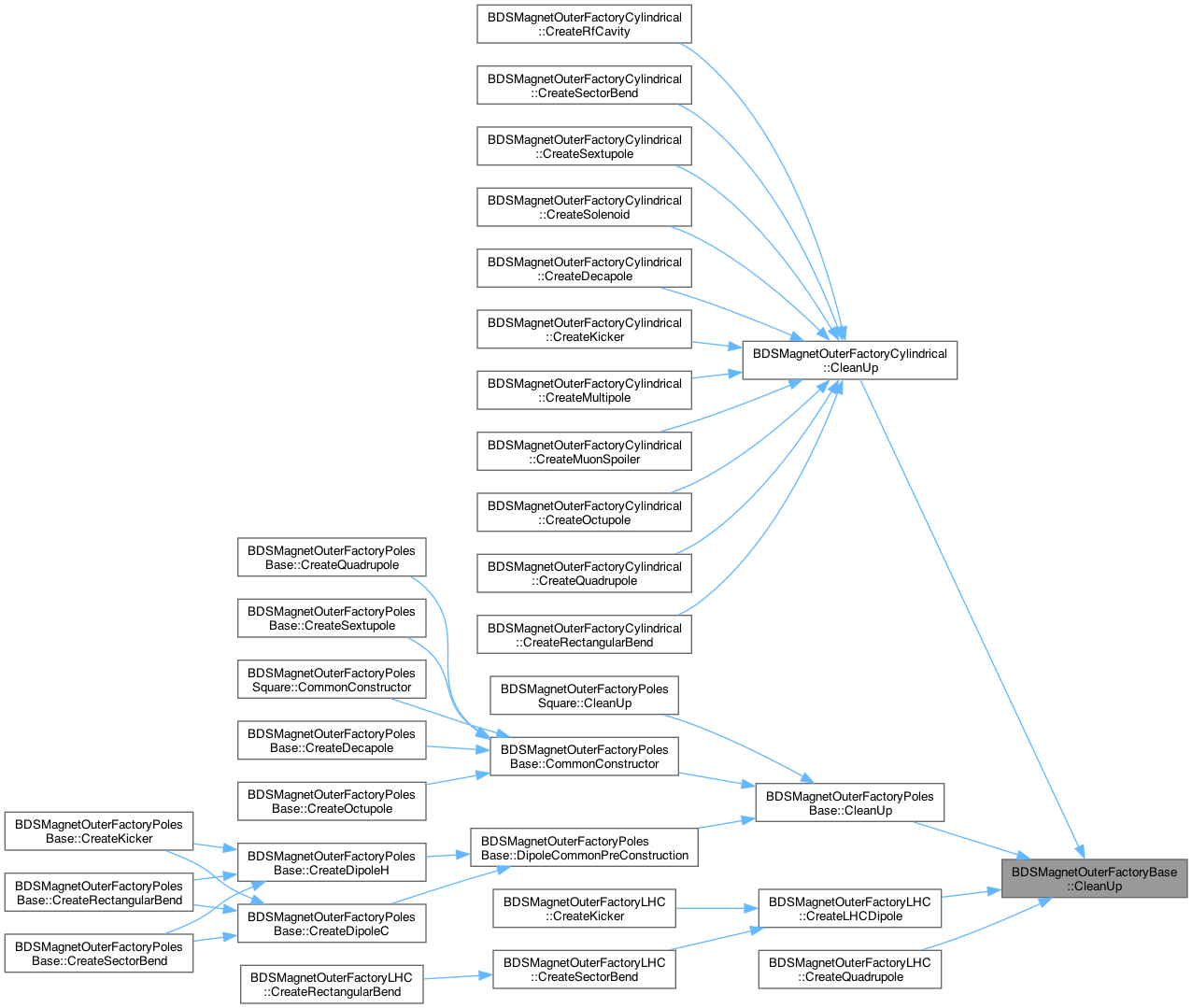

◆ CleanUp()

void BDSMagnetOuterFactoryBase::CleanUp ( )

virtual

Empty containers for next use - factories are never deleted so can't rely on scope.

Reimplemented in BDSMagnetOuterFactoryCylindrical, BDSMagnetOuterFactoryPolesBase, and BDSMagnetOuterFactoryPolesSquare.

Definition at line 46 of file BDSMagnetOuterFactoryBase.cc.

References CleanUpBase().

Referenced by BDSMagnetOuterFactoryCylindrical::CleanUp(), BDSMagnetOuterFactoryPolesBase::CleanUp(), BDSMagnetOuterFactoryLHC::CreateLHCDipole(), and BDSMagnetOuterFactoryLHC::CreateQuadrupole().

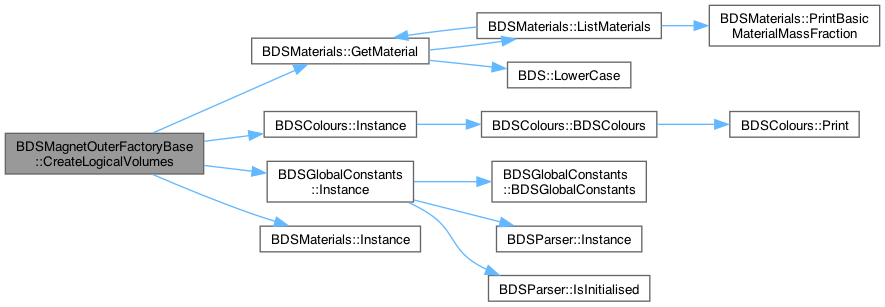

Here is the call graph for this function:

Here is the caller graph for this function:

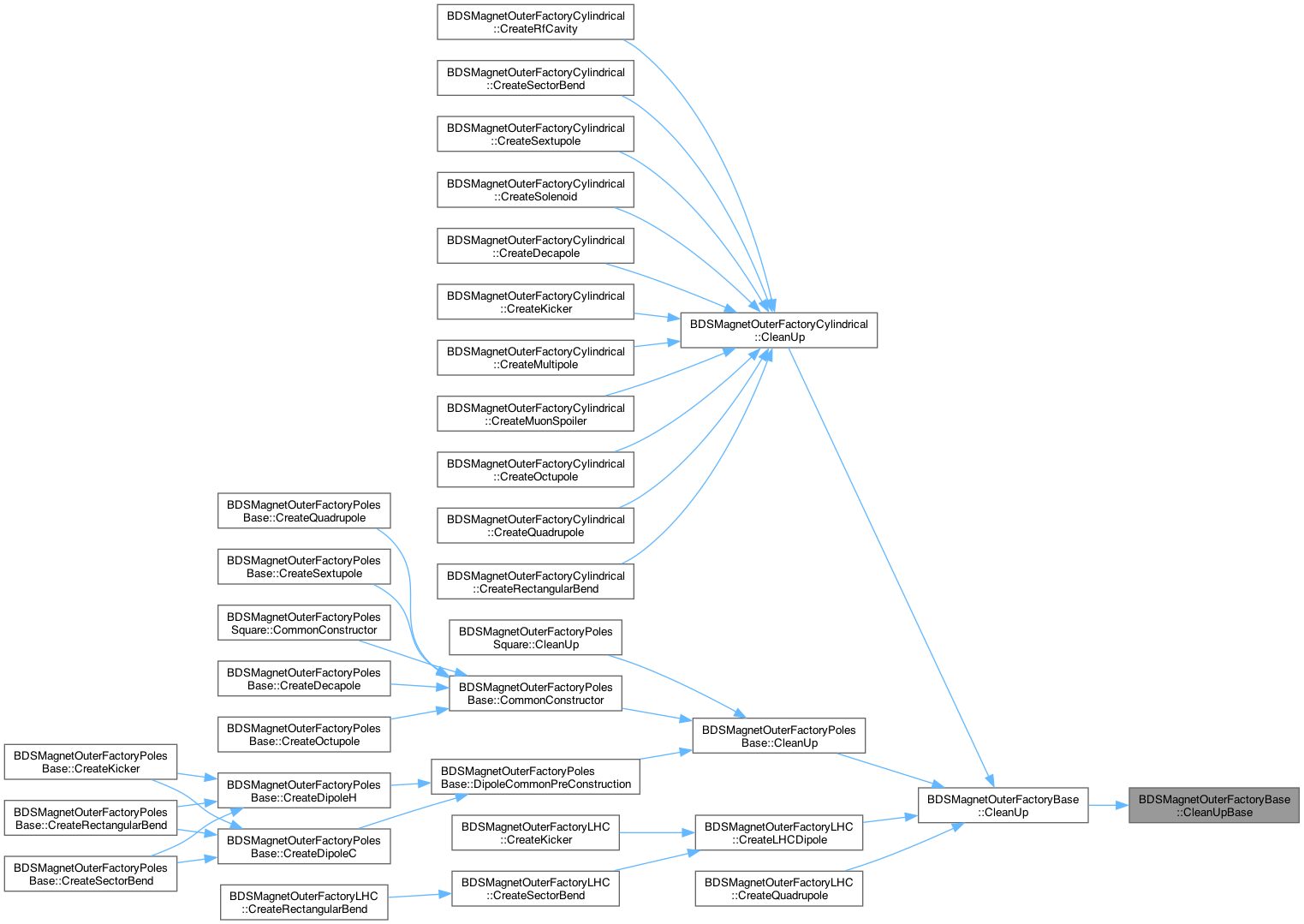

◆ CleanUpBase()

void BDSMagnetOuterFactoryBase::CleanUpBase ( )

Non-virtual clean up that can be used in the constructor.

Definition at line 51 of file BDSMagnetOuterFactoryBase.cc.

References BDSFactoryBase::FactoryBaseCleanUp(), poleSolid, and yokeSolid.

Referenced by CleanUp().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateDecapole()

virtual BDSMagnetOuter * BDSMagnetOuterFactoryBase::CreateDecapole	(	G4String	name,
		G4double	length,
		BDSBeamPipe *	beamPipe,
		G4double	containerLength,
		const BDSMagnetOuterInfo *	recipe
	)

pure virtual

decapole outer volume

Implemented in BDSMagnetOuterFactoryCylindrical, BDSMagnetOuterFactoryLHC, BDSMagnetOuterFactoryNone, and BDSMagnetOuterFactoryPolesBase.

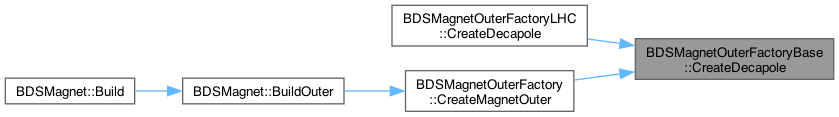

Referenced by BDSMagnetOuterFactoryLHC::CreateDecapole(), and BDSMagnetOuterFactory::CreateMagnetOuter().

Here is the caller graph for this function:

◆ CreateKicker()

virtual BDSMagnetOuter * BDSMagnetOuterFactoryBase::CreateKicker	(	G4String	name,
		G4double	length,
		const BDSBeamPipe *	beamPipe,
		G4double	containerLength,
		const BDSMagnetOuterInfo *	recipe,
		G4bool	vertical
	)

pure virtual

horizontal and vertical kicker outer volume

Implemented in BDSMagnetOuterFactoryCylindrical, BDSMagnetOuterFactoryLHC, BDSMagnetOuterFactoryNone, and BDSMagnetOuterFactoryPolesBase.

Referenced by BDSMagnetOuterFactory::CreateMagnetOuter().

Here is the caller graph for this function:

◆ CreateLogicalVolumes()

void BDSMagnetOuterFactoryBase::CreateLogicalVolumes	(	const G4String &	name,
		G4Colour *	colour,
		G4Material *	outerMaterial
	)

protectedvirtual

Create logical volumes for yoke, container and magnet container - derived classes can override to extend as they need.

Reimplemented in BDSMagnetOuterFactoryPolesBase, and BDSMagnetOuterFactoryPolesSquare.

Definition at line 71 of file BDSMagnetOuterFactoryBase.cc.

References BDSFactoryBase::containerVisAttr, BDSMaterials::GetMaterial(), BDSColours::Instance(), BDSGlobalConstants::Instance(), BDSMaterials::Instance(), BDSFactoryBase::nSegmentsPerCircle, poleSolid, and yokeSolid.

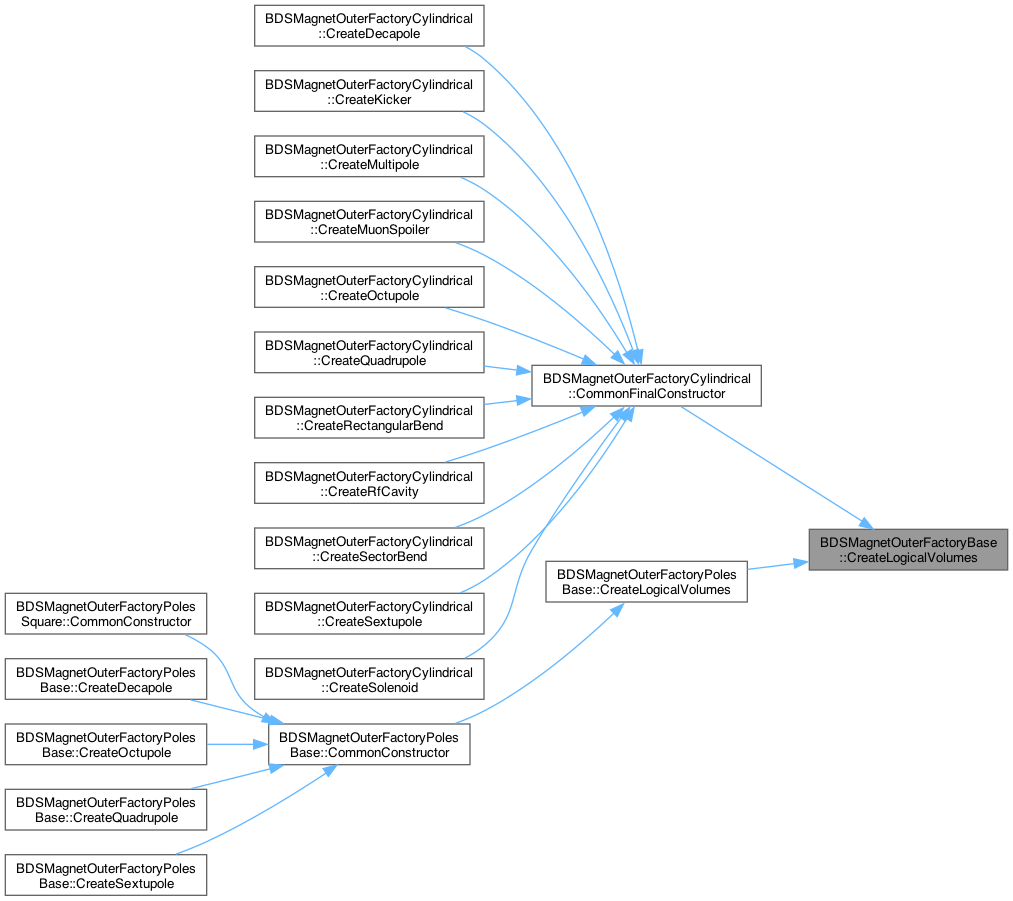

Referenced by BDSMagnetOuterFactoryCylindrical::CommonFinalConstructor(), and BDSMagnetOuterFactoryPolesBase::CreateLogicalVolumes().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateMagnetContainerComponent()

void BDSMagnetOuterFactoryBase::CreateMagnetContainerComponent ( )

protected

Definition at line 160 of file BDSMagnetOuterFactoryBase.cc.

◆ CreateMultipole()

virtual BDSMagnetOuter * BDSMagnetOuterFactoryBase::CreateMultipole	(	G4String	name,
		G4double	length,
		BDSBeamPipe *	beamPipe,
		G4double	containerLength,
		const BDSMagnetOuterInfo *	recipe
	)

pure virtual

general multipole outer volume - could be any 2N order multipole

Implemented in BDSMagnetOuterFactoryCylindrical, BDSMagnetOuterFactoryLHC, BDSMagnetOuterFactoryNone, and BDSMagnetOuterFactoryPolesBase.

Referenced by BDSMagnetOuterFactory::CreateMagnetOuter(), BDSMagnetOuterFactoryLHC::CreateMultipole(), and BDSMagnetOuterFactoryPolesBase::CreateMultipole().

Here is the caller graph for this function:

◆ CreateMuonSpoiler()

virtual BDSMagnetOuter * BDSMagnetOuterFactoryBase::CreateMuonSpoiler	(	G4String	name,
		G4double	length,
		BDSBeamPipe *	beamPipe,
		G4double	containerLength,
		const BDSMagnetOuterInfo *	recipe
	)

pure virtual

muon spoiler outer volume

Implemented in BDSMagnetOuterFactoryCylindrical, BDSMagnetOuterFactoryLHC, BDSMagnetOuterFactoryNone, and BDSMagnetOuterFactoryPolesBase.

Referenced by BDSMagnetOuterFactory::CreateMagnetOuter(), BDSMagnetOuterFactoryLHC::CreateMuonSpoiler(), and BDSMagnetOuterFactoryPolesBase::CreateMuonSpoiler().

Here is the caller graph for this function:

◆ CreateOctupole()

virtual BDSMagnetOuter * BDSMagnetOuterFactoryBase::CreateOctupole	(	G4String	name,
		G4double	length,
		BDSBeamPipe *	beamPipe,
		G4double	containerLength,
		const BDSMagnetOuterInfo *	recipe
	)

pure virtual

octupole outer volume

Implemented in BDSMagnetOuterFactoryCylindrical, BDSMagnetOuterFactoryLHC, BDSMagnetOuterFactoryNone, and BDSMagnetOuterFactoryPolesBase.

Referenced by BDSMagnetOuterFactory::CreateMagnetOuter(), and BDSMagnetOuterFactoryLHC::CreateOctupole().

Here is the caller graph for this function:

◆ CreateQuadrupole()

virtual BDSMagnetOuter * BDSMagnetOuterFactoryBase::CreateQuadrupole	(	G4String	name,
		G4double	length,
		BDSBeamPipe *	beamPipe,
		G4double	containerLength,
		const BDSMagnetOuterInfo *	recipe
	)

pure virtual

quadrupole outer volume

Implemented in BDSMagnetOuterFactoryCylindrical, BDSMagnetOuterFactoryLHC, BDSMagnetOuterFactoryNone, and BDSMagnetOuterFactoryPolesBase.

Referenced by BDSMagnetOuterFactory::CreateMagnetOuter().

Here is the caller graph for this function:

◆ CreateRectangularBend()

virtual BDSMagnetOuter * BDSMagnetOuterFactoryBase::CreateRectangularBend	(	G4String	name,
		G4double	length,
		const BDSBeamPipe *	beamPipe,
		G4double	containerLength,
		const BDSMagnetOuterInfo *	recipe
	)

pure virtual

rectangular bend outer volume

Implemented in BDSMagnetOuterFactoryCylindrical, BDSMagnetOuterFactoryLHC, BDSMagnetOuterFactoryNone, and BDSMagnetOuterFactoryPolesBase.

Referenced by BDSMagnetOuterFactory::CreateMagnetOuter().

Here is the caller graph for this function:

◆ CreateRfCavity()

virtual BDSMagnetOuter * BDSMagnetOuterFactoryBase::CreateRfCavity	(	G4String	name,
		G4double	length,
		BDSBeamPipe *	beamPipe,
		G4double	containerLength,
		const BDSMagnetOuterInfo *	recipe
	)

pure virtual

RF cavity outer volume.

Implemented in BDSMagnetOuterFactoryCylindrical, BDSMagnetOuterFactoryLHC, BDSMagnetOuterFactoryNone, and BDSMagnetOuterFactoryPolesBase.

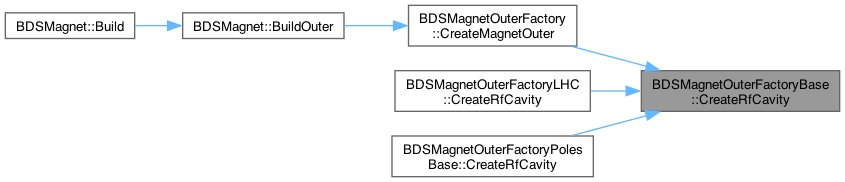

Referenced by BDSMagnetOuterFactory::CreateMagnetOuter(), BDSMagnetOuterFactoryLHC::CreateRfCavity(), and BDSMagnetOuterFactoryPolesBase::CreateRfCavity().

Here is the caller graph for this function:

◆ CreateSectorBend()

virtual BDSMagnetOuter * BDSMagnetOuterFactoryBase::CreateSectorBend	(	G4String	name,
		G4double	length,
		const BDSBeamPipe *	beamPipe,
		G4double	containerLength,
		const BDSMagnetOuterInfo *	recipe
	)

pure virtual

sector bend outer volume

Implemented in BDSMagnetOuterFactoryCylindrical, BDSMagnetOuterFactoryLHC, BDSMagnetOuterFactoryNone, and BDSMagnetOuterFactoryPolesBase.

Referenced by BDSMagnetOuterFactory::CreateMagnetOuter().

Here is the caller graph for this function:

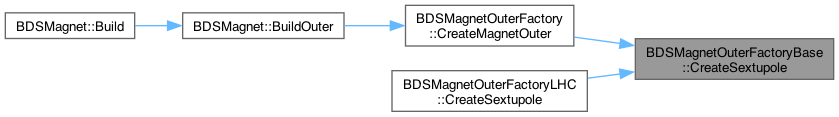

◆ CreateSextupole()

virtual BDSMagnetOuter * BDSMagnetOuterFactoryBase::CreateSextupole	(	G4String	name,
		G4double	length,
		BDSBeamPipe *	beamPipe,
		G4double	containerLength,
		const BDSMagnetOuterInfo *	recipe
	)

pure virtual

sextupole outer volume

Implemented in BDSMagnetOuterFactoryCylindrical, BDSMagnetOuterFactoryLHC, BDSMagnetOuterFactoryNone, and BDSMagnetOuterFactoryPolesBase.

Referenced by BDSMagnetOuterFactory::CreateMagnetOuter(), and BDSMagnetOuterFactoryLHC::CreateSextupole().

Here is the caller graph for this function:

◆ CreateSolenoid()

virtual BDSMagnetOuter * BDSMagnetOuterFactoryBase::CreateSolenoid	(	G4String	name,
		G4double	length,
		BDSBeamPipe *	beamPipe,
		G4double	containerLength,
		const BDSMagnetOuterInfo *	recipe
	)
