Factory class for outer volume of magnets. More...

#include <BDSMagnetOuterFactoryPolesSquare.hh>

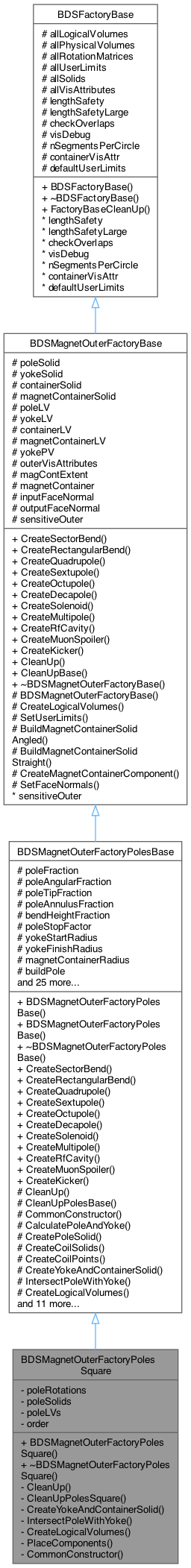

Inheritance diagram for BDSMagnetOuterFactoryPolesSquare:

Collaboration diagram for BDSMagnetOuterFactoryPolesSquare:

Private Member Functions
virtual void	CleanUp ()
	Clean up all memebers used.

void	CleanUpPolesSquare ()
	Clean up for this factory. Non-virtual as used in constructor.

virtual void	CreateYokeAndContainerSolid (const G4String &name, G4double length, G4int order, G4double magnetContainerLength, G4double magnetContainerRadiusIn)
	Create yoke that connects poles and container to put them in.

virtual void	IntersectPoleWithYoke (const G4String &name, G4double length, G4int orderIn)
	Chop off the top of the pole to match the appropriate yoke geometry.

virtual void	CreateLogicalVolumes (const G4String &name, G4Colour colour, G4Material outerMaterial)

virtual void	PlaceComponents (const G4String &name, G4int order)
	Place the poles and yoke in the container volume.

virtual BDSMagnetOuter *	CommonConstructor (const G4String &name, G4double length, BDSBeamPipe beamPipe, G4int order, G4double magnetContainerLength, const BDSMagnetOuterInfo recipe)

Private Attributes
std::vector< G4RotationMatrix * >	poleRotations

std::vector< G4VSolid * >	poleSolids

std::vector< G4LogicalVolume * >	poleLVs

G4int	order

Additional Inherited Members
Public Member Functions inherited from BDSMagnetOuterFactoryPolesBase
	BDSMagnetOuterFactoryPolesBase (G4double poleStopFactorIn)

virtual BDSMagnetOuter *	CreateSectorBend (G4String name, G4double length, const BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)
	sector bend outer volume

virtual BDSMagnetOuter *	CreateRectangularBend (G4String name, G4double length, const BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)
	rectangular bend outer volume

virtual BDSMagnetOuter *	CreateQuadrupole (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)
	quadrupole outer volume

virtual BDSMagnetOuter *	CreateSextupole (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)
	sextupole outer volume

virtual BDSMagnetOuter *	CreateOctupole (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)
	octupole outer volume

virtual BDSMagnetOuter *	CreateDecapole (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)
	decapole outer volume

virtual BDSMagnetOuter *	CreateSolenoid (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)
	solenoid outer volume

virtual BDSMagnetOuter *	CreateMultipole (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)
	general multipole outer volume - could be any 2N order multipole

virtual BDSMagnetOuter *	CreateRfCavity (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)
	RF cavity outer volume.

virtual BDSMagnetOuter *	CreateMuonSpoiler (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)
	muon spoiler outer volume

virtual BDSMagnetOuter *	CreateKicker (G4String name, G4double length, const BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe, G4bool vertical)
	horizontal and vertical kicker outer volume

Public Member Functions inherited from BDSMagnetOuterFactoryBase
virtual BDSMagnetOuter *	CreateSectorBend (G4String name, G4double length, const BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)=0
	sector bend outer volume

virtual BDSMagnetOuter *	CreateRectangularBend (G4String name, G4double length, const BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)=0
	rectangular bend outer volume

virtual BDSMagnetOuter *	CreateQuadrupole (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)=0
	quadrupole outer volume

virtual BDSMagnetOuter *	CreateSextupole (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)=0
	sextupole outer volume

virtual BDSMagnetOuter *	CreateOctupole (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)=0
	octupole outer volume

virtual BDSMagnetOuter *	CreateDecapole (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)=0
	decapole outer volume

virtual BDSMagnetOuter *	CreateSolenoid (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)=0
	solenoid outer volume

virtual BDSMagnetOuter *	CreateMultipole (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)=0
	general multipole outer volume - could be any 2N order multipole

virtual BDSMagnetOuter *	CreateRfCavity (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)=0
	RF cavity outer volume.

virtual BDSMagnetOuter *	CreateMuonSpoiler (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)=0
	muon spoiler outer volume

virtual BDSMagnetOuter *	CreateKicker (G4String name, G4double length, const BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe, G4bool vertical)=0
	horizontal and vertical kicker outer volume

virtual void	CleanUp ()
	Empty containers for next use - factories are never deleted so can't rely on scope.

void	CleanUpBase ()
	Non-virtual clean up that can be used in the constructor.

virtual	~BDSMagnetOuterFactoryBase ()
	Virtual base destructor.

Public Member Functions inherited from BDSFactoryBase
virtual void	FactoryBaseCleanUp ()
	Empty containers for next use - factories are never deleted so can't rely on scope.

Protected Member Functions inherited from BDSMagnetOuterFactoryPolesBase
virtual void	CleanUp ()
	Empty containers for next use - this class is never deleted so can't rely on scope.

void	CleanUpPolesBase ()
	Non-virtual clean up to be used in constructor.

virtual BDSMagnetOuter *	CommonConstructor (const G4String &name, G4double length, BDSBeamPipe beamPipe, G4int order, G4double magnetContainerLength, const BDSMagnetOuterInfo recipe)
	Common construction tasks to all methods - assemble yoke and poles in container.

virtual void	CalculatePoleAndYoke (G4double horizontalWidth, BDSBeamPipe *beamPipe, G4int order)

virtual void	CreatePoleSolid (const G4String &name, G4double length, G4int order)

virtual void	CreateCoilSolids (const G4String &name, G4double length)
	Create the coil solids corresponding to the pole solid.

virtual void	CreateCoilPoints ()
	Create all the points that make up the extruded solid of the pole.

virtual void	CreateYokeAndContainerSolid (const G4String &name, G4double length, G4int order, G4double magnetContainerLength, G4double magnetContainerRadiusIn)

virtual void	IntersectPoleWithYoke (const G4String &name, G4double length, G4int order)
	Chop off the top of the pole to match the appropriate yoke geometry.

virtual void	CreateLogicalVolumes (const G4String &name, G4Colour colour, G4Material outerMaterial)

virtual void	CreateLogicalVolumesCoil (const G4String &name)

virtual void	CreateEndPiece (const G4String &name)

virtual void	PlaceComponents (const G4String &name, G4int order)
	Place the poles and yoke in the container volume.

virtual void	PlaceComponentsCoils (const G4String &name, G4int order)
	If we're building coils, place two coils for each pole.

void	TestCoilFractions (G4double &coilWidthFraction, G4double &coilHeightFraction)

void	DipoleCommonPreConstruction (const G4String &name, G4double angleIn, G4double angleOut, G4double length, G4double &horizontalWidth, G4Material *&material, G4double &vhRatio)

void	DipoleCalculations (G4bool hStyle, G4bool buildVertically, const BDSBeamPipe *beamPipe, G4double length, G4double horizontalWidth, G4double angleIn, G4double angleOut, G4double yokeThicknessFraction, G4double vhRatio, G4double coilWidthFraction, G4double coilHeightFraction, G4double &cShapeOuterEdge, G4double &poleHalfGap, G4double &poleWidth, G4double &poleHeight, G4double &yokeWidth, G4double &yokeHalfHeight, G4double &yokeThickness, G4double &yokeOverHang, G4double &coilWidth, G4double &coilHeightIn, G4double &coilToYokeGap, G4double &coilToPoleGap, G4double &sLength, G4double &containerSLength, G4double &intersectionRadius)

std::vector< G4ThreeVector >	CalculateCoilDisplacements (G4double poleHalfWidthIn, G4double poleHalfGapIn, G4double coilWidthIn, G4double coilHeightIn, G4double cDY, G4double &coilDY)

BDSMagnetOuter *	CreateDipoleC (const G4String &name, G4double length, const BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe, G4bool buildVertically)

BDSMagnetOuter *	CreateDipoleH (const G4String &name, G4double length, const BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe, G4bool buildVertically)
	Routine to construct an H shaped dipole magnet and can optionally be built vertically.

BDSMagnetOuter *	DipoleCommonConstruction (const G4String &name, G4double horizontalWidth, G4bool buildEndPiece, G4double coilWidth, G4double length, G4double containerLength, G4double sLength, G4double angleIn, G4double angleOut, G4Colour colour, G4Material material, std::vector< G4ThreeVector > &coilDisps, G4bool buildVertically, BDSExtent &ext, G4double poleHalfWidth, G4double poleHalfGap, G4double cDY, G4double coilDY, G4double intersectionRadius)

Protected Member Functions inherited from BDSMagnetOuterFactoryBase
virtual void	CreateLogicalVolumes (const G4String &name, G4Colour colour, G4Material outerMaterial)

virtual void	SetUserLimits ()
	Attach default user limits to all logical volumes.

void	BuildMagnetContainerSolidAngled (const G4String &name, G4double magnetContainerLength, G4double magnetContainerRadius, G4bool flatFaces=false)

void	BuildMagnetContainerSolidStraight (const G4String &name, G4double magnetContainerLength, G4double magnetContainerRadius)

void	CreateMagnetContainerComponent ()

void	SetFaceNormals (BDSMagnetOuter *outer)
	Copy face normals from members to an instance of outer.

Protected Attributes inherited from BDSMagnetOuterFactoryPolesBase
const G4double	poleFraction

const G4double	poleAngularFraction
	Fraction of 2pi/Npoles that the pole will occupy - always < 1.

const G4double	poleTipFraction

const G4double	poleAnnulusFraction

const G4double	bendHeightFraction

const G4double	poleStopFactor

G4double	yokeStartRadius
	Start radius of yoke geometry from magnet cetnre.

G4double	yokeFinishRadius
	Finish radius of yoke geometry from magnet centre - less than horizontalWidth.

G4double	magnetContainerRadius
	Radius of the container solid for the outer geometry.

G4bool	buildPole
	Whether or not to build poles (and therefore coils).

G4double	poleStartRadius
	Start radius of the pole from magnet centre.

G4double	poleFinishRadius
	Finish radius of the pole from magnet centre.

G4double	poleSquareWidth
	Full width of pole in constant width section.

G4double	poleSquareStartRadius
	Radius from magnet centre that constant width section starts.

G4double	segmentAngle
	2PI / # of poles - angle per segment allocated for each pole.

G4double	poleAngle
	The angle allowed for the pole to occupy - less than segmentAngle.

G4ThreeVector	poleTranslation
	Offste of pole for placement from magnet centre.

G4double	coilHeight
	Height along y for coil for coil beside 1 upgright pole aligned with y axis.

G4double	coilCentreRadius
	Radius from magnet centre that the centre of the coils exist at.

G4double	endPieceLength
	Length of the coil end piece along what will be curvilinear S.

G4double	endPieceInnerR
	Inner radius for end piece container.

G4double	endPieceOuterR
	Outer radius for end piece container.

G4VSolid *	poleIntersectionSolid
	Solid used to chop off pole.

G4VSolid *	coilLeftSolid
	Left coil solid for one pole built upright along y axis.

G4VSolid *	coilRightSolid
	Right coil solid.

G4VSolid *	endPieceContainerSolid
	End piece container solid.

G4LogicalVolume *	coilLeftLV
	Logical volume for left coil.

G4LogicalVolume *	coilRightLV
	Logical volume for right coil.

G4LogicalVolume *	endPieceCoilLV
	Logical volume for end piece single coil piece.

G4LogicalVolume *	endPieceContainerLV
	Logical volume for end piece container.

BDSSimpleComponent *	endPiece
	Fully constructed end piece.

std::vector< G4TwoVector >	leftPoints
	Vector of 2D points for left coil.

std::vector< G4TwoVector >	rightPoints
	Vector of 2D points for right coil.

std::vector< G4TwoVector >	endPiecePoints
	Vector of 2D points for end piece looking from above down z.

BDSMagnetOuterFactoryBase *	cylindrical
	Default factory to fall back to.

Protected Attributes inherited from BDSMagnetOuterFactoryBase
G4VSolid *	poleSolid
	Solid for an individual pole that will be placed multiple times.

G4VSolid *	yokeSolid
	Solid for outer part that connects all poles.

G4VSolid *	containerSolid

G4VSolid *	magnetContainerSolid

G4LogicalVolume *	poleLV

G4LogicalVolume *	yokeLV

G4LogicalVolume *	containerLV

G4LogicalVolume *	magnetContainerLV

G4VPhysicalVolume *	yokePV

G4VisAttributes *	outerVisAttributes

BDSExtent	magContExtent

BDSGeometryComponent *	magnetContainer

G4ThreeVector	inputFaceNormal

G4ThreeVector	outputFaceNormal

G4bool	sensitiveOuter
	Cache of global constants variable.

Protected Attributes inherited from BDSFactoryBase
std::set< G4LogicalVolume * >	allLogicalVolumes

std::set< G4VPhysicalVolume * >	allPhysicalVolumes

std::set< G4RotationMatrix * >	allRotationMatrices

std::set< G4UserLimits * >	allUserLimits

std::set< G4VSolid * >	allSolids

std::set< G4VisAttributes * >	allVisAttributes

G4double	lengthSafety
	Cache of global constants variable.

G4double	lengthSafetyLarge
	Cache of global constants variable.

G4bool	checkOverlaps
	Cache of global constants variable.

G4bool	visDebug
	Cache of global constants variable.

G4int	nSegmentsPerCircle
	Cache of global constants variable.

G4VisAttributes *	containerVisAttr
	Cache of global constants variable.

G4UserLimits *	defaultUserLimits
	Cache of global constants variable.

Detailed Description

Factory class for outer volume of magnets.

Produces magnets with 2N-poles around the beampipe with a square yoke.

Most magnets are 2N poles, but sector- and r-bends as well as muon spoilers, and h/v kickers are unique.

Author: Laurie Nevay

Definition at line 45 of file BDSMagnetOuterFactoryPolesSquare.hh.

Constructor & Destructor Documentation

◆ BDSMagnetOuterFactoryPolesSquare()

BDSMagnetOuterFactoryPolesSquare::BDSMagnetOuterFactoryPolesSquare ( )

Definition at line 42 of file BDSMagnetOuterFactoryPolesSquare.cc.

◆ ~BDSMagnetOuterFactoryPolesSquare()

virtual BDSMagnetOuterFactoryPolesSquare::~BDSMagnetOuterFactoryPolesSquare ( )

inlinevirtual

Definition at line 49 of file BDSMagnetOuterFactoryPolesSquare.hh.

Member Function Documentation

◆ CleanUp()

void BDSMagnetOuterFactoryPolesSquare::CleanUp ( )

privatevirtual

Clean up all memebers used.

Reimplemented from BDSMagnetOuterFactoryPolesBase.

Definition at line 48 of file BDSMagnetOuterFactoryPolesSquare.cc.

References BDSMagnetOuterFactoryPolesBase::CleanUp(), and CleanUpPolesSquare().

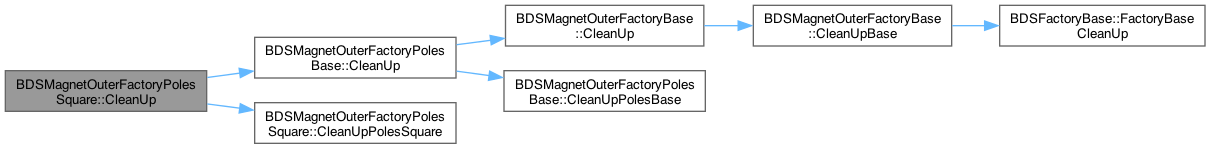

Here is the call graph for this function:

◆ CleanUpPolesSquare()

void BDSMagnetOuterFactoryPolesSquare::CleanUpPolesSquare ( )

private

Clean up for this factory. Non-virtual as used in constructor.

Definition at line 54 of file BDSMagnetOuterFactoryPolesSquare.cc.

References order, and poleRotations.

Referenced by CleanUp().

Here is the caller graph for this function:

◆ CommonConstructor()

BDSMagnetOuter * BDSMagnetOuterFactoryPolesSquare::CommonConstructor	(	const G4String &	name,
		G4double	length,
		BDSBeamPipe *	beamPipe,
		G4int	order,
		G4double	magnetContainerLength,
		const BDSMagnetOuterInfo *	recipe
	)

privatevirtual

Common construction tasks to all methods - assemble yoke and poles in container have to override this as we have multiple pole logical volumes and they need to be registered

Reimplemented from BDSMagnetOuterFactoryPolesBase.

Definition at line 242 of file BDSMagnetOuterFactoryPolesSquare.cc.

References BDSMagnetOuterFactoryPolesBase::CommonConstructor(), BDSGeometryComponent::RegisterLogicalVolume(), BDSGeometryComponent::RegisterSensitiveVolume(), and BDSMagnetOuterFactoryBase::sensitiveOuter.

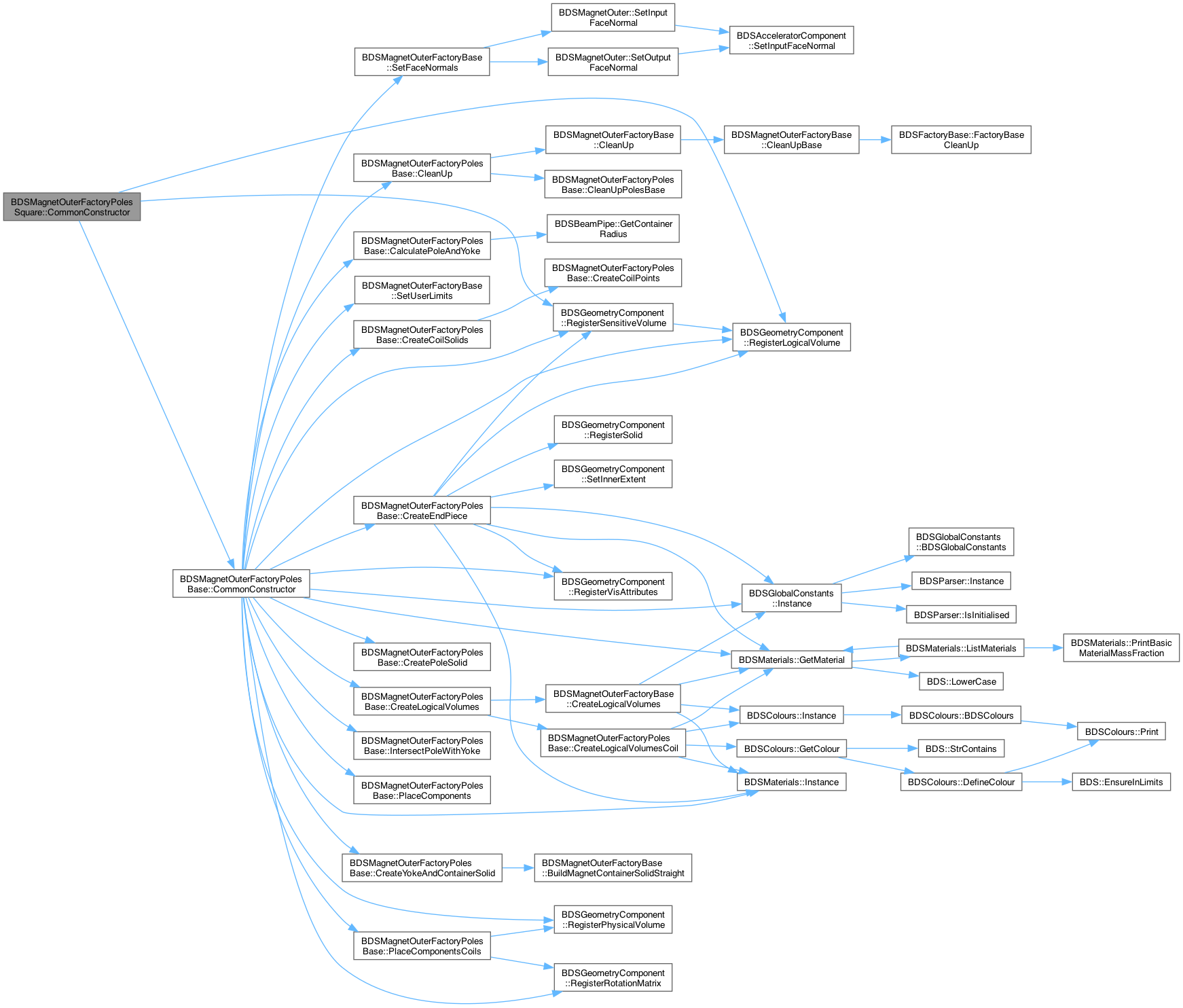

Here is the call graph for this function:

◆ CreateLogicalVolumes()

void BDSMagnetOuterFactoryPolesSquare::CreateLogicalVolumes	(	const G4String &	name,
		G4Colour *	colour,
		G4Material *	outerMaterial
	)

privatevirtual

Build the logical volumes from the solids assigning materials and colours and cuts. This doesn't make use of any base class implementation as this class creates a vector of unique poles that must all be built individually into logical volumes. It does however make use of BDSMagnetOuterFactoryPolesBase::CreateLogicalVolumesCoil.

Reimplemented from BDSMagnetOuterFactoryPolesBase.

Definition at line 151 of file BDSMagnetOuterFactoryPolesSquare.cc.

References BDSFactoryBase::containerVisAttr, BDSMagnetOuterFactoryPolesBase::CreateLogicalVolumesCoil(), BDSFactoryBase::defaultUserLimits, BDSMaterials::GetMaterial(), BDSGlobalConstants::Instance(), BDSMaterials::Instance(), BDSFactoryBase::nSegmentsPerCircle, order, and BDSMagnetOuterFactoryBase::yokeSolid.

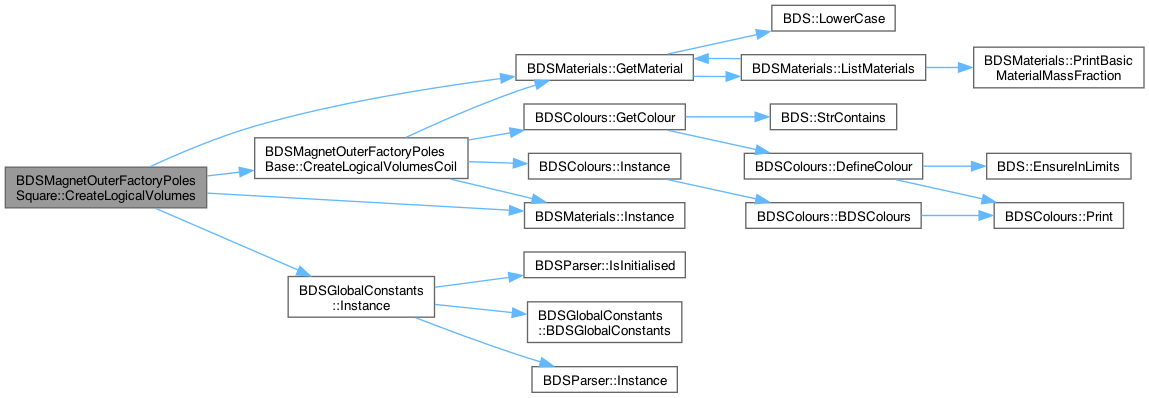

Here is the call graph for this function:

◆ CreateYokeAndContainerSolid()

void BDSMagnetOuterFactoryPolesSquare::CreateYokeAndContainerSolid	(	const G4String &	name,
		G4double	length,
		G4int	order,
		G4double	magnetContainerLength,
		G4double	magnetContainerRadiusIn
	)

privatevirtual

Create yoke that connects poles and container to put them in.

Reimplemented from BDSMagnetOuterFactoryPolesBase.

Definition at line 62 of file BDSMagnetOuterFactoryPolesSquare.cc.

References BDSFactoryBase::lengthSafety, BDSMagnetOuterFactoryPolesBase::poleIntersectionSolid, BDSMagnetOuterFactoryPolesBase::poleStartRadius, BDSMagnetOuterFactoryPolesBase::yokeFinishRadius, BDSMagnetOuterFactoryBase::yokeSolid, and BDSMagnetOuterFactoryPolesBase::yokeStartRadius.

◆ IntersectPoleWithYoke()

void BDSMagnetOuterFactoryPolesSquare::IntersectPoleWithYoke	(	const G4String &	name,
		G4double	length,
		G4int	order
	)

privatevirtual

Chop off the top of the pole to match the appropriate yoke geometry.

Reimplemented from BDSMagnetOuterFactoryPolesBase.

Definition at line 125 of file BDSMagnetOuterFactoryPolesSquare.cc.

References order, BDSMagnetOuterFactoryPolesBase::poleIntersectionSolid, BDSMagnetOuterFactoryBase::poleSolid, and BDSMagnetOuterFactoryPolesBase::segmentAngle.

◆ PlaceComponents()

void BDSMagnetOuterFactoryPolesSquare::PlaceComponents	(	const G4String &	name,
		G4int	order
	)

privatevirtual

Place the poles and yoke in the container volume.

Reimplemented from BDSMagnetOuterFactoryPolesBase.

Definition at line 201 of file BDSMagnetOuterFactoryPolesSquare.cc.

References BDSMagnetOuterFactoryPolesBase::buildPole, BDSFactoryBase::checkOverlaps, and BDSMagnetOuterFactoryPolesBase::segmentAngle.

Field Documentation

◆ order

G4int BDSMagnetOuterFactoryPolesSquare::order

private

Need to pass order to CreateLogicalVolumes but should override for neatness and therefore can't change the signature of the function, so pass by internal variable.

Definition at line 99 of file BDSMagnetOuterFactoryPolesSquare.hh.

Referenced by CleanUpPolesSquare(), CreateLogicalVolumes(), and IntersectPoleWithYoke().
