LHC outer magnet geometry offset to the right. More...

#include <BDSMagnetOuterFactoryLHCRight.hh>

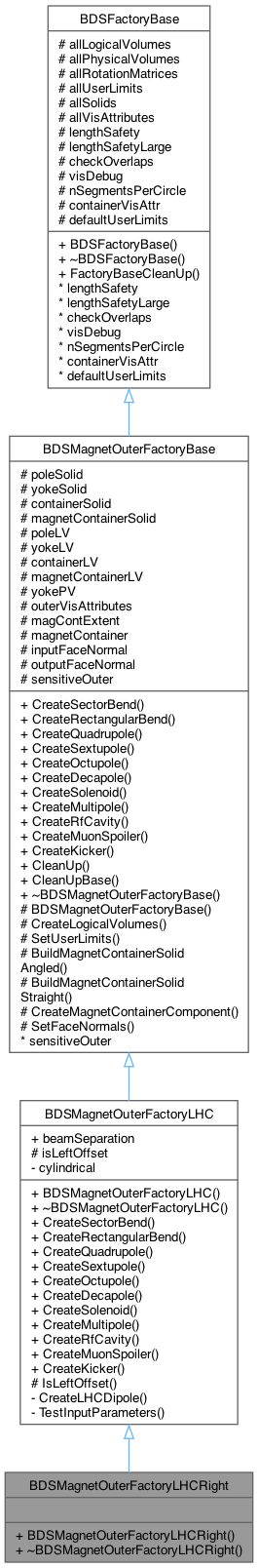

Inheritance diagram for BDSMagnetOuterFactoryLHCRight:

Collaboration diagram for BDSMagnetOuterFactoryLHCRight:

Additional Inherited Members
Public Member Functions inherited from BDSMagnetOuterFactoryLHC
	BDSMagnetOuterFactoryLHC (G4bool isLeftOffset)

virtual BDSMagnetOuter *	CreateSectorBend (G4String name, G4double length, const BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)
	sector bend outer volume

virtual BDSMagnetOuter *	CreateRectangularBend (G4String name, G4double length, const BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)
	rectangular bend outer volume

virtual BDSMagnetOuter *	CreateQuadrupole (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)
	quadrupole outer volume

virtual BDSMagnetOuter *	CreateSextupole (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)
	sextupole outer volume

virtual BDSMagnetOuter *	CreateOctupole (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)
	octupole outer volume

virtual BDSMagnetOuter *	CreateDecapole (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)
	decapole outer volume

virtual BDSMagnetOuter *	CreateSolenoid (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)
	solenoid outer volume

virtual BDSMagnetOuter *	CreateMultipole (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)
	general multipole outer volume - could be any 2N order multipole

virtual BDSMagnetOuter *	CreateRfCavity (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)
	RF cavity outer volume.

virtual BDSMagnetOuter *	CreateMuonSpoiler (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)
	muon spoiler outer volume

virtual BDSMagnetOuter *	CreateKicker (G4String name, G4double length, const BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe, G4bool vertical)
	horizontal and vertical kicker outer volume

Public Member Functions inherited from BDSMagnetOuterFactoryBase
virtual BDSMagnetOuter *	CreateSectorBend (G4String name, G4double length, const BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)=0
	sector bend outer volume

virtual BDSMagnetOuter *	CreateRectangularBend (G4String name, G4double length, const BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)=0
	rectangular bend outer volume

virtual BDSMagnetOuter *	CreateQuadrupole (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)=0
	quadrupole outer volume

virtual BDSMagnetOuter *	CreateSextupole (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)=0
	sextupole outer volume

virtual BDSMagnetOuter *	CreateOctupole (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)=0
	octupole outer volume

virtual BDSMagnetOuter *	CreateDecapole (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)=0
	decapole outer volume

virtual BDSMagnetOuter *	CreateSolenoid (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)=0
	solenoid outer volume

virtual BDSMagnetOuter *	CreateMultipole (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)=0
	general multipole outer volume - could be any 2N order multipole

virtual BDSMagnetOuter *	CreateRfCavity (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)=0
	RF cavity outer volume.

virtual BDSMagnetOuter *	CreateMuonSpoiler (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)=0
	muon spoiler outer volume

virtual BDSMagnetOuter *	CreateKicker (G4String name, G4double length, const BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe, G4bool vertical)=0
	horizontal and vertical kicker outer volume

virtual void	CleanUp ()
	Empty containers for next use - factories are never deleted so can't rely on scope.

void	CleanUpBase ()
	Non-virtual clean up that can be used in the constructor.

virtual	~BDSMagnetOuterFactoryBase ()
	Virtual base destructor.

Public Member Functions inherited from BDSFactoryBase
virtual void	FactoryBaseCleanUp ()
	Empty containers for next use - factories are never deleted so can't rely on scope.

Static Public Attributes inherited from BDSMagnetOuterFactoryLHC
static const G4double	beamSeparation = 194.00*CLHEP::mm
	Used in many places - make it a constant in the code and put here as most relevant.

Protected Member Functions inherited from BDSMagnetOuterFactoryLHC
G4bool	IsLeftOffset ()

Protected Member Functions inherited from BDSMagnetOuterFactoryBase
virtual void	CreateLogicalVolumes (const G4String &name, G4Colour colour, G4Material outerMaterial)

virtual void	SetUserLimits ()
	Attach default user limits to all logical volumes.

void	BuildMagnetContainerSolidAngled (const G4String &name, G4double magnetContainerLength, G4double magnetContainerRadius, G4bool flatFaces=false)

void	BuildMagnetContainerSolidStraight (const G4String &name, G4double magnetContainerLength, G4double magnetContainerRadius)

void	CreateMagnetContainerComponent ()

void	SetFaceNormals (BDSMagnetOuter *outer)
	Copy face normals from members to an instance of outer.

Protected Attributes inherited from BDSMagnetOuterFactoryLHC
G4bool	isLeftOffset

Protected Attributes inherited from BDSMagnetOuterFactoryBase
G4VSolid *	poleSolid
	Solid for an individual pole that will be placed multiple times.

G4VSolid *	yokeSolid
	Solid for outer part that connects all poles.

G4VSolid *	containerSolid

G4VSolid *	magnetContainerSolid

G4LogicalVolume *	poleLV

G4LogicalVolume *	yokeLV

G4LogicalVolume *	containerLV

G4LogicalVolume *	magnetContainerLV

G4VPhysicalVolume *	yokePV

G4VisAttributes *	outerVisAttributes

BDSExtent	magContExtent

BDSGeometryComponent *	magnetContainer

G4ThreeVector	inputFaceNormal

G4ThreeVector	outputFaceNormal

G4bool	sensitiveOuter
	Cache of global constants variable.

Protected Attributes inherited from BDSFactoryBase
std::set< G4LogicalVolume * >	allLogicalVolumes

std::set< G4VPhysicalVolume * >	allPhysicalVolumes

std::set< G4RotationMatrix * >	allRotationMatrices

std::set< G4UserLimits * >	allUserLimits

std::set< G4VSolid * >	allSolids

std::set< G4VisAttributes * >	allVisAttributes

G4double	lengthSafety
	Cache of global constants variable.

G4double	lengthSafetyLarge
	Cache of global constants variable.

G4bool	checkOverlaps
	Cache of global constants variable.

G4bool	visDebug
	Cache of global constants variable.

G4int	nSegmentsPerCircle
	Cache of global constants variable.

G4VisAttributes *	containerVisAttr
	Cache of global constants variable.

G4UserLimits *	defaultUserLimits
	Cache of global constants variable.
