Model Customisation

Fields

BDSIM provides the facility to overlay magnetic, electric, or combined electromagnetic fields on an element, as defined either by an externally provided field map or by a ‘pure’ field from an equation already included in BDSIM. A field map is an array of evenly space points in Cartesian coordinates that define the field as a 3-vector at that point.

A field can be applied to an element or a piece of geometry for:

  1. only the “vacuum” volume(s) (“fieldVacuum”)

  2. only the “outer” volume(s) outside the vacuum (i.e. the yoke) (“fieldOuter”)

  3. or one full map for the whole element. (“fieldAll”)

BDSIM allows any Geant4 integrator to be used to calculate the motion of the particle, which can be chosen given knowledge of the smoothness of the field or the application (default is a 4th order Runge Kutta). BDSIM also provides a selection of 1-4D interpolators that are used to provide the field value in between the data points in the supplied field map.

To overlay a field, one must define a field ‘object’ in the parser and then ‘attach’ it to an element.

f1: field, type="bmap3d", magneticFile="bdsim3d:fieldmap.dat.gz";
e1: element, geometryFile="gdml:aPieceOfGeometry.gdml", fieldAll="f1";
q1: quadrupole, l=20*cm, k1=0.1, fieldOuter="f1";
h1: hkicker, l=1*m, fieldVacuum="f1";

These are all different uses of the same field map. e1 uses a generic element with externally provided geometry with a field map for all of the geometry. q1 uses a BDSIM-generated quadrupole with a perfect quadrupolar field in the beam pipe and vacuum and the field map for the yoke and surrounding air in between the yoke and beam pipe. h1 uses a BDSIM-generated horizontal kicker magnet and BDSIM multipolar yoke field (the default) but with a custom field map for inside the vacuum only. The field map is a 3D field map in BDSIM file format and uses cubic interpolation by default.

Field General Notes

Some notes on field maps in BDSIM:

  • Fields are in a local Cartesian coordinate system with respect to the origin of the element they are attached to.

  • The field may be attached to everything “fieldAll”; the vacuum volume “fieldVacuum”, or the yoke “fieldOuter”.

  • Magnetic and electric field maps are specified in separate files and may have different interpolators.

  • Fields may have up to four dimensions.

  • The dimensions are (by default) in order \(x,y,z,t\). For example, specifying a 3D field will be \(x,y,z\) and a 2D field \(x,y\).

  • Fields with different dimensions (e.g. \(x,z\) and constant \(y\)) can be used.

  • Cubic interpolation is used by default unless otherwise specified.

  • Geant4’s classical 4th order Runge Kutta is used as the default numerical integrator.

For BDSIM format fields, the user can specify different dimension with the other dimensions being assumed constant. For example, a field that varies in \(x,z\) is possible (assumed constant in \(y\)). For BDSIM format fields, this is detected automatically by the column labelling and the keys in the header of the file that specify the ranges in each dimension. The dimensions must however be in ascending or descending order.

Note

Currently only regular (evenly spaced) grids are supported with field maps. It would require significant development to extend this to irregular grids. It’s strongly recommended the user re-sample any existing field map into a regular grid. A regular grid is also much faster for tracking purposes.

Warning

The maximum step length of a particle through an element is by default 10km in Geant4. BDSIM reduces this to 110% the length of an element. In the case of a field map, the step limit is not dynamically derived (in Geant4) from the variation in the field. Too large a step may mean that the numerical integration along the step may not ‘see’ the variations in the field and therefore calculate the wrong motion. For example, imagine a wiggler or undulator field map and only a few select points along it’s length being queried - it may appear as a dipole field! Therefore, when we use a field map in BDSIM, the step length is limited to the minimum distance between points in any dimension of the field map. Depending on how much the field map varies from point to point (density of samples) then the user may wish to reduce this further with the parameter maximumStepLength below in the field definition. You may also wish to visualise the individual points as described in Visualising Step Points.

Minimal Example

Here is a minimal example of a magnetic field in BDSIM format:

detfield: field, type="bmap3d",
                 magneticFile="bdsim3d:fieldmap.dat.gz";

This will use the “g4classicalrk4” integrator for the particle motion and the “cubic” (in 3D) interpolation by default.

Here is example syntax to define a field object named ‘somefield’ in the parser and overlay it onto a drift pipe where it covers the full volume of the drift (not outside it though):

somefield: field, type="ebmap2d",
                  eScaling = 3.0,
                  bScaling = 0.4,
                  integrator = "g4classicalrk4",
                  magneticFile = "poisson2d:/Path/To/File.TXT",
                  magneticInterpolator = "nearest",
                  electricFile = "poisson2d:/Another/File.TXT",
                  electricInterpolator = "linear";

d1: drift, l=0.5*m, aper1=4*cm, fieldAll="somefield";

Each beam line element will allow “fieldAll”, “fieldVacuum” and “fieldOuter” to be specified.

Field Map Definition

When defining a field, the following parameters can be specified. Example below.

Parameter

Description

type

See type table below.

eScaling

A numerical scaling factor that all electric field vectors’ amplitudes will be multiplied by

bScaling

A numerical scaling factor that all magnetic field vectors’ amplitudes will be multiplied by

integrator

The integrator used to calculate the motion of the particle in the field. See below for full list of supported integrators.

globalTransform

Boolean. Whether a transform from local curvilinear coordinates to global coordinates should be provided (default true).

magneticFile

“format:filePath” - see formats below.

magneticInterpolator

Which interpolator to use - see below for a full list.

electricFile

“format:filePath” - see formats below.

electricInterpolator

Which interpolator to use - see below for a full list.

magneticReflection

String of white-space separate relfection names to use.

electricReflection

String of white-space separate relfection names to use.

fieldModulator

Name of modulator object to apply to the field definition.

x

x-offset from element it’s attached to

y

y-offset from element it’s attached to

z

z-offset from element it’s attached to

t

t-offset from Global t in seconds

phi

Euler phi rotation from the element the field is attached to

theta

Euler theta rotation from the element the field is attached to

psi

Euler psi rotation from the element the field is attached to

axisAngle

(Boolean) Use axis angle rotation variables. Default 0 (Euler).

axisX

x-component of axis defining axis / angle rotation

axisY

y-component of axis defining axis / angle rotation

axisZ

z-component of axis defining axis / angle rotation

angle

angle (rad) of defining axis / angle rotation

autoScale

This automatically calculates the field gradient at the origin and the field magnitude will be automatically scaled according to the normalised k strength (such as k1 for a quadrupole) for the magnet it’s attached to. Only applicable for when attached to fieldOuter of aa magnet.

maximumStepLength

The maximum permitted step length through the field. (m) No length smaller than 1 micron is permitted currently.

electricSubField

Name of another field object like this one that will be used as a electric ‘sub’ field that overlays this one.

magneticSubField

Name of another field object like this one that will be used as a magnetic ‘sub’ field that overlays this one.

fieldParameters

A string containing a white-space separated list of parameter=value when using a pure field type. See Pure Fields Types.

frequency

Frequency (Hz) of the time-varying modulation of the field .

phase

Phase offset (rad) of the time-dependent modulation. It is connected to tOffset and can be converted into it.

tOffset

Global time offset (s) of the time-dependent modulation. It is internally translated into the phase offset.

modulator

Function that describes the time-variation of the field. Currently, sin/SIN/Sin and cos/COS/Cos can be used.

Advanced parameter to be used with caution:

maximumStepLengthOverride

Maximum step length (m) in the field that will override the length calcualted from the minimal field map grid spacing. This overrides maximumStepLength and the one calculated.

Simple example:

detectorField: field, type="bmap2d",
               magneticFile="bdsim2d:fieldmap.dat";

This will use a BDSIM format magnetic (only) field map. By default it will have cubic interpolation and use a 4th order Runge Kutta integrator.

The maximum step length will be the minimum of:

  • maximumStepLength specified in the field definition

  • 110% of the element length that the field is attached to

  • the global maximum step length

  • the minimum spacing in any dimension of the field map

In the case of a 4D field, the velocity is assume to be c, the speed of light, for the spatial distance calculated from this.

Note

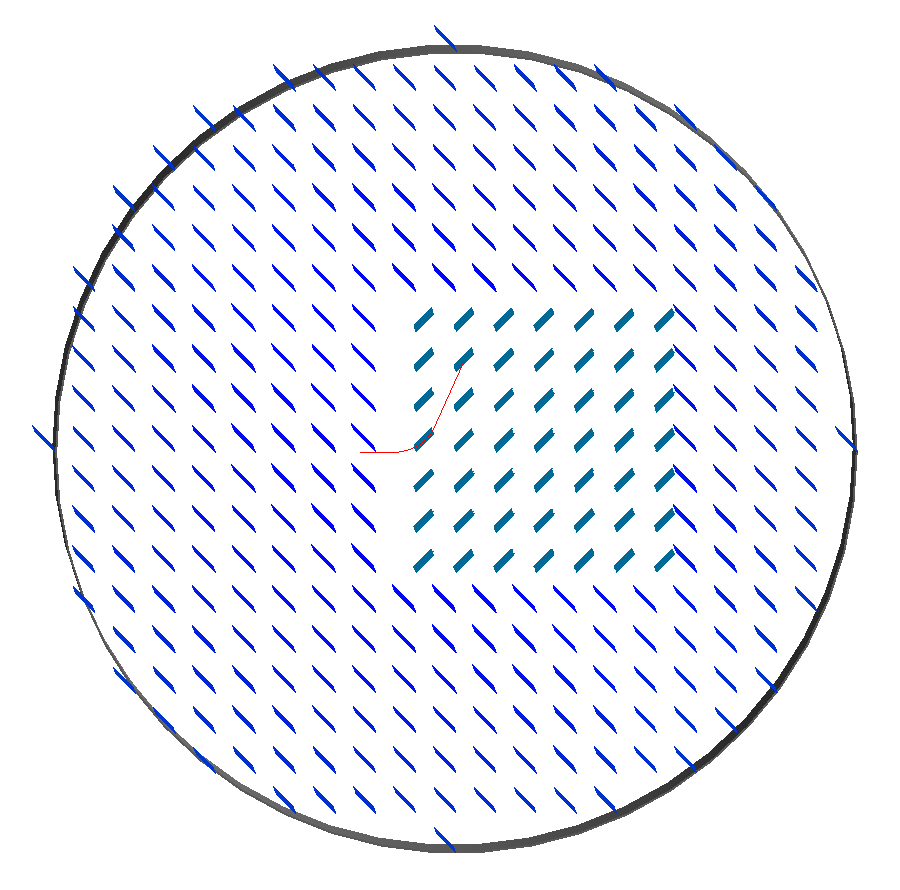

See Sub-Fields below for more details on overlaying two field maps in one.

Note

Either axis angle (with unit axis 3-vector) or Euler angles can be used to provide the rotation between the element the field maps are attached to and the coordinates of the field map. Use axisAngle=1 to use the axis angle rotation scheme.

Note

A right-handed coordinate system is used in Geant4, so positive x is out of a ring.

Note

The time-modulation of the fields is off by default. It is implemented for field maps (E, B and EM) in up to all three spatial dimensions. It is not necessary to define both, phase and tOffset, as they have the same physical meaning. The modulation is calculated according to \(\sin(2\pi ft-\varphi)\) or \(\cos(2\pi ft-\varphi)\) with \(f\) being the frequency of the modulation, \(t\) the global time of the particle and \(\varphi\) the shift wrt. the beginning of the oscillation.

AutoScaling

BDSIM includes a feature called “autoScale” that allows the gradient to be calculated of a field map when attached to the yoke of a magnet. The field map is then scaled by the required factor to match the (normalised) strength of the magnet, e.g. k1 for a quadrupole.

This only works when autoScale=1 is used in the field definition and when the field is specified for the fieldOuter parameter of a magnet such as a quadrupole, sextupole, or octupole.

For example:

f1: field, type="bmap2d", magnetifFile="bdsim:fieldmap.dat";
q1: quadrupole, l=2.99*m, fieldOuter="f1", k1=-0.03571027562065992;

Example print out when running BDSIM would be:

BDSIM Field Format> Loading "/Users/lnevay/Desktop/gradient/QNRX0610005_-192.59A.map"
BDSIM Field Format> Loaded 2099 lines from file
BDSIM Field Format> (Min | Max) field magnitudes in loaded file (before scaling): (0 | 4.12849187851)
autoScale> Calculated k1 = -0.0430970787713
autoScale> Ratio of supplied strength to calculated map strength: 0.828600838822
autoScale> New overall scaling factor: 0.828600838822

Field Types

  • These are not case sensitive.

Type String

Description

bmap1d

1D magnetic only field map

bmap2d

2D magnetic only field map

bmap3d

3D magnetic only field map

bmap4d

4D magnetic only field map

emap1d

1D electric only field map

emap2d

2D electric only field map

emap3d

3D electric only field map

emap4d

4D electric only field map

ebmap1d

1D electric-magnetic field map

ebmap2d

2D electric-magnetic field map

ebmap3d

3D electric-magnetic field map

ebmap4d

4D electric-magnetic field map

Note

Some “pure” fields can be used also. Their names for the “type” are listed in Field Names and Parameters.

Pure Fields Types

“Pure” fields are ones that are described by equations in BDSIM. These are used for all the generic accelerator components. Note, we may use custom numerical integrators for tracking in accelerator components that ignore the field that is required to be there for Geant4. However, these integrators often fall-back to this field when tracking a particle in a direction they can’t handle.

The pure fields can be used as a field object in BDSIM. The type in the field definition must be exactly one of the internal names used for the field name.

  • See field types here: Field Names and Parameters.

  • No units or commas may be used inside the fieldParameters string.

  • The fieldParameters string should have parameter=value pairs white-space separated.

  • Normalised field strengths are used with respect to the beam particle and design energy.

Example:

f1: field, type="dipole", fieldParameters="field=1.2 by=1.0";

For a dipole field with value 1.2 T and along the unit Y axis (local). The other components of the unit vector associated with it will default to 0.

Field Reflections and Transforms

It is possible to exploit symmetry in a field map and use a field map with only some fraction of the complete expected map. This speeds up start up time as there is less to load and saves memory at run-time as there is less to store in memory.

Several operations are available and may be combined arbitrarily. These are specified in the field definition in either magneticReflection or electricReflection.

  • The reflection string must be a white-space separated list (if more than one) of the below names.

  • For arrays to be reflected it is recommended that they run from 0 in that dimension in a positive direction. e.g. a 1D map in \(z\) to be reflected would ideally run from \(z = 0 cm\) to for example, \(z = 20 cm\), i.e. a positive value. However, the code will tolerate it going in a positive direction but from a negative value towards 0.

  • The values exactly on the axis of reflection come from the original field map.

Warning

Any partial field map used for a reflection must either have its first data point on the axis of reflection or an integer number of array steps from it. e.g. A 1D array in z to be reflected runs from 0 cm to 20 cm - this OK. Another array in z runs from 1 cm to 21 cm with 5 points - this is not OK. This is because the step size is (21-1 / 5 = 4 cm). The distance from the reflection axis is 1 cm. This would cause an irregularly spaced grid which there is no provision for in BDSIM for interpolation. The tolerance for this calculation is 5% of the step size. The code will proceed, but the map may be distorted at the boundaries.

Note

It is strongly recommended to visualise a reflected (or indeed any) field map before using it for a physics study to ensure it is correctly prepared. See Field Map Validation and Field Map Visualisation - Queries.

Reflection Name

Description

flipx

\(\pm x \mapsto \mp x\)

flipy

\(\pm y \mapsto \mp y\)

flipz

\(\pm z \mapsto \mp z\)

flipt

\(\pm t \mapsto \mp t\)

reflectx

\(x \mapsto |x|\)

reflecty

\(y \mapsto |y|\)

reflectz

\(z \mapsto |z|\)

reflectt

\(t \mapsto |t|\)

reflectxydipole (*)

Reflect a positive x and y quadrant to all four quadrants with appropriate flips to make a dipolar field

reflectxzdipole (*)

Reflect a dipole field about the x-z plane but don’t reflect the y component of the field to make a dipolar field

reflectyzdipole

equivalent to reflectx

reflectzsolenoid

Reflect about \(z = 0\). Also, for \(z < 0\), flip the x and y components of the field

reflectxyquadrupole

Reflect a positive x and y quadrant to all four quadrants with appropriate flips to make a quadrupolar field

  • (*) See pictorial representation below

For reflectxydipole, \(x \mapsto |x|\) and \(y \mapsto |y|\) for the array look up. Then the value found at that location if changed as follows:

  • if \(x < 0 \wedge y \geqslant 0\), \(B_x \mapsto -B_x\)

  • if \(x \geqslant 0 \wedge y < 0\), \(B_x \mapsto -B_x\)

  • if \(y < 0\), \(B_z \mapsto -B_z\)

  • \(\wedge\) is logical AND

For reflectxzdipole, \(y \mapsto |y|\) for the array look up. Then the value found at that location if changed as follows:

  • if \(y < 0\), \(B_x \mapsto -B_x\)

For reflectxzsolenoid, \(z \mapsto |z|\) for the array look up. Then the value found at that location if changed as follows:

  • if \(z < 0\), \(B_x \mapsto -B_x\)

  • if \(z < 0\), \(B_y \mapsto -B_y\)

For reflectxyquadrupole, \(x \mapsto |x|\) and \(y \mapsto |y|\) for the array look up. Then the value found at that location if changed as follows:

  • if \(x < 0\), \(B_y \mapsto -B_y\)

  • if \(y < 0\), \(B_x \mapsto -B_x\)

This logic would also be applicable for a dual beam accelerator dipole such as the LHC dipole magnets where the dipole fields in each pipe have opposite directions to bend the counter-circulating beams.

Examples:

magneticReflection="flipx";
magneticReflection="flipx flipy";

There are many practical examples in bdsim/examples/features/fields/maps_transformed/*.gmad where the example field maps are generated by querying a standard BDSIM component. In the case of a dipole field, typically, a hkicker is used as the magnet is built without an angle to simplify things.

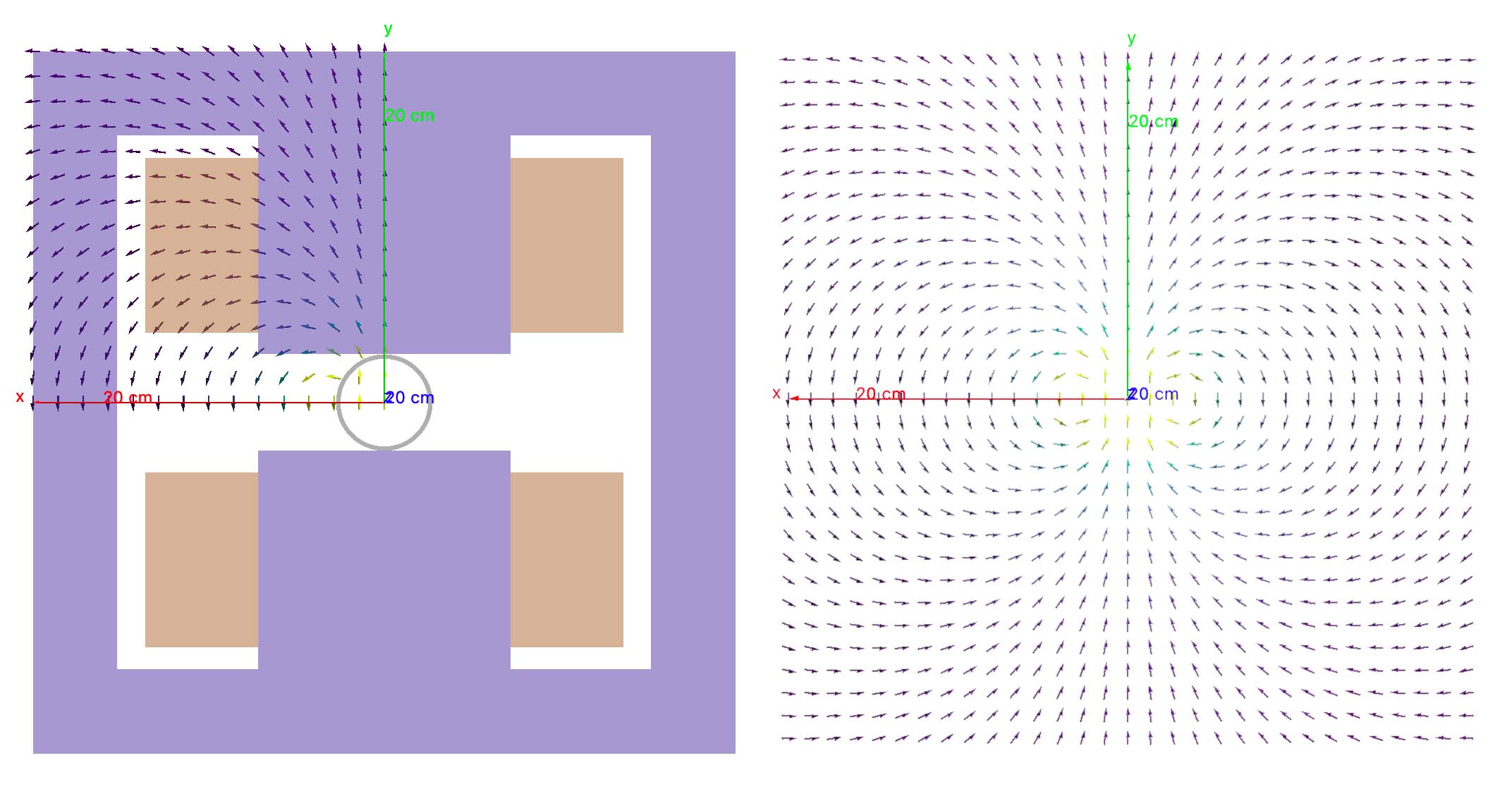

reflectxydipole

_images/reflectxydipole.jpg

Original dipole field from positive x-y quadrant (left), reflected using reflectxydipole (right). The view is with the z axis going into the page and the the coordinate system is right-handed.

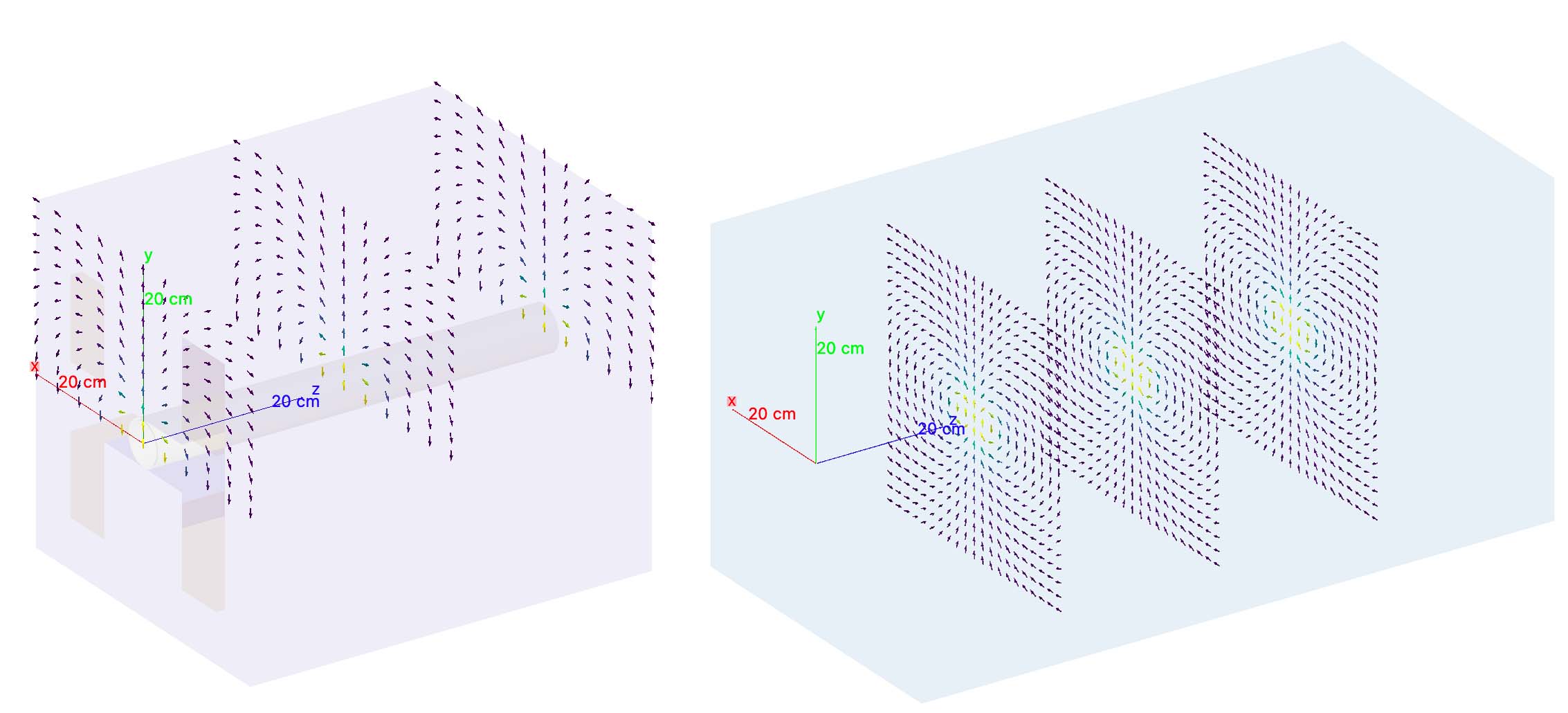

reflectxzdipole

_images/reflectxzdipole.jpg

Original dipole field from positive y half (left), reflected using reflectxzdipole (right).

Modulators

It is possible to scale or ‘modulate’ the field of any component in bdsim using a “modulator” object. This conceptually can be a function of time, event number and turn number for example. Only certain functions are provided but more can be added easily by the developers if required - see Feature Request.

  • Whatever magnetic or electric field would be provided by the original field object is multiplied by the (scalar) numerical factor from the modulator.

A modulator is defined in the in put as follows:

objectname: modulator, parameter1=value, parameters=value,... ;

The modulator is then ‘attahced’ to the beam line element in its definition:

m1: modulator, type="sint", frequency=1*kHz, amplitudeOffset=1, phase=pi/2;
rf1: rfcavity, l=1*m, frequency=450*MHz, fieldModulator="m1";

The function is described by the type parameter which can be one of the following:

  • sint - sinusoid as a function of (local) time

  • singlobal - sinusoid as a function of (global) time with no synchronous offset in time

  • tophatt - a top hat function as a function of time

Each is described below.

sint

A sinusoidal modulator as a function of time T of the particle. The factor is described by the equation:

\[factor = \text{amplitudeOffset} + \text{amplitudeScale} * \sin (2 \pi f t + \phi)\]

The oscillator will by default have a zero phase that is synchronous with the centre of the object it’s attached to in the beam line.

  • tOffset will take precedence over phase

Parameter

Description

Required

Default

Units

amplitudeOffset

Offset of numerical factor

No

0

None

amplitudeScale

Multiplier of scale

No

1

None

frequency

Frequency of oscillator in (>= 0)

Yes

0

Hz

phase

Phase relative to synchronous phase

No

0

rad

tOffset

Optional time to use in place of phase

No

0

s

singlobalt

This has the same equation as sint, however, no synchronous offset is added to the phase. So, if one instance of this modulator is used on several elements, they will all oscillate at the same time with the same phase, so a beam particle may see a different effect as it passes each element.

  • The same parameters as sint apply.

  • phase takes precedence over offsetT.

tophatt

A function that is on at a constant value inside a time window and 0 everywhere else in time. It is described by the equation:

\[\begin{split}factor &= \textrm{amplitudeScale} \quad \textrm{if} \quad T0 <= T <= T1 \\ factor &= 0 \quad \textrm{otherwise} \\\end{split}\]

Parameter

Description

Required

Default

Units

T0

Global starting time for ‘on’

Yes

0

s

T1

Global time for ‘off’

Yes

0

s

amplitudeScale

Multiplier of scale

No

1

None

Integrators

An integrator is an algorithm that calculates the particle motion in a field. There are many algorithms - some fast, some more precise, some work only with certain fields.

The following integrators are provided. The majority are interfaces to Geant4 integrators. g4classicalrk4 is typically the recommended default and is very robust. g4cashkarprkf45 is similar but slightly less CPU-intensive. For version Geant4.10.4 onwards, g4dormandprince745 is the default recommended by Geant4 (although not the BDSIM default currently). Note: any integrator capable of operating on EM fields will work on solely B- or E-fields.

We recommend looking at the source .hh files in the Geant4 source code for an explanation of each, as this is where they are documented. The source files can be found in <geant4-source-dir>/source/geometry/magneticfield/include.

String

B/EM

Time Varying

Required Geant4 Version (>)

g4cashkarprkf45

EM

Y

10.0

g4classicalrk4

EM

Y

10.0

g4constrk4

B

N

10.0

g4expliciteuler

EM

Y

10.0

g4impliciteuler

EM

Y

10.0

g4simpleheum

EM

Y

10.0

g4simplerunge

EM

Y

10.0

g4exacthelixstepper

B

N

10.0

g4helixexpliciteuler

B

N

10.0

g4helixheum

B

N

10.0

g4heliximpliciteuler

B

N

10.0

g4helixmixedstepper

B

N

10.0

g4helixsimplerunge

B

N

10.0

g4nystromrk4

B

N

10.0

g4rkg3stepper

B

N

10.0

g4bogackishampine23

EM

Y

10.3

g4bogackishampine45

EM

Y

10.3

g4dolomcprik34

EM

Y

10.3

g4dormandprince745

EM

Y

10.3

g4dormandprincerk56

EM

Y

10.3

g4dormandprincerk78

EM

Y

10.3

g4tsitourasrk45

EM

Y

10.3

g4rk547feq1

EM

Y

10.4

g4rk547feq2

EM

Y

10.4

g4rk547feq3

EM

Y

10.4

Interpolators

The field may be queried at any point inside the volume, so an interpolator is required to provide a value of the field in between specified points in the field map. There are many algorithms that can be used to interpolate the field map data. A mathematical description of the ones provided in BDSIM as well as example plots is shown in Field Map Interpolators.

  • This string is case-insensitive.

String

Description

nearest

Nearest neighbour interpolation

linear

Linear interpolation

cubic

Cubic interpolation

linearmag

Linear and magnitude interpolation

Internally there is a different implementation for different numbers of dimensions and this is automatically chosen based on the number of dimensions in the field map type.

File Formats

Note

BDSIM field maps by default have units \(cm,s\).

Format

Description

bdsim1d

1D BDSIM format file (Units \(cm,s\))

bdsim2d

2D BDSIM format file (Units \(cm,s\))

bdsim3d

3D BDSIM format file (Units \(cm,s\))

bdsim4d

4D BDSIM format file (Units \(cm,s\))

poisson2d

2D Poisson Superfish SF7 file

poisson2dquad

2D Poisson Superfish SF7 file for 1/8th of quadrupole

poisson2ddipole

2D Poisson Superfish SF7 file for positive quadrant that’s reflected to produce a full windowed dipole field

Field maps in the following formats are accepted:

  • BDSIM’s own format (both uncompressed .dat and gzip compressed files. gz must be in the file name for this to load correctly.)

  • Superfish Poisson 2D SF7

These are described in detail below. More field formats can be added relatively easily - see Feature Request. A detailed description of the formats is given in Field Map File Formats. A preparation guide for BDSIM format files is provided here BDSIM Field Map File Preparation.

Sub-Fields

A ‘sub-field’ is where one field map can be overlaid on top of another. The sub-field should be smaller and will simply take precedence on the main field within its range. This is useful if for example a precise field detailed field map is required for a smaller region but a coarser field map is suitable for the majority of the component. Remember, field maps must contain regularly spaced data so if a high density of points is required in one point, this would lead to an excessively large field map for the rest of the element which may not be necessary and slow the loading and running of the simulation.

Inside the domain of the sub-field, only its interpolated value is used. The transition between the sub and main field is hard and it is left to the user to ensure that the field values are continuous to make physical sense.

  • Currently only sub-magnetic and sub-electric fields are supported (no sub-electromagnetic fields).

  • The tilt or rotation of the field map (with respect to the element it is attached to) does not apply to the region of applicability for the sub-field. However, the field is tilted appropriately.

  • The spatial (only) offset (x,y,z) of the sub-field applies to it independently of the offset of the main outer field.

  • If a 2D field is used both fields apply infinitely in z in a 3D model, therefore the sub-field will always take precedence for any z value as long as x and y are inside its limits.

Below is an example of a sub-field that can be found in bdsim/examples/features/fields/subfield:

fpipe: field, type="bmap2d",
              magneticFile="bdsim2d:inner.dat",
              magneticInterpolator="nearest",
              x=-10*cm;

fyoke: field, type="bmap2d",
              magneticFile="bdsim2d:outer.dat",
              magneticInterpolator="cubic",
              magneticSubField="fpipe";

d1: drift, l=0.5*m, aper1=0.5*m, fieldAll="fyoke";

First a smaller field map is defined called “fpipe”. Secondly, a larger coarser field map is created called “fyoke” that crucially refers to the magneticSubField="fpipe". The sub-field applies only in the range of the field map taken from the maximum and minimum coordinates in each dimension when loading the field map. In the provided example, the “inner.dat” field map defines 4 points in a 2D square at +- 20 cm in both x and y with the same B field vector. Nearest neighbour interpolation is used to ensure a perfect uniform field inside these points.

The second field definition using “outer.dat” ranges from +- 50 cm with a similar box of 4 points in 2D. Each point has the same field value but with an opposing x component. The Python script used to create these simple field maps is included alongside the example. The example combined field map is shown in the visualiser below. The magnetic field lines were visualised using the Geant4 visualiser command /vis/scene/add/magneticField 10 lightArrow.

_images/fields-sub-field.png

Field Map Visualisation

Recent versions of Geant4 (> 10.5) provide a mechanism in the visualiser to visualise magnetic fields. The following command can be used to add magnetic field lines to the visualisation.

/vis/scene/add/magneticField 10 lightArrow

This may take some time due to the Geant4 visualiser drawing many arrows individually. The number 10 here sets a density of points. If few useful arrows appear, then this number can be increased. Note, the time taken will go with the cube (i.e. N^3) of this number. Suggested values are 10, 30, 40. An example can be seen above in the Sub-Fields section.

Geant4 attempts to identify which volumes have fields and distribute the appoints accordingly in the global Cartesian frame. For a more controllable distribution, see Field Map Visualisation - Queries.

Field Map Visualisation - Queries

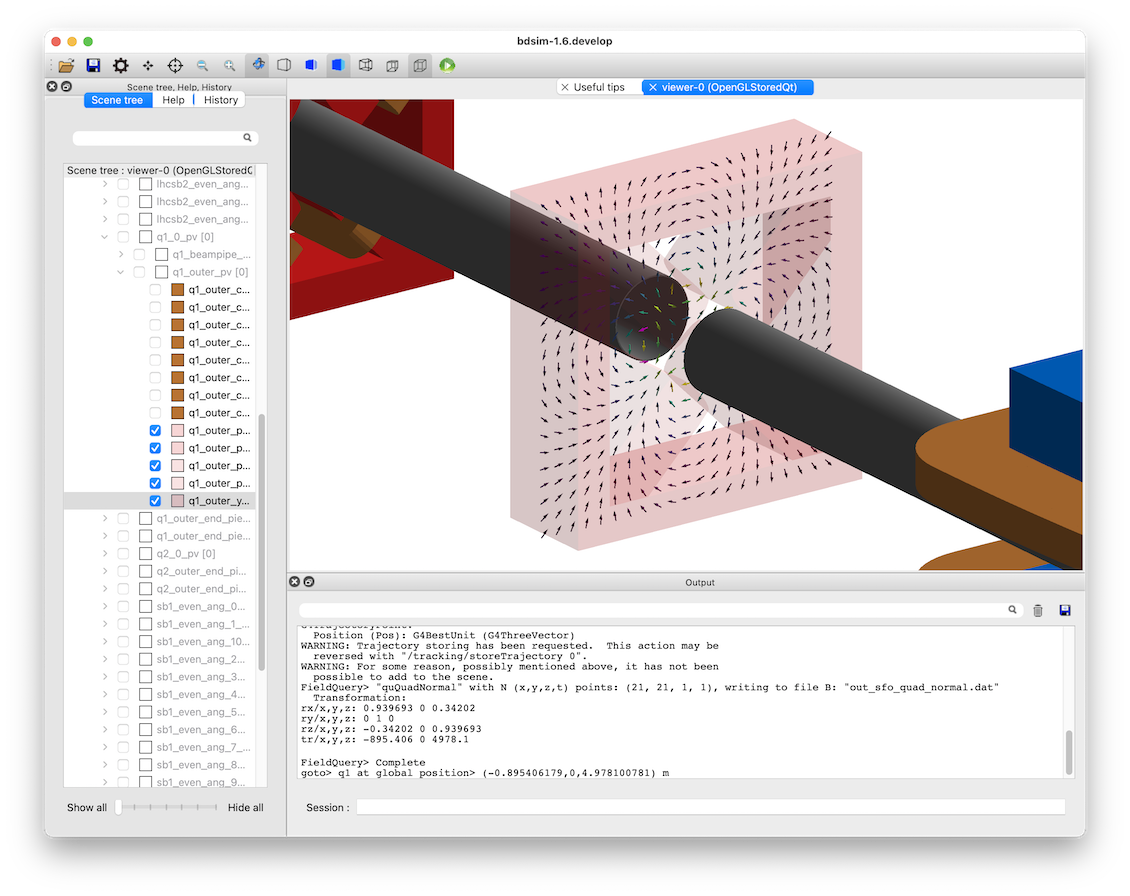

Any query object (see Field Map Validation) can be drawn on the screen in the visualiser. A query defines a grid of points where the field is queried or found out. By default, this is written to a field map file. Any of these queries can also be shown in the visualiser. This is controlled by the command:

/bds/field/drawQuery <query-object-name>

For a list of queries, one can do:

/bds/field/listQueries
_images/field-query.png

You can find examples in bdsim/examples/features/field/yoke_scaling/. There is a view point macro that can be loaded in the visualiser (open icon in the top left) to centre the view nicely and make a quadrupole transparent.

  • The visualisation consists of arrows and a pixel / voxel for each query point. These can be turned on or off individually, but one must be on. If both magnetic and electric fields are visualised in one query, it is recommended to switch off boxes with drawBoxes=0.

  • It may be required to make geometry partially transparent to see the field arrows.

  • 4D queries will not work. Only up to 3D is supported.

  • The visualisation may become very slow if a large (e.g. > 100x100 in x,y) points is used. This is a limitation of the visualisation system in Geant4. Typically, the querying of the model is very quick and it is drawing the arrows that takes time.

  • Magnetic fields are drawn with the matplotlib “viridis” colour scale and electric fields with the “magma” colour scale.

  • Both electric and magnetic fields may be visualised as defined by the query object.

  • A query called in the visualiser will not be written to file.

  • If the magnitude of the field is 0 at the given query point, a small circular point is drawn instead of an arrow.

  • The arrow length does not depend on the field magnitude - only the spacing of the query points.

Field Map Preparation

It is not recommended to write a field map file by hand. This can create very hard to identify subtle problems that may lead to unintended behaviour. It is recommended to use our Python utility pybdsim. See the pybdsim manual for details on creating, converting and plotting field maps in Python: http://www.pp.rhul.ac.uk/bdsim/pybdsim/fieldmaps.html.

Note

The order of looping over dimensions is important and must be correct otherwise, the loaded field map may not be as intended. Use of a field map should be validated. BDSIM actually ignores the coordinates in each line of the field map and assumes the looping order and dimension based on the header information.

Field Map Validation

To validate a field map loaded by BDSIM, we can query what is loaded and generate a new output field map that we can then inspect or numerically compare in Python (e.g. using pybdsim). To query a field map, we have a 2 options:

  1. Query the field object as loaded by BDSIM - no 3D model is actually built.

  2. Query a set of coordinates in the full BDSIM model and note the field found at each position.

In both cases, a BDSIM-format field map file is written out.

Note

Magnetic and Electric fields are handled independently and written to separate files, in the same way they are loaded into BDSIM in separate files.

Case 1 uses an extra program provided with BDSIM called bdsinterpolator. This can also be used to re-interpolate a field map as described in Field Map Interpolation, but we can use it to simply query the same points again. This program has no concept of a 3D model and only loads the field map into memory. This provides a class that BDSIM would normally use in the Geant4 model, however, without any 3D transforms from local (such as curvilinear) to global frames.

Case 2 uses BDSIM itself and a regular input file and the querying is done after construction of the model but before a Run where Events are simulated.

In both cases, an input GMAD file is used that defines a query object. The appropriate program (bdsim or bdsinterpolator) is then executed with that as an argument. If we have a file called test-field-map.gmad, then we could do:

bdsim --file=test-field-map.gmad --batch

or:

bdsinterpolator --file=test-file-map.gmad

The following parameters can be used in a query object:

Parameter

Description

nx

Number of points to query in x (1 -> N)

ny

Number of points to query in y (1 -> N)

nz

Number of points to query in z (1 -> N)

nt

Number of points to query in t (1 -> N)

xmin

Start of x values to use

xmax

Finish of x values to use

ymin

Start of y values to use

ymax

Finish of y values to use

zmin

Start of z values to use

zmax

Finish of z values to use

tmin

Start of t values to use

tmax

Finish of t values to use

outfileMagnetic

Name of output file to write field map to (B)

outfileElectric

Name of output file to write field map to (E)

fieldObject

Name of the field object in the input to query

queryMagneticField

(1 or 0) whether to query the magnetic field - default is True (1)

queryElectricField

(1 or 0) whether to query the electric field - default is False (0)

overwriteExistingFiles

Whether to overwrite existing output files - default is True (1)

drawArrows

(1 or 0) Whether to draw arrows if used for visualisation. Default is true.

drawZeroValuePoints

(1 or 0) whether to draw a point even if the queried field value is 0 in magnitude. Default is true. Only applies to arrows.

drawBoxes

(1 or 0) Whether to draw pixels / voxel boxes for each query point in the visualiser. Default is true.

boxAlpha

The transparency value for the boxes. Range from 0 to 1 where 0 is invisible. Default is 0.2.

printTransform

(1 or 0) whether to print out the calculated transform from the origin to the global coordinates

referenceElement

Element with respect to which the coordinates are desired to be queried

referenceElementNumber

Instance of the reference element in the beam line if it is used more than once (0-counting) - default is 0

s

Curvilinear S coordinate (global | local depending on parameters)

x

Offset in x

y

Offset in y

z

Offset in z

phi

Euler angle phi for rotation

theta

Euler angle theta for rotation

psi

Euler angle psi for rotation

axisX

Axis angle rotation x-component of unit vector

axisY

Axis angle rotation y-component of unit vector

axisZ

Axis angle rotation z-component of unit vector

angle

Axis angle, angle to rotate about unit vector

axisAngle

(1 or 0) use axis angle rotation instead of the Euler angle.

pointsFile

Name of a file listing points to be queried instead of the linear range. See below.

Note

The transforms are made using the same variable names and logic as that of geometry or sampler placements - see Placements for a full description of the possible combination of parameters for the 3 ways of specifying a transform.

  • The default is to query the magnetic field only and to overwrite files.

  • The ranges defined will be queried in the global frame if no transform is specified, otherwise they will be about the point / frame of the transform.

  • In the case where a reference element is used, the frame includes the offset of that element, so the x,y = 0,0 point is the same as the element even if that is offset from the reference axis of the accelerator.

  • If you don’t wish to query a dimension, then the number of points should be 1, which is the default and need not be specified.

  • Units are m and ns by default, the same as BDSIM.

  • One of queryMagneticField or queryElectricField must be true.

Examples can be found in bdsim/examples/features/fields/query/query*.

An example:

quA: query, nx=51, xmin=-30*cm, xmax=30*cm,
            ny=51, ymin=-30*cm, ymax=30*cm,
            queryMagneticField=1,
            outfileMagnetic="out_query_2d_bfield_xy.dat",
            z=1.1*m,
            overwriteExistingFiles=1;

Query By Points File

A specific set of points can be queried also. These should be listed in a text file (file extension not important) with one set of coordinates per line.

File rules:

  • lines with only white-space will be ignored

  • no comments are permitted

  • There should be a line at the top starting with ‘!’ and listing the dimensions (x,y,z,t)

  • The column names and coordinates should be separated by white-space

  • Any combination of x,y,z,t may be used

  • The units are fixed in metres for x,y,z and nanoseconds for t.

  • The file extension is ignored

  • The output field map is not usable in BDSIM as the header information will be incorrect

Example file contents:

! X Y Z
0 0 1
0 1 1
1 0 1
0 0 0
0 1 0
1 0 0

Or:

! Z
1.1
1.2
1.3
1.4

More examples can be found in bdsim/examples/features/fields/query/query-points*.

Field Map Interpolation

A field map can be loaded and interpolated to generate a new field map. This can be done with the exact same number and range of points as a way of validating the field map was correctly prepared for BDSIM (by seeing the output file is the same as the input).

We could also interpolate the field map with different interpolation methods to compare, or we could increase the density of points and then use a simpler interpolation (more memory, but slightly faster simulation), although this is quite an optimisation step.

A tool, bdsinterpolator, will load a GMAD file and obey only the query objects defined to generate output field maps.

This does not build a Geant4 model. It simply loads the field map and wraps it in an interpolator. The interpolator is queried for a set of coordinates the resultant field values written out as a field map in BDSIM format. This output file, if desired, can be used in BDSIM subsequently.

This program takes an input GMAD file with a minimum of:

  1. 1x field object defined

  2. 1x query object defined

Any parameters that are used for the placement transform (“referenceElement” onwards in the table of query parameters in the above section) will be completely ignored. The field is only queried in its own ‘local’ coordinate system in this program.

Examples can be found in bdsim/examples/features/fields/query.

Usage:

bdsinterpolator --file=<my-file.gmad>
  • If more points are requested in the query in a dimension than are in the original field map, then we are in effect interpolating the field.

  • If fewer points are requested in the query in a dimension than are in the original field map, we are still interpolating values in the field map, but we are just reducing the ‘resolution’ of the field map.

Example in one gmad file called bdsim/examples/features/fields/maps_bdsim/2d_cubic.gmad:

f1: field, type="bmap2d",
               magneticFile = "bdsim2d:2dexample.dat",
               magneticInterpolator = "cubic";

q1: query, nx = 200,
           xmin = -30*cm,
           xmax = 30*cm,
           ny = 200,
           ymin = -50*cm,
           ymax = 50*cm,
           outfileMagnetic = "2d_interpolated_linear.dat",
           fieldObject = "f1";

Materials and Atoms

All chemical elements are available in BDSIM as well as the Geant4 NIST database of materials for use. Custom materials and can also be added via the parser. All materials available in BDSIM can be found by executing BDSIM with the --materials option.

bdsim --materials

Aside from these, several materials useful for accelerator applications are already defined that are listed in Predefined Materials.

Generally, each beam line element accepts an argument “material” that is the material used for that element. It is used differently depending on the element. For example, in the case of a magnet, it is used for the yoke and for a collimator for the collimator block.

Single Element

In the case of an element, the chemical symbol can be specified:

rc1: rcol, l=0.6*m, xsize=1.2*cm, ysize=0.6*cm, material="W";

These are automatically prefixed with G4_ and retrieved from the NIST database of materials.

The user can also define their own material and then refer to it by name when defining a beam line element.

Custom Single Element Material

If the material required is composed of a single element, but say of a different density or state than the default NIST one provided, it can be defined using the matdef command with the following syntax:

materialname : matdef, Z=<int>, A=<double>, density=<double>, T=<double>, P=<double>, state=<char*>;

Parameter

Description

Default

Z

Atomic number

A

Mass number [g/mol]

density

Density in [g/cm3]

T

Temperature in [K]

300

P

Pressure [atm]

1

state

“solid”, “liquid” or “gas”

“solid”

Example:

iron2 : matdef, Z=26, A=55.845, density=7.87;

A compound material can be specified in two manners:

Compound Material by Atoms

If the number of atoms of each component in a material unit is known, the following syntax can be used:

<material> : matdef, density=<double>, T=<double>, P=<double>,
             state=<char*>, components=<[list<char*>]>,
             componentsWeights=<{list<int>}>;

Parameter

Description

density

Density in [g/cm3]

components

List of symbols for material components

componentsWeights

Number of atoms for each component in material unit

Example:

NbTi : matdef, density=5.6, T=4.0, components=["Nb","Ti"], componentsWeights={1,1};

Compound Material by Mass Fraction

On the other hand, if the mass fraction of each component is known, the following syntax can be used:

<material> : matdef, density=<double>, T=<double>, P=<double>,
             state=<char*>, components=<[list<char*>]>,
             componentsFractions=<{list<double>}>;

Parameter

Description

components

List of symbols for material components

componentsFractions

Mass fraction of each component in material unit

Example:

SmCo : matdef, density=8.4, T=300.0, components=["Sm","Co"], componentsFractions = {0.338,0.662};

The second syntax can also be used to define materials which are composed by other materials (and not by atoms).

Note

Square brackets are required for the list of element symbols, curly brackets for the list of weights or fractions.

New elements can be defined with the atom keyword:

elementname : atom, Z=<int>, A=<double>, symbol=<char*>;

Parameter

Description

Z

Atomic number

A

Mass number [g/mol]

symbol

Atom symbol

Example:

myNiobium  : atom, symbol="myNb", Z=41, A=92.906;
myTitanium : atom, symbol="myTi", Z=22, A=47.867;
myNbTi     : matdef, density=5.6, T=4.0, components=["myNb","myTi"], componentsWeights={1,1};

Predefined Materials

The following elements are available by full name that refer to the Geant4 NIST elements:

  • aluminium

  • beryllium

  • carbon

  • chromium

  • copper

  • iron

  • lead

  • magnesium

  • nickel

  • nitrogen

  • silicon

  • titanium

  • tungsten

  • uranium

  • vanadium

  • zinc

The following materials are also defined in BDSIM. The user should consult bdsim/src/BDSMaterials.cc for the full definition of each including elements, mass fractions, temperature and state.

  • air (G4_AIR)

  • airbdsim (previously defined air in bdsim)

  • aralditef

  • awakeplasma

  • berylliumcopper

  • bn5000

  • bp_carbonmonoxide

  • calciumcarbonate

  • carbonfiber

  • carbonmonoxide

  • carbonsteel

  • cellulose (G4_CELLULOSE_CELLOPHANE)

  • clay

  • clayousMarl

  • concrete

  • copperdiamond

  • cu_2k (G4_Cu at 2K)

  • cu_4k (G4_Cu at 4K)

  • dy061

  • epoxyresin3

  • fusedsilica

  • gos_lanex

  • gos_ri1

  • graphite

  • graphitefoam

  • hy906

  • inermet170

  • inermet176

  • inermet180

  • invar

  • kapton

  • lanex

  • lanex2

  • laservac (same as vacuum but with different name)

  • leadtungstate

  • lhcconcrete

  • lhc_rock

  • lhe_1.9k

  • limousmarl

  • liquidhelium

  • marl

  • medex

  • molybdenumcarbide (also “mogr”)

  • mild_steel

  • n-bk7

  • nb_87k

  • nbti.1

  • nbti_4k

  • nbti_87k

  • niobium_2k

  • nb_2k (niobium_2k)

  • perspex

  • pet

  • pet_lanex

  • pet_opaque

  • polyurethane

  • quartz

  • rch1000_4k (ultra high molecular weight ethylene)

  • smco

  • soil

  • solidhydrogen

  • solidnitrogen

  • solidoxygen

  • stainless_steel_304L

  • stainless_steel_304L_2K

  • stainless_steel_304L_87K

  • stainless_steel_316LN

  • stainless_steel_316LN_2K

  • stainless_steel_316LN_87K

  • stainlesssteel

  • ti_87k

  • titaniumalloy

  • tungsten_heavy_alloy

  • ups923a

  • vacuum

  • water (G4_WATER)

  • weightiron

  • yag

Vacuum and Air

The default “vacuum” material used in all beam pipes is composed of H, C and O with the following fractions:

Element

Mass Fraction

H

0.482

C

0.221

O

0.297

The default pressure is 1e-12 bar, the temperature is 300K and the density is 1.16336e-15 g/cm3.

“air” is the G4_AIR material. As of Geant4.10.04.p02 (see geant4/source/materials/src/G4NistMaterialBuilder.cc), it is composed of C, N, O, Ar with the following fractions:

Element

Mass Fraction

C

0.000124

N

0.755267

O

0.231781

Ar

0.012827

It is a gas with density of 1.20479 mg/cm3.

Aperture Parameters

For elements that contain a beam pipe, several aperture models can be used. These aperture parameters can be set as the default for every element using the option command (see Options) but can also be overridden for each element by specifying them with the element definition. The aperture is controlled through the following parameters:

  • apertureType

  • beampipeRadius or aper1

  • aper2

  • aper3

  • aper4

  • vacuumMaterial

  • beampipeThickness

  • beampipeMaterial

For each aperture model, a different number of parameters are required. Here, we follow the MAD-X convention and have four parameters. The user must specify them as required for that model. BDSIM will check to see if the combination of parameters is valid. beampipeRadius and aper1 are degenerate.

Up to four parameters can be used to specify the aperture shape (aper1, aper2, aper3, aper4). These are used differently for each aperture model and match the MAD-X aperture definitions. The required parameters and their meaning are given in the following table.

A completely custom aperture can be used with pointsfile. See the notes below.

Note

If no beam pipe is desired, apertureType="circularvacuum" can be used that makes only the vacuum volume without any beam pipe. The vacuum material is the usual vacuum but can of course can be controlled with vacuumMaterial. So you could create a magnet with air and no beam pipe.

Note

The default beam pipe material is “stainlesssteel”.

Aperture Model

# of parameters

aper1

aper2

aper3

aper4

circular

1

radius

NA

NA

NA

rectangular

2

x half-width

y half-width

NA

NA

elliptical

2

x semi-axis

y semi-axis

NA

NA

lhc

3

x half-width of rectangle

y half-width of rectangle

radius of circle

NA

lhcdetailed (*)

3

x half-width of rectangle

y half-width of rectangle

radius of circle

NA

rectellipse

4

x half-width of rectangle

y half-width of rectangle

x semi-axis of ellipse

y semi-axis of ellipse

racetrack

3

horizontal offset of circle

vertical offset of circle

radius of circular part

NA

octagonal

4

x half-width

y half-width

x point of start of edge

y point of start of edge

clicpcl

4

x half-width

top ellipse y half-height

bottom ellipse y half-height

y separation between ellipses

circularvacuum

1

radius

NA

NA

NA

pointsfile (**)

0

NA

NA

NA

NA

rhombus (+)

2-3

x half-width

y half-width

radius of corners

NA

Note

(*) lhcdetailed aperture type will result in the beampipeMaterial being ignored and LHC-specific materials at 2K being used.

Note

(**) For points file, use apertureType="pointsfile:pathtofile.dat:cm";. See below.

Note

(+) For the rhombus aperture, aper1 and aper2 are the maximum extents if there was no radius of curvature for the corners. Therefore, the curved edges ‘eat’ into the shape.

These parameters can be set with the option command, as the default parameters and also on a per element basis that overrides the defaults for that specific element.

In the case of clicpcl (CLIC Post Collision Line), the beam pipe is asymmetric. The centre is the same as the geometric centre of the bottom ellipse. Therefore, aper4, the y separation between ellipses is added on to the 0 position. The parameterisation is taken from Phys. Rev. ST Accel. Beams 12, 021001 (2009).

Custom Aperture

For pointsfile, a text file can be used to list a set of x,y transverse points to specify a custom shape. No other aperture parameters are required other than the aperture type. The syntax is:

pointsfile:filename.dat:units

The string should contain no spaces and the values separated by colons :. The second colon and units are optional and if not supplied will be mm.

  • At least 3 points are required

  • Each line should contain only 2 numbers

  • Empty lines will be ignored

  • Lines starting with ! or # will be ignored.

  • Examples can be found in bdsim/examples/features/geometry/3_beampipes/12_pointsfile.gmad.

  • The last point must not be duplicated.

  • The polygon given by the 2D points may be either clockwise or anti-clockwise wound (the order of the points) and BDSIM will internally make it clockwise, which is necessary to calculate the expansion of the polygon for the beam pipe shape.

d1: drift, l=0.2*m, apertureType="pointsfile:12_points.dat:cm", beampipeThickness=2*mm;
d2: drift, l=0.2*m, apertureType="pointsfile:12_points.dat", beampipeThickness=2*mm;

Warning

The user is entirely responsible for defining an enclosed shape and the points must not define lines that cross each other (self-intersecting). The shape may be non-convex. If the shape does not show in the visualiser, check for warnings from Geant4 that would indicate the shape is badly formed.

The example in bdsim/examples/features/geometry/3_beampipes/12_points.dat is generated by the accompanying Python script createPoints.py. It creates a circle of some radius with an oscillating boundary. This results in a star shape. The file contents are:

3.0     0.0
3.5594944939586357      0.44966872700413885
3.8269268103510368      0.982587799219406
3.6735994432667844      1.4544809126930356
3.144000183146753       1.7284287271798486
2.4270509831248424      1.7633557568774194
1.7584288736820426      1.6512746244216896
1.3060457301527224      1.5787380878937436
1.0978788199666678      1.7299802010673848
1.0270710863817312      2.1826371600832646
0.9270509831248422      2.85316954888546
0.6722839170258389      3.524235711679308
0.2480888913478514      3.943260008793256
-0.2480888913478518     3.943260008793256
-0.67228391702584       3.524235711679308
-0.9270509831248428     2.853169548885461
-1.0270710863817316     2.1826371600832646
-1.097878819966668      1.7299802010673846
-1.3060457301527224     1.5787380878937436
-1.7584288736820426     1.651274624421689
-2.4270509831248415     1.7633557568774194
-3.144000183146753      1.7284287271798482
-3.673599443266785      1.4544809126930345
-3.8269268103510368     0.982587799219406
-3.559494493958636      0.4496687270041383
-3.0000000000000004     -9.64873589805982e-16
-2.393193713928232      -0.3023306743816869
-1.98457215642075       -0.5095515237697232
-1.9050594720627234     -0.7542664034150331
-2.113839897116428      -1.162093317430443
-2.427050983124841      -1.7633557568774196
-2.6153828908464263     -2.4560080111504425
-2.518498208339415      -3.044341368760992
-2.117081949907311      -3.3359873519447065
-1.5276046630087032     -3.246325154712854
-0.9270509831248429     -2.8531695488854614
-0.4520039704885086     -2.3694877926928246
-0.12865422582802818    -2.044900361776374
0.12865422582802924     -2.0449003617763735
0.45200397048850954     -2.3694877926928233
0.9270509831248415      -2.85316954888546
1.5276046630087043      -3.2463251547128524
2.1170819499073117      -3.335987351944705
2.5184982083394165      -3.044341368760991
2.615382890846429       -2.456008011150442
2.4270509831248446      -1.7633557568774183
2.1138398971164296      -1.1620933174304438
1.9050594720627243      -0.7542664034150321
1.9845721564207497      -0.509551523769722
2.3931937139282304      -0.3023306743816855

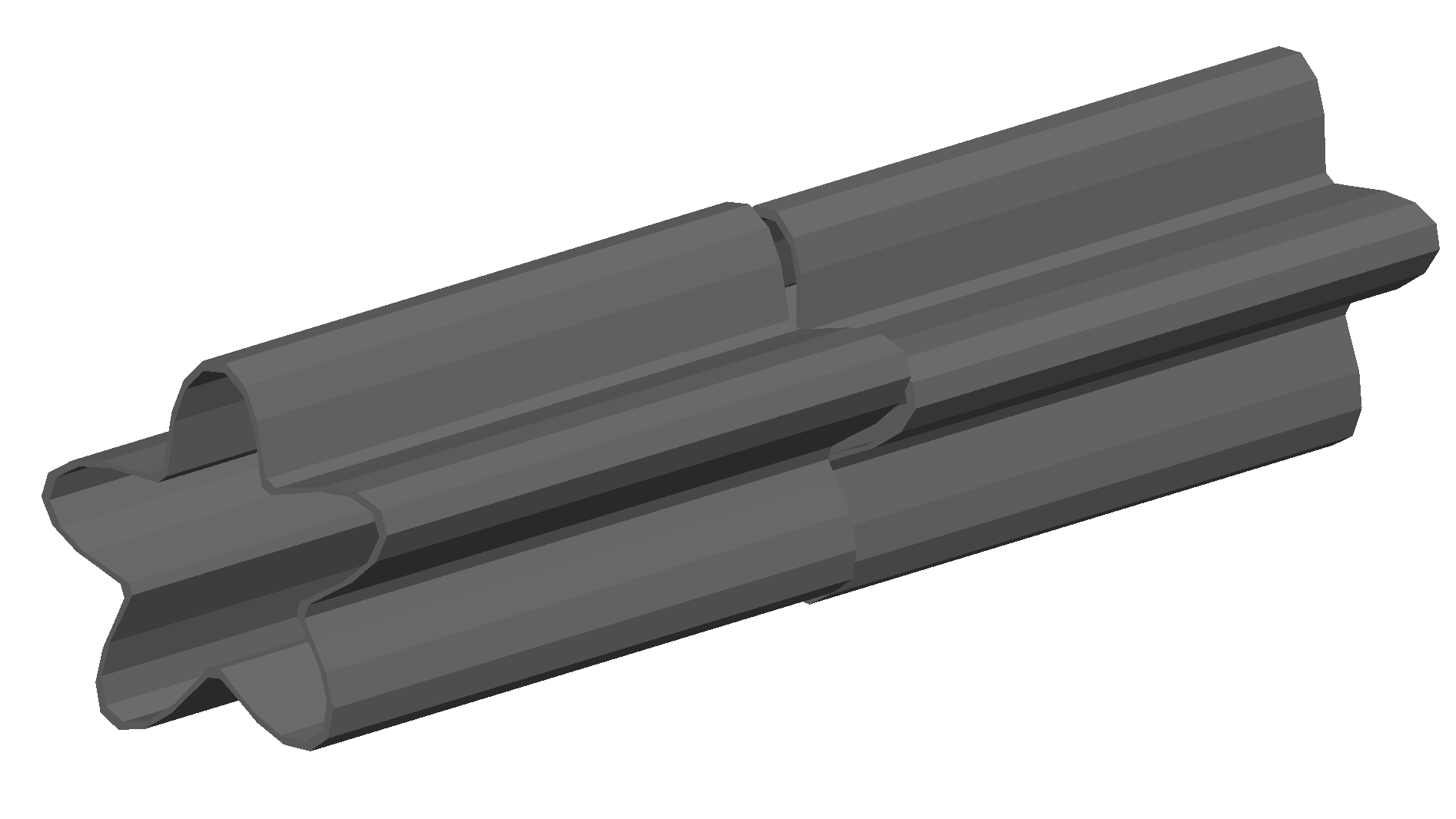

And this looks like:

_images/12_pointsfile1.png

Magnet Geometry Parameters

As well as the beam pipe, magnet beam line elements also have further outer geometry beyond the beam pipe. This geometry typically represents the magnetic poles and yoke of the magnet but there are several geometry types to choose from. The possible different styles are described below and syntax examples can be found in examples/features/geometry/4_magnets/. These are:

The magnet geometry is controlled by the following parameters.

Note

These can all be specified using the option command as well as on a per element basis, but in this case they act as a default that will be used if none are specified by the element.

Note

The option ignoreLocalMagnetGeometry exists and if it is true (1), all per-element magnet geometry definitions will be ignored and the ones specified in Options will be used.

Note

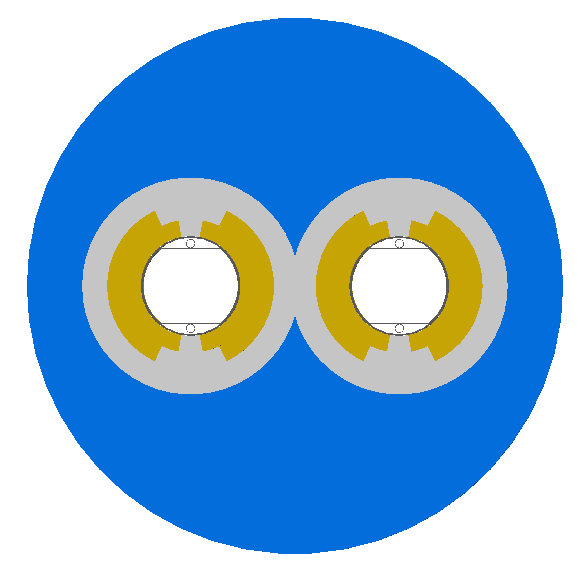

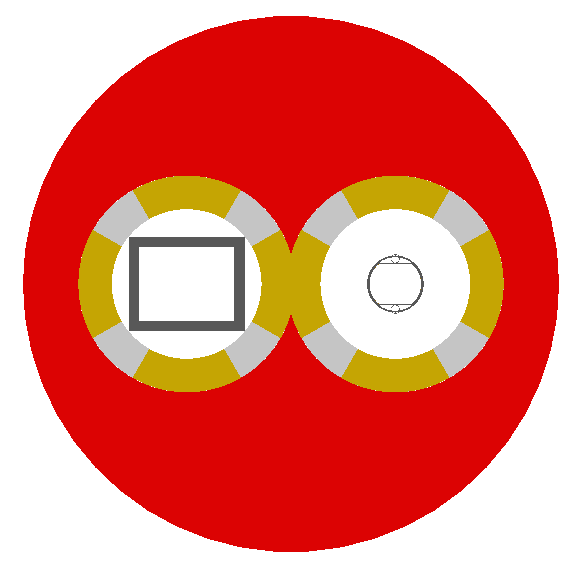

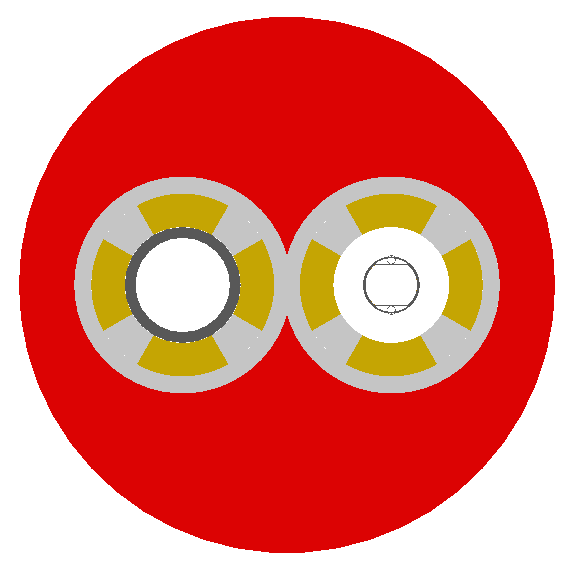

In the case that the lhcleft or lhcright magnet geometry types are used, the yoke field will be a sum of two regular yoke fields at the LHC beam pipe separation. The option yokeFieldsMatchLHCGeometry can be used to control this. These are described in Multipole Yoke - Dual.

Parameter

Description

Default

Required

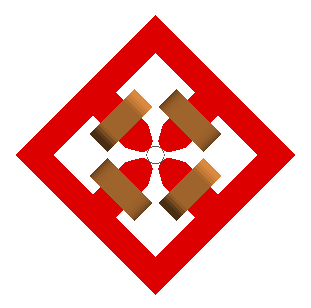

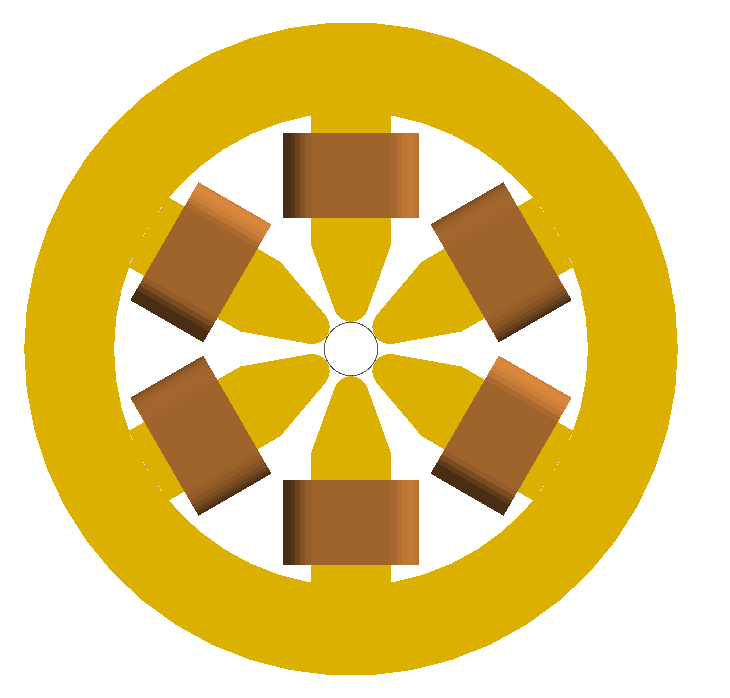

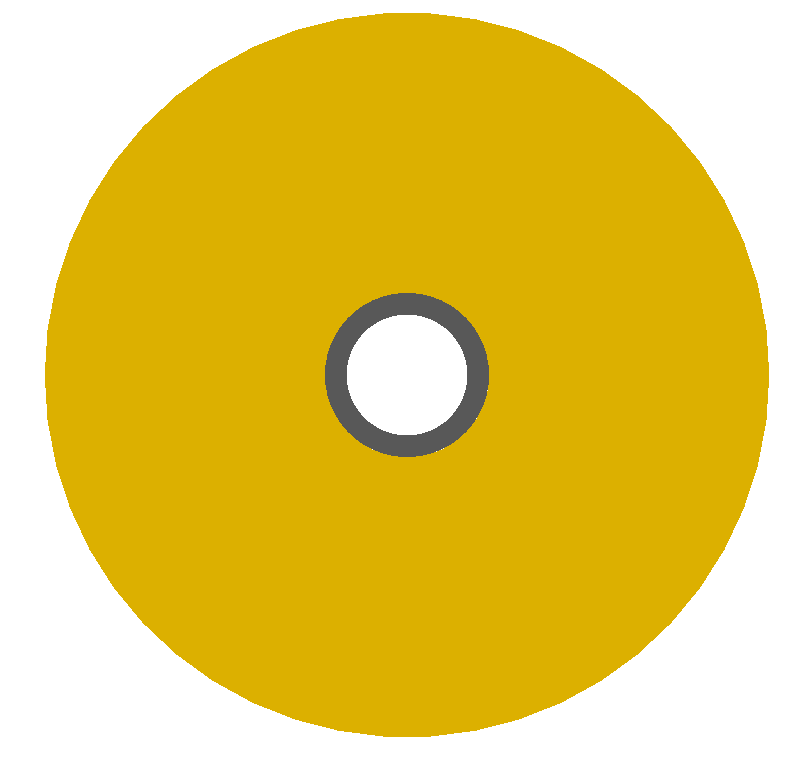

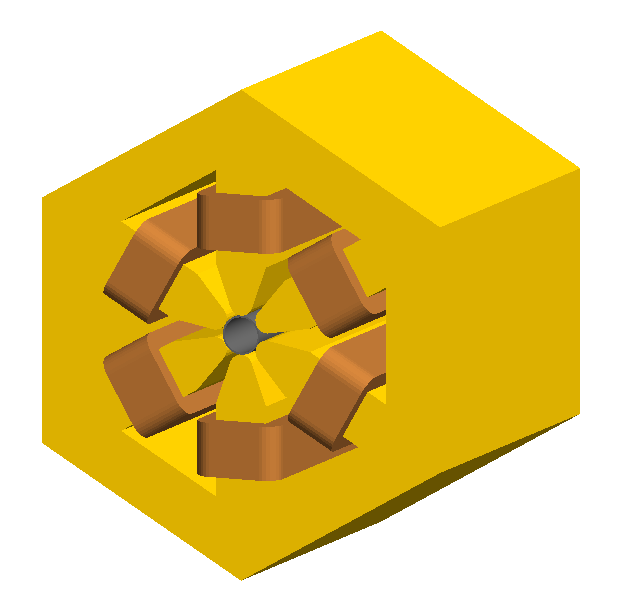

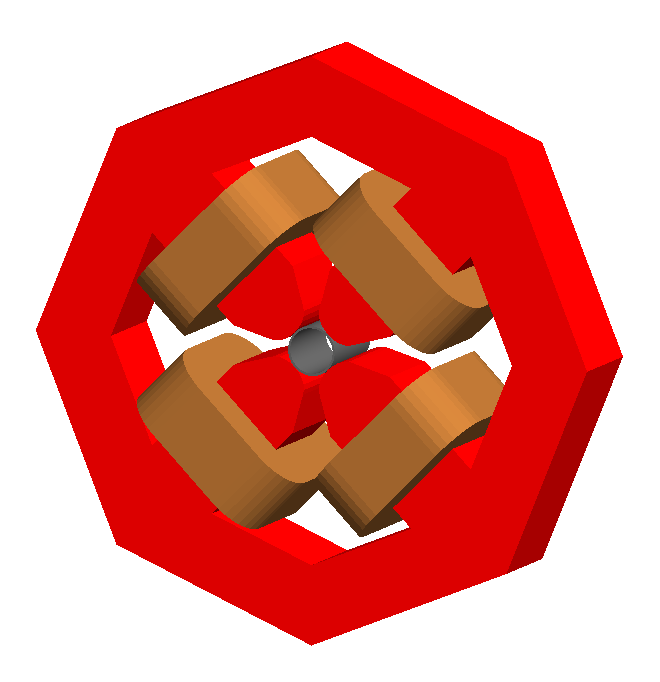

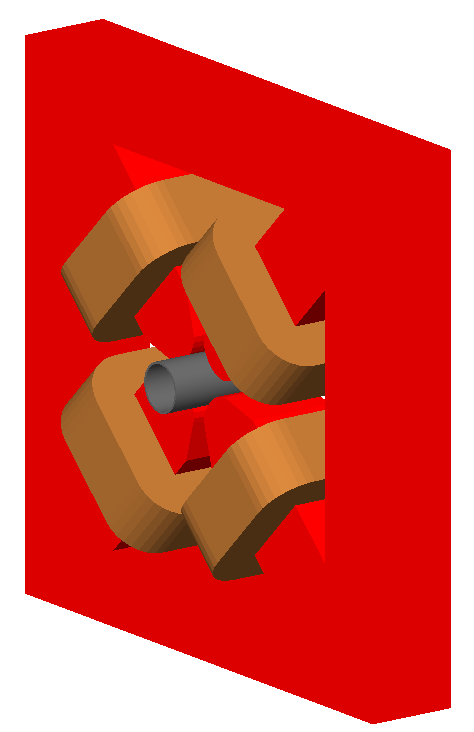

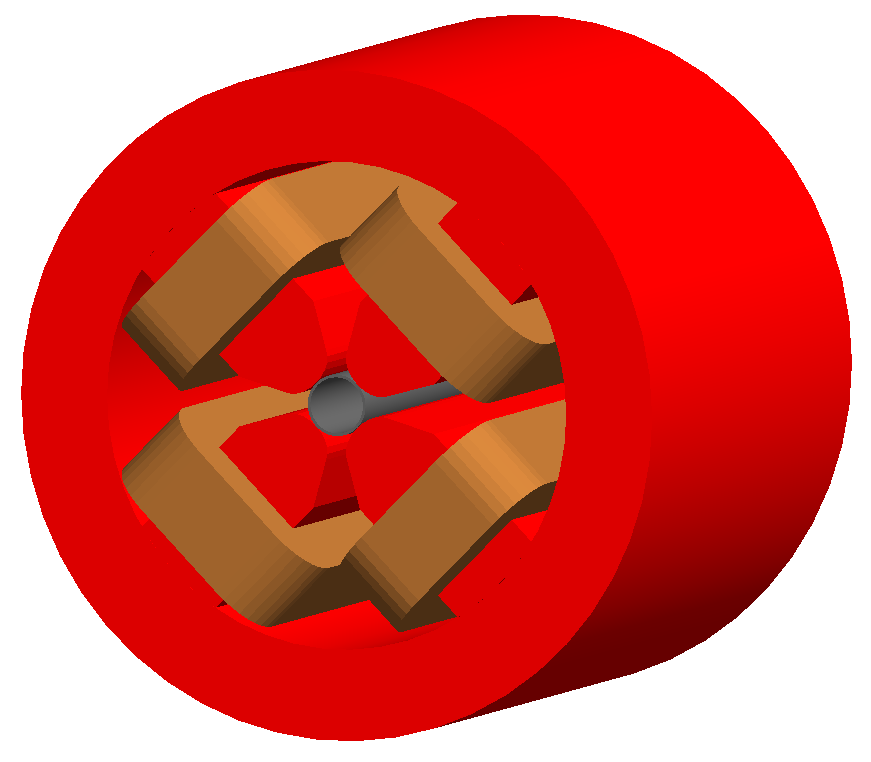

magnetGeometryType

The style of magnet geometry to use. One of:

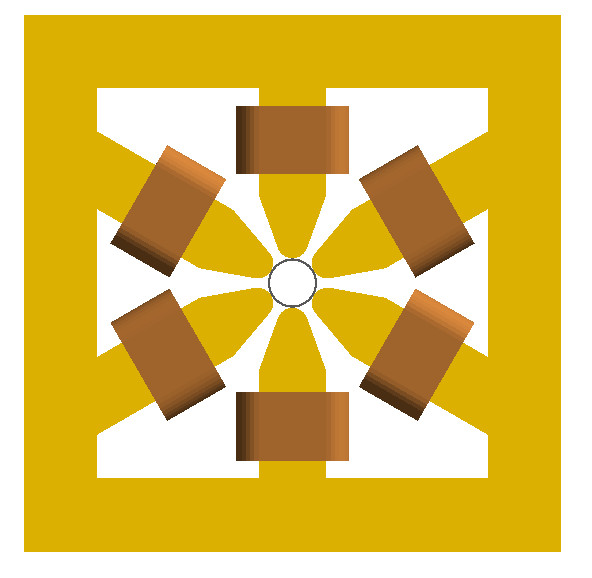

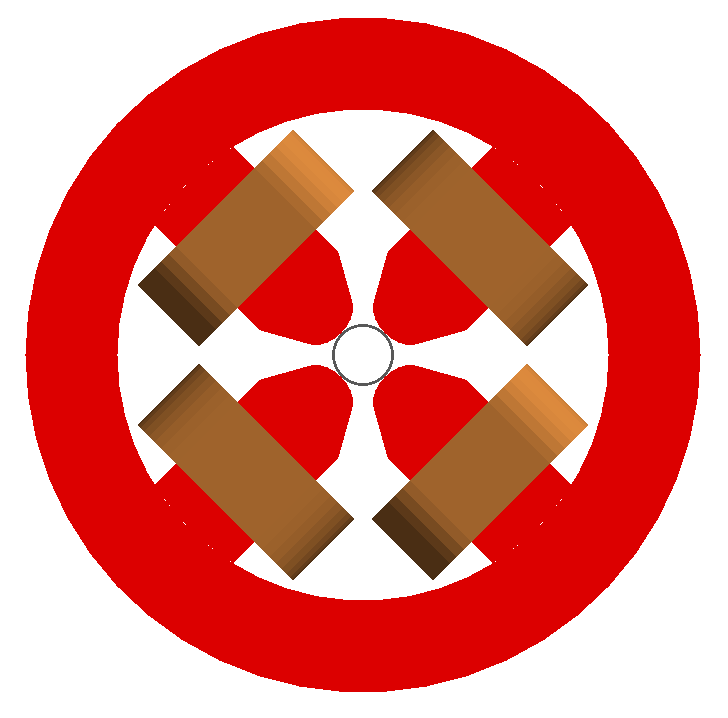

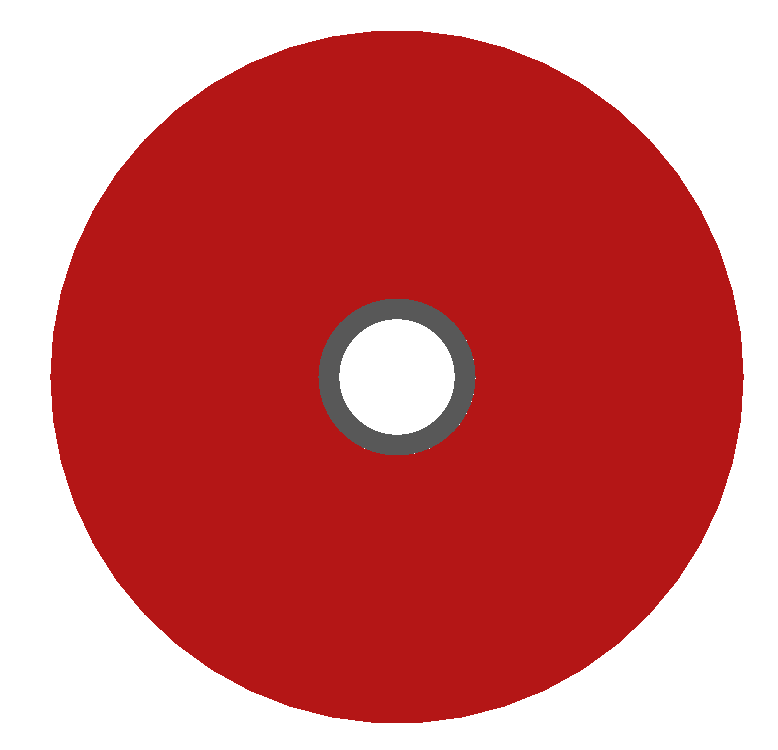

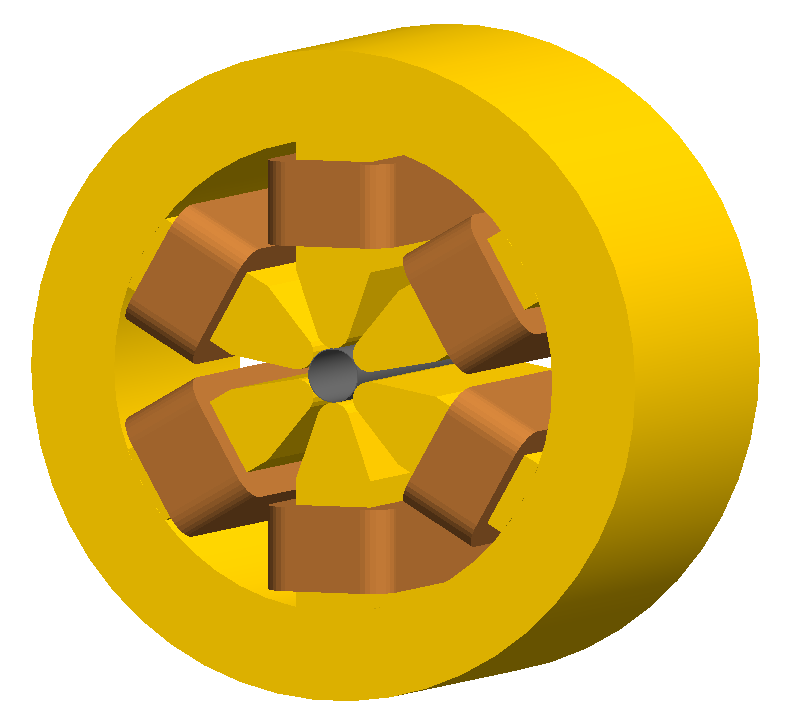

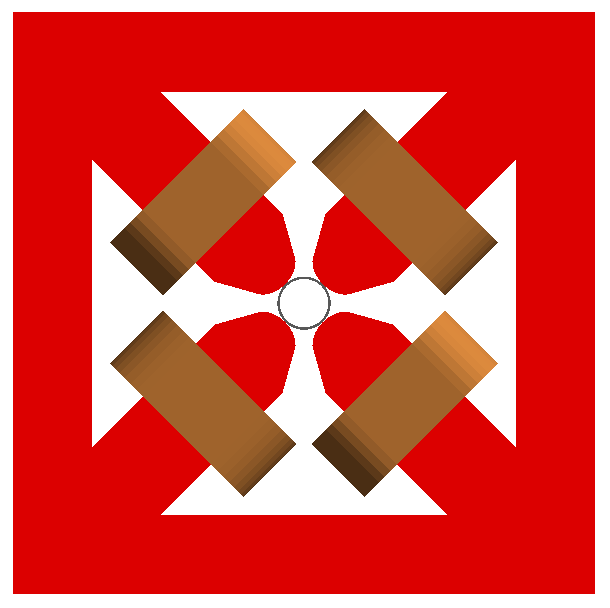

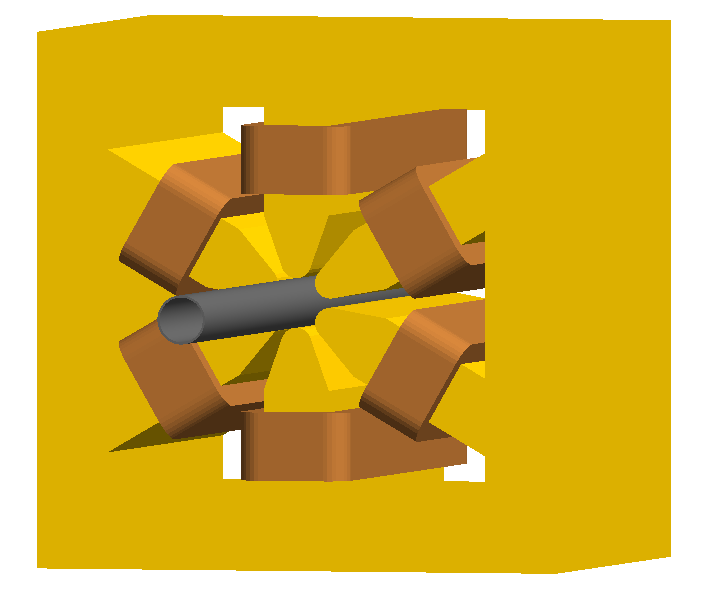

cylindrical, polescircular, polessquare,

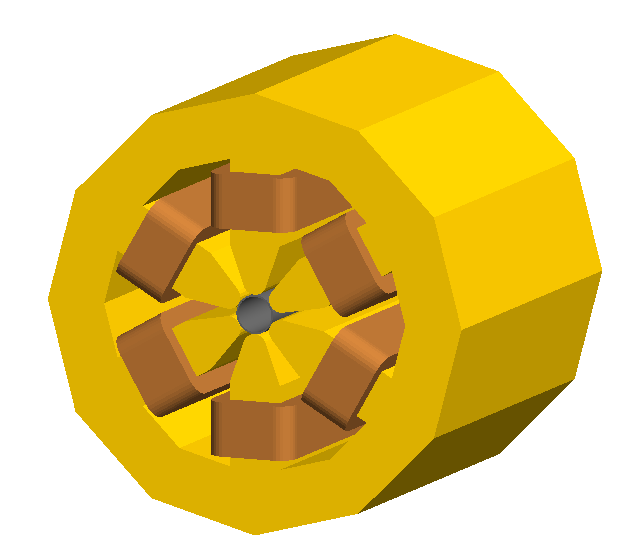

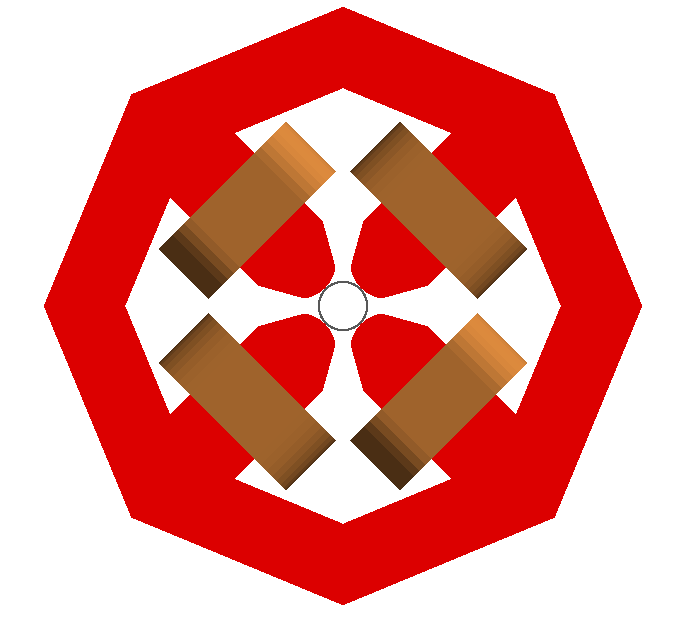

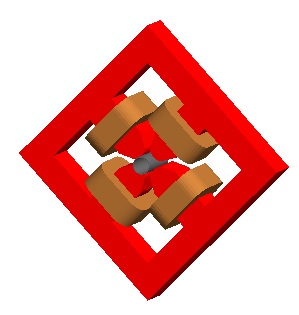

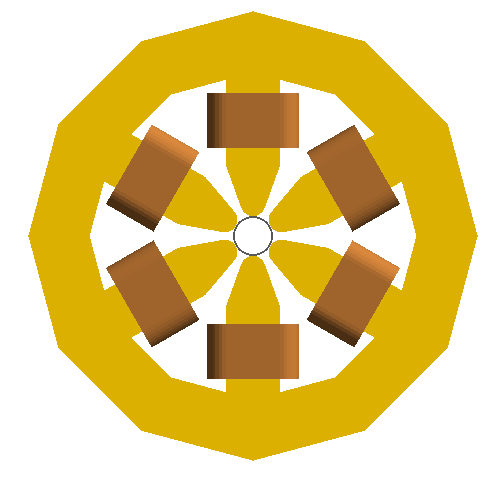

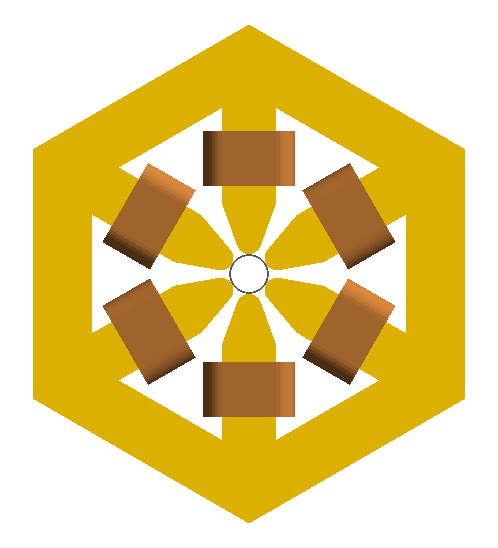

polesfacet, polesfacetcrop, lhcleft, lhcright,

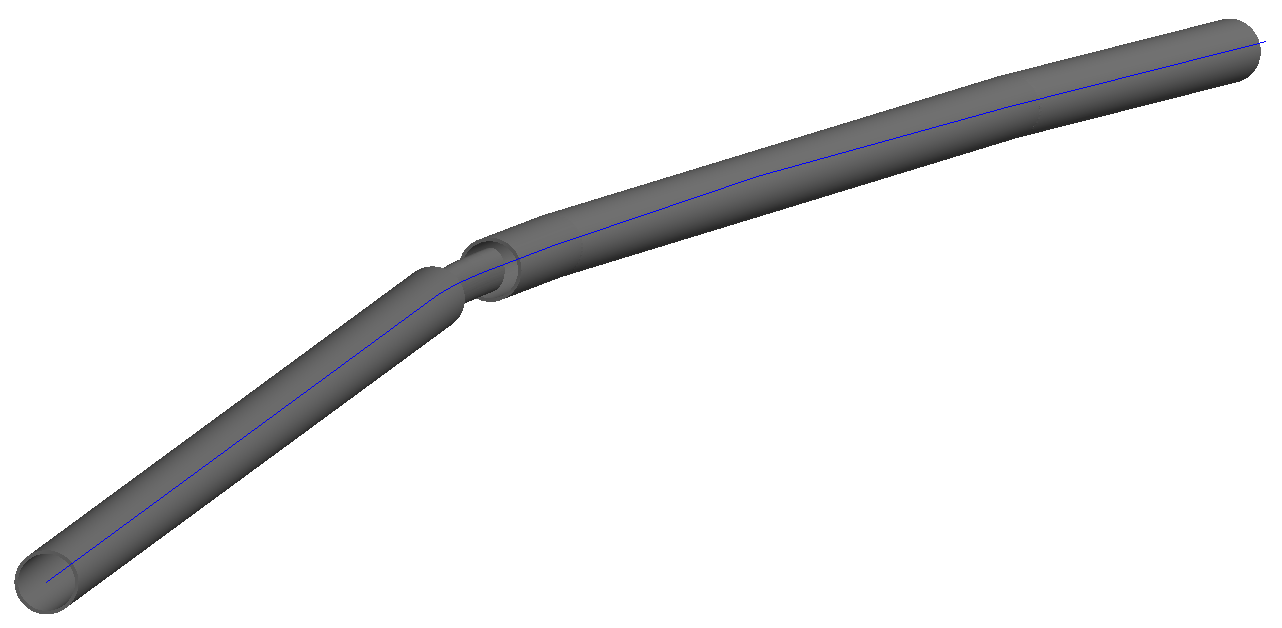

none and format:path.

polessquare

No

horizontalWidth

Full horizontal width of the magnet (m)

0.6 m

No

outerMaterial

Material of the magnet

“iron”

No

yokeOnInside

Whether the yoke of a dipole appears on the inside of the
bend and if false, it’s on the outside. Applicable only
to dipoles.

1

No

hStyle

Whether a dipole (only a dipole) will be an H style one
or a C style one (c style by default. True (‘1’) or False
(‘0’).

0

No

vhRatio

The vertical to horizontal ratio of a magnet. The width
will always be the horizontalWidth and the height will
scale according to this ratio. In the case of a vertical
kicker it will be the height that is horizontalWidth (as
the geometry is simply rotated). Ranges from 0.1 to 10.
This currently only applies to dipoles with poled
geometry.

0.8

No

coilWidthFraction

Fraction of the available horizontal space between the
pole and the yoke for dipole geometry that the coil will
occupy. This currently only applies to dipoles with poled
geometry. Ranges from 0.05 to 0.98.

0.9

No

coilHeightFraction

Fraction of the available vertical space between the pole
tip and the yoke for dipole geometry that the coil will
occupy. This currently only applies to dipoles with poled
geometry. Ranges from 0.05 to 0.98.

0.9

No

Examples:

option, magnetGeometryType = "polesfacetcrop",
        horizontalWidth = 0.5*m;
m1: quadrupole, l=0.3*m,
                k1=0.03,
                magnetGeometryType="gdml:geometryfiles/quad.gdml",
                horizontalWidth = 0.5*m;

Warning

The choice of magnet outer geometry will significantly affect the beam loss pattern in the simulation, as particles and radiation may propagate much further along the beam line when a magnet geometry with poles is used.

Warning

Use of “lhcleft” or “lhcright” will result in the outerMaterial parameter being ignored and the correct LHC materials being used. The secondary beam pipe included with this will always be the correct LHC arc aperture and all materials are at 2K.

Note

Should a custom selection of various magnet styles be required for your simulation, please contact us (see Feature Request) and this can be added - it is a relatively simple process.

No Magnet Outer Geometry - “none

No geometry for the magnet outer part is built at all and nothing is placed in the model. This results in only a beam pipe with the correct fields being provided.

_images/none_beamline.png

Cylindrical - “cylindrical

The beam pipe is surrounded by a cylinder of material (the default is iron) whose outer diameter is controlled by the horizontalWidth parameter. In the case of beam pipes that are not circular in cross-section, the cylinder fits directly against the outside of the beam pipe.

This geometry is useful when a specific geometry is not known. The surrounding magnet volume acts to produce secondary radiation as well as act as material for energy deposition, therefore this geometry is best suited for the most general studies.

_images/cylindrical_quadrupole.png
_images/cylindrical_sextupole.png

Poles Circular - “polescircular

This magnet geometry has simple iron poles according to the order of the magnet and the yoke is represented by an annulus. Currently no coils are implemented. If a non-symmetric beam pipe geometry is used, the larger of the horizontal and vertical dimensions of the beam pipe will be used to create the circular aperture at the pole tips.

_images/polescircular_quadrupole.png
_images/polescircular_quadrupole_3d.png
_images/polescircular_sextupole.png
_images/polescircular_sextupole_3d.png

Poles Square (Default) - “polessquare

This magnet geometry has again, individual poles according to the order of the magnet but the yoke is an upright square section to which the poles are attached. This geometry behaves in the same way as polescircular with regard to the beam pipe size.

horizontalWidth is the full width of the magnet horizontally as shown in the figure below, not the diagonal width.

_images/polessquare_quadrupole.png
_images/polessquare_quadrupole_3d.png
_images/polessquare_sextupole.png
_images/polessquare_sextupole_3d.png

Poles Faceted - “polesfacet

This magnet geometry is much like polessquare; however, the yoke is such that the pole always joins at a flat piece of yoke and not in a corner. This geometry behaves in the same way as polescircular with regards to the beam pipe size.

horizontalWidth is the full width as shown in the figure.

Warning

In Geant4 V11.0, the visualiser cannot handle the Boolean solids created by this geometry and the poles appear invisible. They are in-fact there, but the Geant4 visualisation system cannot make the 3D meshes for the visualisation.

_images/polesfacet_quadrupole.png
_images/polesfacet_quadrupole_3d.png
_images/polesfacet_sextupole.png
_images/polesfacet_sextupole_3d.png

Poles Faceted with Crop - “polesfacetcrop

This magnet geometry is quite similar to polesfacet, but the yoke in between each pole is cropped to form another facet. This results in the magnet geometry having double the number of poles as sides.

Warning

The poles in this geometry may not appear in the visualiser when using Geant4 V11. This is because of limitations introduced in the Geant4 visualiser Boolean processing engine. The geometry is still there, but just the visualiser can’t generate a 3D mesh for it.

horizontalWidth is the full width horizontally as shown in the figure.

_images/polesfacetcrop_quadrupole.png
_images/polesfacetcrop_quadrupole_3d.png
_images/polesfacetcrop_sextupole.png
_images/polesfacetcrop_sextupole_3d.png

LHC Left & Right - “lhcleft” | “lhcright

lhcleft and lhcright provide more detailed magnet geometry appropriate for the LHC. Here, the left and right suffixes refer to the shift of the magnet body with respect to the reference beam line. Therefore, lhcleft has the magnet body shifted to the left in the direction of beam travel and the ‘active’ beam pipe is the right one. Vice versa for the lhcright geometry.

For this geometry, only the sbend and quadrupole have been implemented. All other magnet geometry defaults to the cylindrical set.

This geometry is parameterised to a degree regarding the beam pipe chosen. Of course, parameters similar to the LHC make most sense, as does use of the lhcdetailed aperture type. Examples are shown with various beam pipes and both sbend and quadrupole geometries.

  • outerMaterial is ignored with this choice of geometry.

lhcleft_sbend

lhcleft_quadrupole

lhcleft_quadrupole_square

lhcleft_sextupole

External Magnet Geometry

A geometry file may be placed around a beam pipe inside a BDSIM magnet instance. The beam pipe will be constructed as normal and will use the appropriate BDSIM tracking routines, but the yoke geometry will be loaded from the file provided. The external geometry must have a cut out in its container volume for the beam pipe to fit, i.e. both the beam pipe and the yoke exist at the same level in the geometry hierarchy (both are placed in one container for the magnet). The beam pipe is not placed ‘inside’ the yoke. This is shown schematically below:

_images/magnet-hierarchy-schematic.pdf

Geometrical hierarchy of a magnet. Here, a quadrupole is shown, but all magnets have the same geometrical structure even if the specific shapes are different.

Therefore, if using a GDML file for the yoke of the magnet (labelled “outer” in the figure), care should be taken to make the outermost container volume, not just a box, but a box with a cylinder cut out of it, i.e. a Boolean solid.

This will work for solenoid, sbend, rbend, quadrupole, sextupole, octupole, decapole, multipole, muonspoiler, vkicker, hkicker element types in BDSIM.

Example:

q1: quadrupole, l=20*cm, k1=0.0235, magnetGeometryType="gdml:mygeometry/atf2quad.gdml";

autoColour=1 can also be used to automatically colour the supplied geometry by density if desired. This is on by default. Example to turn it off:

q1: quadrupole, l=20*cm, k1=0.0235, magnetGeometryType="gdml:mygeometry/atf2quad.gdml", autoColour=0;

Cavity Geometry Parameters

A more detailed rf cavity geometry may be described by constructing a ‘cavity’ object in gmad and attaching it by name to an element. The following parameters may be added to a cavity object:

Parameter

Required

Description

name

Yes

Name of the object

type

Yes

(elliptical | rectangular | pillbox)

material

Yes

The material for the cavity

irisRadius

No

The radius of the narrowest part

equatorRadius

No

The radius of the widest part

halfCellLength

No

Half-length along a cell

equatorHorizontalAxis

Elliptical only

Horizontal semi-axis of the ellipse at the cavity equator

equatorVerticalAxis

Elliptical only

Vertical semi-axis of the ellipse at the cavity equator

irisHorizontalAxis

Elliptical only

Horizontal semi-axis of the ellipse at the iris

irisVerticalAxis

Elliptical only

Vertical semi-axis of the ellipse at the iris

tangentLineAngle

Elliptical only

Angle to the vertical line connecting two ellipses

thickness

No

Thickness of material

numberOfPoints

No

Number of points to generate around 2 \(\pi\).

numberOfCells

No

Number of cells to construct

Example:

shinyCavity: cavitymodel, type="elliptical",
                     irisRadius = 35*mm,
                     equatorRadius = 103.3*mm,
                     halfCellLength = 57.7*mm,
                     equatorHorizontalAxis = 40*mm,
                     equatorVerticalAxis = 42*mm,
                     irisHorizontalAxis = 12*mm,
                     irisVerticalAxis = 19*mm,
                     tangentLineAngle = 13.3*pi/180,
                     thickness = 1*mm,
                     numberOfPoints = 24,
                     numberOfCells = 1;

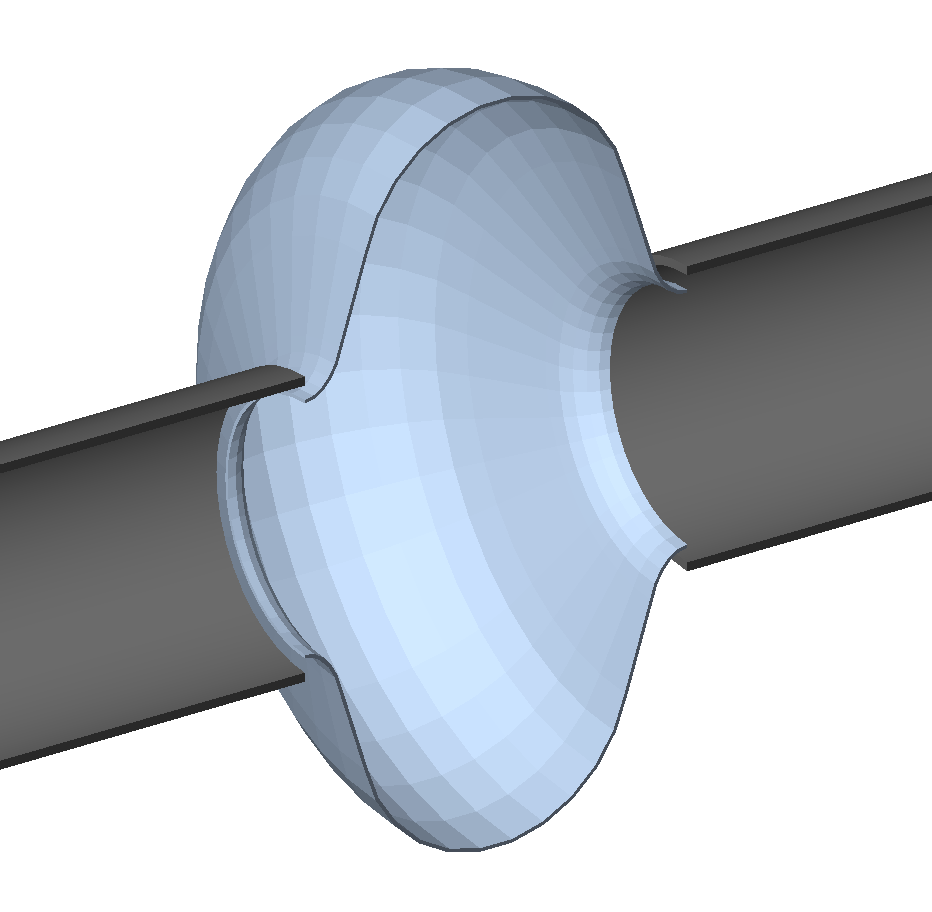

_images/elliptical-cavity2.png

Elliptical cavity geometry example from bdsim/examples/features/geometry/12_cavities/rfcavity-geometry-elliptical.gmad.

_images/elliptical-cavity.pdf

The parameterisation used to define elliptical cavities in BDSIM. The symbols used in the figure map to the cavity options according to the table below.

Symbol

BDSIM Cavity Parameter

\(R\)

equatorRadius

\(r\)

irisRadius

\(A\)

equatorHorizontalAxis

\(B\)

equatorVerticalAxis

\(a\)

irisHorizontalAxis

\(b\)

irisVerticalAxis

\(\alpha\)

tangentLineAngle

\(L\)

halfCellLength

Externally Provided Geometry

BDSIM provides the ability to use externally provided geometry in the Geant4 model constructed by BDSIM. Different formats are supported (see Geometry Formats). External geometry can be used in several ways:

  1. A placement of a piece of geometry unrelated to the beam line (see Placements)

  2. Wrapped around the beam pipe in a BDSIM magnet element (see External Magnet Geometry)

  3. As a general element in the beam line where the geometry constitutes the whole object. (see element)

  4. As the world volume in which the BDSIM beamline is placed. (see External World Geometry)

Note

If a given geometry file is reused in different components, it will be reloaded on purpose to generate a unique set of logical volumes so we have the possibility of different fields, cuts, regions, colours etc. It will only be loaded once though, if the same component is used repeatedly. However, specifically for a placement, this can be overridden by specifying the parameter dontReloadGeometry in the placement definition - see Placements.

Warning

If including any external geometry, overlaps must be checked in the visualiser by running /geometry/test/run before the model is used for a physics study.

Geometry Formats

The following geometry formats are supported. More may be added in collaboration with the BDSIM developers - please see Feature Request. The syntax and preparation of these geometry formats are described in more detail in External Geometry Formats.

Format String

Description

gdml

Geometry Description Markup Language - Geant4’s official geometry
persistency format - recommended, maintained and supported

mokka

An SQL style description of geometry - not maintained
  • With the option, checkOverlaps=1; turned on, each externally loaded piece of geometry will also be checked for overlaps.

GDML Geometry Specifics

  • The Geant4 installation that BDSIM is compiled with repsect to must have GDML support turned on.

  • BDSIM must be compiled with the GDML build option in CMake turned on for GDML loading to work.

Creating GDML Geometry

To create customised geometry, we recommend our separate (free) Python package, pyg4ometry. This is a Python package that can be used in a script to create Geant4 or FLUKA geometry or convert it into GDML and has many examples. It can also be used to check for overlaps in any GDML file and validate geometry.

See Geometry Preparation for details and links to the software and manual. This package is used for many of the examples included with BDSIM and the Python scripts are included with the examples.

Material Names And Usage

Rules for materials in a GDML file:

  • A NIST material (e.g. G4_AIR) may be used by name without full definition. The XML validator may warning that they are undefined - this is ok as true, but they will be available at runtime.

  • A BDSIM predefined material (or indeed one defined in the input GMAD) may be used by name without a full definition in a GDML file. Similarly, there may be a warning from the XML validator, but the material will be available at run time.

  • A BDSIM material by one of it’s aliases in BDSIM may be used by name, similarly.

  • It is allowed to define a material inside a GDML file with the same name as one in BDSIM as the GDML preprocessor (see below) will change the name.

  • Do not define a material fully but with the same name as a NIST material. Whilst Geant4 will construct the material when loading the GDML file, it will attach the material by name and may not find your material definition from the GDML file.

BDSIM will exit if a conflict in naming (and therefore ambiguous materials could be set) is found.

GDML Preprocessing

Geant4’s GDML loader, which BDSIM uses to load GDML files, was only designed to use 1 GDML file. Unlike Geant4’s C++ classes where names to do not matter, in GDML, each object is identified by name. An example of some GDML defining solids is:

<solids>
  <box lunit="mm" name="box" x="20" y="30" z="40"/>
  <box lunit="mm" name="world" x="200" y="200" z="200"/>
</solids>

When loading a file, if Geant4 finds an object in memory (Geant4’s registries of objects) already with that name, it uses that object instead of reading the one from the file. e.g. in this case, another solid with the name “box”. This can have the unintended consequence of thinking you are loading a piece of geometry but getting a completely different piece! This can cause overlaps, bad tracking and an incorrect model and results. Worse still, it may go unseen.

Note

If including any external geometry, overlaps must be checked in the visualiser by running /geometry/test/run before the model is used for a physics study.

The most common use of Geant4 is for a detector model where the entire model is written in 1 GDML file, hence this design in Geant4.

However, in BDSIM, we may wish to piece together (like LEGO bricks) many pieces of geometry in and around an accelerator. To compensate for this Geant4 behaviour, we preprocess a GDML file. This means, we create a temporary copy of the file, and change all the names adding a unique string to the beginning of them all - typically the element or placement the GDML file will be used in. This allows us to load multiple files with possibly degenerate names safely.

For each name we change, we must check for any uses elsewhere in the file. Therefore, this can be a \(O(N^2)\) problem with the number of names. In the case of a GDML file that includes a large tessellated solid, each individual 3-vector position is written with it’s own name and this vastly increases the number of names to process.

In this case, it is possible to keep the temporary *preprocessed* file and edit the input GMAD file to use this new file. However, this strategy means that if the GDML file is updated, it has to be preprocessed again and copied and the input edited (not ideal).

option, preprocessGDML=0;

The Schema is a set of rules of what is allowed in the GDML file that generally uses the XML syntax. It defines which tags are allowed and what parameters they can have. This is directed to by the URL at the very top of the file and is found online. e.g.

<?xml version="1.0" ?>
<gdml xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="http://service-spi.web.cern.ch/service-spi/app/releases/GDML/schema/gdml.xsd">

If however, you need offline access, then BDSIM includes a copy of the latest GDML Schema. During the preprocessing, this is automatically substituted for the one included with BDSIM. If you use a custom Schema or do not wish to use this feature, it can be turned off with:

option, preprocessGDMLSchema=0;

This is independent of the preprocessGDML option above, i.e. with that turned off, but preprocessGDMLSchema on (by default), we can preprocess only the Schema location.

  • BDSIM will put the preprocessed GDML files in a temporary directory and remove them once finished. The temporary files can be retained by using the option option, removeTemporaryFiles=0;.

  • BDSIM will create a temporary directory based on the template name “bdsim_XXXXXX” where the X characters will be replaced by a randomly generated alpha-numeric sequence from the system using mkdtemp.

  • BDSIM will try /tmp/, then /temp/, then the current working directory in that order to create the temporary directory. This behaviour can be overridden by specifying the option option, temporaryDirectory="/path/to/desired/directory". "./" could be used for example for the current working directory.

The BDSIM GDML preprocessor has some limitations. We cannot support variables in values. In this case, the user should load a GDML file with Geant4 and re-export it. This will ‘flatten’ / resolve any variables, e.g.

<variable name="offsetX" value="3"/>
<position x="offsetX+3" y="0" z="-3|/>

would not work, as the variable “offsetX” is referred to in the value “x” in the position tag.

External World Geometry

External geometry can be supplied as the world volume with the option worldGeometryFile (see Geometry Options). The BDSIM beamline will be placed inside this world volume provided in the file.

option, worldGeometryFile="gdml:myworld.gdml";

Unlike the standard BDSIM world volume whose size is set dynamically, the external world volume will have fixed dimensions, therefore the user should supply a world volume of sufficient size so as to fully encompass the BDSIM beamline. Should the extents of the BDSIM beamline be larger than the world extents, the beamline will not be constructed and BDSIM will exit.

worldGeometryFile should be of the format format:filename, where format is the geometry format being used (gdml | gmad | mokka) and filename is the path to the geometry file. See Externally Provided Geometry for more details.

  • See also Geometric Importance Sampling for usage of this.

  • The world material will be taken from the GDML file and the option worldMaterial will be ignored. If the option worldMaterial is specified as well as worldGeometryFile, BDSIM will issue a warning but proceed.

  • The option autoColourWorldGeometryFile can be used (default true) to colour the supplied geometry by density. See Automatic Colours for details.

  • The option biasForWorldContents may be used to attach a bias object to the daughter volumes (i.e. excluding the world volume itself) of the loaded world geometry. This is useful for shielding.

  • The option biasForWorldVolume may be used to attach a bias object to the world volume itself (only). See Physics Biasing for details.

Warning

Be careful to avoid name clashing if loading multiple GDML files including the world. The usual preprocessGDML option is on to protect against this, but should the user wish, this can be turned off for quicker loading times. The user must therefore ensure no name clashing (i.e. degenerate names for anything between GDML files).

Placements

Aside from a beam line, pieces of geometry may be placed at any location in the world with any orientation. The mechanism to do this in BDSIM is called “placements”. Either an externally provided piece of geometry (e.g. GDML file and optional field map) or a BDSIM provided accelerator component can be placed by declaring a placement object in the input.

For geometry to be placed as part of the beam line, use the element component in a line.

Warning

If the geometry overlaps, tracking faults may occur from Geant4 as well as incorrect results and there may not always be warnings provided. For this reason, BDSIM will always use the Geant4 overlap checker when placing external geometry into the world volume. This only ensures the container doesn’t overlap with BDSIM geometry, not that the internal geometry is valid.

Warning

You cannot place external geometry ‘inside’ an accelerator component with a placement. Although it may appear OK in the visualiser, the hierarchy of the geometry will be wrong and the tracking will not work as expected. Avoid this.

There are 3 possible ways to place a piece of geometry.

  1. In global Cartesian coordinates.

    • x, y, z and any rotation are with respect to the world frame of reference.

  2. In curvilinear coordinates.

    • s, x, y are used along with a rotation. The transform for the distance s along the beamline is first applied. x, y and the rotation are with respect to that frame.

  3. In curvilinear coordinates with respect to a beam line element by name.

    • The name of an element is used to look up its (mid-point) s coordinate. s, x, y and the rotation are with respect to the centre of that element. Therefore, s in this case is local curvilinear s.

The scenario is automatically selected based on which parameters are set. If s is non-zero, then it is either scenario 2 or 3. If referenceElement is specified, scenario 3 is assumed.

Warning

For both scenarios 2) and 3), a placement can only be made inside the S length of the accelerator - it is not possible to place something beyond the accelerator currently. In this case, the user should resort to a global placement.

Two styles of rotation can be used: either a set of three Euler angles, or the axis-angle rotation scheme, where a unit vector is provided in \(x,y,z\) and an angle to rotate about that. The later is usually easier to imagine.

The following parameters may be specified with a placement in BDSIM:

Parameter

Description

geometryFile

format:file - which geometry format and file to use

stripOuterVolume

(1 or 0) if true, then remove and discard the outer logical volume from the loaded geometry and turn it into an ‘assembly’ volume with the contents placed with the correct relative transform in the world.

bdsimElement

Name of the beam line element defined in the parser to be used

x

Offset in global x

y

Offset in global y

z

Offset in global z

s

Curvilinear s coordinate (global | local depending on parameters)

phi

Euler angle phi for rotation

theta

Euler angle theta for rotation

psi

Euler angle psi for rotation

axisX

Axis angle rotation x-component of unit vector

axisY

Axis angle rotation y-component of unit vector

axisZ

Axis angle rotation z-component of unit vector

angle

Axis angle, angle to rotate about unit vector

axisAngle

Boolean whether to use axis angle rotation scheme (default false)

sensitive

Whether the geometry records energy deposition (default true)

referenceElement

Name of element to place geometry with respect to (string)

referenceElementNumber

Occurrence of referenceElement to place with respect to if it is used more than once in the sequence. Zero counting.

autoColour

Boolean whether the geometry should be automatically coloured by density if no colour information is supplied. (default true)

fieldAll

Name of field object definition to be used as the field for the whole geometry including all daughter volumes.

dontReloadGeometry

(Boolean) Purposively circumvent BDSIM’s reloading of the same geometry file for each placement, i.e. reuse it. This will mean any cuts or fields or sensitivity will be the same.

  • Only one of bdsimElement or geometryFile should be used in a placement.

  • bdsimElement should be used to name a component to place. In this case the component should be defined before the placement definition in the input GMAD.

  • geometryFile should be used to place an externally provided geometry file.

  • This is intended to place geometry alongside the beam line and not inside or as part of it.

  • The user is responsible for ensuring that the geometry does not overlap with any other geometry including the beam line.

  • Only in special cases, such as for a magnet yoke, can externally provided geometry be placed “inside” BDSIM geometry.

  • The geometry may also have a field map overlaid on it.

  • Placements cannot be made with respect to other placements.

  • There is the possibility to strip off the outermost logical volume and place the contents with the compound transform in the world. Useful for preparing for example, shielding. See the parameter below stripOuterVolume=1.

  • Examples can be found in bdsim/examples/features/geometry/13_placements.

  • The file path provided in geometryFile should either be relative to where bdsim is executed from or an absolute path.

  • The main beam line begins at (0,0,0) by default but may be offset. See Offset for Main Beam Line for more details.

  • dontReloadGeometry is useful when you have lots of repeated placements of the same thing that is essentially passive material with the same sensitivity e.g. shielding. Specifically, when you don’t want to reload the geometry and don’t want to preprocess it.

referenceElementNumber is the occurrence of that element in the sequence. For example, if a sequence was:

l1: line=(d1,sb1,d2,qd1,d2,df1,d2,sb1,d1);

and we wanted to place with respect to the first element, we would use:

p1: placement, referenceElement="d1",
               referenceElementNumber=0;

And the referenceElementNumber argument is optional as the default is 0. If we want to place with respect to the fourth usage of “d2”, we would use:

p1: placement, referenceElement="d2",
               referenceElementNumber=3;

If we want to placement at some coordinates with an axis-angle rotation (easier to perceive), we would use:

p1: placement, geometryFile="gdml:anExampleFile.gdml",
               x=2*m, y=10*cm, z=30*m,
               axisAngle=1,
               axisY=1,
               angle=pi/4;

This would place with an offset of \(x, y, z = 2, 0.1, 30 m\), then a rotation about the Y axis of \(\pi/4\). We use the flag axisAngle=1 to turn ‘on’ the axis angle rotation (instead of the Euler angles one), and axisX, axisY, axisZ are the components of the unit vector about which to rotate by angle. Each component is by default 0, so we need only define the axis we want as 1 if aligned with one of the global axes.

Note

Dipoles are split in BDSIM into many small straight sections. These must have a unique name to appear correctly in the Geant4 visualisation system. The splitting is done dynamically based on the angle of the bend and if it has pole face rotations on one or both sides. The names are mangled and so the original name will not be found. The user should run the visualiser first and identify the name of the segment of the dipole they wish to place with respect to. Alternatively, in the case of low angle bends, the element before or after can be used with a finite s offset.

Note

Geant4 uses a right-handed coordinate system and \(m\) and \(rad\) are the default units for offsets and angles in BDSIM.

External Geometry File

The following is an example syntax used to place a piece of geometry:

leadblock: placement, x = 10*m,
                      y = 3*cm,
                      z = 12*m,
                      geometryFile="gdml:mygeometry/detector.gdml";

BDSIM Component

The following is an example of placing a single BDSIM-generated component at an arbitrary position:

block1: rcol, l=1*m, material="Cu";
pl1: placement, bdsimElement="block1", x=2*m, z=20*m, axisAngle=1, axisY=1, angle=pi/4;

Warning

Care must be taken not to define the same placement name twice. If leadblock were declared again here, the first definition would be updated with parameters from the second, leading to possibly unexpected geometry.

Note

For using a general piece of geometry as part of a beam line, it is better to use the element beam line element. See element. The length should be specified accurately and then the beam line will fit together well without any air gaps.

Tunnel Geometry

BDSIM can build a tunnel around the beam line. Currently, there are two main ways to control this.

  1. The tunnel follows the beam line, bending automatically (recommended)

  2. The tunnel is just built in a straight line - this may be useful for linear colliders but may also cause geometry overlaps (the user is responsible for checking this!)

Warning

With option 2, the user is entirely responsible to ensure no overlaps occur (through good design).

Examples of tunnel geometry can be found with the BDSIM source code in bdsim/examples/features/geometry/tunnel* and are described in Tunnel Geometry.

The automatic tunnel building is controlled through the following options used with the option command.

Tunnel Parameters

Default

Description

buildTunnel

0 (false)

Whether to build a tunnel

buildTunnelStraight

0 (false)

Whether to build a tunnel, ignoring the beamline and just in a straight line

buildTunnelFloor

1 (true)

Whether to add a floor to the tunnel

tunnelIsInfiniteAbsorber

0 (false)

Whether all particles entering the tunnel material should be killed or not

tunnelType

“circular”

Which style of tunnel to use - one of: “circular`, “elliptical”, “square”, “rectangular”

tunnelAper1

2

Tunnel aperture parameter #1, typically horizontal (m)

tunnelAper2

2

Tunnel aperture parameter #2, typically vertical (m)

tunnelThickness

0.1

Thickness of tunnel wall (m)

tunnelSoilThickness

1.0

Soil thickness outside tunnel wall (m)

tunnelMaterial

“concrete”

Material for tunnel wall

soilMaterial

“soil”

Material for soil outside tunnel wall

tunnelOffsetX

0

Horizontal offset of the tunnel with respect to the beam line reference trajectory

tunnelOffsetY

0

Vertical offset of the tunnel with respect to the beam line reference trajectory

tunnelFloorOffset

1.0

The offset of the tunnel floor from the centre of the tunnel (not the beam line). Must be positive.

Example:

option, buildTunnel = 1,
        tunnelOffsetX = -35*cm,
        tunnelOffsetY = 30*cm,
        tunnelAper1 = 220*cm,
        tunnelThickness = 30*cm,
        tunnelSoilThickness = 23*m;

These parameters are shown schematically in the figure below (gaps not to scale, elliptical shown as an example).

_images/tunnel_parameters.pdf

The soil around the tunnel is typically symmetric, with the tunnelSoilThickness being added to the larger of the horizontal and vertical tunnel dimensions.

Construction of the tunnel geometry may fail in particular cases of different beam lines. Beam lines with very strong bends ( > 0.5 rad) over a few metres may cause overlapping geometry. In future, it will be possible to override the automatic algorithm between certain elements in the beamline, but for now such situations must be avoided.

Note

Surrounding the beam line with a tunnel completely means that every particle simulated will have to eventually hit something and not escape. This means that every single particle will likely create a shower of particles down to 0 energy. This can increase simulation time. To avoid this, or at least control this behaviour, it is recommended to use the options minimumKineticEnergyTunnel or tunnelIsInfiniteAbsorber.

Crystals

To use various crystal components in BDSIM such as crystalcol, a crystal definition must first be made. This contains all of the required information to construct the crystal. The following parameters are required:

Parameter

Description

material

Material that the crystal will be composed of

data

Path to data files, including first part of file name

shape

Geometry used - one of (box, cylinder, torus)

lengthX

X-dimension full length [m]

lengthY

Y-dimension full length [m]

lengthZ

Z-dimension full length [m]

sizeA

Unit cell a dimension [m]*

sizeB

Unit cell b dimension [m]*

sizeC

Unit cell c dimension [m]*

alpha

Interaxial angle \(\alpha\) in units of \(\pi/2\)

beta

Interaxial angle \(\beta\) in units of \(\pi/2\)

gamma

Interaxial angle \(\gamma\) in units of \(\pi/2\)

spaceGroup

Space grouping of lattice (integer)

bendingAngleYAxis

Angle that the crystal is bent about Y-axis [rad].

bendingAngleZAxis

Angle that the crystal is bent about Z-axis [rad].

  • (*) Note, the units of metres may seem ridiculous, but the parser is consistently in S.I. (or as much as possible). We recommend using units in the parser such as Angstroms. See Coordinates & Units.

Note

Depending on the shape chosen, the geometry may or may not represent the bending angle. The bendingAngleYAxis is always supplied to the channelling physics process irrespective of the geometry. This is important to note that the crystal may be a box, but the ‘crystal’ inside (in terms of the physics process) is not related to the geometry and is bent. The physical geometry is merely a volume where the crystal parameters apply.

Note

If there is no vertical bending angle, the torus geometry will reduce to the cylinder geometry, as this is faster for tracking. Similarly, if the cylinder is used and there is no horizontal bending angle, a box will be used, as it’s not possible to construct a cylinder with an infinite bending radius.

It is entirely possible to add more shapes to the code. Please contact the developers Feature Request.

Examples:

lovelycrystal: crystal, material = "G4_Si",
                      data = "data/Si220pl",
                      shape = "box",
                      lengthY = 5*cm,
                      lengthX = 0.5*mm,
                      lengthZ = 4*mm,
                      sizeA = 5.43*ang,
                      sizeB = 5.43*ang,
                      sizeC = 5.43*ang,
                      alpha = 1,
                      beta  = 1,
                      gamma = 1,
                      spaceGroup = 227,
                      bendingAngleYAxis = 0.1*rad,
                      bendingAngleZAxis = 0;

uglycrystal: crystal, material = "G4_Si",
                      data = "data/Si220pl",
                      shape = "box",
                      lengthY = 5*cm,
                      lengthX = 0.5*mm,
                      lengthZ = 4*mm,
                      sizeA = 5.43*ang,
                      sizeB = 5.43*ang,
                      sizeC = 5.43*ang,
                      alpha = 1,
                      beta  = 1,
                      gamma = 1,
                      spaceGroup = 227,
                      bendingAngleYAxis = -0.1*rad,
                      bendingAngleZAxis = 0;

More examples can be found in Crystals.

Colours

Most items allow you to define a custom colour for them to aid in visualisation. This includes all magnets and collimators, the shield and degrader. The colour can be defined with red, green and blue components, as well as a level of transparency, alpha. RGB values can range from 0 to 255. Once defined, a colour may not be redefined. The syntax to define a colour is

NAME: newcolour, red=#, green=#, blue=#, alpha=#

Examples:

purple: newcolour, red=128, green=0, blue=128;
col1: rcol, l=0.2*m, xsize=5*cm, ysize=4*cm, colour="purple", material="copper";

and:

purple: newcolour, red=128, green=0, blue=128;
orange: newcolour, red=255, green=140, blue=0;
nicegreen: newcolour, red=0, green=128, blue=0;

d1: drift, l=1*m;
basebend: sbend, l=2*m, angle=0.9;
sb1: basebend, colour="purple";
sb3: basebend, colour="nicegreen";
sb4: basebend, colour="yellow";
sb5: basebend, colour="orange";
sb6: basebend, colour="red";

beamline: line=(d1,sb1,d1,basebend,d1,sb3,d1,sb4,d1,sb5,d1,sb6,d1);
use, beamline;
sample, all;

beam,  particle="proton",
       energy= 50*GeV;

This examples if from bdsim/examples/features/visualisation/coloured_sbend.gmad and produces the model shown below.

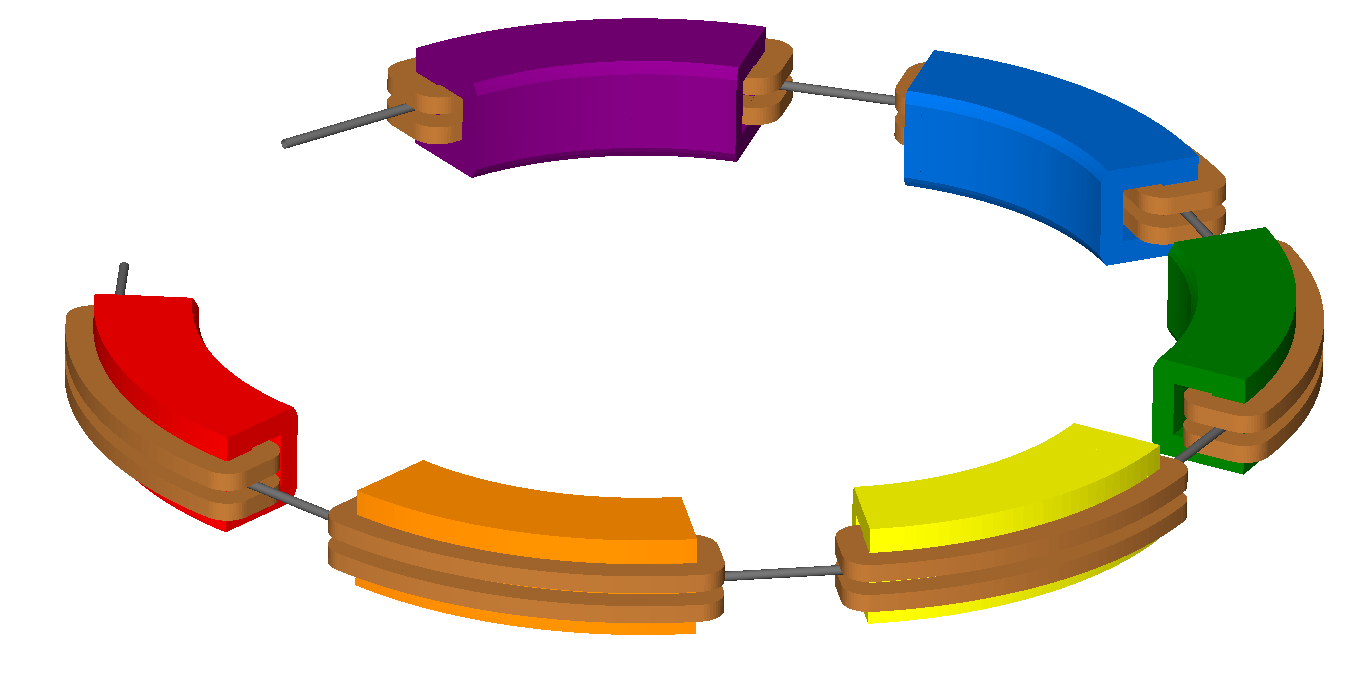

_images/coloured_sbends.png
  • Colours can only be specified on an element-by-element basis.

  • Colour names are case-sensitive.

  • New colour names must not clash with predefined BDSIM colour names.

All available colours in BDSIM can be found by running BDSIM with the --colours command:

bdsim --colours

For convenience the predefined colours in BDSIM are:

Name

R

G

B

A

LHCcoil

229

191

0

1

LHCcollar

229

229

229

1

LHCcopperskin

184

133

10

1

LHCyoke

0

127

255

1

LHCyokered

209

25

25

1

awakescreen

175

196

222

1

awakespectrometer

0

102

204

1

beampipe

102

102

102

1

black

0

0

0

1

blue

0

0

255

1

brown

114

63

0

1

coil

184

115

51

1

collimator

63

102

51

1

copper

184

115

51

1

crystal

175

196

222

1

cyan

0

255

255

1

decapole

76

51

178

1

default

229

229

229

1

degrader

159

159

159

1

dipolefringe

229

229

229

1

drift

102

102

102

1

ecol

63

102

51

1

element

229

229

229

1

gap

229

229

229

1

gdml

102

51

0

1

gray

127

127

127

1

green

0

255

0

1

grey

127

127

127

1

hkicker

76

51

178

1

iron

129

81

74

1

jcol

63

102

51

1

kapton

236

96

20

0.5

kicker

0

102

204

1

lead

96

104

115

1

magenta

255

0

255

1

marker

229

229

229

1

multipole

118

135

153

1

muonspoiler

0

205

208

1

octupole

0

153

76

1

opaquebox

51

51

51

0.2

paralleltransporter

229

229

229

1

quadrupole

209

25

25

1

rbend

0

102

204

1

rcol

63

102

51

1

reallyreallydarkgrey

51

51

51

1

rectangularbend

0

102

204

1

red

255

0

0

1

rf

118

135

153

1

rfcavity

118

135

153

1

rfx

118

135

153

1

rfy

118

135

153

1

rmatrix

229

229

229

1

sbend

0

102

204

1

screen

175

196

222

1

screenframe

178

178

178

0.4

sectorbend

0

102

204

1

sextupole

255

204

0

1

shield

138

135

119

1

soil

138

90

0

0.4

solenoid

255

139

0

0.7

srfcavity

175

196

222

1

target

63

102

51

1

thinmultipole

229

229

229

1

thinrmatrix

229

229

229

1

tkicker

0

102

204

1

traj_negative

204

0

0

1

traj_neutral

51

178

0

0.2

traj_positive

0

51

229

1

tunnel

138

135

119

1

tunnelfloor

127

127

114

1

undulator

159

159

159

1

vkicker

186

84

211

1

warning

255

19

146

1

white

255

255

255

1

wirescanner

138

135

119

1

yellow

255

255

0

1

Automatic Colours

In the case where an automatic colouring option is used, BDSIM can automatically assign a colour to volumes based on their material for visualisation purposes. This is done with a set of predefined ones for common elements and materials, and then the fall back is to use the state and the density. The materials state sets the opacity and the density is used to scale a grey colour. In all cases, the geometry will be visible.

Regions

In Geant4, it is possible to have different regions - each with their own production cuts and user limits. A “region” in Geant4 terms is a collection of Logical Volumes that have the same set of production cuts and don’t necessarily have to be beside each other.

Production cuts are a length scale over which the simulation is considered correct and can roughly be thought of as the length a secondary would have to travel in that material to be tracked.

In BDSIM, there is one default region that applies everywhere. It is controlled by option, defaultRangeCut along with the other options prodCutXXXX (see Physics Processes).

The defaultRangeCut acts as a default for the 4 possible range cuts for protons, photons, electrons and positrons, unless their prodCutXXXX option is specified. Aside from the global options, a custregion object may be declared that defines a set of range cuts. This object can then be attached to beam line elements. For example:

precisionRegion: cutsregion, prodCutProtons=1*m,
                             prodCutElectrons=10*m,
                             prodCutPositrons=10*m,
                             prodCutPhotons = 1*mm;

d1: drift, l=10*m, region="precisionRegion";

The following parameters are available in the cutsregion object and as global options:

Parameter

Description

defaultRangeCut

The default range cut for this object.

prodCutProtons

The range cut for protons.

prodCutPhotons

The range cut for photons / gammas.

prodCutElectrons

The range cut for electrons.

prodCutPositrons

The range cut for positrons.

Geant4 translates these range cuts into an energy per particle type per material. This method is documented as being much more physically accurate than a simple energy cut across all volumes for all particle types. i.e. the computation time can be reduced but the physical accuracy maintained in areas of vastly different density.

  • The default for Geant4 is 1 mm or 0.7 mm depending on the version. This approximately corresponds to keV energy scales in air for most particles.

  • The related energies in various materials do not scale linearly or continuously with the range parameter. This is OK.

Warning

Setting a length scale longer or larger than the beam line element or volume the region will be used in may result in inaccurate physics result and peaks and troughs in energy deposition around boundaries.

  • If the option, defaultRangeCut is set, this will be the default for the other options if not specified.

  • If defaultRangeCut is not specified in a cutsregion object, the default for each range will be the corresponding range from the options. e.g. option, prodCutProtons will be the default for prodCutProtons in a cutsregion object if defaultRangeCut is not specified in the object.

  • See bdsim/examples/features/processes/regions for documented examples.

One Turn Map

Geant4 mandates that there are no overlaps between solids, which in BDSIM means that a thin 1 nm gap is placed between each lattice element. Whilst these thin gaps have a negligible effect for a single pass or turn, over several turns it introduces a sizeable inaccuracy in the tracking (in the context of large circular models). To correct for this, BDSIM models can be supplemented with a one turn map which is applied at the end of each turn to right the primary back onto the correct trajectory. To ensure physical results the one turn map is only applied to primaries, if they did not interact on the previous turn, and if they are within 5% of the reference momentum. The one turn map is also not applied on the first turn where there the beam is offset in S, but applied on following turns, still accounting for the exceptions mentioned above.

The map must be of the format as written by MAD-X-PTC’s PTC_NORMAL command. A one turn map (in this case, 12th order) can be generated in MAD-X with the following

PTC_CREATE_UNIVERSE;
PTC_CREATE_LAYOUT, model=2,method=6,nst=10, exact=true, resplit, xbend;
PTC_NORMAL,maptable,icase=5,no=12;
write, table="map_table", file="my_oneturn_map_file";
PTC_END;

To use then use the one turn map with BDSIM

option, ptcOneTurnMapFileName="path/to/my_oneturn_map_file";
  • This can only be used with circular machines.
