Fields

BDSIM provides the magnetic fields typical to an accelerator, as well as the ability to import field maps and overlay them on geometry. Practically, this is accomplished through several objects, but the main two that the user or developer must select are the field and the integrator. The first describes the field itself; the latter how the particle position and momentum is affected by the field.

The integrators are described in Tracking Algorithms.

Coordinate System

The accelerator is modelled, following convention, in curvilinear coordinates that follow the beam line. However, in practice, Geant4 requires that the fields and coordinates be supplied and calculated in global Cartesian coordinates. The simplest solution in Geant4 is to get the transformation from the global coordinates to the local coordinates of the volume being queried for the field and tracking. However, if the field is ‘attached’ to not just a simple single shape or volume, but a nested set of volumes, the local coordinates of that volume are not necessarily the same as the accelerator curvilinear coordinates. To get around this, a parallel geometry is built with simple shapes whose local coordinates are degenerate with the curvilinear coordinate system. This geometry is used to find the transforms so that when their local coordinates are queried, they represent the curvilinear coordinates of the beam line.

Generally, to query a point in the geometry, one should use a G4Navigator instance. There is the singleton G4Navigator from Geant4 available to the developer, but this must never be used. Querying a point in the geometry with this navigator changes the state of the navigator and therefore the perceived location in the geometry hierarchy of the particle in question from that point on. To avoid this, an extra navigator is created and used. Whilst these are not large objects in memory, a single static extra navigator (member of BDSAuxiliaryNavigator) is used. An instance of a G4Navigator can perform a search relative to the last queried point, which is usually significantly faster than a fresh query from the top of the hierarchy. By using a static auxiliary navigator, we take advantage of the relative search, because although many fields and integrators may have query separate BDSAuxiliaryNavigator instances, the underlying static navigator is used. In practice, the queries are generated by the progress of a particle, so they’re likely to be close to each other in the geometry.

Utility methods for conversion are provided in BDSAuxiliaryNavigator. The developer should design their class to inherit this one if they wish to convert to curvilinear coordinates.

Pure magnetic fields are provided that don’t inherit BDSAuxiliaryNavigator to avoid the requirement of ‘closed’ Geant4 geometry and a parallel curvilinear world. This greatly simplifies things if the developer wants to simply make use of (or test alone for that matter) a single field class.

Important Points

• Field classes don’t use BDSAuxiliary navigator and therefore don’t require a full Geant4 run.

• The fields constructed for the BDSIM model are wrapped in an instance of BDSFieldMagGlobal that provides the necessary local-to-global transforms.

• Using BDSAuxiliaryNavigator requires an accelerator to be built, i.e. it requires a world volume, read out world, contents in both, the geometry to be ‘closed’ by Geant4 and a valid run manager instantiated. One may generally use the field classes, but without the auxiliary navigator in this case.

Notes About Plots

The plots provided here are generated by surveying each field class at various points in both a uniform Cartesian grid and also in a radial grid. The vector field plots are generated automatically using matplotlib. Whilst these look pretty spiffy, occasionally the vectors pass through inflection points (such as the origin) that we know they should not. This is purely a numerical artefact and the plots are only to give a rough impression of the field shape. The fields are generated by the equations described and are correct even at inflection points.

Field Names and Parameters

Any field can be queried in BDSIM, including the pure fields described below. However, these must by queried by their type name exactly, and some parameters must also be specified that would normally be associated with a beam line element. Below are all the fields and associated parameters required.

• These are all defined in bdsim/include/BDSFieldType.hh

• Only pure fields from equations are listed here as field maps are done by format:filepath.

• Any parameters not specified will default to zero.

Warning

This is fairly advanced exposure of BDSIM-internals and to be used with some care. You may have to look in the source code (.cc file) to understand the appropriate use of the parameters. The units are in the same input units as BDSIM.

Field Type Name	Parameters
solenoidsheet	length, field, poletipradius
dipole, solenoid, dipole3d	field, bx, by, bz
quadrupole	k1
dipolequadrupole	field, bx, by, bz, k1
sextupole	k2
octupole	k3
decapole	k4
multipole	k1, k2, k3… k12, k1s, k2s, k3s… k12s
muonspoiler	field
skewquadrupole	k1
skewsextupole	k2
skewoctupole	k3
skewdecapole	k4
rfconstantinx, rfconstantiny, rfconstantinz	efield, frequency, phase
rfpillbox	equatoradius, efield, frequency, phase
undulator	length, field
multipoleouterdipole	field, bx, by, bz, poletipradius
multipoleouterquadrupole	k1, poletipradius
multipoleoutersextupole	k2, poletipradius
multipoleouteroctupole	k3, poletipradius
multipoleouterdecapole	k4, poletipradius
skewmultipoleouterquadrupole	k1, poletipradius
skewmultipoleoutersextupole	k2, poletipradius
skewmultipoleouteroctupole	k3, poletipradius
skewmultipoleouterdecapole	k4, poletipradius
multipoleouterdipole3d	field, bx, by, bz
multipoleouterdipolelhc	field, bx, by, bz, poletipradius
multipoleouterquadrupolelhc	k1, poletipradius
multipoleoutersextupolelhc	k2, poletipradius

• “poletipradius” will default to “aper1” or the beam pipe radius from the options, unless otherwise specified

Example for a dipole field:

fieldParameters="field=1.0, by=1";

Pure Magnetic Fields From Equations

Described here are a list of typical magnetic fields that are described by equations, rather than an interpolated field map. These are used for the majority of the accelerator components. Described here is the pure version without global to curvilinear transformations. These classes are wrapped when used with general BDSAcceleratorComponent instances.

Dipole

The dipole field is constructed with a magnitude \(|B|\) and a unit vector \(\hat{\mathbf{b}}\). It is constant with position and the default unit vector is \((0,1,0)\) - unit y.

\[\mathbf{B} = \hat{\mathbf{b}} \cdot |B|\]

Example field map of a dipole with \(\mathbf{B} = 1.3~\mathrm{T}\), and \(B\rho = 4.333\).

Quadrupole

The quadrupole field is constructed with strength parameter \(k_1\) and with respect to a nominal rigidity \(B\rho\). Although the rigidity is included in \(k_1\), it is required to calculate the field gradient internally.

\[k_1 = \frac{1}{B\rho} \frac{\partial B_y}{\partial x}\]

The field is described by

\[\begin{split}B_x & = \frac{\partial B_y}{\partial x} y \\ B_y & = \frac{\partial B_y}{\partial x} x \\ B_z & = 0\end{split}\]

Example field map of a quadrupole with \(k_1 = 0.34\), and \(B\rho = 4.333\).

Sextupole

The sextupole field is constructed with strength parameter \(k_2\) and with respect to a nominal rigidity \(B\rho\).

\[k_2 = \frac{1}{B\rho} \frac{\partial^2 B_y}{\partial x^2}\]

The field is described by

\[\begin{split}B_x & = \frac{1}{2!} \frac{\partial^2 B_y}{\partial x^2} \,2xy \\ B_y & = \frac{1}{2!} \frac{\partial^2 B_y}{\partial x^2} \, (x^2 - y^2) \\ B_z & = 0\end{split}\]

Example field map of a sextupole with \(k_2 = 3.91\), and \(B\rho = 4.333\).

Octupole

The octupole field is constructed with strength parameter \(k_3\) and with respect to a nominal rigidity \(B\rho\).

\[k_3 = \frac{1}{B\rho} \frac{\partial^3 B_y}{\partial x^3}\]

The field is described by

\[\begin{split}B_x & = \frac{1}{3!} \frac{\partial^3 B_y}{\partial x^3} \,(3x^2 y - y^3) \\ B_y & = \frac{1}{3!} \frac{\partial^3 B_y}{\partial x^3} \, (x^3 - 3xy^2) \\ B_z & = 0\end{split}\]

Example field map of a octupole with \(k_3 = 12.56\), and \(B\rho = 4.333\).

Decapole

The decapole field is constructed with strength parameter \(k_4\) and with respect to a nominal rigidity \(B\rho\).

\[k_4 = \frac{1}{B\rho} \frac{\partial^4 B_y}{\partial x^4}\]

The field is described by

\[\begin{split}B_x & = \frac{1}{4!} \frac{\partial^4 B_y}{\partial x^4} \, 4xy(x^2 - y^2) \\ B_y & = \frac{1}{4!} \frac{\partial^4 B_y}{\partial x^4} \, (x^4 - 6x^2y^2 + y^4) \\ B_z & = 0\end{split}\]

Example field map of a decapole with \(k_4 = 45567.32\), and \(B\rho = 4.333\).

Skewed Versions

All of the above magnets (dipole, quadrupole, sextupole, octupole and decapole) are also available as their skew counterparts. With BDSIM, it is trivial to create a skew component by simply creating a normal component and applying the appropriate tilt to it. However, should one want the field skewed but not the component - say, the correct upright square aperture - these fields can be used.

A wrapper class is provided that is instantiated with an angle (hard coded in BDSFieldFactory). When the field is queried, the coordinates being queried are rotated by the angle. The returned field vector is then anti-rotated to give the correct skew field at the original location.

\[\mathbf{B}_{skew}(x,y) = R(-\theta) \mathbf{B}(x',y')\]

\[\begin{split}\begin{bmatrix} x' \\ y' \\ z' \\ \end{bmatrix} = R(\theta) \begin{bmatrix} x \\ y \\ z \\ \end{bmatrix} = \begin{bmatrix} \cos \theta & - \sin \theta & 0\\ \sin \theta & \cos \theta & 0\\ 0 & 0 & 0 \\ \end{bmatrix} \begin{bmatrix} x \\ y \\ z \\ \end{bmatrix}\end{split}\]

Example field maps are shown below.

Skew Quadrupole

Example field map of a skew quadrupole with \(k_1 = 0.34\), and \(B\rho = 4.333\).

Skew Sextupole

Example field map of a skew sextupole with \(k_2 = 3.92\), and \(B\rho = 4.333\).

Skew Octupole

Example field map of a skew octupole with \(k_3 = 12.56\), and \(B\rho = 4.333\).

Skew Decapole

Example field map of a skew decapole with \(k_4 = 45567.32\), and \(B\rho = 4.333\).

Multipole

A general multipole field is also provided. The field is calculated in cylindrical coordinates, then converted to Cartesian. The field is calculated using an array of strength parameters \(k_1,k_2,\dotsc k_{12}\) and the skewed strength parameters \(ks_1,ks_2,\dotsc ks_{12}\) with respect to a nominal rigidity \(B\rho\).

Note

Currently the dipole component is not implemented. \(k_1\) is the quadrupole strength, \(k_2\) is the sextupole strength, etc.

\[\begin{split}r & = \sqrt{x^2 + y^2} \\ B_r (\mathrm{normal}) & = \frac{1}{B\rho} \displaystyle\sum_{i=1}^{12} \frac{k_i}{i!} \,r^i \sin(i \phi) \\ B_{\phi} (\mathrm{normal}) & = \frac{1}{B\rho} \displaystyle\sum_{i=1}^{12} \frac{k_i}{i!} \, r^i \cos(i \phi) \\ B_r (\mathrm{skewed}) & = \frac{1}{B\rho} \displaystyle\sum_{i=1}^{12} \frac{ks_i}{i!} \, r^i \cos(i \phi) \\ B_{\phi} (\mathrm{skewed}) & = \frac{1}{B\rho} \displaystyle\sum_{i=1}^{12} -\frac{ks_i}{i!} \, r^i \sin(i \phi)\end{split}\]

\[\begin{split}B_x & = B_r \cos \phi - B_{\phi} \sin \phi \\ B_y & = B_r \sin \phi + B_{\phi} \cos \phi \\\end{split}\]

Example field map of a multipole with \(\{k_1, k_2, k_3, k_4, k_5\} = \{0.12,0.02,-0.003,0.0004,-0.00005\}\), and \(B\rho = 4.333\).

Undulator

The undulator field is constructed with the peak field strength \(B\) and the undulator period \(\lambda\). The field, according to Wiedemann pg. 103, is described by

\[\begin{split}B_{x} ~ &= ~ 0 \\ B_{y} ~ &= ~ B \cdot \cos\big(z \frac{2\pi}{\lambda}\big) \cosh\big(y \frac{2\pi}{\lambda}\big)\\ B_{z} ~ &= ~ -B \cdot \sin\big(z \frac{2\pi}{\lambda}\big) \sinh\big(y \frac{2\pi}{\lambda}\big)\end{split}\]

Muon Spoiler

A muon spoiler field is provided that gives a constant toroidal field. It is constructed with field strength \(B~(\mathrm{T})\). The field is calculated according to

\[\begin{split}r & = \sqrt{x^2 + y^2} \\ B_x & = \frac{y}{r} B \\ B_y & = \frac{-x}{r} B \\ B_z & = 0\end{split}\]

Example field map of a muon spoiler with field \(B = 1.3~(\mathrm{T})\). Note, the variation shown in the graph is only numerical differences. The field is constant and this is purely due to the plotting vector field algorithm.

Dipole Yoke Field 3D

For the outer part of a dipole, as described by a uniform field in 3D \(\mathbf{B}\), a pure dipole field at position \(\mathbf{r}\) from the origin is provided according to

\[\mathbf{B}_{\mathrm{dipole}}(\mathbf{r}) = \frac{3\mathbf{r}(\mathbf{m}\cdot\mathbf{r})}{r^5} - \frac{\mathbf{m}}{r^3}\]

where \(\mathbf{m}\) is a unit vector along the pure dipole field direction. The field value is scaled to the field at the pole tip. For positions within a radial distance of the origin of pole tip radius, the uniform field vector is used. At the transition, a sigmoid function is used to smoothly vary (weight \(\mathrm{w}\)) between the uniform field vector (\(\mathbf{B}_{u}\)) according to

\[\mathrm{w} = \frac{1}{2} \left[ \tanh \left ( \frac{3 r - \| 0.5\,r_{\mathrm{pole tip}} \|}{1 \mathrm{cm}} \right) + 1 \right]\]

\[\mathbf{B}(\mathbf{r}) = \mathrm{w}\,\mathbf{B}_{dipole}(\mathbf{r}) + (1 - \mathrm{w}) \mathbf{B}_{u}\]

An example is shown below for \(\mathbf{B} = (0.23,0.56,0)\,\mathrm{T}\) and a pole tip radius of 40mm.

General Yoke Multipole

For the outside of magnets, a generalised multipolar field is provided. This is an approximate field for outside the beam pipe and does not take into account the permeability of the iron. We suggest overlaying a field map for your own magnets if greater accuracy is desired.

The field is described by the linear sum of infinitely long current sources along \(\pm z\) (in curvilinear coordinates). Each current source is placed exactly in between each pole at a distance of pole tip radius (\(r_{\mathrm{pole tip}}\)). The field is normalised to the field sampled from the interior field at a pole tip.

Wire locations:

\[\begin{split}\begin{bmatrix} x \\ y \\ \end{bmatrix}_i = \begin{bmatrix} 0 \\ r_{\mathrm{pole tip}} \\ \end{bmatrix} \begin{bmatrix} \cos \theta_i & - \sin \theta_i \\ \sin \theta_i & \cos \theta_i \\ \end{bmatrix}\end{split}\]

\[\theta_i = \left \{ \frac{i\,2\pi}{n_{\mathrm{poles}}} \right \} \quad \mathrm{for} \quad i = \{0 \ldots n_{\mathrm{poles}} \}\]

The field value as a function of position \(\mathbf{r} = (x,y)\) is

\[\mathbf{B}(\mathbf{r}) = \sum_{i = 1}^{i = n_{\mathrm{poles}}} (-1)^{i} \, \frac{(\mathbf{r} - \mathbf{c}_i)_{\perp}}{\|\mathbf{r} - \mathbf{c}_i\|}\]

These are provided for dipole through to decapole- including their skew counterparts. A few examples are presented below.

Multipole Yoke - Dipole

Multipole Yoke - Quadrupole

Multipole Yoke - Sextupole

Multipole Yoke - Octupole

Multipole Yoke - Decapole

Multipole Yoke - Skew Quadrupole

Multipole Yoke - Dual

This field is the addition of two multipole yoke fields at a specified separation. The field is built with one of the fields at the centre of the coordinate system (x,y = 0,0) with the second field either to the left or the right. Like the other multipole yoke fields, a pole tip radius is required to normalise the field against a perfect one of the same type.

This field can be used as an approximate field for joint two beam magnets such as those of the LHC. In the case of the LHC, the separation is 194 mm. If lhcright or lhcleft magnet geometry types are used these fields are automatically applied to rbends, sbends, quadrupoles and sextupoles.

Solenoid Sheet or Cylinder

For the outside of a solenoid, we have a solenoid “sheet” or “cylinder” model. This is modelled on the magnetic field due to symmetric cylinder of current of full length \(2 b\) and of radius \(a\). The field is calculated in cylindrical coordinates and translted into Cartesian. The normalisation is to some nominal field \(B_0\).

This follows the parameterisation and uses the algorithm for the generalised complete elliptical integral as described in:

• Cylindrical Magnets and ideal Solenoids, N. Derby and S. Olbert, American Journal of Physics 78, 229 (2010); https://doi.org/10.1119/1.3256157 and also at https://arxiv.org/abs/0909.3880.

The cylindrical B field components are given by:

\[ \begin{align}\begin{aligned}B_{rho} &= B_0 \left[ \alpha_+ C(k_+,1,1,-1) - \alpha_- C(k_-,1,1,-1) \right],\\B_z &= \frac{B_0 a}{a + \rho} \left[ \beta_+ C(k_+,\gamma^2,1,\gamma) - \beta_- C(k_-,\gamma^2,1,\gamma) \right]\end{aligned}\end{align} \]

where:

\[ \begin{align}\begin{aligned}B_0 &= \frac{\mu_0 n I}{\pi},\\z_{\pm} &= z \pm b,\\\alpha_{\pm} &= \frac{a}{\sqrt{z_{\pm}^{2} + (\rho + a)^2}},\\\beta_{\pm} &= \frac{z_{\pm}}{ \sqrt{z_{\pm}^{2} + (\rho + a)^2}},\\\gamma &= \frac{a - \rho}{a + \rho},\\k_{\pm} &= \sqrt{ \frac{z_{\pm}^{2} + (\rho - a)^2}{z_{\pm}^{2} + (\rho + a)^2} }.\end{aligned}\end{align} \]

The implementation defines a spatial tolerance of \(10^{-5} \times \textrm{min}(a,2h)\). If a coordinate is requested within this distance of the cylinder radius (i.e. \(|\rho - a| < tol.\) and \(|z| < b\)) or on the end of the cylinder face (i.e. \(|\,|z| - h\,| < tol.\) and \(\rho < a + tol.\)) then no field is returned as the function is unstable at these points.

The coordinates are transformed as:

\[z, \rho, \phi = z,\: \sqrt{x^2 + y^2},\: \arctan \left( \frac{y}{x} \right).\]

Here, std::atan2(y,x) is used for \(\arctan\) to give the correct sign throughout. The final field is constructed as:

\[B_{x,y,z} = \{ B_{\rho}, 0, B_z \},\]

then rotated about the \(z\) axis by angle \(\phi\).

If the field is queried close to the axis (i.e. \(|\rho| < tol.\)), then a reduced formula is used:

\[ \begin{align}\begin{aligned}B_{\rho} &= 0,\\B_{z} &= \frac{B_{0}}{2} \left[ \frac{z+b}{ \sqrt{(z+b)^2 + a^2} } - \frac{z-b} { \sqrt{(z-b)^2 + a^2} } \right].\end{aligned}\end{align} \]

Below is an example of the field.

Solenoidal field for 2T solenoid.

Electric Fields From Equations

Sinusoidal Electric Field

This field provides an electric field along local unit u direction (e.g. unit z or unit x) with an amplitude E that does not vary with position (x, y, z), but only varies sinusoidally with time (t). Therefore, this field does not represent a realistic cavity with no variation in say z in the strength of electric field, but is useful nonetheless.

A cosine is used so when the default phase is zero, a maximum acceleration is provided for a synchronous particle at the centre of the object. An rf cavity using this field can be constructed with E as peak voltage (subsequently divided by length), or the field itself as gradient.

The field is given by the combination of the peak field E, the frequency f (Hz) along with the phase \(\phi\). Typically, the synchronous time at the centre of the element it is attached to as well as the frequency are used to calculate a global phase for the arrival time of the synchronous particle to the centre of the object.

\[E_z = E\,\cos(2\,\pi\,f\,t + \phi)\]

The 3D Cartesian field vectors are therefore:

\[\begin{split}\mathbf{B} & = (0, \,0, \,0) \\ \mathbf{E} & = (0, \,0, \,E_z)\end{split}\]

In the case where frequency is not set, the field reduces to a constant in the local z direction:

\[E_z = E\,\cos(\phi)\]

Electromagnetic Fields From Equations

Pill-Box Cavity

The pill-box cavity field is constructed with a peak electric field \(E\), a frequency \(f\), phase \(\psi\) and a cavity radius. It represents the TM010 mode of a simple pill-box cavity.

Geant4 queries the field in (local) Cartesian coordinates and we require cylindrical coordinates for the field description. These are converted as:

\[\begin{split}\phi & = \tan^{-1} ( \frac{y}{x} ) \\ r & = \sqrt{x^2 + y^2}\end{split}\]

The cavity radius is used to normalise the Bessel function so that the field drops to zero at this point. The field is time-dependent and the \(E_z\) and \(B_{\phi}\) components are calculated and then returned in 3D Cartesian coordinates. The cavity radius is used to calculate a normalised radius \(r_n\) with respect to the first zero of the zeroth Bessel:

\[r_n = r \, \frac{2.404825557695772768622} { \mathrm{cavity\,radius}}\]

The electric field is calculated as:

\[\begin{split}E_z(r_n, z ,t) & = E \, J_{0}(r_n) \cos(2\,\pi\,f\,t + \psi)\,\cos(\frac{2\,\pi\,f\,z}{c})\\\end{split}\]

The radial B-field amplitude is calculated from the E-field amplitude.

\[\begin{split}H_{\phi}(r_n, z, t) & = \frac{E}{Z_{0}} \, J_{1}(r_n) \sin(2\,\pi\,f\,t + \psi)\,\cos(\frac{2\,\pi\,f\,z}{c})\\ B_{\phi}(r_n, z, t) & = \mu_{0} H_{\phi}\end{split}\]

where \(Z_{0}\) is the impedance of free space. To calculate B, a vacuum is assumed and therefore only the vacuum permeability is used to calculate B from H.

The 3D Cartesian field vectors are therefore:

\[\begin{split}\begin{bmatrix} B_x \\ B_y \\ \end{bmatrix} = \begin{bmatrix} 0 \\ B_{\phi} \\ \end{bmatrix} \begin{bmatrix} \cos \phi & - \sin \phi \\ \sin \phi & \cos \phi \\ \end{bmatrix}\end{split}\]

The final 3-vectors are constructed as:

\[\begin{split}\mathbf{B} & = (B_x,\, B_y \,0) \\ \mathbf{E} & = (0, \,0, \,E_z)\end{split}\]

Field Map File Formats

BDSIM Field Format

The field should be in an ASCII text file with the extension .dat. Below is an example of the required format in each 1D, 2D, 3D and 4D case.

• A compressed file using gzip may also be used (“.gz” extension).

Note

It is recommended to use pybdsim to write field maps as it is guaranteed to write the correct syntax exactly. It is not recommended to write field maps by hand.

The pybdsim utility package may be used to prepare fields in the correct format in Python if a Python numpy array is provided. If the user has a custom field format, it would be advisable to write a script to load this data into a Python numpy array and use the provided file writers in pybdsim.

Generally:

• A series of keys define the dimensions of the grid.

• The keys must not have any whitespace before them nor any between the key and the ‘>’

• The keys at the beginning do not have to be in any order.

• Empty lines will be skipped.

• A line starting with ! denotes the column name definition row (there can be only one of these).

• The order in the file must be 1) keys, 2) column name definition row, 3) data.

• A line starting with # will be ignored as a comment line.

• The default order of the data loop is the lowest dimension first and then the upper, so the order should be \(x\), then \(y\), then \(z\), then \(t\). If we look in a file, we should see the first coordinate column change first.

• loopOrder > tzyx may optionally be defined in the header to indicate the the opposite order of looping of variables in the file to the loader. The default is xyzt. It can only be either ‘xyzt’ or ‘tzyx’. In this case, the coordinate columns must still be in x,y,z,t order but the right most column coordinate will change first.

• Python classes are provided to write numpy arrays to this format.

• Any lines beyond the amount of data specified by the dimensions will be ignored.

• One cannot put a comment after the data in the line.

Note

The units are \(cm\) for spatial coordinates and \(s\) for temporal.

Note

If a 1,2 or 3D field is required that is not along \(x, x:y, x:y:z\) respectively, the user should label the columns appropriately (i.e. ‘X’ and ‘Z’) and use the correct key names in the file (i.e. ‘xmin’ and ‘zmin’) and the field will be automatically constructed along the desired direction. It is assumed the field is constant in the other dimensions.

There are python scripts in bdsim/examples/features/fields/4_bdsimformat called Generate1D.py etc., that were used to create the example data sets there that have sinusoidally oscillating data.

Warning

The dimension parameters (\(x,y,z,t\)) are used in order here for 1,2,3 and 4D fields, but other combinations are possible. See BDSIM Field Format Different Dimensions.

BDSIM Field Format 1D

For a field that varies in \(x\).

Parameter	Description
xmin	The lower spatial coordinate in x associated with the field map
xmax	The upper spatial coordinate in x associated with the field map
nx	Number of elements in x (1 counting)

Example syntax is shown below and there is an example in bdsim/examples/features/fields/4_bdsimformat/1dexample.tar.gz. The complete example field is specified here:

xmin> -30.0
nx> 8
xmax> 22.5
! X              Fx              Fy              Fz
-3.00000000E+01      -2.94957486E+00 -2.82240016E-01 -1.16825503E+00
-2.25000000E+01      -9.08808379E-01 -1.55614639E+00 -7.42211878E-01
-1.50000000E+01      1.44943102E+00  -1.99498997E+00 -2.99500250E-01
-7.50000000E+00      3.30134246E+00  -1.36327752E+00 1.49937508E-01
0.00000000E+00       4.00000000E+00  0.00000000E+00  5.96007992E-01
7.50000000E+00       3.30134246E+00  1.36327752E+00  1.02869342E+00
1.50000000E+01       1.44943102E+00  1.99498997E+00  1.43827662E+00
2.25000000E+01       -9.08808379E-01 1.55614639E+00  1.81555922E+00

The same field could be specified along \(z\) with the following start:

zmin> -30.0
nz> 8
zmax> 22.5
! Z              Fx              Fy              Fz

BDSIM Field Format 2D

All of the 1D parameters, plus:

Parameter	Description
ymin	The lower spatial coordinate in \(y\) associated with the field map
ymax	The upper spatial coordinate in \(y\) associated with the field map
ny	Number of elements in y (1 counting)

Example syntax is shown below and there is an example in bdsim/examples/features/fields/4_bdsimformat/2dexample.tar.gz. Only the first small part of the file is reproduced here:

ymax> 22.6
nx> 8
ny> 11
xmax> 26.0
xmin> -30.0
ymin> -25.0
! X                Y              Fx              Fy              Fz
-3.00000000E+01       -2.50000000E+01 1.76523839E+00  1.08228603E+00  2.12211605E-01
-2.44000000E+01       -2.50000000E+01 8.90617540E-01  1.48727104E+00  1.03093724E+00
-1.88000000E+01       -2.50000000E+01 -1.59784082E-01 1.59871406E+00  1.76936408E+00
-1.32000000E+01       -2.50000000E+01 -1.17864919E+00 1.39461962E+00  2.36997669E+00
-7.60000000E+00       -2.50000000E+01 -1.96488486E+00 9.15269759E-01  2.78599391E+00
-2.00000000E+00       -2.50000000E+01 -2.36331212E+00 2.55273528E-01  2.98501250E+00
3.60000000E+00        -2.50000000E+01 -2.29529355E+00 -4.55105921E-01 2.95153108E+00
9.20000000E+00        -2.50000000E+01 -1.77425397E+00 -1.07566133E+00 2.68815749E+00
1.48000000E+01        -2.50000000E+01 -9.03030699E-01 -1.48391395E+00 2.21540568E+00
2.04000000E+01        -2.50000000E+01 1.46423320E-01  -1.59928717E+00 1.57009785E+00
2.60000000E+01        -2.50000000E+01 1.16697784E+00  -1.39900982E+00 8.02496486E-01
-3.00000000E+01       -1.82000000E+01 2.85845993E+00  3.33182089E-01  2.12211605E-01
-2.44000000E+01       -1.82000000E+01 1.44218172E+00  4.57856850E-01  1.03093724E+00
-1.88000000E+01       -1.82000000E+01 -2.58739215E-01 4.92164617E-01  1.76936408E+00
-1.32000000E+01       -1.82000000E+01 -1.90859292E+00 4.29334082E-01  2.36997669E+00
-7.60000000E+00       -1.82000000E+01 -3.18174852E+00 2.81766079E-01  2.78599391E+00
-2.00000000E+00       -1.82000000E+01 -3.82692389E+00 7.85860346E-02  2.98501250E+00
3.60000000E+00        -1.82000000E+01 -3.71678107E+00 -1.40104499E-01 2.95153108E+00
9.20000000E+00        -1.82000000E+01 -2.87305889E+00 -3.31142672E-01 2.68815749E+00
1.48000000E+01        -1.82000000E+01 -1.46228242E+00 -4.56823370E-01 2.21540568E+00
2.04000000E+01        -1.82000000E+01 2.37104061E-01  -4.92341051E-01 1.57009785E+00
2.60000000E+01        -1.82000000E+01 1.88969342E+00  -4.30685607E-01 8.02496486E-01
-3.00000000E+01       -1.14000000E+01 2.68008252E+00  -5.64139424E-01 2.12211605E-01
-2.44000000E+01       -1.14000000E+01 1.35218479E+00  -7.75237050E-01 1.03093724E+00
-1.88000000E+01       -1.14000000E+01 -2.42593028E-01 -8.33326499E-01 1.76936408E+00

BDSIM Field Format 3D

All of the 1D and 2D parameters, plus:

Parameter	Description
zmin	The lower spatial coordinate in \(z\) associated with the field map
zmax	The upper spatial coordinate in \(z\) associated with the field map
nz	Number of elements in z (1 counting)

Example syntax is shown below and there is an example in bdsim/examples/features/fields/4_bdsimformat/3dexample.tar.gz. Only the first small part of the file is reproduced here:

zmax> 29.0
ymax> 18.2
zmin> -35.0
nx> 9
ny> 7
nz> 10
xmax> 24.9
xmin> -30.0
ymin> -25.0
! X                Y               Z              Fx              Fy              Fz
-3.00000000E+01       -2.50000000E+01 -3.50000000E+01 -3.32347616E+01 7.10822860E+01  -2.97096247E+00
-2.39000000E+01       -2.50000000E+01 -3.50000000E+01 -3.41989531E+01 7.15099195E+01  -1.54145628E+01
-1.78000000E+01       -2.50000000E+01 -3.50000000E+01 -3.53501533E+01 7.15850542E+01  -2.64353051E+01
-1.17000000E+01       -2.50000000E+01 -3.50000000E+01 -3.64196083E+01 7.12901497E+01  -3.50159076E+01
-5.60000000E+00       -2.50000000E+01 -3.50000000E+01 -3.71576482E+01 7.06940528E+01  -4.03643284E+01
5.00000000E-01        -2.50000000E+01 -3.50000000E+01 -3.73919737E+01 6.99359256E+01  -4.19868757E+01
6.60000000E+00        -2.50000000E+01 -3.50000000E+01 -3.70678802E+01 6.91927569E+01  -3.97337784E+01
1.27000000E+01        -2.50000000E+01 -3.50000000E+01 -3.62610291E+01 6.86380434E+01  -3.38130113E+01
1.88000000E+01        -2.50000000E+01 -3.50000000E+01 -3.51597841E+01 6.84012859E+01  -2.47710971E+01
2.49000000E+01        -2.50000000E+01 -3.50000000E+01 -3.40212366E+01 6.85377567E+01  -1.34426596E+01
-3.00000000E+01       -1.78000000E+01 -3.50000000E+01 -3.21147359E+01 7.02805617E+01  -2.97096247E+00
-2.39000000E+01       -1.78000000E+01 -3.50000000E+01 -3.36906971E+01 7.03914175E+01  -1.54145628E+01
-1.78000000E+01       -1.78000000E+01 -3.50000000E+01 -3.55723220E+01 7.04108947E+01  -2.64353051E+01
-1.17000000E+01       -1.78000000E+01 -3.50000000E+01 -3.73203353E+01 7.03344464E+01  -3.50159076E+01
-5.60000000E+00       -1.78000000E+01 -3.50000000E+01 -3.85266540E+01 7.01799198E+01  -4.03643284E+01
5.00000000E-01        -1.78000000E+01 -3.50000000E+01 -3.89096566E+01 6.99833900E+01  -4.19868757E+01
6.60000000E+00        -1.78000000E+01 -3.50000000E+01 -3.83799291E+01 6.97907378E+01  -3.97337784E+01
1.27000000E+01        -1.78000000E+01 -3.50000000E+01 -3.70611392E+01 6.96469391E+01  -3.38130113E+01
1.88000000E+01        -1.78000000E+01 -3.50000000E+01 -3.52611655E+01 6.95855643E+01  -2.47710971E+01
2.49000000E+01        -1.78000000E+01 -3.50000000E+01 -3.34002212E+01 6.96209417E+01  -1.34426596E+01
-3.00000000E+01       -1.06000000E+01 -3.50000000E+01 -3.24269222E+01 6.93395698E+01  -2.97096247E+00
-2.39000000E+01       -1.06000000E+01 -3.50000000E+01 -3.38323640E+01 6.90786203E+01  -1.54145628E+01
-1.78000000E+01       -1.06000000E+01 -3.50000000E+01 -3.55103966E+01 6.90327717E+01  -2.64353051E+01
-1.17000000E+01       -1.06000000E+01 -3.50000000E+01 -3.70692744E+01 6.92127277E+01  -3.50159076E+01
-5.60000000E+00       -1.06000000E+01 -3.50000000E+01 -3.81450691E+01 6.95764767E+01  -4.03643284E+01
5.00000000E-01        -1.06000000E+01 -3.50000000E+01 -3.84866308E+01 7.00390993E+01  -4.19868757E+01
6.60000000E+00        -1.06000000E+01 -3.50000000E+01 -3.80142199E+01 7.04925941E+01  -3.97337784E+01
1.27000000E+01        -1.06000000E+01 -3.50000000E+01 -3.68381234E+01 7.08310901E+01  -3.38130113E+01
1.88000000E+01        -1.06000000E+01 -3.50000000E+01 -3.52329073E+01 7.09755637E+01  -2.47710971E+01
.
.
.
.
.
1.27000000E+01        1.10000000E+01  -2.70000000E+01 -2.51221541E+01 5.47711204E+01  -2.60843230E+01
1.88000000E+01        1.10000000E+01  -2.70000000E+01 -2.67620595E+01 5.49051692E+01  -1.91091320E+01
2.49000000E+01        1.10000000E+01  -2.70000000E+01 -2.84575134E+01 5.48279013E+01  -1.03700517E+01
-3.00000000E+01       1.82000000E+01  -2.70000000E+01 -2.98584599E+01 5.43331821E+01  -2.29188533E+00
-2.39000000E+01       1.82000000E+01  -2.70000000E+01 -2.82971395E+01 5.44648292E+01  -1.18912342E+01
-1.78000000E+01       1.82000000E+01  -2.70000000E+01 -2.64329949E+01 5.44879594E+01  -2.03929497E+01
-1.17000000E+01       1.82000000E+01  -2.70000000E+01 -2.47012207E+01 5.43971730E+01  -2.70122716E+01
-5.60000000E+00       1.82000000E+01  -2.70000000E+01 -2.35061087E+01 5.42136644E+01  -3.11381962E+01
5.00000000E-01        1.82000000E+01  -2.70000000E+01 -2.31266642E+01 5.39802747E+01  -3.23898755E+01
6.60000000E+00        1.82000000E+01  -2.70000000E+01 -2.36514705E+01 5.37514900E+01  -3.06517719E+01
1.27000000E+01        1.82000000E+01  -2.70000000E+01 -2.49580088E+01 5.35807213E+01  -2.60843230E+01
1.88000000E+01        1.82000000E+01  -2.70000000E+01 -2.67412608E+01 5.35078354E+01  -1.91091320E+01
2.49000000E+01        1.82000000E+01  -2.70000000E+01 -2.85849168E+01 5.35498480E+01  -1.03700517E+01
-3.00000000E+01       -2.50000000E+01 -1.90000000E+01 -1.72347616E+01 3.90822860E+01  -1.61280820E+00
-2.39000000E+01       -2.50000000E+01 -1.90000000E+01 -1.81989531E+01 3.95099195E+01  -8.36790554E+00
-1.78000000E+01       -2.50000000E+01 -1.90000000E+01 -1.93501533E+01 3.95850542E+01  -1.43505942E+01
-1.17000000E+01       -2.50000000E+01 -1.90000000E+01 -2.04196083E+01 3.92901497E+01  -1.90086356E+01
-5.60000000E+00       -2.50000000E+01 -1.90000000E+01 -2.11576482E+01 3.86940528E+01  -2.19120640E+01
5.00000000E-01        -2.50000000E+01 -1.90000000E+01 -2.13919737E+01 3.79359256E+01  -2.27928754E+01
6.60000000E+00        -2.50000000E+01 -1.90000000E+01 -2.10678802E+01 3.71927569E+01  -2.15697654E+01
1.27000000E+01        -2.50000000E+01 -1.90000000E+01 -2.02610291E+01 3.66380434E+01  -1.83556347E+01
1.88000000E+01        -2.50000000E+01 -1.90000000E+01 -1.91597841E+01 3.64012859E+01  -1.34471670E+01
2.49000000E+01        -2.50000000E+01 -1.90000000E+01 -1.80212366E+01 3.65377567E+01  -7.29744379E+00
-3.00000000E+01       -1.78000000E+01 -1.90000000E+01 -1.61147359E+01 3.82805617E+01  -1.61280820E+00
-2.39000000E+01       -1.78000000E+01 -1.90000000E+01 -1.76906971E+01 3.83914175E+01  -8.36790554E+00
-1.78000000E+01       -1.78000000E+01 -1.90000000E+01 -1.95723220E+01 3.84108947E+01  -1.43505942E+01

BDSIM Field Format 4D

All of the 1D, 2D and 3D parameters, plus:

Parameter	Description
tmin	The lower spatial coordinate in \(t\) associated with the field map
tmax	The upper spatial coordinate in \(t\) associated with the field map
nt	Number of elements in t (1 counting)

There is an example in bdsim/examples/features/fields/4_bdsimformat/tdexample.tar.gz.

BDSIM Field Format Different Dimensions

Warning

Only for BDSIM format field map files.

Different dimensions can be used but they must be in order. Below is a list of the allowable alternate dimensions for various field maps.

• The dimensions are detected automatically by the column label row.

• The reverse order of all the possible combinations is also possible with the loopOrder header parameter set to the reverse (either xyzt or tzyx) for the general order even if not all those dimensions are present. The default order is xyzt with the more left column appearing to change first in value. Even if the order of the looping in the file is different, the columns themselves must still be in x,y,z,t order left to right.

• 4D field:

  x,y,z,t


• 3D field:

  x,y,z
  x,y,t
  x,z,t
  y,z,t


• 2D field:

  x,y
  x,z
  x,t
  y,z
  y,t
  z,t


• 1D field:

  x
  y
  z
  t


See examples in bdsim/examples/features/fields/maps_bdsim/*.py.

BDSIM Field Map File Preparation

The Python BDSIM utility pybdsim may be used to prepare a BDSIM format field map file from a Python numpy array.

The pybdsim field classes are fully documented in the pybdsim documentation http://www.pp.rhul.ac.uk/bdsim/pybdsim/.

Field Map Transforms and Reflections

To implement transforms such as reflections and flips, the implementation introduces two types of class. These are index operators and value operators. A combination of these produces the relevant field map. Typically, a reflection and flip operator are provided for each that operates on x,y,z,t independently.

For this to work, the extraction of a small section of the array for interpolation is done inside the array class (e.g. BDSArray3DCoordsTransformed) and not inside the interpolator. The interpolator simply asks for a section of the array (e.g. 2x2x2).

If a reflection is required, only then will the field loader wrap the resultant loaded field map array (e.g. BDSArray2DCoords) in with a transform and a set of operators.

If more than one operator is specified, they are appended to a vector of operators that are applied sequentially.

Index Operator

An index operator takes any real array coordinate (i.e. not spatial coordinate, but array index space coordinate) including negative values (not possible in an array indexed from 0) and therefore including points outside its range. The operator maps this query index onto a different index - most likely in available data (although it doesn’t have to be).

This new index is the one used to access the array.

• These inherit BDSArrayOperatorIndex.

Value Operator

Based on the queried (i.e. before the index operator) array space coordinate, the field value components may be altered.

• These inherit BDSArrayOperatorValue.

Field Map Interpolators

A variety of interpolators are provided with BDSIM. Example data sets in 1D and 2D were generated with simple \(x,y,z\) field vector components that have different amplitudes and phased sinusoids shown below.

Example 1D field value components.

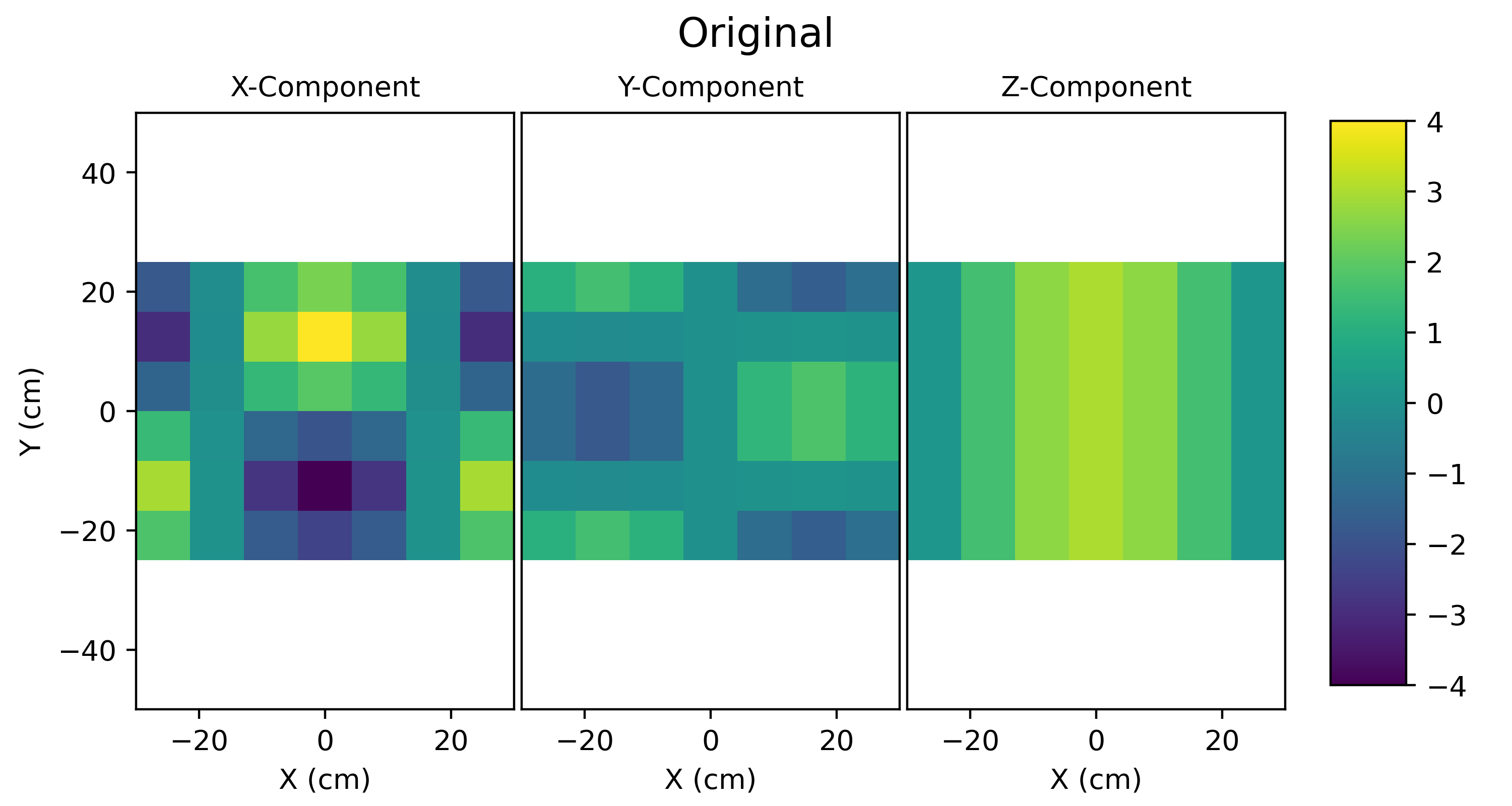

Example 2D field value components.

Nearest Neighbour

The nearest neighbour algorithm returns the field value of the closest defined point in the map and returns that value. Therefore, the interpolated map contains only the values of the original map. This only serves the purpose of being able to query the map at any set of coordinates and provides a ‘pixelated’ appearance and sharp discontinuities halfway between points in the map. This is intended only for completeness and debugging.

Example 1D field value components with nearest neighbour interpolation.

Example 2D field value components with nearest neighbour interpolation.

Linear

In this case, the interpolated value lies on a straight line between two given points. The field value \(f\) at point \(x_i\) lying between \(x_a\) and \(x_b\) is given by

\[\begin{split}xd &= \frac{(x_i - x_a)}{(x_b - x_a)}\\ f(x_i) &= f(x_a)\,(1-xd) + f(x_b)\,xd\end{split}\]

Here, \(xd\) will lie in the range \([0,1]\). This is, of course, a 1D equation and a version of linear interpolation. See Linear & Cubic Higher Dimension Interpolation for further details for 2,3 and 4D interpolation.

Example 1D field value components with linear interpolation.

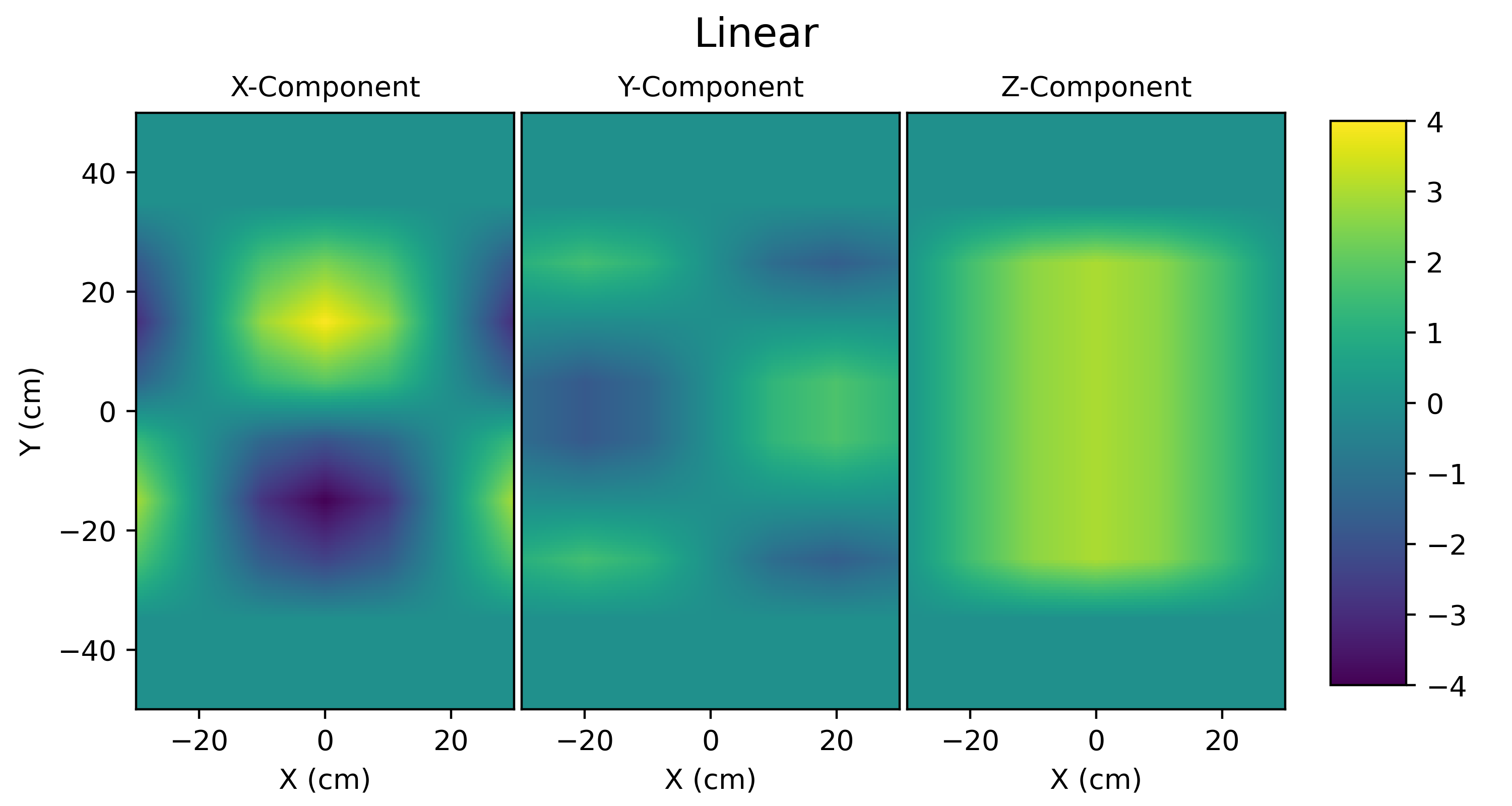

Example 2D field value components with linear interpolation.

Linear Magnitude

in this case, the interpolation is also linear. However, additionally, the magnitude of the field vector is also linearly interpolated. Imagine linear interpolation between two vectors pointing up and right with magnitude 1. The linearly interpolated vector exactly half way between would be at 45 degrees point to the top right. As the components of the vector are linearly interpolated separately, (0,1) to (1,0), then the components would be (0.5,0.5). This would result in a magnitude of \(\sqrt{2 \times 0.5^2} = 0.707\). This is shown in the figure below.

However, with this ‘linear-magnitude’ interpolator, the magnitude would be also linearly interpolated between 1 and 1, so would remain 1.

This interpolator is most useful when linear interpolation is desired, but the field map is relatively sparse.

Schematic of linear interpolation and linear + magnitude interpolation.

Example 1D field value components with linear mag interpolation.

Example 2D field value components with linear mag interpolation.

Cubic

In this case, the surrounding four map entries of any given point are used in combination to give a small section of a cubic polynomial. For a given point \(x_i\), the closest point which is on the lower-valued side is called \(m_1\) (m for map), and the closest point which is on the higher-valued side is called \(m_2\). Points further outside these (in a 1D case) are called \(m_0\) and \(m_3\) respectively. (On a linear number scale from low to high they would be \(m_0, m_1, m_2, m_3\).) The field value \(f(x_i)\) is given by

\[xd = \frac{(x_i - x_a)}{(x_b - x_a)}\]

\[f(x_i) = m_1 + \frac{1}{2}\,xd\,(m_2 - m_0 + xd\,(\,2m_0 - 5 m_1 + 4 m_2 - m_3 + xd\,(\,3\,(m_1 - m_2) + m_3 - m_0)))\]

Here, \(xd\) will lie in the range \([0,1]\).

This is, of course, a 1D equation and version of cubic interpolation. See Linear & Cubic Higher Dimension Interpolation for further details for 2,3 and 4D interpolation. One could of course cache the gradient at each point, but here it is calculated dynamically. This allows the 1D interpolation case to be used in different dimensions for different gradients and is not prohibitively slow.

Example 1D field value components with cubic interpolation.

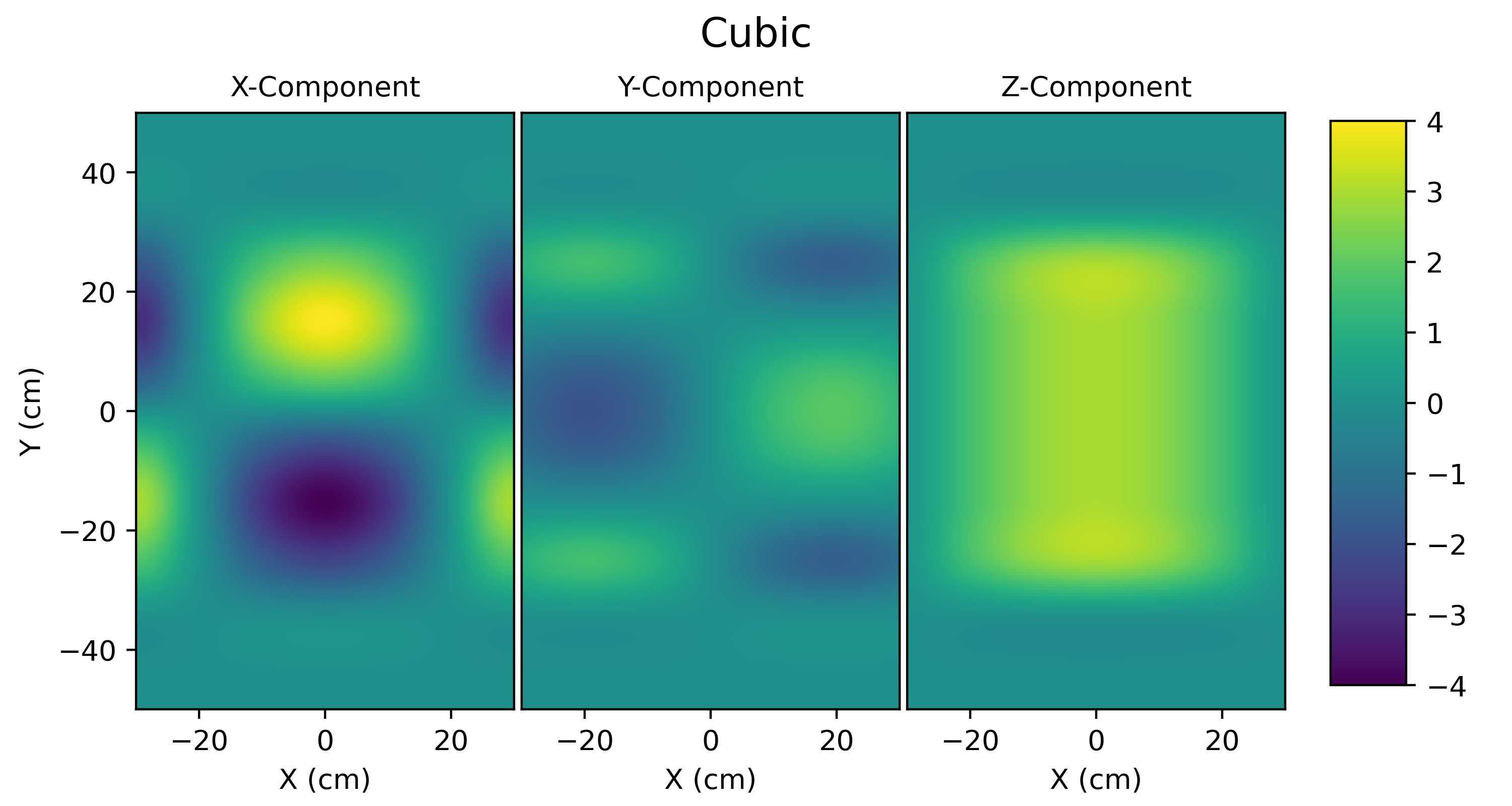

Example 2D field value components with cubic interpolation.

Note

Although the \(x,y,z\) components are shown individually, they are in fact part of a 3-vector class that is used for interpolation, i.e. the components are not interpolated individually.

Linear & Cubic Higher Dimension Interpolation

To interpolate both in a cubic polynomial and linear at greater than one dimension, the 1D interpolator can be used iteratively. In the case of 2D interpolation this would be called bilinear and bicubic, and in the case of 3D, trilinear and tricubic interpolation. Below is a diagram of a cube representing a point \(C\) at an arbitrary point inside the eight corners that represent the closest values of the regular field map. The diagram shows this approximately in the centre of the cube, but it could lie anywhere inside the eight points.

Field map value coordinates for 3D interpolation. [1].

[1]

Marmelad Cubic Diagram Wikipedia.

\(C_{00}\) can be found by interpolating between \(C_{000}\) and \(C_{100}\). \(C_{10}, C_{01}, C_{11}\) can be found in a similar manner with each of their edges. \(C_0\) and \(C_1\) can be found by then interpolating between \(C_{00}\) and \(C_{10}\) for example (in the case of \(C_0\)). \(C\) can then be found by interpolating between \(C_0\) and \(C_1\) , giving the desired value.

One may interpolate the dimensions in any order and arrive at the same result. By doing it in such a way, the 2D interpolator can use the 1D interpolator; the 3D interpolator can use the 2D interpolator etc. By ensuring the 1D case is correct, there is a much lower likelihood of implementation faults occurring for higher dimensional interpolators.

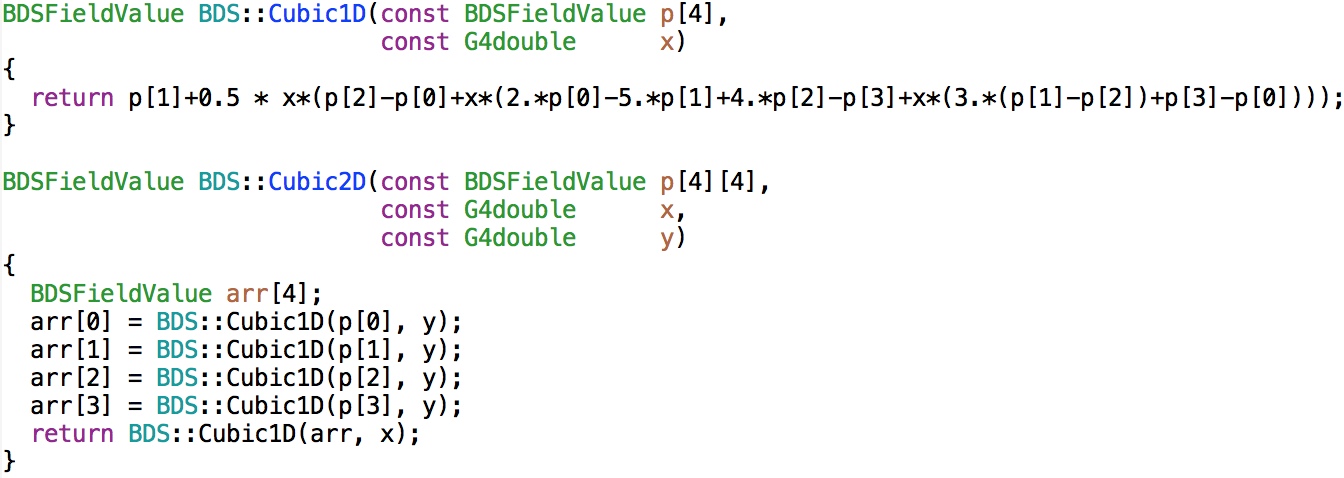

Implementation Specifics

To implement this iterative algorithm, C arrays are used, as sub-arrays can be easily passed around, due to their underlying pointer nature in C. A small section of code from bdsim/src/BDSInterpolatorRoutines.cc is shown below:
