Class to manufacture histograms. More...

#include <HistogramFactory.hh>

Collaboration diagram for HistogramFactory:

Public Member Functions
TH1 *	CreateHistogram (const HistogramDef *definition, const std::string &overRideName="", const std::string &overRideTitle="")

void	CheckNameAndTitle (std::string &name, std::string &title, const std::string &overRideName="", const std::string &overRideTitle="")
	Whether name is set or not. More...

TH1D *	CreateHistogram1D (const HistogramDef1D *d, const std::string &overRideName="", const std::string &overRideTitle="")
	Create 1D histogram. More...

TH2D *	CreateHistogram2D (const HistogramDef2D *d, const std::string &overRideName="", const std::string &overRideTitle="")
	Create 2D histogram. More...

TH3D *	CreateHistogram3D (const HistogramDef3D *d, const std::string &overRideName="", const std::string &overRideTitle="")
	Create 3D histogram. More...

BDSBH4DBase *	CreateHistogram4D (const HistogramDef4D *d, const std::string &overRideName="", const std::string &overRideTitle="")
	Create 4D histogram. More...

	ClassDef (HistogramFactory, 1)

Detailed Description

Class to manufacture histograms.

Author: Laurie Nevay

Definition at line 44 of file HistogramFactory.hh.

Constructor & Destructor Documentation

◆ ~HistogramFactory()

HistogramFactory::~HistogramFactory ( )

virtual

Definition at line 49 of file HistogramFactory.cc.

Member Function Documentation

◆ CheckNameAndTitle()

void HistogramFactory::CheckNameAndTitle	(	std::string &	name,
		std::string &	title,
		const std::string &	overRideName = `""`,
		const std::string &	overRideTitle = `""`
	)

Whether name is set or not.

Definition at line 98 of file HistogramFactory.cc.

Referenced by CreateHistogram1D(), CreateHistogram2D(), CreateHistogram3D(), and CreateHistogram4D().

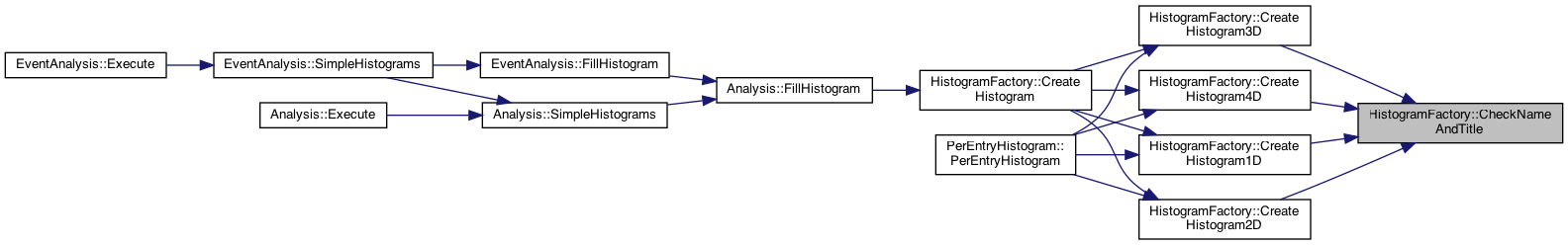

Here is the caller graph for this function:

◆ CreateHistogram()

TH1 * HistogramFactory::CreateHistogram	(	const HistogramDef *	definition,
		const std::string &	overRideName = `""`,
		const std::string &	overRideTitle = `""`
	)

Create a histogram of the appropriate dimensions. Forwards to other Ndim specific functions.

Definition at line 52 of file HistogramFactory.cc.

References CreateHistogram1D(), CreateHistogram2D(), CreateHistogram3D(), and CreateHistogram4D().

Referenced by Analysis::FillHistogram().

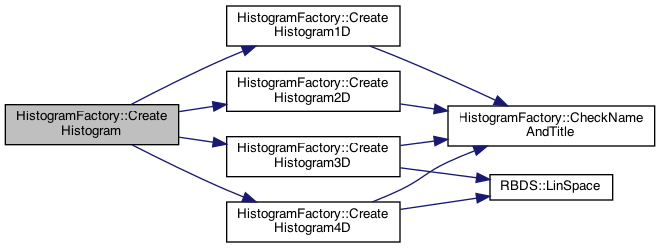

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateHistogram1D()

TH1D * HistogramFactory::CreateHistogram1D	(	const HistogramDef1D *	d,
		const std::string &	overRideName = `""`,
		const std::string &	overRideTitle = `""`
	)

Create 1D histogram.

Definition at line 109 of file HistogramFactory.cc.

References CheckNameAndTitle().

Referenced by CreateHistogram(), and PerEntryHistogram::PerEntryHistogram().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateHistogram2D()

TH2D * HistogramFactory::CreateHistogram2D	(	const HistogramDef2D *	d,
		const std::string &	overRideName = `""`,
		const std::string &	overRideTitle = `""`
	)

Create 2D histogram.

Definition at line 125 of file HistogramFactory.cc.

References CheckNameAndTitle().

Referenced by CreateHistogram(), and PerEntryHistogram::PerEntryHistogram().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateHistogram3D()

TH3D * HistogramFactory::CreateHistogram3D	(	const HistogramDef3D *	d,
		const std::string &	overRideName = `""`,
		const std::string &	overRideTitle = `""`
	)

Create 3D histogram.

Definition at line 163 of file HistogramFactory.cc.

References CheckNameAndTitle(), and RBDS::LinSpace().

Referenced by CreateHistogram(), and PerEntryHistogram::PerEntryHistogram().

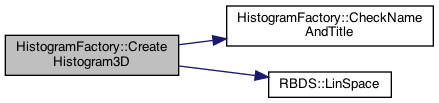

Here is the call graph for this function:

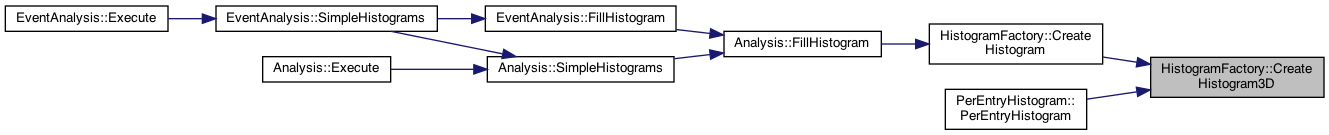

Here is the caller graph for this function:

◆ CreateHistogram4D()

BDSBH4DBase * HistogramFactory::CreateHistogram4D	(	const HistogramDef4D *	d,
		const std::string &	overRideName = `""`,
		const std::string &	overRideTitle = `""`
	)
