Bunch halo distribution where the PDF is uniformly distribution in sigma. More...

#include <BDSBunchHaloFlatSigma.hh>

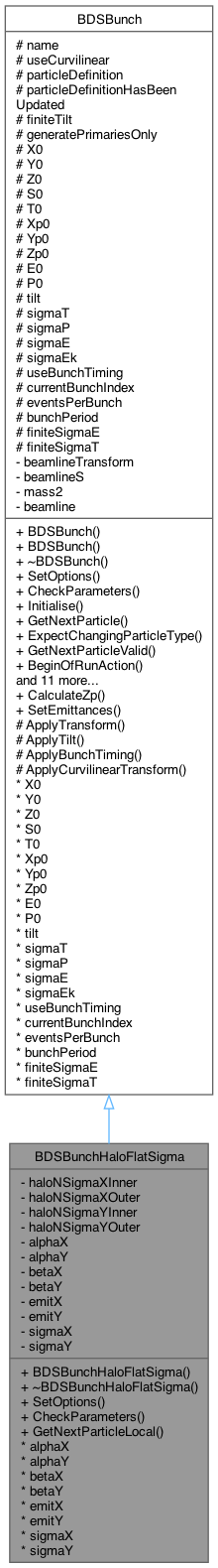

Inheritance diagram for BDSBunchHaloFlatSigma:

Collaboration diagram for BDSBunchHaloFlatSigma:

Public Member Functions
virtual void	SetOptions (const BDSParticleDefinition *beamParticle, const GMAD::Beam &beam, const BDSBunchType &distrType, G4Transform3D beamlineTransformIn=G4Transform3D::Identity, const G4double beamlineS=0)

virtual void	CheckParameters ()

virtual BDSParticleCoordsFull	GetNextParticleLocal ()

Public Member Functions inherited from BDSBunch
	BDSBunch (const G4String &nameIn)

virtual void	SetOptions (const BDSParticleDefinition *beamParticle, const GMAD::Beam &beam, const BDSBunchType &distrType, G4Transform3D beamlineTransformIn=G4Transform3D::Identity, const G4double beamlineS=0)

virtual void	CheckParameters ()

virtual void	Initialise ()
	Any initialisation - to be used after SetOptions, then CheckParameters.

BDSParticleCoordsFullGlobal	GetNextParticle ()

virtual G4bool	ExpectChangingParticleType () const
	A hint of whether we expect to require and extended particle set (ie pions, kaons, muons).

virtual BDSParticleCoordsFullGlobal	GetNextParticleValid (G4int maxTries=100)

virtual void	BeginOfRunAction (G4int numberOfEvents, G4bool batchMode)

virtual const BDSParticleDefinition *	ParticleDefinition () const
	Access the beam particle definition.

virtual void	SetGeneratePrimariesOnly (G4bool generatePrimariesOnlyIn)

virtual BDSParticleCoordsFull	GetNextParticleLocal ()

G4bool	UseCurvilinearTransform () const
	Access whether there's a finite S offset and therefore we're using a CL transform.

virtual void	RecreateAdvanceToEvent (G4int eventOffset)

G4bool	BeamParticleIsAnIon () const
	Access whether the beam particle is an ion or not.

virtual void	UpdateIonDefinition ()

G4bool	ParticleDefinitionHasBeenUpdated () const

G4String	Name () const
	Distribution name.

G4int	CurrentBunchIndex () const
	Get the current bunch index for writing to output.

void	CalculateBunchIndex (G4int eventIndex)
	Calculate which bunch index we should be at given an event index.

Private Attributes
G4double	haloNSigmaXInner

G4double	haloNSigmaXOuter

G4double	haloNSigmaYInner

G4double	haloNSigmaYOuter


G4double	alphaX
	Twiss parameter.

G4double	alphaY
	Twiss parameter.

G4double	betaX
	Twiss parameter.

G4double	betaY
	Twiss parameter.

G4double	emitX
	Twiss parameter.

G4double	emitY
	Twiss parameter.

G4double	sigmaX
	Twiss parameter.

G4double	sigmaY
	Twiss parameter.

Additional Inherited Members
Static Public Member Functions inherited from BDSBunch
static G4double	CalculateZp (G4double xp, G4double yp, G4double Zp0)
	Calculate zp safely based on other components.

static void	SetEmittances (const BDSParticleDefinition *beamParticle, const GMAD::Beam &beam, G4double &emittGeometricX, G4double &emittGeometricY, G4double &emittNormalisedX, G4double &emittNormalisedY)

Protected Member Functions inherited from BDSBunch
BDSParticleCoordsFullGlobal	ApplyTransform (const BDSParticleCoordsFull &localIn) const

void	ApplyTilt (BDSParticleCoordsFull &localIn) const
	Apply a rotation about unitZ for the local coordinates according to member variable tilt.

void	ApplyBunchTiming (BDSParticleCoordsFullGlobal &localIn) const
	Add on the offset in T for the current bunch number (i*bunchPeriod).

BDSParticleCoordsFullGlobal	ApplyCurvilinearTransform (const BDSParticleCoordsFull &localIn) const
	Calculate the global coordinates from curvilinear coordinates of a beam line.

Protected Attributes inherited from BDSBunch
G4String	name
	Name of distribution.

G4bool	useCurvilinear
	Whether to ignore z and use s and transform for curvilinear coordinates.

BDSParticleDefinition *	particleDefinition
	Particle definition for bunch - this class owns it.

G4bool	particleDefinitionHasBeenUpdated

G4bool	finiteTilt

G4bool	generatePrimariesOnly

G4double	X0
	Centre of distributions.

G4double	Y0
	Centre of distributions.

G4double	Z0
	Centre of distributions.

G4double	S0
	Centre of distributions.

G4double	T0
	Centre of distributions.

G4double	Xp0
	Centre of distributions.

G4double	Yp0
	Centre of distributions.

G4double	Zp0
	Centre of distributions.

G4double	E0
	Centre of distributions.

G4double	P0
	central momentum

G4double	tilt
	Centre of distributions.

G4double	sigmaT
	Centre of distributions.

G4double	sigmaP
	Centre of distributions.

G4double	sigmaE
	Centre of distributions.

G4double	sigmaEk
	Centre of distributions.

bool	useBunchTiming
	Bunch offset in time parameters.

G4int	currentBunchIndex
	Bunch offset in time parameters.

G4int	eventsPerBunch
	Bunch offset in time parameters.

G4double	bunchPeriod
	Bunch offset in time parameters.

G4bool	finiteSigmaE
	Flags to ignore random number generator in case of no finite E or T.

G4bool	finiteSigmaT
	Flags to ignore random number generator in case of no finite E or T.

Detailed Description

Bunch halo distribution where the PDF is uniformly distribution in sigma.

Author: Stuart Walker

Definition at line 146 of file BDSBunchHaloFlatSigma.hh.

Constructor & Destructor Documentation

◆ BDSBunchHaloFlatSigma()

BDSBunchHaloFlatSigma::BDSBunchHaloFlatSigma ( )

Definition at line 110 of file BDSBunchHaloFlatSigma.cc.

◆ ~BDSBunchHaloFlatSigma()

virtual BDSBunchHaloFlatSigma::~BDSBunchHaloFlatSigma ( )

inlinevirtual

Definition at line 150 of file BDSBunchHaloFlatSigma.hh.

Member Function Documentation

◆ CheckParameters()

void BDSBunchHaloFlatSigma::CheckParameters ( )

virtual

Check the parameters for the given bunch distribution and exit if they're problematic or unphysical.

Reimplemented from BDSBunch.

Definition at line 180 of file BDSBunchHaloFlatSigma.cc.

References BDSBunch::CheckParameters(), emitX, and emitY.

Referenced by SetOptions().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetNextParticleLocal()

BDSParticleCoordsFull BDSBunchHaloFlatSigma::GetNextParticleLocal ( )

virtual

Each derived class can override this default method of reference position. If S0 > 0 or derived class changes member bool 'curvilinear' z0 will be treated as S and the global z0 be calculated.

Reimplemented from BDSBunch.

Definition at line 145 of file BDSBunchHaloFlatSigma.cc.

References alphaX, alphaY, betaX, betaY, BDSBunch::CalculateZp(), BDSBunch::E0, BDSBunch::S0, sigmaX, sigmaY, BDSBunch::T0, BDSBunch::X0, BDSBunch::Xp0, BDSBunch::Y0, BDSBunch::Yp0, and BDSBunch::Zp0.

Here is the call graph for this function:

◆ SetOptions()

void BDSBunchHaloFlatSigma::SetOptions	(	const BDSParticleDefinition *	beamParticle,
		const GMAD::Beam &	beam,
		const BDSBunchType &	distrType,
		G4Transform3D	beamlineTransformIn = `G4Transform3D::Identity`,
		const G4double	beamlineS = `0`
	)

virtual

Extract and set the relevant options from the beam definition. The distribution type is explicitly required as this function may be used inside a nested bunch distribution. This argument is for the most part ignored, but there's no way to have a default for it. Also, some classes can cover multiple input distributions so need to know which one they're meant to be.

Reimplemented from BDSBunch.

Definition at line 120 of file BDSBunchHaloFlatSigma.cc.

References GMAD::BeamBase::alfx, GMAD::BeamBase::alfy, alphaX, alphaY, betaX, betaY, GMAD::BeamBase::betx, GMAD::BeamBase::bety, CheckParameters(), emitX, emitY, GMAD::BeamBase::haloNSigmaXInner, GMAD::BeamBase::haloNSigmaXOuter, GMAD::BeamBase::haloNSigmaYInner, GMAD::BeamBase::haloNSigmaYOuter, BDSBunch::SetEmittances(), BDSBunch::SetOptions(), sigmaX, and sigmaY.

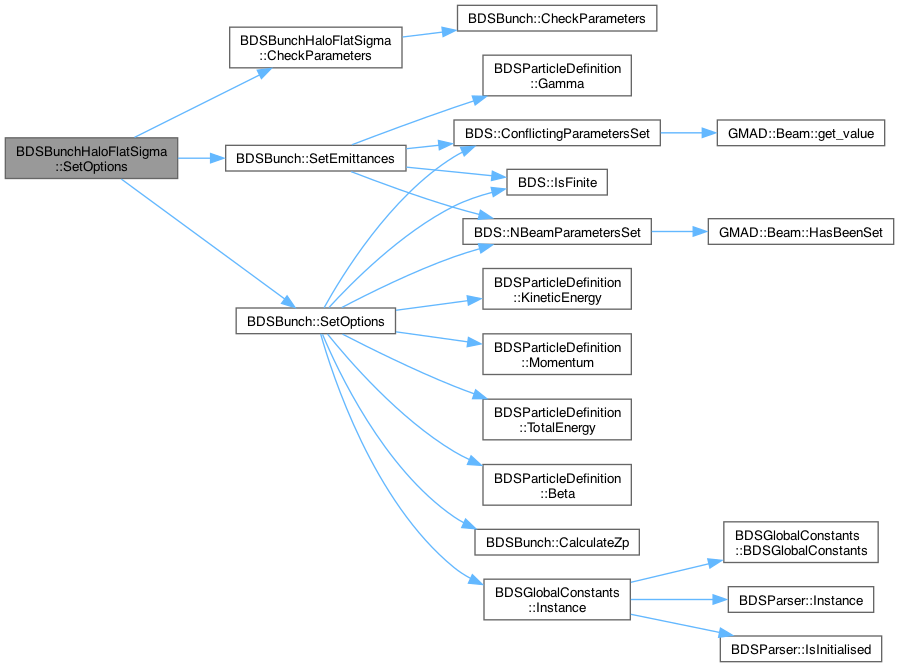

Here is the call graph for this function:

Referenced by CheckParameters(), and SetOptions().

◆ haloNSigmaXInner

G4double BDSBunchHaloFlatSigma::haloNSigmaXInner

private

Definition at line 171 of file BDSBunchHaloFlatSigma.hh.

◆ haloNSigmaXOuter

G4double BDSBunchHaloFlatSigma::haloNSigmaXOuter

private

Definition at line 172 of file BDSBunchHaloFlatSigma.hh.

◆ haloNSigmaYInner

G4double BDSBunchHaloFlatSigma::haloNSigmaYInner

private

Definition at line 173 of file BDSBunchHaloFlatSigma.hh.

◆ haloNSigmaYOuter

G4double BDSBunchHaloFlatSigma::haloNSigmaYOuter

private

Definition at line 174 of file BDSBunchHaloFlatSigma.hh.

◆ sigmaX

G4double BDSBunchHaloFlatSigma::sigmaX

private

Twiss parameter.

Definition at line 167 of file BDSBunchHaloFlatSigma.hh.

Referenced by GetNextParticleLocal(), and SetOptions().

◆ sigmaY

G4double BDSBunchHaloFlatSigma::sigmaY

private

Twiss parameter.

Definition at line 168 of file BDSBunchHaloFlatSigma.hh.

Referenced by GetNextParticleLocal(), and SetOptions().

The documentation for this class was generated from the following files:

/Users/lnevay/physics/reps/bdsim/include/BDSBunchHaloFlatSigma.hh
/Users/lnevay/physics/reps/bdsim/src/BDSBunchHaloFlatSigma.cc
