Integrator for combined dipole and quadrupolar field. More...

#include <BDSIntegratorDipoleQuadrupole.hh>

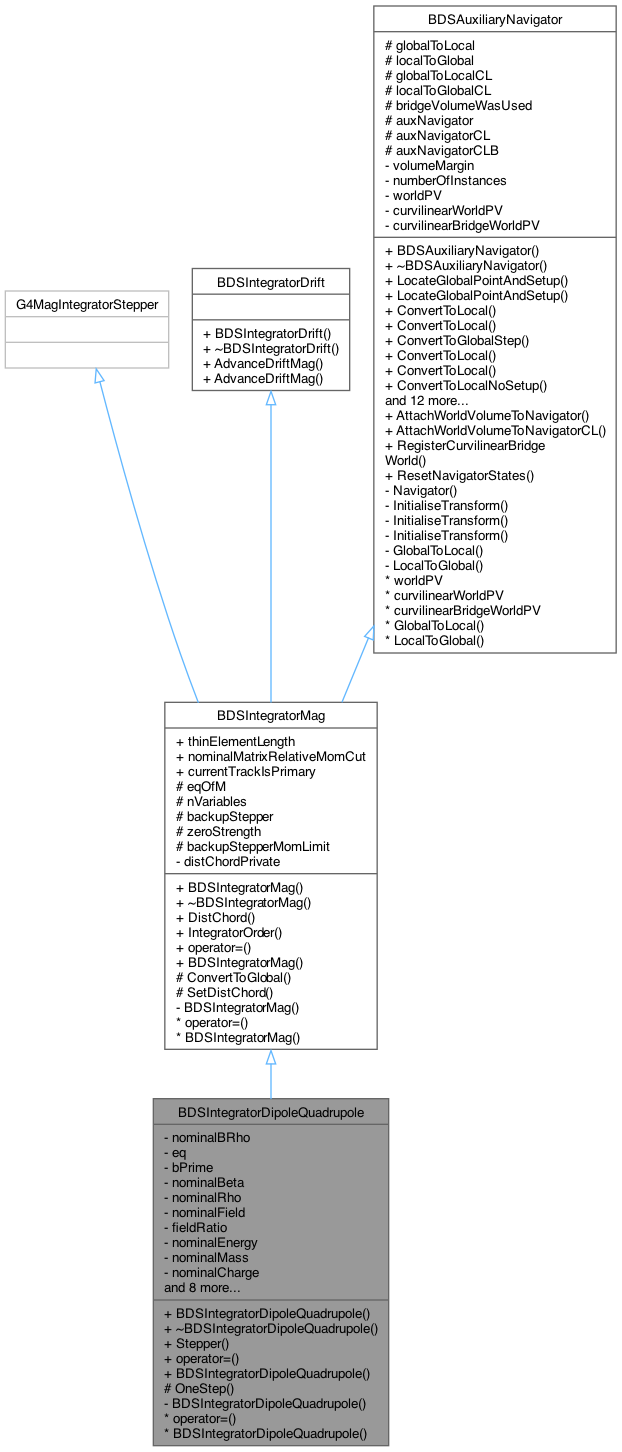

Inheritance diagram for BDSIntegratorDipoleQuadrupole:

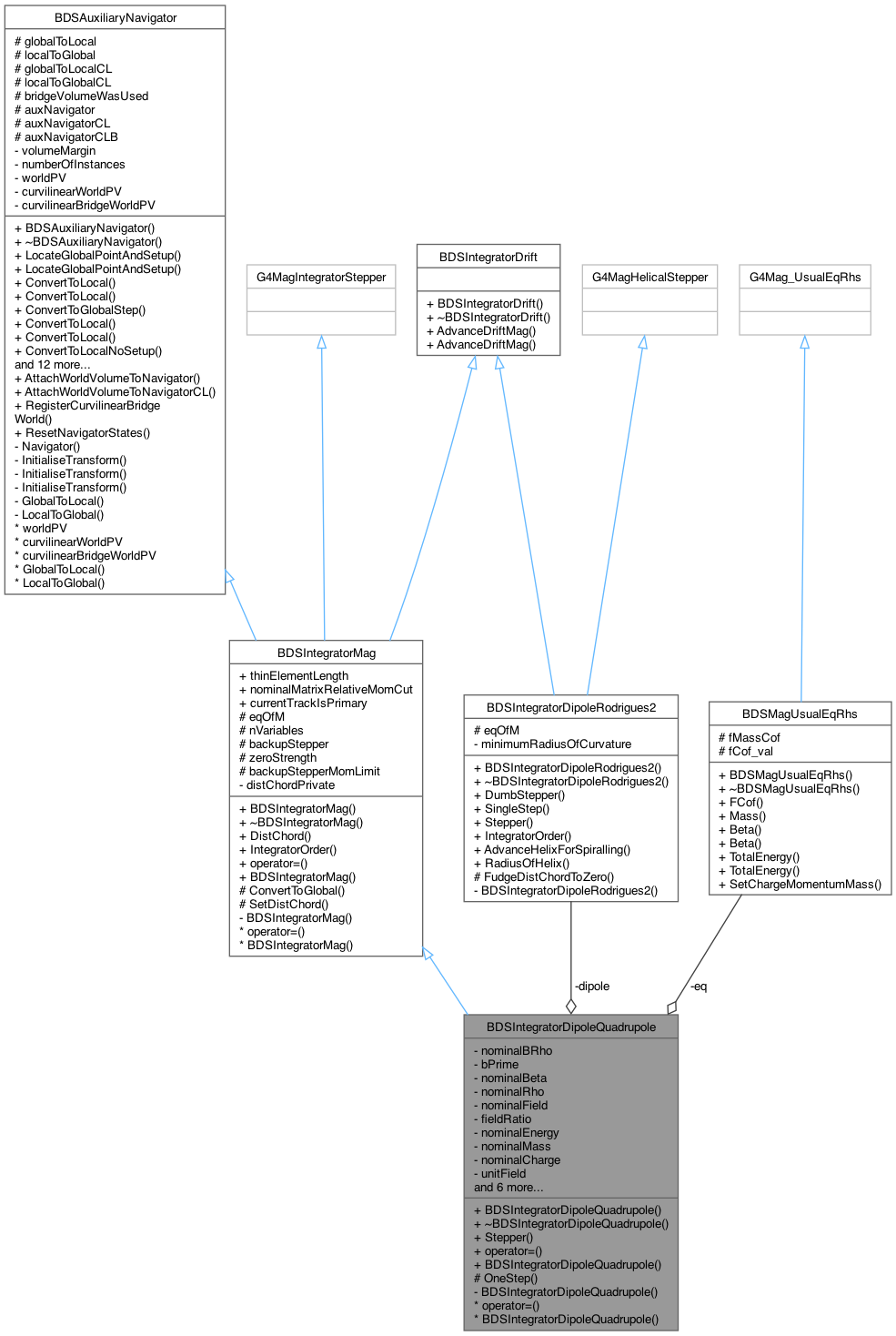

Collaboration diagram for BDSIntegratorDipoleQuadrupole:

Public Member Functions
	BDSIntegratorDipoleQuadrupole (BDSMagnetStrength const strength, G4double brhoIn, G4Mag_EqRhs eqOfMIn, G4double minimumRadiusOfCurvatureIn, const BDSParticleDefinition *designParticle, const G4double &tiltIn)

virtual void	Stepper (const G4double y[6], const G4double dydx[6], const G4double h, G4double yOut[6], G4double yErr[6])


BDSIntegratorDipoleQuadrupole &	operator= (const BDSIntegratorDipoleQuadrupole &)=delete
	Assignment and copy constructor not implemented nor used.

	BDSIntegratorDipoleQuadrupole (BDSIntegratorDipoleQuadrupole &)=delete
	Assignment and copy constructor not implemented nor used.

Public Member Functions inherited from BDSIntegratorMag
	BDSIntegratorMag (G4Mag_EqRhs *eqOfMIn, G4int nVariablesIn)

virtual G4double	DistChord () const
	Estimate maximum distance of curved solution and chord.

virtual G4int	IntegratorOrder () const
	Geant4 requires that the integrator order must be supplied by the derived class.

BDSIntegratorMag &	operator= (const BDSIntegratorMag &)=delete
	Assignment and copy constructor not implemented nor used.

	BDSIntegratorMag (BDSIntegratorMag &)=delete
	Assignment and copy constructor not implemented nor used.

Public Member Functions inherited from BDSIntegratorDrift
void	AdvanceDriftMag (const G4double yIn[], const G4double h, G4double yOut[], G4double yErr[]) const
	Error array [6] all 0.

void	AdvanceDriftMag (const G4double yIn[], const G4ThreeVector &unitMomentum, const G4double h, G4double yOut[], G4double yErr[]) const

Public Member Functions inherited from BDSAuxiliaryNavigator
G4VPhysicalVolume *	LocateGlobalPointAndSetup (const G4ThreeVector &point, const G4ThreeVector *direction=nullptr, const G4bool pRelativeSearch=true, const G4bool ignoreDirection=true, G4bool useCurvilinear=true) const
	A wrapper for the underlying static navigator instance located within this class.

G4VPhysicalVolume *	LocateGlobalPointAndSetup (G4Step const *const step, G4bool useCurvilinear=true) const

BDSStep	ConvertToLocal (G4Step const *const step, G4bool useCurvilinear=true) const

BDSStep	ConvertToLocal (const G4ThreeVector &globalPosition, const G4ThreeVector &globalDirection, const G4double stepLength=0, const G4bool useCurvilinear=true, const G4double marginLength=1) const

BDSStep	ConvertToGlobalStep (const G4ThreeVector &localPosition, const G4ThreeVector &localDirection, const G4bool useCurvilinear=true) const

G4ThreeVector	ConvertToLocal (const G4double globalPoint[3], const G4bool useCurvilinear=true) const

G4ThreeVector	ConvertToLocal (const G4ThreeVector &globalPosition, const G4bool useCurvilinear=true) const
	Vector version - see notes above.

G4ThreeVector	ConvertToLocalNoSetup (const G4ThreeVector &globalPosition, const G4bool useCurvilinear=true) const
	Similar to above function but does NOT initialise the transforms.

G4ThreeVector	ConvertAxisToLocal (const G4ThreeVector &globalAxis, const G4bool useCurvilinear=true) const

G4ThreeVector	ConvertAxisToLocal (const G4double globalPoint[3], const G4double globalAxis[3], const G4bool useCurvilinear=true) const

G4ThreeVector	ConvertAxisToLocal (const G4ThreeVector &globalPoint, const G4ThreeVector &globalAxis, const G4bool useCurvilinear=true) const
	Vector version.

G4ThreeVector	ConvertAxisToGlobal (const G4ThreeVector &localAxis, const G4bool useCurvilinear=true) const

std::pair< G4ThreeVector, G4ThreeVector >	ConvertAxisToGlobal (const std::pair< G4ThreeVector, G4ThreeVector > &localAxis, const G4bool useCurvilinear=true) const

G4ThreeVector	ConvertToGlobal (const G4ThreeVector &localPosition, const G4bool useCurvilinear=true) const

G4ThreeVector	ConvertAxisToGlobal (const G4ThreeVector &globalPosition, const G4ThreeVector &localAxis, const G4bool useCurvilinear=true) const

G4ThreeVector	ConvertToGlobal (const G4ThreeVector &globalPosition, const G4ThreeVector &localPosition, const G4bool useCurvilinear=true) const

BDSStep	GlobalToCurvilinear (const G4double fieldArcLength, const G4ThreeVector &unitField, const G4double angle, const G4ThreeVector &position, const G4ThreeVector &unitMomentum, const G4double h, const G4bool useCurvilinearWorld, const G4double FCof, const G4double tilt=0)

BDSStep	GlobalToCurvilinear (const G4ThreeVector &position, const G4ThreeVector &unitMomentum, const G4double h, const G4bool useCurvilinearWorld)

BDSStep	CurvilinearToGlobal (const G4ThreeVector &localPosition, const G4ThreeVector &localMomentum, const G4bool useCurvilinearWorld)

BDSStep	CurvilinearToGlobal (const G4double fieldArcLength, const G4ThreeVector &unitField, const G4double angle, const G4ThreeVector &CLPosition, const G4ThreeVector &CLMomentum, const G4bool useCurvilinearWorld, const G4double FCof, const G4double tilt=0)

Protected Member Functions
void	OneStep (const G4ThreeVector &posIn, const G4ThreeVector &momIn, const G4ThreeVector &momUIn, const G4double &h, const G4double &fcof, G4ThreeVector &posOut, G4ThreeVector &momOut, const G4double rho, const G4double beta, const G4double deltaEnergy) const

Protected Member Functions inherited from BDSIntegratorMag
void	ConvertToGlobal (const G4ThreeVector &localPos, const G4ThreeVector &localMom, G4double yOut[], G4double yErr[], const G4double momScaling=1.0)
	scaling of momentum in case localMom is a unit vector

void	SetDistChord (G4double distChordIn)
	Setter for distChord to private member.

Private Member Functions
	BDSIntegratorDipoleQuadrupole ()=delete
	Private default constructor to enforce use of supplied constructor.

Private Attributes
const G4double	nominalBRho
	Cached magnet property, nominal magnetic rigidity.

BDSMagUsualEqRhs *	eq
	BDSIM's eqRhs class to give access to particle properties.

const G4double	bPrime
	Cached magnet property, B field gradient for calculating K1.

const G4double	nominalBeta
	Cached nominal relativistic beta of the nominal beam particle.

G4double	nominalRho
	Cached magnet property, nominal bending radius.

const G4double	nominalField
	Cached magnet property, nominal field strength.

G4double	fieldRatio
	Ratio of supplied field to nominal field. Needed for over/underpowered magnets.

const G4double	nominalEnergy
	Nominal beam energy.

const G4double	nominalMass
	Primary particle mass. Needed for recalculating nominal energy with scaling.

const G4double	nominalCharge
	Nominal beam charge.

G4ThreeVector	unitField
	Cache of the unit field direction.

const G4double	fieldArcLength
	Cache of the field arc length.

const G4double	nominalAngle
	Cache of the field angle.

G4double	angleForCL
	Angle used for curvilinear transforms.

G4double	tilt
	Tilt offset transform for field.

const G4double	scaling
	Cache field scaling factor.

G4bool	isScaled
	Cache if field is scaled.

BDSIntegratorDipoleRodrigues2 *	dipole
	Backup integrator.

Additional Inherited Members
Static Public Member Functions inherited from BDSAuxiliaryNavigator
static void	AttachWorldVolumeToNavigator (G4VPhysicalVolume *worldPVIn)
	Setup the navigator w.r.t. to a world volume - typically real world.

static void	AttachWorldVolumeToNavigatorCL (G4VPhysicalVolume *curvilinearWorldPVIn)

static void	RegisterCurvilinearBridgeWorld (G4VPhysicalVolume *curvilinearBridgeWorldPVIn)

static void	ResetNavigatorStates ()

Static Public Attributes inherited from BDSIntegratorMag
static G4double	thinElementLength = -1

static G4double	nominalMatrixRelativeMomCut = -1

static G4bool	currentTrackIsPrimary = false

Protected Attributes inherited from BDSIntegratorMag
G4Mag_EqRhs *	eqOfM

const G4int	nVariables
	Cache of the number of variables.

G4MagIntegratorStepper *	backupStepper

G4bool	zeroStrength

G4double	backupStepperMomLimit

Protected Attributes inherited from BDSAuxiliaryNavigator
G4AffineTransform	globalToLocal

G4AffineTransform	localToGlobal

G4AffineTransform	globalToLocalCL

G4AffineTransform	localToGlobalCL

G4bool	bridgeVolumeWasUsed

Static Protected Attributes inherited from BDSAuxiliaryNavigator
static G4Navigator *	auxNavigator = new G4Navigator()

static G4Navigator *	auxNavigatorCL = new G4Navigator()

static G4Navigator *	auxNavigatorCLB = new G4Navigator()

Detailed Description

Integrator for combined dipole and quadrupolar field.

Author: Laurie Nevay

Definition at line 39 of file BDSIntegratorDipoleQuadrupole.hh.

Constructor & Destructor Documentation

◆ BDSIntegratorDipoleQuadrupole()

BDSIntegratorDipoleQuadrupole::BDSIntegratorDipoleQuadrupole	(	BDSMagnetStrength const *	strength,
		G4double	brhoIn,
		G4Mag_EqRhs *	eqOfMIn,
		G4double	minimumRadiusOfCurvatureIn,
		const BDSParticleDefinition *	designParticle,
		const G4double &	tiltIn
	)

Definition at line 42 of file BDSIntegratorDipoleQuadrupole.cc.

◆ ~BDSIntegratorDipoleQuadrupole()

BDSIntegratorDipoleQuadrupole::~BDSIntegratorDipoleQuadrupole ( )

virtual

Definition at line 80 of file BDSIntegratorDipoleQuadrupole.cc.

Member Function Documentation

◆ OneStep()

void BDSIntegratorDipoleQuadrupole::OneStep	(	const G4ThreeVector &	posIn,
		const G4ThreeVector &	momIn,
		const G4ThreeVector &	momUIn,
		const G4double &	h,
		const G4double &	fcof,
		G4ThreeVector &	posOut,
		G4ThreeVector &	momOut,
		const G4double	rho,
		const G4double	beta,
		const G4double	deltaEnergy
	)		const

protected

Calculate a single step in curvilinear coordinates using dipole quadrupole matrix. Unit momentum is provided as an argument becuase it is already calculated in the Stepper method.

Definition at line 261 of file BDSIntegratorDipoleQuadrupole.cc.

References bPrime, and nominalBRho.

Referenced by Stepper().

Here is the caller graph for this function:

◆ Stepper()

void BDSIntegratorDipoleQuadrupole::Stepper	(	const G4double	y[6],
		const G4double	dydx[6],
		const G4double	h,
		G4double	yOut[6],
		G4double	yErr[6]
	)

virtual

Check if the quadrupole has finite strength and use drift if not. If finite strength, convert to local curvilinear coordiantes and check for paraxial approximation. If paraxial, use thick quadrupole matrix for transport, else use the G4ClassicalRK4 backup stepper.

Definition at line 85 of file BDSIntegratorDipoleQuadrupole.cc.

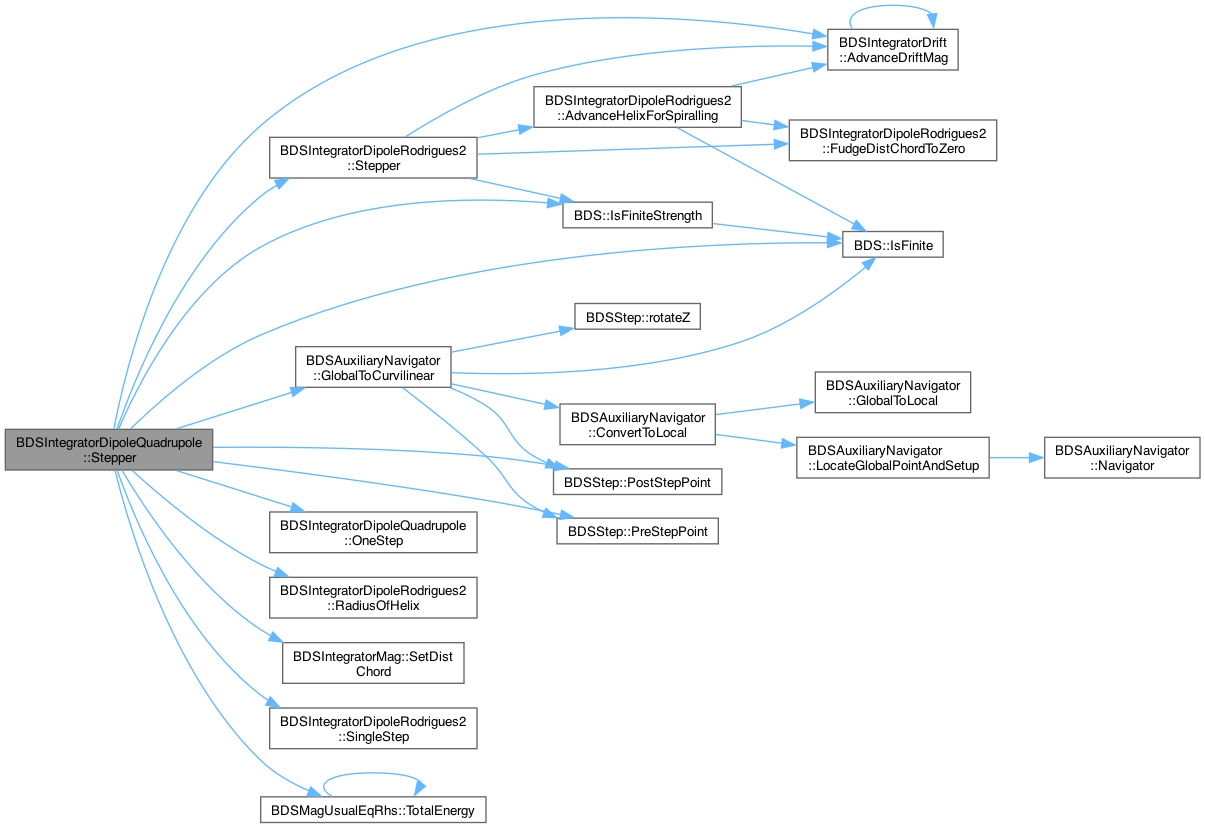

References BDSIntegratorDrift::AdvanceDriftMag(), angleForCL, BDSIntegratorMag::backupStepperMomLimit, dipole, eq, BDSIntegratorMag::eqOfM, fieldArcLength, fieldRatio, BDSAuxiliaryNavigator::GlobalToCurvilinear(), BDS::IsFinite(), BDS::IsFiniteStrength(), isScaled, nominalAngle, nominalBeta, nominalBRho, nominalCharge, nominalEnergy, nominalMass, BDSIntegratorMag::nominalMatrixRelativeMomCut, nominalRho, OneStep(), BDSStep::PostStepPoint(), BDSStep::PreStepPoint(), BDSIntegratorDipoleRodrigues2::RadiusOfHelix(), scaling, BDSIntegratorMag::SetDistChord(), BDSIntegratorDipoleRodrigues2::SingleStep(), BDSIntegratorDipoleRodrigues2::Stepper(), tilt, BDSMagUsualEqRhs::TotalEnergy(), unitField, and BDSIntegratorMag::zeroStrength.
