BDSIM is a Geant4 extension toolkit for simulation of particle transport in accelerator beamlines.
|
Factory class for outer volume of magnets. More...
#include <BDSMagnetOuterFactoryPolesFacetCommon.hh>

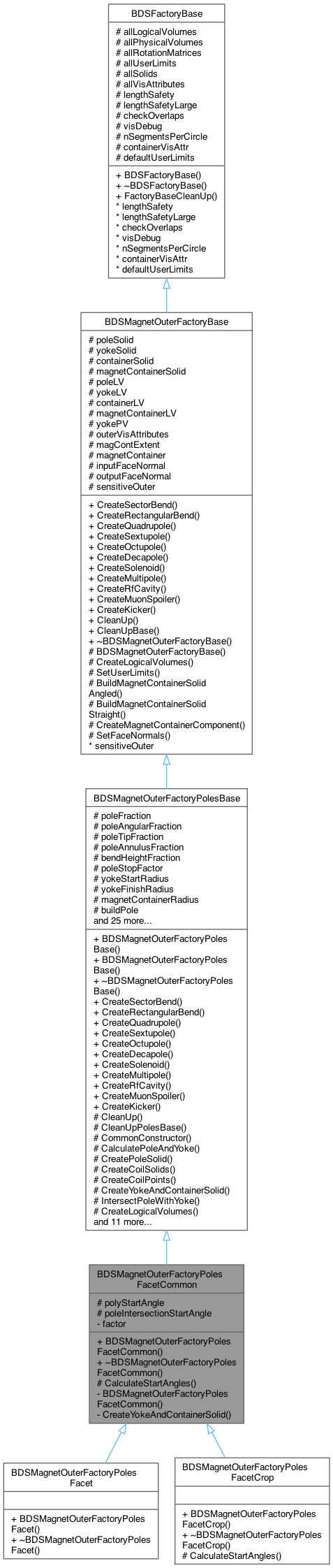

Public Member Functions | |
BDSMagnetOuterFactoryPolesFacetCommon (G4double factor) | |
![]() | |
BDSMagnetOuterFactoryPolesBase (G4double poleStopFactorIn) | |
virtual BDSMagnetOuter * | CreateSectorBend (G4String name, G4double length, const BDSBeamPipe *beamPipe, G4double containerLength, const BDSMagnetOuterInfo *recipe) |
sector bend outer volume | |
virtual BDSMagnetOuter * | CreateRectangularBend (G4String name, G4double length, const BDSBeamPipe *beamPipe, G4double containerLength, const BDSMagnetOuterInfo *recipe) |
rectangular bend outer volume | |
virtual BDSMagnetOuter * | CreateQuadrupole (G4String name, G4double length, BDSBeamPipe *beamPipe, G4double containerLength, const BDSMagnetOuterInfo *recipe) |
quadrupole outer volume | |
virtual BDSMagnetOuter * | CreateSextupole (G4String name, G4double length, BDSBeamPipe *beamPipe, G4double containerLength, const BDSMagnetOuterInfo *recipe) |
sextupole outer volume | |
virtual BDSMagnetOuter * | CreateOctupole (G4String name, G4double length, BDSBeamPipe *beamPipe, G4double containerLength, const BDSMagnetOuterInfo *recipe) |
octupole outer volume | |
virtual BDSMagnetOuter * | CreateDecapole (G4String name, G4double length, BDSBeamPipe *beamPipe, G4double containerLength, const BDSMagnetOuterInfo *recipe) |
decapole outer volume | |
virtual BDSMagnetOuter * | CreateSolenoid (G4String name, G4double length, BDSBeamPipe *beamPipe, G4double containerLength, const BDSMagnetOuterInfo *recipe) |
solenoid outer volume | |
virtual BDSMagnetOuter * | CreateMultipole (G4String name, G4double length, BDSBeamPipe *beamPipe, G4double containerLength, const BDSMagnetOuterInfo *recipe) |
general multipole outer volume - could be any 2N order multipole | |
virtual BDSMagnetOuter * | CreateRfCavity (G4String name, G4double length, BDSBeamPipe *beamPipe, G4double containerLength, const BDSMagnetOuterInfo *recipe) |
RF cavity outer volume. | |
virtual BDSMagnetOuter * | CreateMuonSpoiler (G4String name, G4double length, BDSBeamPipe *beamPipe, G4double containerLength, const BDSMagnetOuterInfo *recipe) |
muon spoiler outer volume | |
virtual BDSMagnetOuter * | CreateKicker (G4String name, G4double length, const BDSBeamPipe *beamPipe, G4double containerLength, const BDSMagnetOuterInfo *recipe, G4bool vertical) |
horizontal and vertical kicker outer volume | |
![]() | |
virtual BDSMagnetOuter * | CreateSectorBend (G4String name, G4double length, const BDSBeamPipe *beamPipe, G4double containerLength, const BDSMagnetOuterInfo *recipe)=0 |
sector bend outer volume | |
virtual BDSMagnetOuter * | CreateRectangularBend (G4String name, G4double length, const BDSBeamPipe *beamPipe, G4double containerLength, const BDSMagnetOuterInfo *recipe)=0 |
rectangular bend outer volume | |
virtual BDSMagnetOuter * | CreateQuadrupole (G4String name, G4double length, BDSBeamPipe *beamPipe, G4double containerLength, const BDSMagnetOuterInfo *recipe)=0 |
quadrupole outer volume | |
virtual BDSMagnetOuter * | CreateSextupole (G4String name, G4double length, BDSBeamPipe *beamPipe, G4double containerLength, const BDSMagnetOuterInfo *recipe)=0 |
sextupole outer volume | |
virtual BDSMagnetOuter * | CreateOctupole (G4String name, G4double length, BDSBeamPipe *beamPipe, G4double containerLength, const BDSMagnetOuterInfo *recipe)=0 |
octupole outer volume | |
virtual BDSMagnetOuter * | CreateDecapole (G4String name, G4double length, BDSBeamPipe *beamPipe, G4double containerLength, const BDSMagnetOuterInfo *recipe)=0 |
decapole outer volume | |
virtual BDSMagnetOuter * | CreateSolenoid (G4String name, G4double length, BDSBeamPipe *beamPipe, G4double containerLength, const BDSMagnetOuterInfo *recipe)=0 |
solenoid outer volume | |
virtual BDSMagnetOuter * | CreateMultipole (G4String name, G4double length, BDSBeamPipe *beamPipe, G4double containerLength, const BDSMagnetOuterInfo *recipe)=0 |
general multipole outer volume - could be any 2N order multipole | |
virtual BDSMagnetOuter * | CreateRfCavity (G4String name, G4double length, BDSBeamPipe *beamPipe, G4double containerLength, const BDSMagnetOuterInfo *recipe)=0 |
RF cavity outer volume. | |
virtual BDSMagnetOuter * | CreateMuonSpoiler (G4String name, G4double length, BDSBeamPipe *beamPipe, G4double containerLength, const BDSMagnetOuterInfo *recipe)=0 |
muon spoiler outer volume | |
virtual BDSMagnetOuter * | CreateKicker (G4String name, G4double length, const BDSBeamPipe *beamPipe, G4double containerLength, const BDSMagnetOuterInfo *recipe, G4bool vertical)=0 |
horizontal and vertical kicker outer volume | |
virtual void | CleanUp () |
Empty containers for next use - factories are never deleted so can't rely on scope. | |
void | CleanUpBase () |
Non-virtual clean up that can be used in the constructor. | |
virtual | ~BDSMagnetOuterFactoryBase () |
Virtual base destructor. | |
![]() | |
virtual void | FactoryBaseCleanUp () |
Empty containers for next use - factories are never deleted so can't rely on scope. | |
Protected Member Functions | |
virtual void | CalculateStartAngles () |
Calculate start angle of polyhedra based on order and segment angle. | |
![]() | |
virtual void | CleanUp () |
Empty containers for next use - this class is never deleted so can't rely on scope. | |
void | CleanUpPolesBase () |
Non-virtual clean up to be used in constructor. | |
virtual BDSMagnetOuter * | CommonConstructor (const G4String &name, G4double length, BDSBeamPipe *beamPipe, G4int order, G4double magnetContainerLength, const BDSMagnetOuterInfo *recipe) |
Common construction tasks to all methods - assemble yoke and poles in container. | |
virtual void | CalculatePoleAndYoke (G4double horizontalWidth, BDSBeamPipe *beamPipe, G4int order) |
virtual void | CreatePoleSolid (const G4String &name, G4double length, G4int order) |
virtual void | CreateCoilSolids (const G4String &name, G4double length) |
Create the coil solids corresponding to the pole solid. | |
virtual void | CreateCoilPoints () |
Create all the points that make up the extruded solid of the pole. | |
virtual void | CreateYokeAndContainerSolid (const G4String &name, G4double length, G4int order, G4double magnetContainerLength, G4double magnetContainerRadiusIn) |
virtual void | IntersectPoleWithYoke (const G4String &name, G4double length, G4int order) |
Chop off the top of the pole to match the appropriate yoke geometry. | |
virtual void | CreateLogicalVolumes (const G4String &name, G4Colour *colour, G4Material *outerMaterial) |
virtual void | CreateLogicalVolumesCoil (const G4String &name) |
virtual void | CreateEndPiece (const G4String &name) |
virtual void | PlaceComponents (const G4String &name, G4int order) |
Place the poles and yoke in the container volume. | |
virtual void | PlaceComponentsCoils (const G4String &name, G4int order) |
If we're building coils, place two coils for each pole. | |
void | TestCoilFractions (G4double &coilWidthFraction, G4double &coilHeightFraction) |
void | DipoleCommonPreConstruction (const G4String &name, G4double angleIn, G4double angleOut, G4double length, G4double &horizontalWidth, G4Material *&material, G4double &vhRatio) |
void | DipoleCalculations (G4bool hStyle, G4bool buildVertically, const BDSBeamPipe *beamPipe, G4double length, G4double horizontalWidth, G4double angleIn, G4double angleOut, G4double yokeThicknessFraction, G4double vhRatio, G4double coilWidthFraction, G4double coilHeightFraction, G4double &cShapeOuterEdge, G4double &poleHalfGap, G4double &poleWidth, G4double &poleHeight, G4double &yokeWidth, G4double &yokeHalfHeight, G4double &yokeThickness, G4double &yokeOverHang, G4double &coilWidth, G4double &coilHeightIn, G4double &coilToYokeGap, G4double &coilToPoleGap, G4double &sLength, G4double &containerSLength, G4double &intersectionRadius) |
std::vector< G4ThreeVector > | CalculateCoilDisplacements (G4double poleHalfWidthIn, G4double poleHalfGapIn, G4double coilWidthIn, G4double coilHeightIn, G4double cDY, G4double &coilDY) |
BDSMagnetOuter * | CreateDipoleC (const G4String &name, G4double length, const BDSBeamPipe *beamPipe, G4double containerLength, const BDSMagnetOuterInfo *recipe, G4bool buildVertically) |
BDSMagnetOuter * | CreateDipoleH (const G4String &name, G4double length, const BDSBeamPipe *beamPipe, G4double containerLength, const BDSMagnetOuterInfo *recipe, G4bool buildVertically) |
Routine to construct an H shaped dipole magnet and can optionally be built vertically. | |
BDSMagnetOuter * | DipoleCommonConstruction (const G4String &name, G4double horizontalWidth, G4bool buildEndPiece, G4double coilWidth, G4double length, G4double containerLength, G4double sLength, G4double angleIn, G4double angleOut, G4Colour *colour, G4Material *material, std::vector< G4ThreeVector > &coilDisps, G4bool buildVertically, BDSExtent &ext, G4double poleHalfWidth, G4double poleHalfGap, G4double cDY, G4double coilDY, G4double intersectionRadius) |
![]() | |
virtual void | CreateLogicalVolumes (const G4String &name, G4Colour *colour, G4Material *outerMaterial) |
virtual void | SetUserLimits () |
Attach default user limits to all logical volumes. | |
void | BuildMagnetContainerSolidAngled (const G4String &name, G4double magnetContainerLength, G4double magnetContainerRadius, G4bool flatFaces=false) |
void | BuildMagnetContainerSolidStraight (const G4String &name, G4double magnetContainerLength, G4double magnetContainerRadius) |
void | CreateMagnetContainerComponent () |
void | SetFaceNormals (BDSMagnetOuter *outer) |
Copy face normals from members to an instance of outer. | |
Protected Attributes | |
G4double | polyStartAngle |
Start angle for polyhedra. | |
G4double | poleIntersectionStartAngle |
Start angle for pole intersection. | |
![]() | |
const G4double | poleFraction |
const G4double | poleAngularFraction |
Fraction of 2pi/Npoles that the pole will occupy - always < 1. | |
const G4double | poleTipFraction |
const G4double | poleAnnulusFraction |
const G4double | bendHeightFraction |
const G4double | poleStopFactor |
G4double | yokeStartRadius |
Start radius of yoke geometry from magnet cetnre. | |
G4double | yokeFinishRadius |
Finish radius of yoke geometry from magnet centre - less than horizontalWidth. | |
G4double | magnetContainerRadius |
Radius of the container solid for the outer geometry. | |
G4bool | buildPole |
Whether or not to build poles (and therefore coils). | |
G4double | poleStartRadius |
Start radius of the pole from magnet centre. | |
G4double | poleFinishRadius |
Finish radius of the pole from magnet centre. | |
G4double | poleSquareWidth |
Full width of pole in constant width section. | |
G4double | poleSquareStartRadius |
Radius from magnet centre that constant width section starts. | |
G4double | segmentAngle |
2PI / # of poles - angle per segment allocated for each pole. | |
G4double | poleAngle |
The angle allowed for the pole to occupy - less than segmentAngle. | |
G4ThreeVector | poleTranslation |
Offste of pole for placement from magnet centre. | |
G4double | coilHeight |
Height along y for coil for coil beside 1 upgright pole aligned with y axis. | |
G4double | coilCentreRadius |
Radius from magnet centre that the centre of the coils exist at. | |
G4double | endPieceLength |
Length of the coil end piece along what will be curvilinear S. | |
G4double | endPieceInnerR |
Inner radius for end piece container. | |
G4double | endPieceOuterR |
Outer radius for end piece container. | |
G4VSolid * | poleIntersectionSolid |
Solid used to chop off pole. | |
G4VSolid * | coilLeftSolid |
Left coil solid for one pole built upright along y axis. | |
G4VSolid * | coilRightSolid |
Right coil solid. | |
G4VSolid * | endPieceContainerSolid |
End piece container solid. | |
G4LogicalVolume * | coilLeftLV |
Logical volume for left coil. | |
G4LogicalVolume * | coilRightLV |
Logical volume for right coil. | |
G4LogicalVolume * | endPieceCoilLV |
Logical volume for end piece single coil piece. | |
G4LogicalVolume * | endPieceContainerLV |
Logical volume for end piece container. | |
BDSSimpleComponent * | endPiece |
Fully constructed end piece. | |
std::vector< G4TwoVector > | leftPoints |
Vector of 2D points for left coil. | |
std::vector< G4TwoVector > | rightPoints |
Vector of 2D points for right coil. | |
std::vector< G4TwoVector > | endPiecePoints |
Vector of 2D points for end piece looking from above down z. | |
BDSMagnetOuterFactoryBase * | cylindrical |
Default factory to fall back to. | |
![]() | |
G4VSolid * | poleSolid |
Solid for an individual pole that will be placed multiple times. | |
G4VSolid * | yokeSolid |
Solid for outer part that connects all poles. | |
G4VSolid * | containerSolid |
G4VSolid * | magnetContainerSolid |
G4LogicalVolume * | poleLV |
G4LogicalVolume * | yokeLV |
G4LogicalVolume * | containerLV |
G4LogicalVolume * | magnetContainerLV |
G4VPhysicalVolume * | yokePV |
G4VisAttributes * | outerVisAttributes |
BDSExtent | magContExtent |
BDSGeometryComponent * | magnetContainer |
G4ThreeVector | inputFaceNormal |
G4ThreeVector | outputFaceNormal |
G4bool | sensitiveOuter |
Cache of global constants variable. | |
![]() | |
std::set< G4LogicalVolume * > | allLogicalVolumes |
std::set< G4VPhysicalVolume * > | allPhysicalVolumes |
std::set< G4RotationMatrix * > | allRotationMatrices |
std::set< G4UserLimits * > | allUserLimits |
std::set< G4VSolid * > | allSolids |
std::set< G4VisAttributes * > | allVisAttributes |
G4double | lengthSafety |
Cache of global constants variable. | |
G4double | lengthSafetyLarge |
Cache of global constants variable. | |
G4bool | checkOverlaps |
Cache of global constants variable. | |
G4bool | visDebug |
Cache of global constants variable. | |
G4int | nSegmentsPerCircle |
Cache of global constants variable. | |
G4VisAttributes * | containerVisAttr |
Cache of global constants variable. | |
G4UserLimits * | defaultUserLimits |
Cache of global constants variable. | |
Private Member Functions | |
BDSMagnetOuterFactoryPolesFacetCommon () | |
Private constructor to force use of supplied one. | |
virtual void | CreateYokeAndContainerSolid (const G4String &name, G4double length, G4int order, G4double magnetContainerLength, G4double magnetContainerRadiusIn) |
Create yoke that connects poles and container to put them in. | |
Private Attributes | |
G4double | factor |
Factor by which number of polyhedra vertices is multiplied by. | |
Factory class for outer volume of magnets.
Produces magnets with 2N-poles around the beampipe with a faceted yoke - the yoke is perpendiular to the pole direction where the pole joins the yoke.
Most magnets are 2N poles, but sector- and r-bends as well as muon spoilers, and h/v kickers are unique.
This class provides the common code for 'facet' and 'facetcrop' styles as there's only one number different in the yoke code.
Definition at line 42 of file BDSMagnetOuterFactoryPolesFacetCommon.hh.
|
explicit |
Definition at line 31 of file BDSMagnetOuterFactoryPolesFacetCommon.cc.
|
virtual |
Definition at line 38 of file BDSMagnetOuterFactoryPolesFacetCommon.cc.
|
protectedvirtual |
Calculate start angle of polyhedra based on order and segment angle.
Reimplemented in BDSMagnetOuterFactoryPolesFacetCrop.
Definition at line 41 of file BDSMagnetOuterFactoryPolesFacetCommon.cc.
References poleIntersectionStartAngle, polyStartAngle, and BDSMagnetOuterFactoryPolesBase::segmentAngle.
Referenced by CreateYokeAndContainerSolid().
|
privatevirtual |
Create yoke that connects poles and container to put them in.
Reimplemented from BDSMagnetOuterFactoryPolesBase.
Definition at line 47 of file BDSMagnetOuterFactoryPolesFacetCommon.cc.
References CalculateStartAngles(), factor, BDSFactoryBase::lengthSafety, BDSFactoryBase::lengthSafetyLarge, BDSMagnetOuterFactoryPolesBase::poleIntersectionSolid, poleIntersectionStartAngle, BDSMagnetOuterFactoryPolesBase::poleStartRadius, polyStartAngle, BDSMagnetOuterFactoryPolesBase::yokeFinishRadius, BDSMagnetOuterFactoryBase::yokeSolid, and BDSMagnetOuterFactoryPolesBase::yokeStartRadius.
|
private |
Factor by which number of polyhedra vertices is multiplied by.
Definition at line 71 of file BDSMagnetOuterFactoryPolesFacetCommon.hh.
Referenced by CreateYokeAndContainerSolid().
|
protected |
Start angle for pole intersection.
Definition at line 57 of file BDSMagnetOuterFactoryPolesFacetCommon.hh.
Referenced by CalculateStartAngles(), BDSMagnetOuterFactoryPolesFacetCrop::CalculateStartAngles(), and CreateYokeAndContainerSolid().
|
protected |
Start angle for polyhedra.
Definition at line 54 of file BDSMagnetOuterFactoryPolesFacetCommon.hh.
Referenced by CalculateStartAngles(), BDSMagnetOuterFactoryPolesFacetCrop::CalculateStartAngles(), and CreateYokeAndContainerSolid().
