Factory that produces fields and their associated objects. More...

#include <BDSFieldFactory.hh>

Collaboration diagram for BDSFieldFactory:

Public Member Functions
BDSFieldObjects *	CreateField (const BDSFieldInfo &info, const BDSMagnetStrength *scalingStrength=nullptr, const G4String &scalingKey="none")
	Main interface to field factory.

BDSFieldInfo *	GetDefinition (const G4String &name) const

BDSModulatorInfo *	GetModulatorDefinition (const G4String &modulatorName) const

Static Public Member Functions

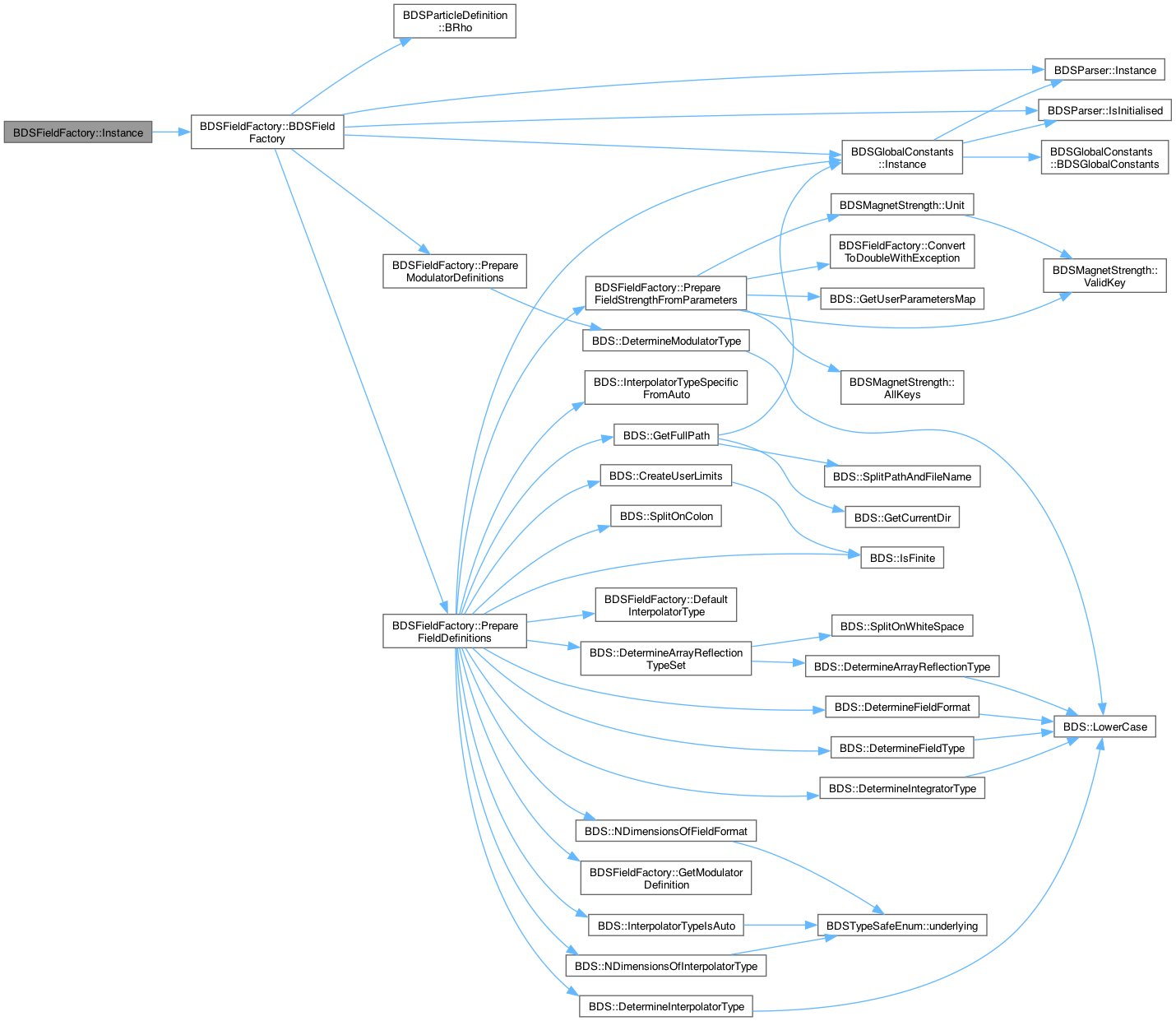

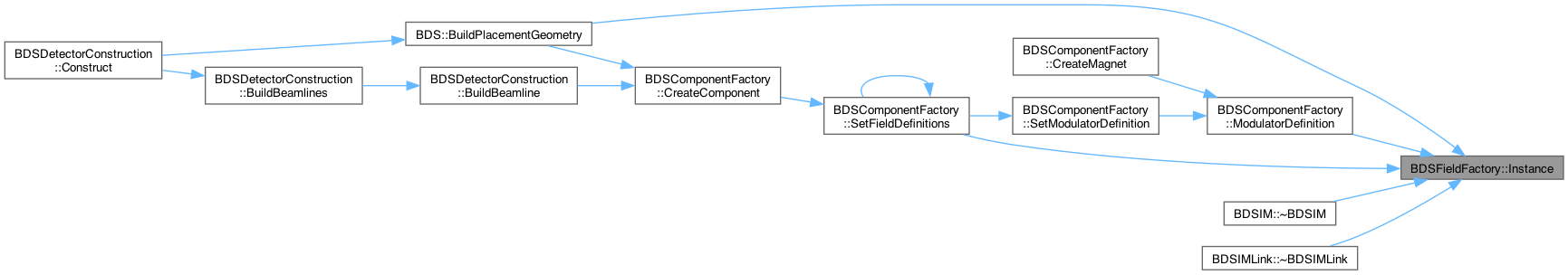

static BDSFieldFactory *	Instance ()
	Public accessor method for singleton pattern.

static void	SetDesignParticle (const BDSParticleDefinition *designParticleIn)
	Update the internal cache of the rigidity.

static void	SetPrimaryGeneratorAction (BDSPrimaryGeneratorAction *pgaIn)
	Update the internal cache of the primary generator action.

static BDSInterpolatorType	DefaultInterpolatorType (G4int numberOfDimensions)
	Suggest a default interpolator.

static G4double	CalculateGlobalPhase (G4double oscillatorFrequency, G4double tOffsetIn)

static G4double	CalculateGlobalPhase (const BDSModulatorInfo &modulatorInfo, const BDSFieldInfo &fieldInfo)

Private Member Functions
BDSFieldObjects *	CreateFieldMag (const BDSFieldInfo &info, const BDSMagnetStrength *scalingStrength=nullptr, const G4String &scalingKey="none")
	Create a purely magnetic field.

BDSFieldObjects *	CreateFieldEM (const BDSFieldInfo &info)
	Create a general EM field.

BDSFieldObjects *	CreateFieldE (const BDSFieldInfo &info)
	Create an electric field.

BDSFieldObjects *	CreateFieldIrregular (const BDSFieldInfo &info)
	Create an irregular (special) field.

BDSFieldMag *	CreateFieldMagRaw (const BDSFieldInfo &info, const BDSMagnetStrength *scalingStrength=nullptr, const G4String &scalingKey="none")
	Creat just the magnetic field object.

BDSFieldE *	CreateFieldERaw (const BDSFieldInfo &info)
	Creat just the electric field object.

G4MagIntegratorStepper *	CreateIntegratorMag (const BDSFieldInfo &info, G4Mag_EqRhs eqOfM, const BDSMagnetStrength strength)

G4MagIntegratorStepper *	CreateIntegratorEM (const BDSFieldInfo &info, G4EquationOfMotion *eqOfM)

G4MagIntegratorStepper *	CreateIntegratorE (const BDSFieldInfo &info, G4EquationOfMotion *eqOfM)

BDSFieldObjects *	CreateTeleporter (const BDSFieldInfo &info)

BDSFieldObjects *	CreateRMatrix (const BDSFieldInfo &info)
	Create special rmatrix 'field' that applies an rmatrix.

BDSFieldObjects *	CreateCavityFringe (const BDSFieldInfo &info)
	Create special rf cavity fringe 'field' that applies an rmatrix.

BDSFieldObjects *	CreateParallelTransport (const BDSFieldInfo &info)

G4double	GetOuterScaling (const BDSMagnetStrength *st) const
	Return the parameter "outerScaling" from strength st, but default to 1.

BDSModulator *	CreateModulator (const BDSModulatorInfo *modulatorRecipe, const BDSFieldInfo &info) const
	Create the necessary modulator.

	BDSFieldFactory ()
	Private default constructor as singleton class.

void	PrepareFieldDefinitions (const std::vector< GMAD::Field > &definitions, G4double defaultBRho)
	Prepare all required definitions that can be used dynamically.

void	PrepareModulatorDefinitions (const std::vector< GMAD::Modulator > &definitions)
	Prepare all required modulator definitions that can be used dynamically.

G4double	ConvertToDoubleWithException (const G4String &value, const G4String &parameterNameForError) const
	Convert the string 'value' to a double. Throw an exception including the parameterNameForError if it doesn't work.

void	PrepareFieldStrengthFromParameters (BDSMagnetStrength *st, const G4String &fieldParameters, G4double &poleTipRadius) const

Private Attributes
std::map< G4String, BDSFieldInfo * >	parserDefinitions
	BDSFieldInfo definitions prepare from parser vector of definitions.

std::map< G4String, BDSModulatorInfo * >	parserModulatorDefinitions

G4bool	useOldMultipoleOuterFields

Static Private Attributes
static BDSFieldFactory *	instance = nullptr
	Instance - singleton pattern.

static const BDSParticleDefinition *	designParticle = nullptr
	Cache of design particle for fields.

static BDSPrimaryGeneratorAction *	primaryGeneratorAction = nullptr
	Cache of primary generator action.

Detailed Description

Factory that produces fields and their associated objects.

Field objects are created according to a BDSFieldType and the associated and required Geant4 objects to properly implement a field. These are packaged together in one object. This factory does not own any of its products. Construction follows in this order:

1 field 2 equation of motion (based on field object) 3 integrator 4 chord finder 5 field manager 6 package it up

This also makes use of BDSParser singleton class to create a series of BDSFieldInfo field specifications as defined by the parser.

This owns the converted modulator definitions (BDSModulatorInfo*) despite the design of a factory that should give up ownership. This is so we don't duplicate the instance for the sake of ownership.

Author: Laurie Nevay

Definition at line 76 of file BDSFieldFactory.hh.

Constructor & Destructor Documentation

◆ ~BDSFieldFactory()

BDSFieldFactory::~BDSFieldFactory ( )

Definition at line 180 of file BDSFieldFactory.cc.

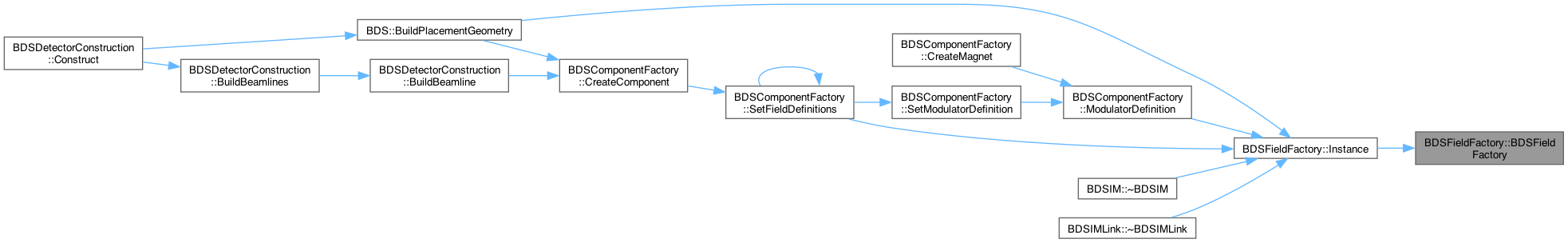

◆ BDSFieldFactory()

BDSFieldFactory::BDSFieldFactory ( )

private

Private default constructor as singleton class.

Definition at line 165 of file BDSFieldFactory.cc.

References BDSParticleDefinition::BRho(), designParticle, BDSGlobalConstants::Instance(), BDSParser::Instance(), BDSParser::IsInitialised(), PrepareFieldDefinitions(), and PrepareModulatorDefinitions().

Referenced by Instance().

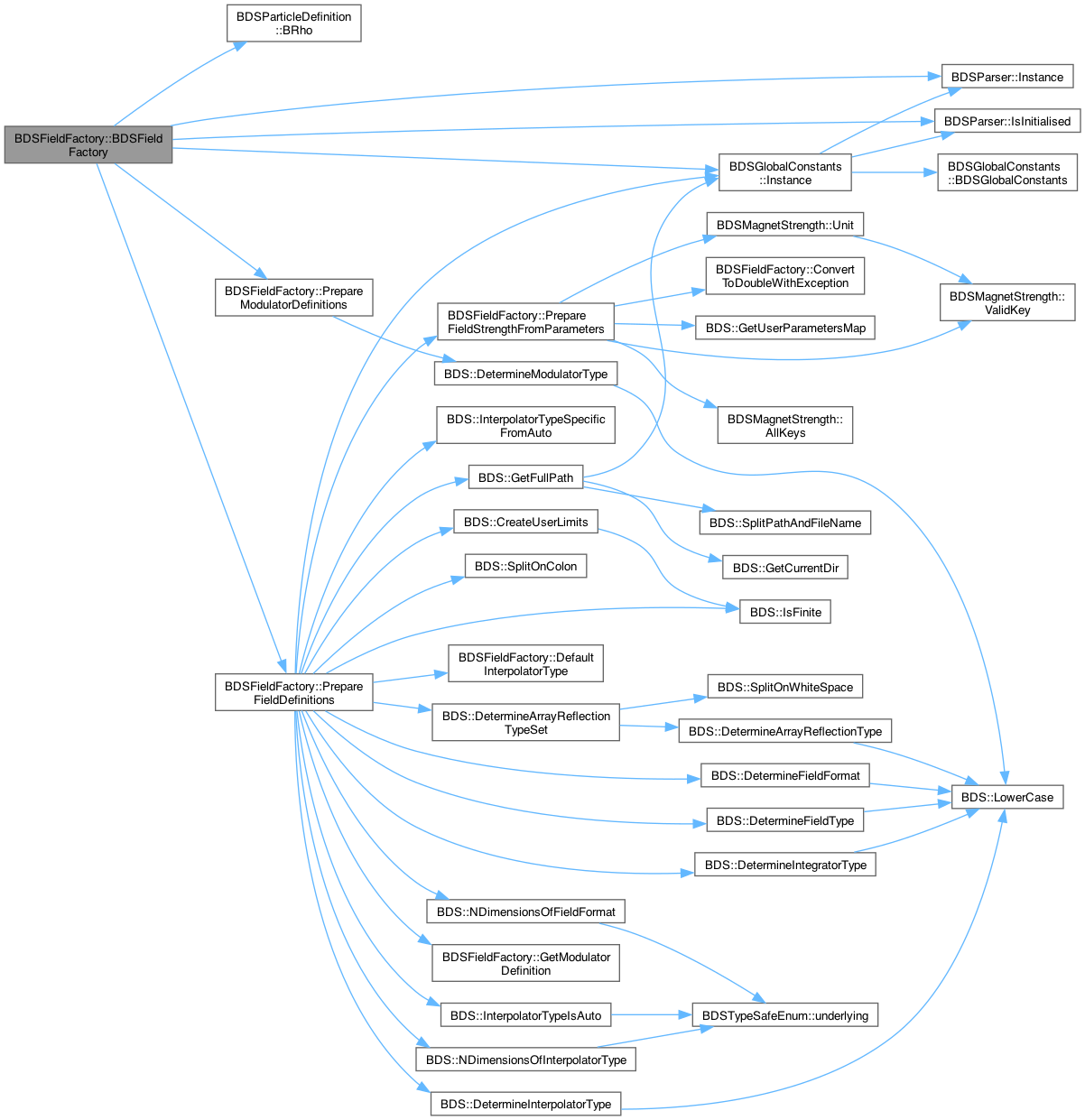

Here is the call graph for this function:

Here is the caller graph for this function:

Member Function Documentation

◆ CalculateGlobalPhase() [1/2]

G4double BDSFieldFactory::CalculateGlobalPhase	(	const BDSModulatorInfo &	modulatorInfo,
		const BDSFieldInfo &	fieldInfo
	)

static

Definition at line 414 of file BDSFieldFactory.cc.

◆ CalculateGlobalPhase() [2/2]

G4double BDSFieldFactory::CalculateGlobalPhase	(	G4double	oscillatorFrequency,
		G4double	tOffsetIn
	)

static

Definition at line 400 of file BDSFieldFactory.cc.

◆ ConvertToDoubleWithException()

G4double BDSFieldFactory::ConvertToDoubleWithException	(	const G4String &	value,
		const G4String &	parameterNameForError
	)		const

private

Convert the string 'value' to a double. Throw an exception including the parameterNameForError if it doesn't work.

Definition at line 434 of file BDSFieldFactory.cc.

Referenced by PrepareFieldStrengthFromParameters().

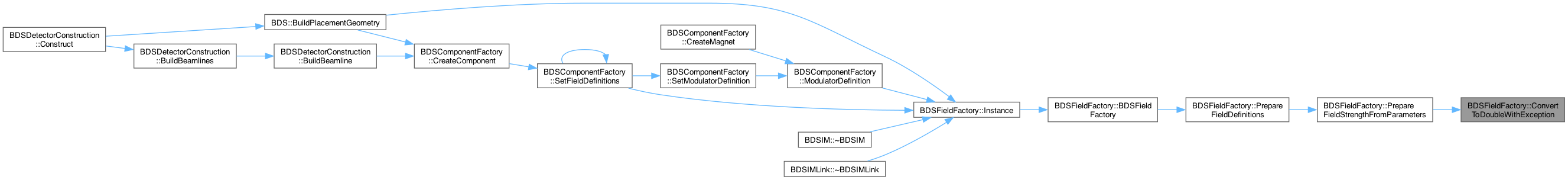

Here is the caller graph for this function:

◆ CreateCavityFringe()

BDSFieldObjects * BDSFieldFactory::CreateCavityFringe ( const BDSFieldInfo & info )

private

Create special rf cavity fringe 'field' that applies an rmatrix.

Definition at line 1267 of file BDSFieldFactory.cc.

References BDSFieldInfo::BeamPipeRadius(), and BDSFieldInfo::MagnetStrength().

Referenced by CreateFieldIrregular().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateField()

BDSFieldObjects * BDSFieldFactory::CreateField	(	const BDSFieldInfo &	info,
		const BDSMagnetStrength *	scalingStrength = `nullptr`,
		const G4String &	scalingKey = `"none"`
	)

Main interface to field factory.

Definition at line 520 of file BDSFieldFactory.cc.

References CreateFieldE(), CreateFieldEM(), CreateFieldIrregular(), CreateFieldMag(), BDS::DetermineFieldClassType(), BDSFieldInfo::FieldType(), BDSFieldInfo::NameOfParserDefinition(), and BDSTypeSafeEnum< def, inner >::underlying().

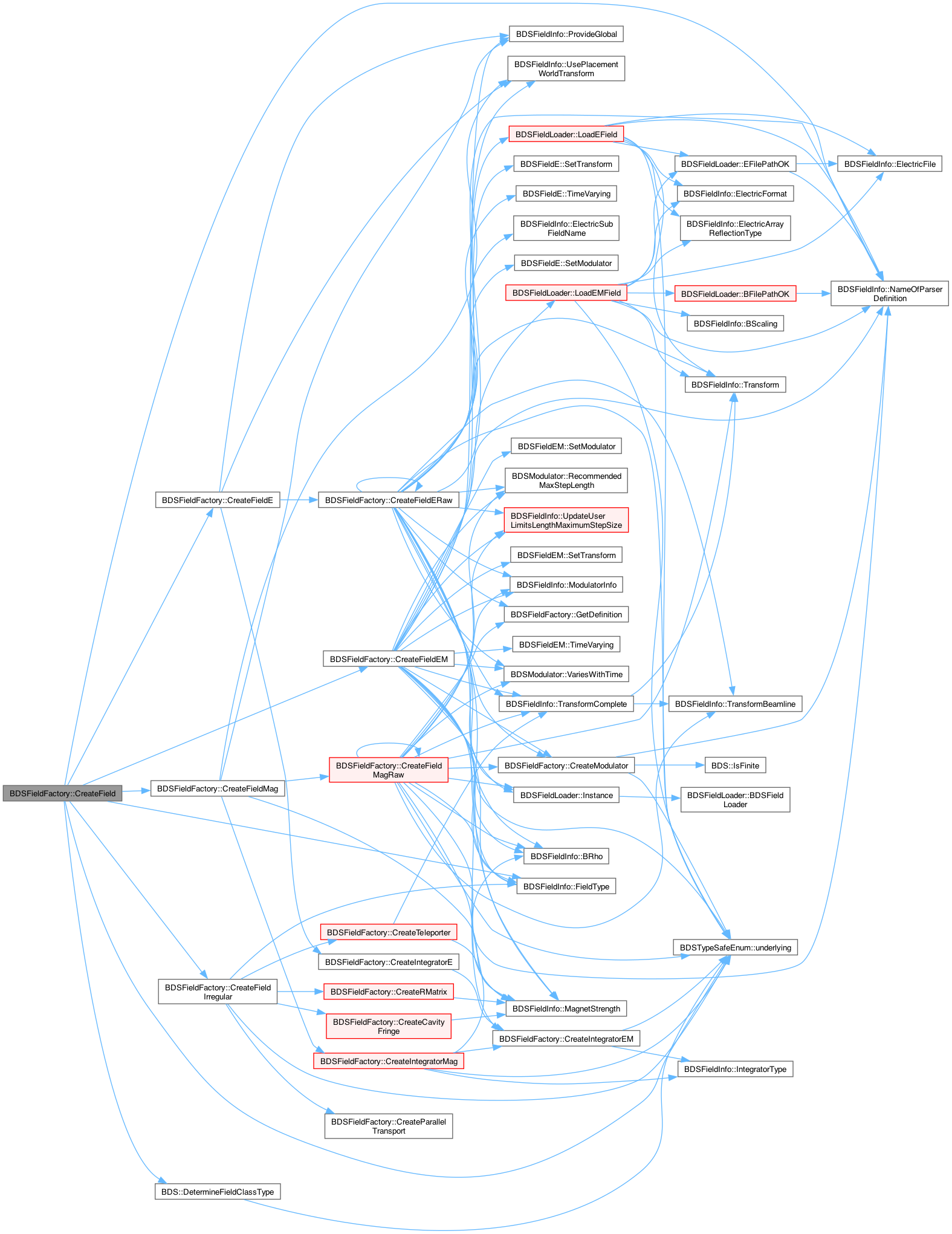

Here is the call graph for this function:

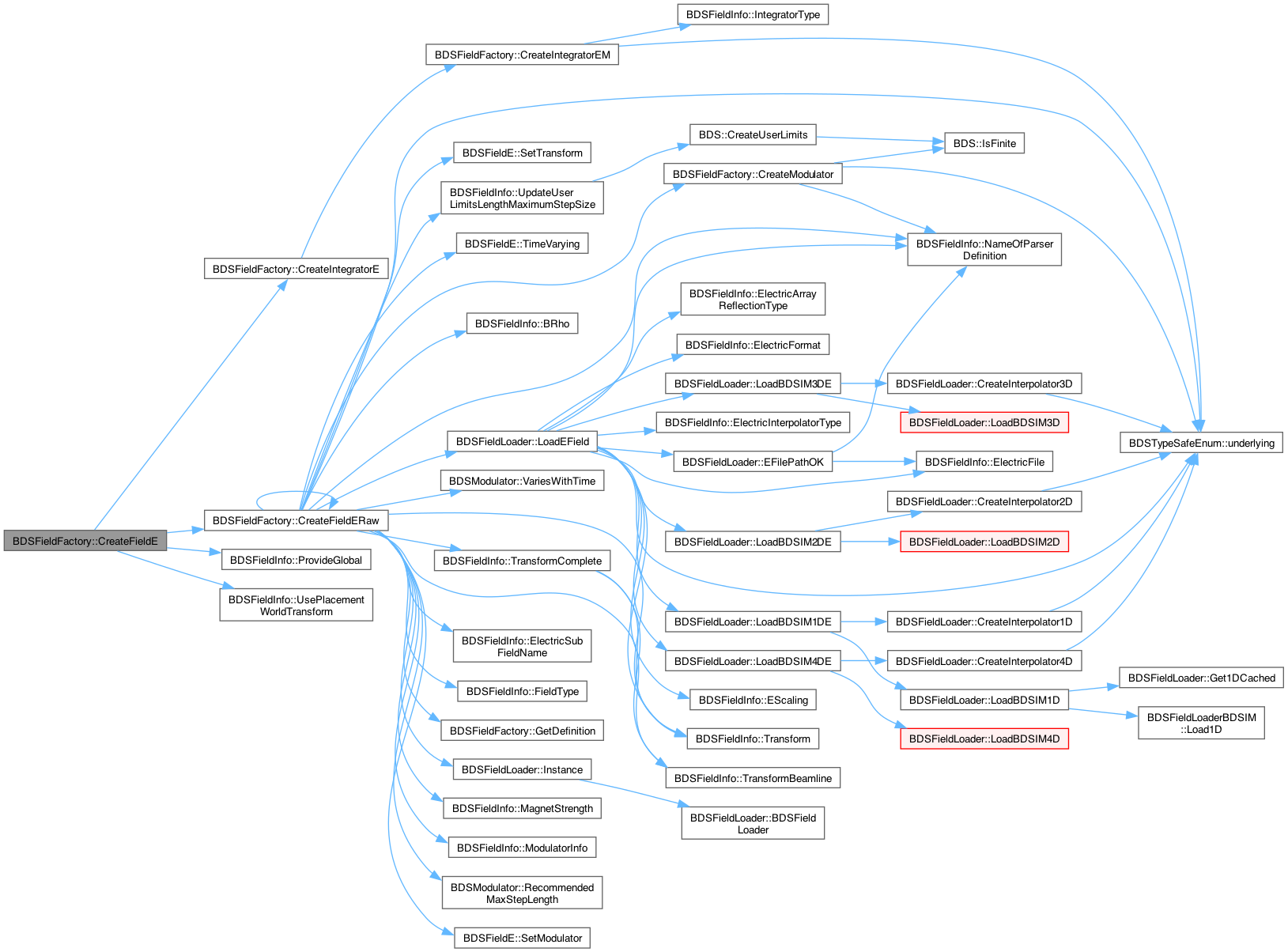

◆ CreateFieldE()

BDSFieldObjects * BDSFieldFactory::CreateFieldE ( const BDSFieldInfo & info )

private

Create an electric field.

Definition at line 935 of file BDSFieldFactory.cc.

References CreateFieldERaw(), CreateIntegratorE(), BDSFieldInfo::ProvideGlobal(), and BDSFieldInfo::UsePlacementWorldTransform().

Referenced by CreateField().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateFieldEM()

BDSFieldObjects * BDSFieldFactory::CreateFieldEM ( const BDSFieldInfo & info )

private

Create a general EM field.

Definition at line 875 of file BDSFieldFactory.cc.

References BDSFieldInfo::BRho(), CreateIntegratorEM(), CreateModulator(), BDSFieldInfo::FieldType(), BDSFieldLoader::Instance(), BDSFieldLoader::LoadEMField(), BDSFieldInfo::MagnetStrength(), BDSFieldInfo::ModulatorInfo(), BDSFieldInfo::NameOfParserDefinition(), BDSFieldInfo::ProvideGlobal(), BDSModulator::RecommendedMaxStepLength(), BDSFieldEM::SetModulator(), BDSFieldEM::SetTransform(), BDSFieldEM::TimeVarying(), BDSFieldInfo::TransformComplete(), BDSTypeSafeEnum< def, inner >::underlying(), BDSFieldInfo::UpdateUserLimitsLengthMaximumStepSize(), BDSFieldInfo::UsePlacementWorldTransform(), and BDSModulator::VariesWithTime().

Referenced by CreateField().

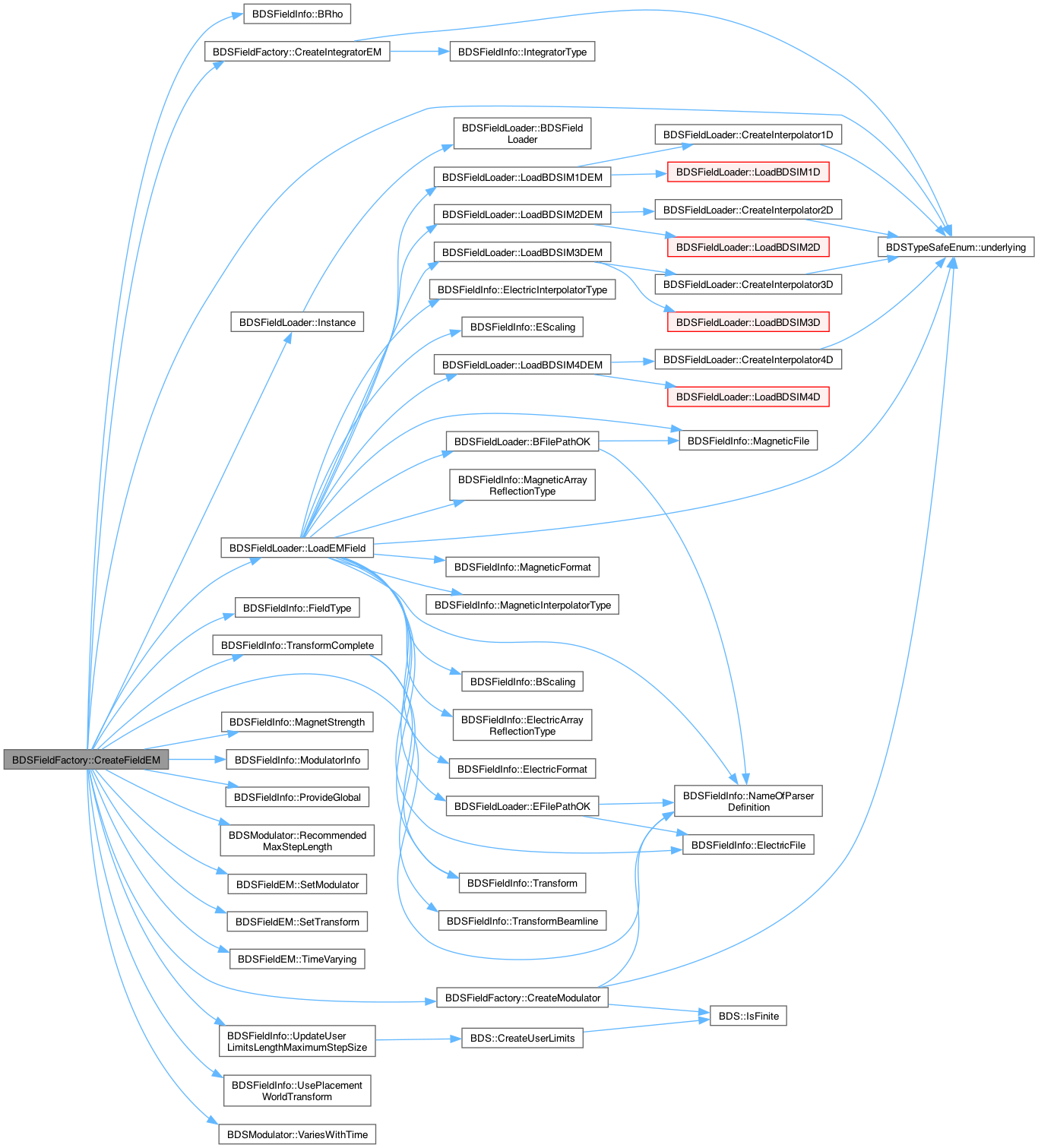

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateFieldERaw()

BDSFieldE * BDSFieldFactory::CreateFieldERaw ( const BDSFieldInfo & info )

private

Creat just the electric field object.

Definition at line 958 of file BDSFieldFactory.cc.

References BDSFieldInfo::BRho(), CreateFieldERaw(), CreateModulator(), BDSFieldInfo::ElectricSubFieldName(), BDSFieldInfo::FieldType(), GetDefinition(), BDSFieldLoader::Instance(), BDSFieldLoader::LoadEField(), BDSFieldInfo::MagnetStrength(), BDSFieldInfo::ModulatorInfo(), BDSFieldInfo::NameOfParserDefinition(), BDSModulator::RecommendedMaxStepLength(), BDSFieldE::SetModulator(), BDSFieldE::SetTransform(), BDSFieldE::TimeVarying(), BDSFieldInfo::Transform(), BDSFieldInfo::TransformBeamline(), BDSFieldInfo::TransformComplete(), BDSTypeSafeEnum< def, inner >::underlying(), BDSFieldInfo::UpdateUserLimitsLengthMaximumStepSize(), and BDSModulator::VariesWithTime().

Referenced by CreateFieldE(), and CreateFieldERaw().

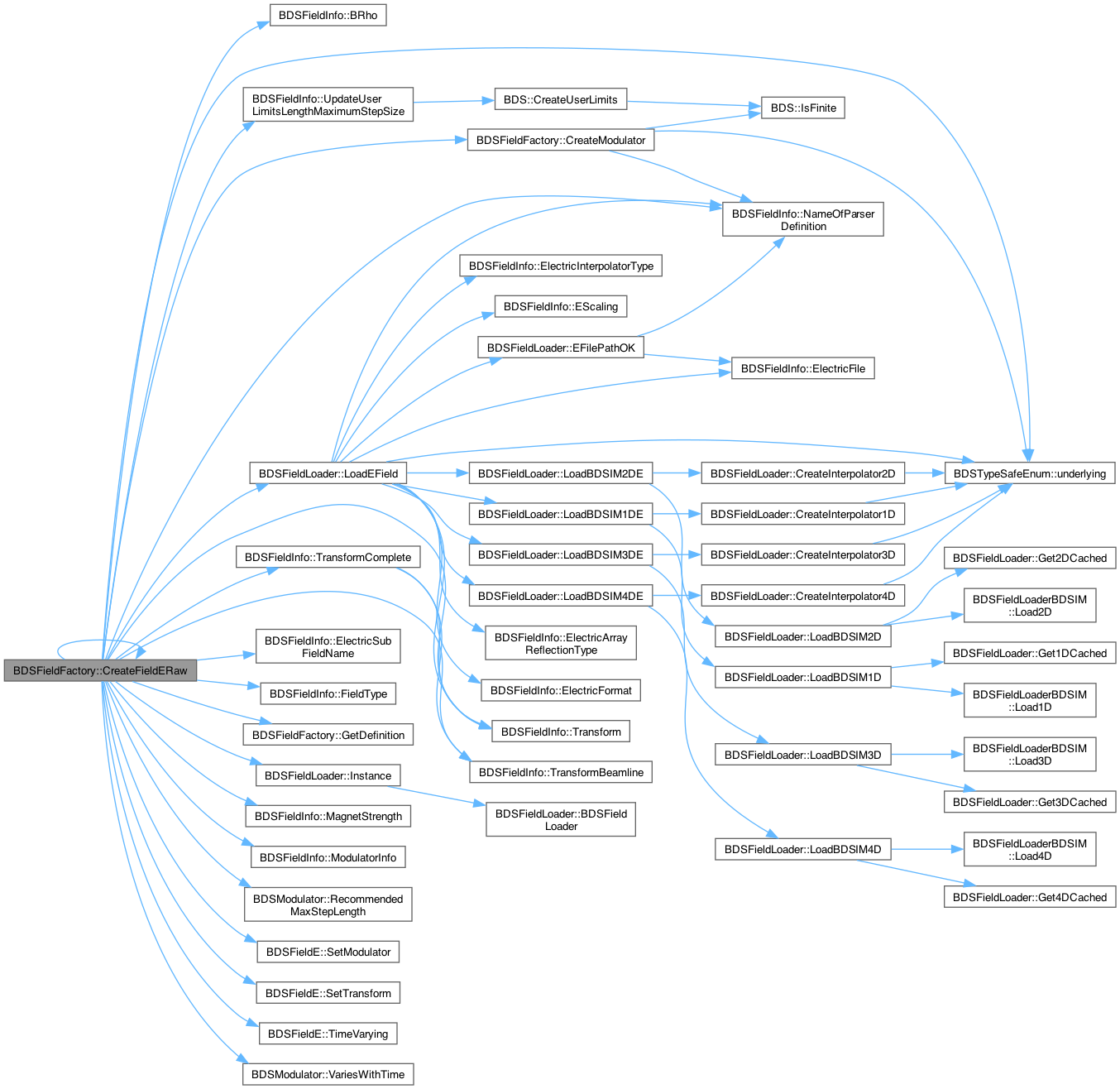

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateFieldIrregular()

BDSFieldObjects * BDSFieldFactory::CreateFieldIrregular ( const BDSFieldInfo & info )

private

Create an irregular (special) field.

Definition at line 1023 of file BDSFieldFactory.cc.

References CreateCavityFringe(), CreateParallelTransport(), CreateRMatrix(), CreateTeleporter(), BDSFieldInfo::FieldType(), and BDSTypeSafeEnum< def, inner >::underlying().

Referenced by CreateField().

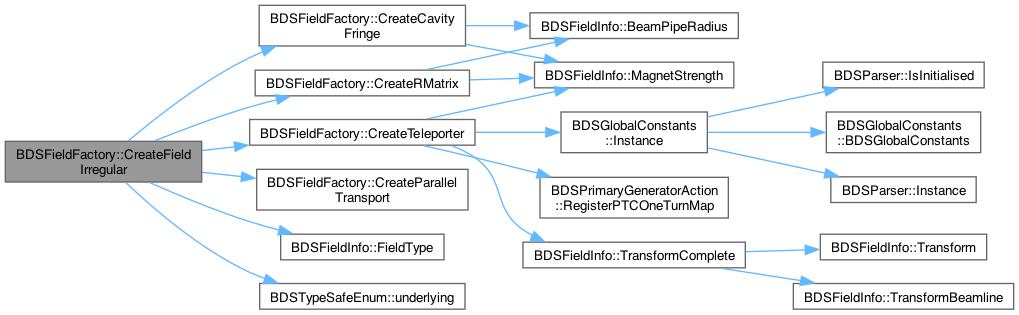

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateFieldMag()

BDSFieldObjects * BDSFieldFactory::CreateFieldMag	(	const BDSFieldInfo &	info,
		const BDSMagnetStrength *	scalingStrength = `nullptr`,
		const G4String &	scalingKey = `"none"`
	)

private

Create a purely magnetic field.

Definition at line 575 of file BDSFieldFactory.cc.

References CreateFieldMagRaw(), CreateIntegratorMag(), BDSFieldInfo::MagnetStrength(), BDSFieldInfo::ProvideGlobal(), and BDSFieldInfo::UsePlacementWorldTransform().

Referenced by CreateField().

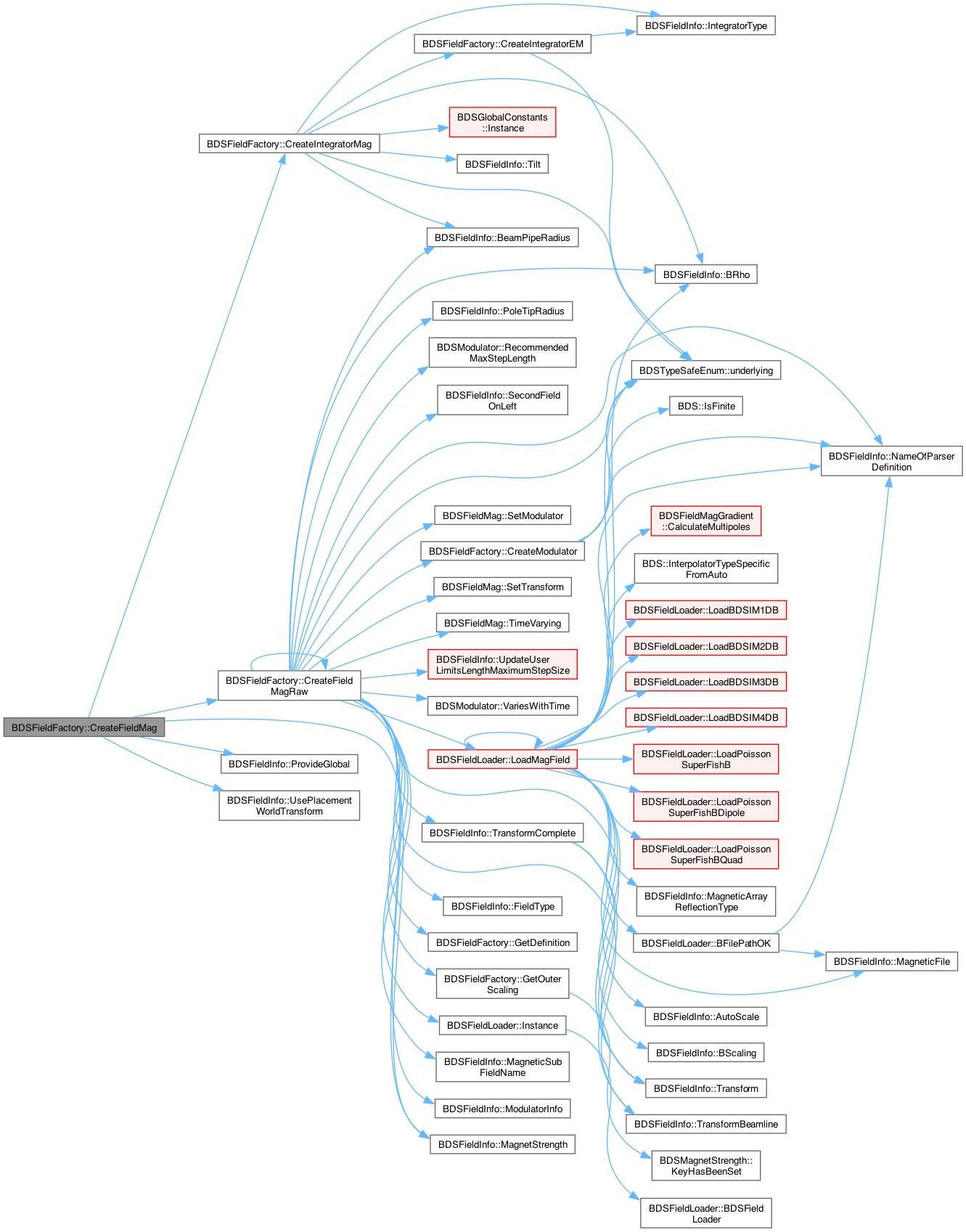

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateFieldMagRaw()

BDSFieldMag * BDSFieldFactory::CreateFieldMagRaw	(	const BDSFieldInfo &	info,
		const BDSMagnetStrength *	scalingStrength = `nullptr`,
		const G4String &	scalingKey = `"none"`
	)

private

Creat just the magnetic field object.

Definition at line 601 of file BDSFieldFactory.cc.

References BDSFieldInfo::BeamPipeRadius(), BDSMagnetOuterFactoryLHC::beamSeparation, BDSFieldInfo::BRho(), CreateFieldMagRaw(), CreateModulator(), BDSFieldInfo::FieldType(), GetDefinition(), GetOuterScaling(), BDSFieldLoader::Instance(), BDSFieldLoader::LoadMagField(), BDSFieldInfo::MagneticSubFieldName(), BDSFieldInfo::MagnetStrength(), BDSFieldInfo::ModulatorInfo(), BDSFieldInfo::NameOfParserDefinition(), BDSFieldInfo::PoleTipRadius(), BDSModulator::RecommendedMaxStepLength(), BDSFieldInfo::SecondFieldOnLeft(), BDSFieldMag::SetModulator(), BDSFieldMag::SetTransform(), BDSFieldMag::TimeVarying(), BDSFieldInfo::Transform(), BDSFieldInfo::TransformBeamline(), BDSFieldInfo::TransformComplete(), BDSTypeSafeEnum< def, inner >::underlying(), BDSFieldInfo::UpdateUserLimitsLengthMaximumStepSize(), and BDSModulator::VariesWithTime().

Referenced by CreateFieldMag(), and CreateFieldMagRaw().

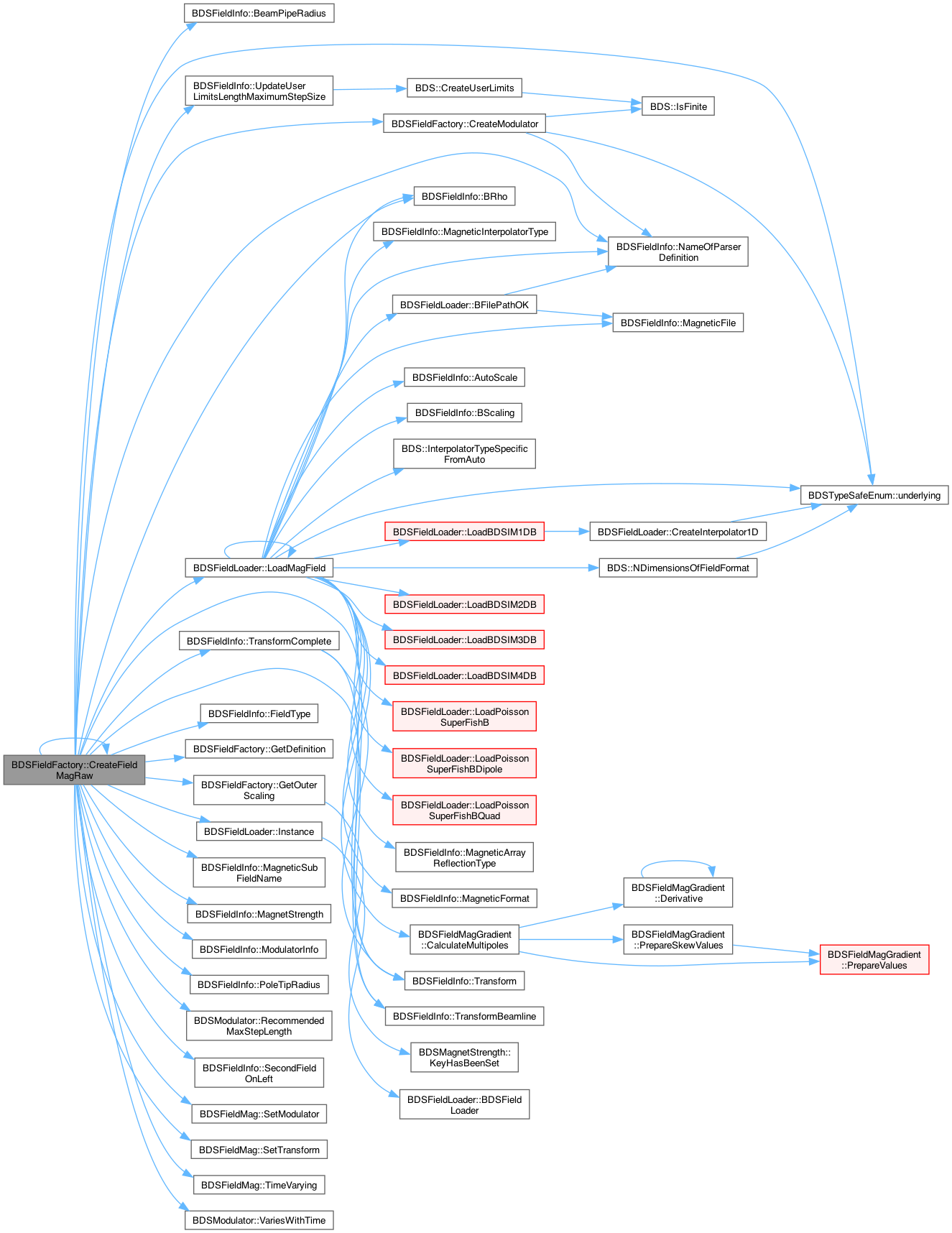

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateIntegratorE()

G4MagIntegratorStepper * BDSFieldFactory::CreateIntegratorE	(	const BDSFieldInfo &	info,
		G4EquationOfMotion *	eqOfM
	)

private

Create an integrator for a general E field. Same ones as EM but keep this method for clarity as Geant4 unclear - only based on their examples. examples/extended/field/field02/src/F02ElectricFieldSetup.cc

Definition at line 1227 of file BDSFieldFactory.cc.

References CreateIntegratorEM().

Referenced by CreateFieldE().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateIntegratorEM()

G4MagIntegratorStepper * BDSFieldFactory::CreateIntegratorEM	(	const BDSFieldInfo &	info,
		G4EquationOfMotion *	eqOfM
	)

private

Create an integrator for a general EM field. As it's a general field, this takes a G4EquationOfMotion* equation of motion instance.

Definition at line 1131 of file BDSFieldFactory.cc.

References BDSFieldInfo::IntegratorType(), and BDSTypeSafeEnum< def, inner >::underlying().

Referenced by CreateFieldEM(), CreateIntegratorE(), and CreateIntegratorMag().

Here is the call graph for this function:

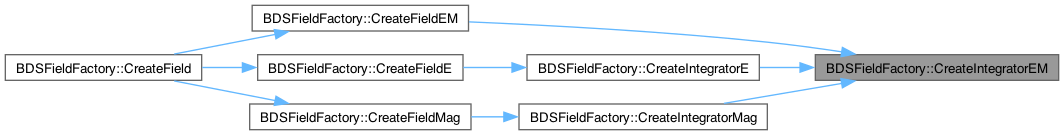

Here is the caller graph for this function:

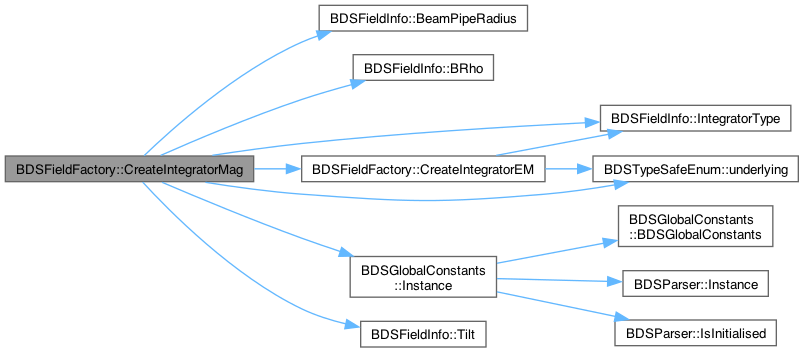

◆ CreateIntegratorMag()

G4MagIntegratorStepper * BDSFieldFactory::CreateIntegratorMag	(	const BDSFieldInfo &	info,
		G4Mag_EqRhs *	eqOfM,
		const BDSMagnetStrength *	strength
	)

private

Create a purely magnetic integrator. As it's purely magnetic, this requires a G4Mag_EqRhs* equation of motion instance.

Definition at line 1043 of file BDSFieldFactory.cc.

References BDSFieldInfo::BeamPipeRadius(), BDSFieldInfo::BRho(), CreateIntegratorEM(), designParticle, BDSGlobalConstants::Instance(), BDSFieldInfo::IntegratorType(), BDSFieldInfo::Tilt(), and BDSTypeSafeEnum< def, inner >::underlying().

Referenced by CreateFieldMag().

Here is the call graph for this function:

Here is the caller graph for this function:

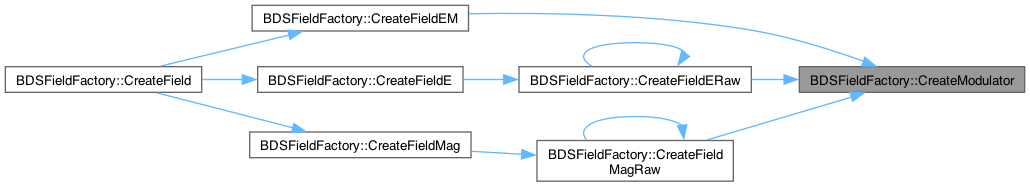

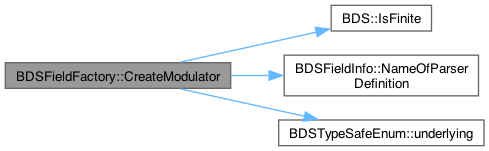

◆ CreateModulator()

BDSModulator * BDSFieldFactory::CreateModulator	(	const BDSModulatorInfo *	modulatorRecipe,
		const BDSFieldInfo &	info
	)		const

private

Create the necessary modulator.

Definition at line 1295 of file BDSFieldFactory.cc.

References BDSModulatorInfo::amplitudeOffset, BDSModulatorInfo::frequency, BDS::IsFinite(), BDSModulatorInfo::modulatorType, BDSFieldInfo::NameOfParserDefinition(), BDSModulatorInfo::phase, BDSModulatorInfo::scale, BDSModulatorInfo::T0, BDSModulatorInfo::T1, BDSModulatorInfo::tOffset, and BDSTypeSafeEnum< def, inner >::underlying().

Referenced by CreateFieldEM(), CreateFieldERaw(), and CreateFieldMagRaw().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateParallelTransport()

BDSFieldObjects * BDSFieldFactory::CreateParallelTransport ( const BDSFieldInfo & info )

private

Create special parallel transport 'field' that applies a parallel transport along beam line.

Definition at line 1277 of file BDSFieldFactory.cc.

Referenced by CreateFieldIrregular().

Here is the caller graph for this function:

◆ CreateRMatrix()

BDSFieldObjects * BDSFieldFactory::CreateRMatrix ( const BDSFieldInfo & info )

private

Create special rmatrix 'field' that applies an rmatrix.

Definition at line 1257 of file BDSFieldFactory.cc.

References BDSFieldInfo::BeamPipeRadius(), and BDSFieldInfo::MagnetStrength().

Referenced by CreateFieldIrregular().

Here is the call graph for this function:

Here is the caller graph for this function:

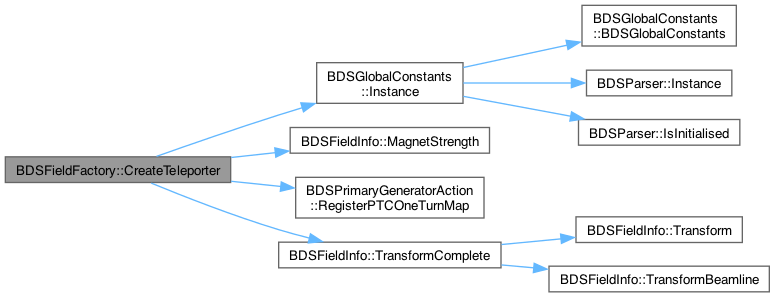

◆ CreateTeleporter()

BDSFieldObjects * BDSFieldFactory::CreateTeleporter ( const BDSFieldInfo & info )

private

Create a special teleporter 'field' that shifts particles at the end of rings to match up correctly.

Definition at line 1233 of file BDSFieldFactory.cc.

References designParticle, BDSGlobalConstants::Instance(), BDSFieldInfo::MagnetStrength(), primaryGeneratorAction, BDSPrimaryGeneratorAction::RegisterPTCOneTurnMap(), and BDSFieldInfo::TransformComplete().

Referenced by CreateFieldIrregular().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DefaultInterpolatorType()

BDSInterpolatorType BDSFieldFactory::DefaultInterpolatorType ( G4int numberOfDimensions )

static

Suggest a default interpolator.

Definition at line 556 of file BDSFieldFactory.cc.

Referenced by PrepareFieldDefinitions().

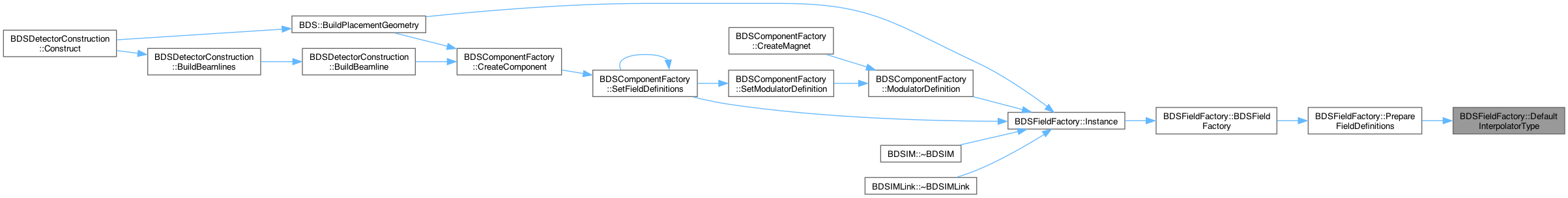

Here is the caller graph for this function:

◆ GetDefinition()

BDSFieldInfo * BDSFieldFactory::GetDefinition ( const G4String & name ) const

Return a BDSFieldInfo instance from the parser definitions. Will exit if no matching field definition is found but will return nullptr if empty string supplied.

Definition at line 483 of file BDSFieldFactory.cc.

References parserDefinitions.

Referenced by CreateFieldERaw(), and CreateFieldMagRaw().

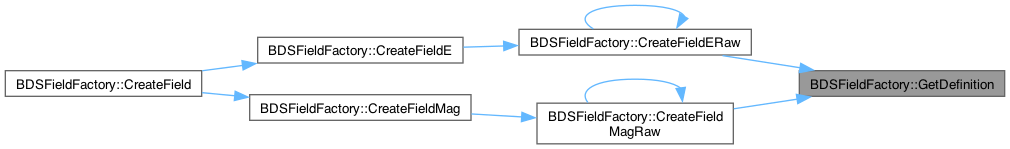

Here is the caller graph for this function:

◆ GetModulatorDefinition()

BDSModulatorInfo * BDSFieldFactory::GetModulatorDefinition ( const G4String & modulatorName ) const

Return a BDSModulatorInfo instance from the parser definitions. Will exit if no matching modulator definition is found but will return nullptr if empty string supplied.

Definition at line 502 of file BDSFieldFactory.cc.

Referenced by BDSComponentFactory::ModulatorDefinition(), and PrepareFieldDefinitions().

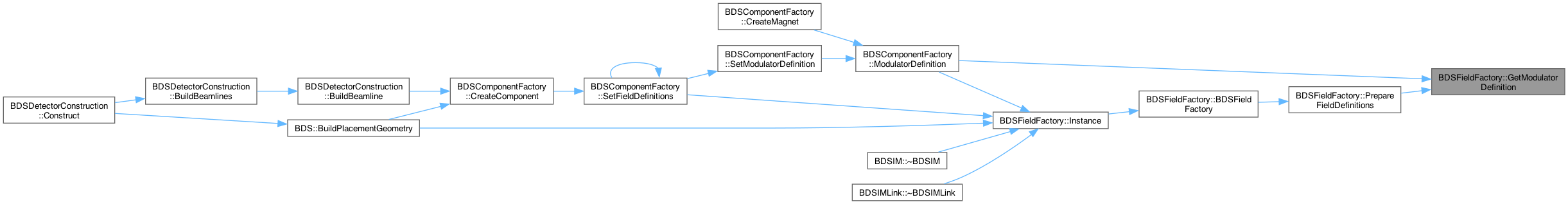

Here is the caller graph for this function:

◆ GetOuterScaling()

G4double BDSFieldFactory::GetOuterScaling ( const BDSMagnetStrength * st ) const

private

Return the parameter "outerScaling" from strength st, but default to 1.

Definition at line 1287 of file BDSFieldFactory.cc.

References BDSMagnetStrength::KeyHasBeenSet().

Referenced by CreateFieldMagRaw().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Instance()

BDSFieldFactory * BDSFieldFactory::Instance ( )

static

Public accessor method for singleton pattern.

Definition at line 158 of file BDSFieldFactory.cc.

References BDSFieldFactory(), and instance.

Referenced by BDS::BuildPlacementGeometry(), BDSComponentFactory::ModulatorDefinition(), BDSComponentFactory::SetFieldDefinitions(), BDSIM::~BDSIM(), and BDSIMLink::~BDSIMLink().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ PrepareFieldDefinitions()

void BDSFieldFactory::PrepareFieldDefinitions	(	const std::vector< GMAD::Field > &	definitions,
		G4double	defaultBRho
	)

private

Prepare all required definitions that can be used dynamically.

Definition at line 188 of file BDSFieldFactory.cc.

References BDSBeamPipeInfo::aper1, BDS::CreateUserLimits(), DefaultInterpolatorType(), BDS::DetermineArrayReflectionTypeSet(), BDS::DetermineFieldFormat(), BDS::DetermineFieldType(), BDS::DetermineIntegratorType(), BDS::DetermineInterpolatorType(), BDS::GetFullPath(), GetModulatorDefinition(), BDSGlobalConstants::Instance(), BDS::InterpolatorTypeIsAuto(), BDS::InterpolatorTypeSpecificFromAuto(), BDS::IsFinite(), BDS::NDimensionsOfFieldFormat(), BDS::NDimensionsOfInterpolatorType(), parserDefinitions, PrepareFieldStrengthFromParameters(), and BDS::SplitOnColon().

Referenced by BDSFieldFactory().

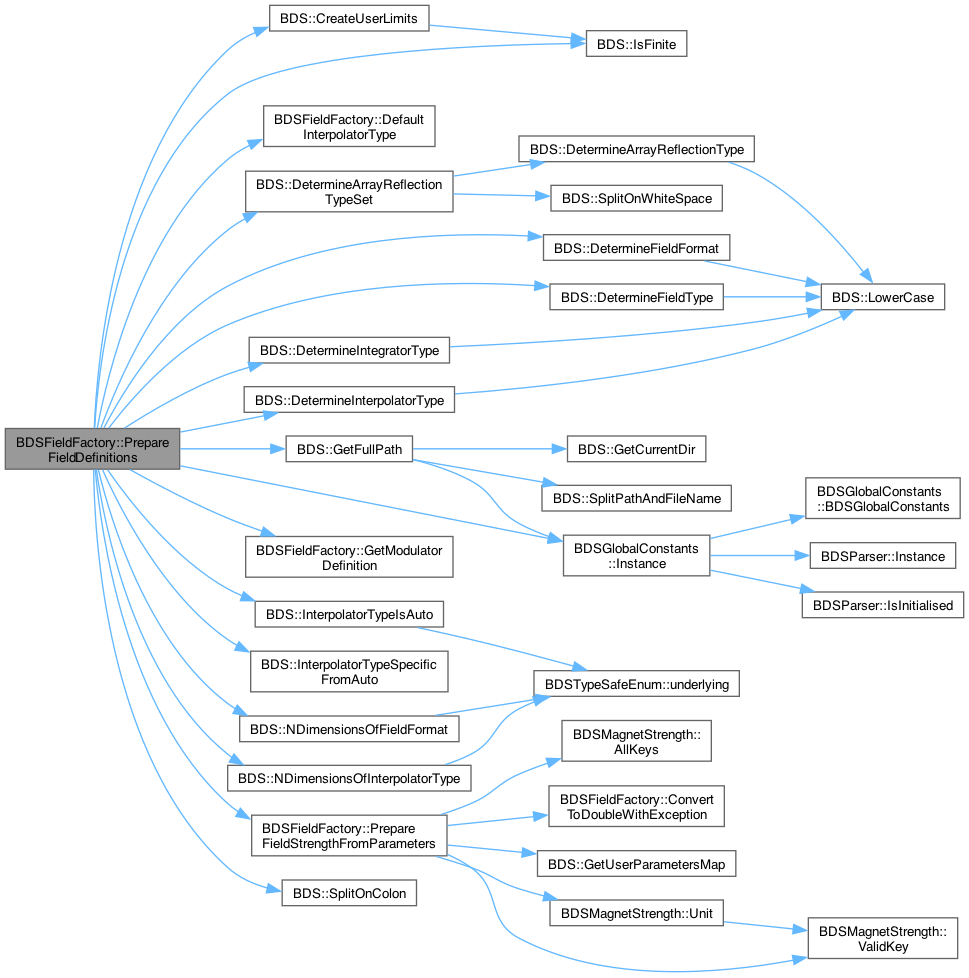

Here is the call graph for this function:

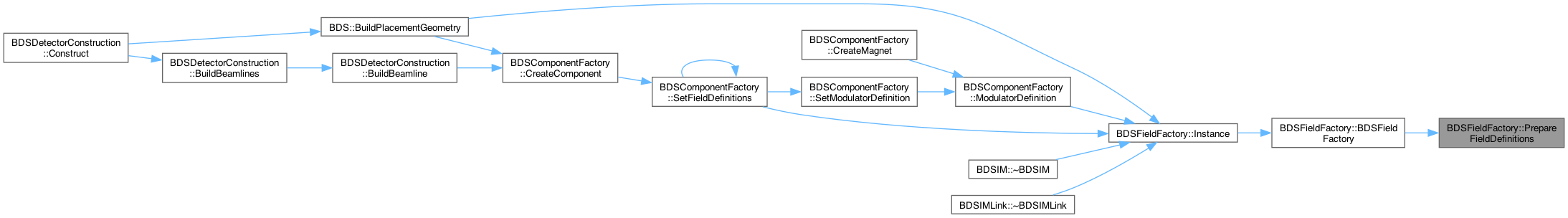

Here is the caller graph for this function:

◆ PrepareFieldStrengthFromParameters()

void BDSFieldFactory::PrepareFieldStrengthFromParameters	(	BDSMagnetStrength *	st,
		const G4String &	fieldParameters,
		G4double &	poleTipRadius
	)		const

private

Fill an instance of BDSMagnetStrength with parameters as defined in a string "fieldParameters" that is assumed to be a space-delimited set of parameter=value strings.

Definition at line 450 of file BDSFieldFactory.cc.

References BDSMagnetStrength::AllKeys(), ConvertToDoubleWithException(), BDS::GetUserParametersMap(), BDSMagnetStrength::Unit(), and BDSMagnetStrength::ValidKey().

Referenced by PrepareFieldDefinitions().

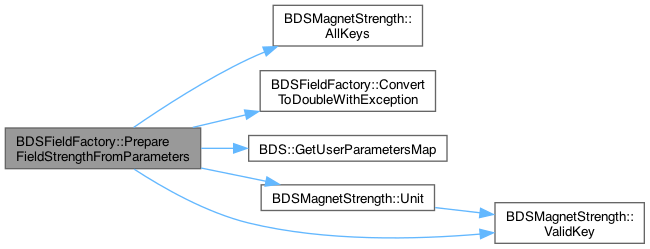

Here is the call graph for this function:

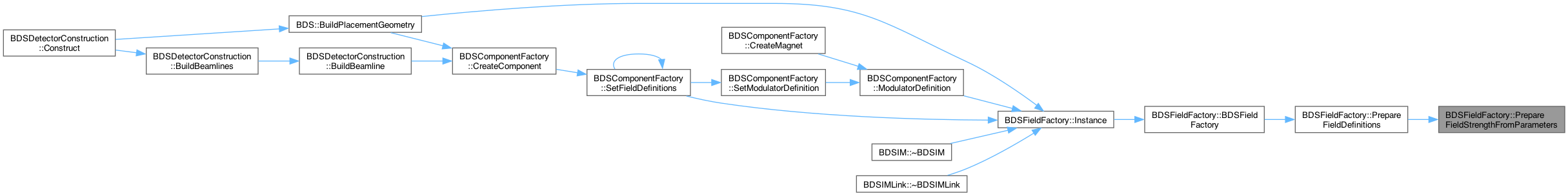

Here is the caller graph for this function:

◆ PrepareModulatorDefinitions()

void BDSFieldFactory::PrepareModulatorDefinitions ( const std::vector< GMAD::Modulator > & definitions )

private

Prepare all required modulator definitions that can be used dynamically.

Definition at line 373 of file BDSFieldFactory.cc.

References BDS::DetermineModulatorType().

Referenced by BDSFieldFactory().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetDesignParticle()

static void BDSFieldFactory::SetDesignParticle ( const BDSParticleDefinition * designParticleIn )

inlinestatic

Update the internal cache of the rigidity.

Definition at line 83 of file BDSFieldFactory.hh.

References designParticle.

Referenced by BDSIM::Initialise().

Here is the caller graph for this function:

◆ SetPrimaryGeneratorAction()

static void BDSFieldFactory::SetPrimaryGeneratorAction ( BDSPrimaryGeneratorAction * pgaIn )

inlinestatic

Update the internal cache of the primary generator action.

Definition at line 86 of file BDSFieldFactory.hh.

References primaryGeneratorAction.

Referenced by BDSIM::Initialise().

Here is the caller graph for this function:

Field Documentation

◆ designParticle

const BDSParticleDefinition * BDSFieldFactory::designParticle = nullptr

staticprivate

Cache of design particle for fields.

Definition at line 203 of file BDSFieldFactory.hh.

Referenced by BDSFieldFactory(), CreateIntegratorMag(), CreateTeleporter(), and SetDesignParticle().

◆ instance

BDSFieldFactory * BDSFieldFactory::instance = nullptr

staticprivate

Instance - singleton pattern.

Definition at line 179 of file BDSFieldFactory.hh.

Referenced by Instance().

◆ parserDefinitions

std::map<G4String, BDSFieldInfo*> BDSFieldFactory::parserDefinitions

private

BDSFieldInfo definitions prepare from parser vector of definitions.

Definition at line 199 of file BDSFieldFactory.hh.

Referenced by GetDefinition(), and PrepareFieldDefinitions().

◆ parserModulatorDefinitions

std::map<G4String, BDSModulatorInfo*> BDSFieldFactory::parserModulatorDefinitions

private

Definition at line 200 of file BDSFieldFactory.hh.

◆ primaryGeneratorAction

BDSPrimaryGeneratorAction * BDSFieldFactory::primaryGeneratorAction = nullptr

staticprivate

Cache of primary generator action.

Definition at line 206 of file BDSFieldFactory.hh.

Referenced by CreateTeleporter(), and SetPrimaryGeneratorAction().

◆ useOldMultipoleOuterFields

G4bool BDSFieldFactory::useOldMultipoleOuterFields

private

Definition at line 208 of file BDSFieldFactory.hh.

The documentation for this class was generated from the following files:

/Users/lnevay/physics/reps/bdsim/include/BDSFieldFactory.hh
/Users/lnevay/physics/reps/bdsim/src/BDSFieldFactory.cc

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Static Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ ~BDSFieldFactory()

◆ BDSFieldFactory()

Member Function Documentation

◆ CalculateGlobalPhase() [1/2]

◆ CalculateGlobalPhase() [2/2]

◆ ConvertToDoubleWithException()

◆ CreateCavityFringe()

◆ CreateField()

◆ CreateFieldE()

◆ CreateFieldEM()

◆ CreateFieldERaw()

◆ CreateFieldIrregular()

◆ CreateFieldMag()

◆ CreateFieldMagRaw()

◆ CreateIntegratorE()

◆ CreateIntegratorEM()

◆ CreateIntegratorMag()

◆ CreateModulator()

◆ CreateParallelTransport()

◆ CreateRMatrix()

◆ CreateTeleporter()

◆ DefaultInterpolatorType()

◆ GetDefinition()

◆ GetModulatorDefinition()

◆ GetOuterScaling()

◆ Instance()

◆ PrepareFieldDefinitions()

◆ PrepareFieldStrengthFromParameters()

◆ PrepareModulatorDefinitions()

◆ SetDesignParticle()

◆ SetPrimaryGeneratorAction()

Field Documentation

◆ designParticle

◆ instance

◆ parserDefinitions

◆ parserModulatorDefinitions

◆ primaryGeneratorAction

◆ useOldMultipoleOuterFields
