#include <parser.h>

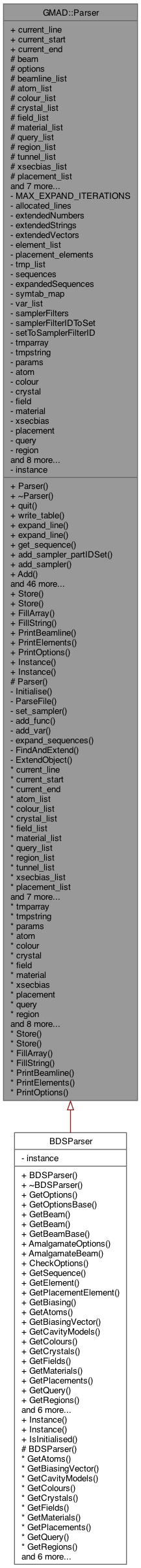

Inheritance diagram for GMAD::Parser:

Collaboration diagram for GMAD::Parser:

Public Member Functions
	Parser ()=delete
	No default constructor.

virtual	~Parser ()
	Destructor.

void	quit ()
	Exit method.

void	write_table (std::string *name, ElementType type, bool isLine=false)
	Method that transfers parameters to element properties.

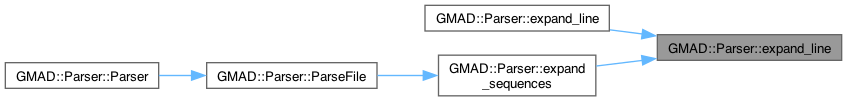

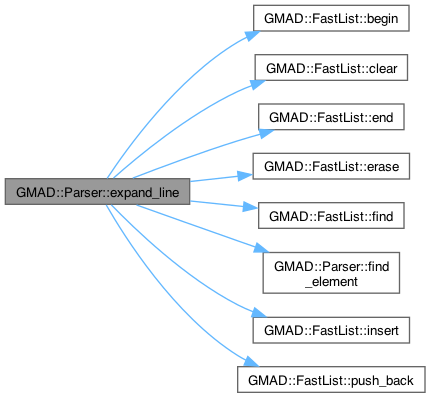

void	expand_line (FastList< Element > &target, const std::string &name, const std::string &start="", const std::string &end="")

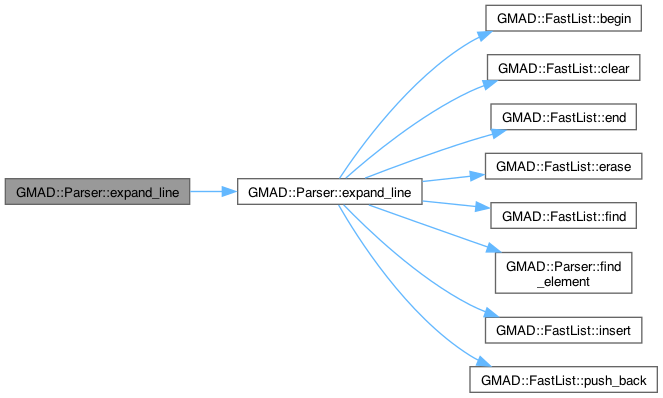

void	expand_line (const std::string &name, const std::string &start, const std::string &end)
	Expand the main beamline as defined by the use command.

const FastList< Element > &	get_sequence (const std::string &name)

int	add_sampler_partIDSet (std::list< int > *samplerPartIDListIn)

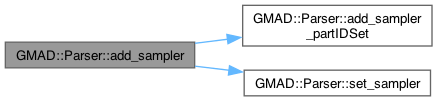

void	add_sampler (const std::string &name, int count, ElementType type, std::string samplerType, std::list< int > *samplerPartIDListIn=nullptr)
	insert a sampler into beamline_list

template<class C , class Container = FastList<C>>
void	Add ()
	Insert global object of parser class C in Container class.

template<class C , class Container = FastList<C>>
void	Add (bool unique, const std::string &className)

template<class C >
C &	GetGlobal ()
	Get global object of parser class C.

template<class C , class Container = FastList<C>>
Container &	GetList ()
	Get list for parser class C.

const std::set< std::set< int > > &	GetSamplerFilters () const

const std::map< int, std::set< int > > &	GetSamplerFilterIDToSet () const

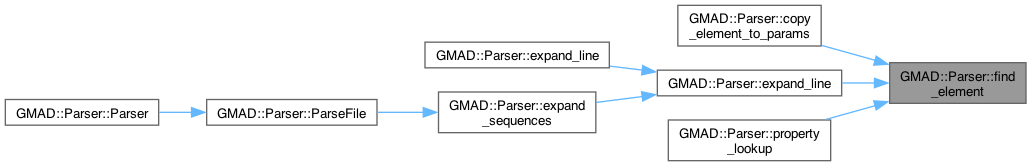

Element &	find_element (const std::string &element_name)
	find element

const Element &	find_element (const std::string &element_name) const
	find element (const)

const Element *	find_element_safe (const std::string &element_name) const
	find element by pointer - nullptr if not found - searches element_list

const Element *	find_placement_element_safe (const std::string &element_name) const
	search placement_element

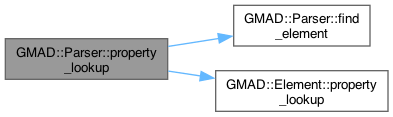

double	property_lookup (const std::string &element_name, const std::string &property_name) const
	access property of Element with element_name

void	add_element_temp (const std::string &name, int number, bool pushfront, ElementType linetype)
	add element to temporary element sequence tmp_list

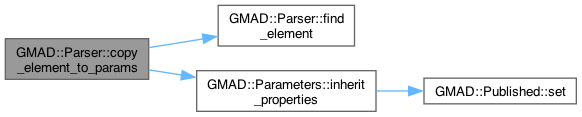

int	copy_element_to_params (const std::string &elementName)
	copy properties from Element into params, returns element type as integer, returs _NONE if not found

bool	InvalidSymbolName (const std::string &s, std::string &errorReason)

Symtab *	symcreate (const std::string &s)
	create new parser symbol

Symtab *	symlook (const std::string &s)
	look up parser symbol

void	ClearParams ()

template<class C , typename T >
void	SetValue (std::string property, T value)
	Set value for parser class.

template<class C >
double	GetValue (std::string property)
	Get value for parser class (only for doubles)

template<typename T >
std::list< T > *	ArrayToList (Array *)

template<typename T >
void	ExtendValue (const std::string &property, T value)
	Add value to be extended to object.

void	Overwrite (const std::string &objectName)
	Overwrite object with current values.

void	AddVariable (std::string *name)
	Add variable memory to variable list for memory management.

bool	TryPrintingObject (const std::string &objectName) const

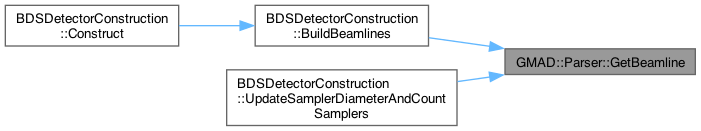

const FastList< Element > &	GetBeamline () const

template<>
Beam &	GetGlobal ()

template<>
FastList< Region > &	GetList ()

template<>
FastList< NewColour > &	GetList ()

template<>
FastList< Crystal > &	GetList ()

template<>
FastList< Field > &	GetList ()

template<>
FastList< Query > &	GetList ()

template<>
FastList< Atom > &	GetList ()

template<>
FastList< Material > &	GetList ()

template<>
FastList< Tunnel > &	GetList ()

template<>
FastList< CavityModel > &	GetList ()

template<>
FastList< Scorer > &	GetList ()

template<>
FastList< ScorerMesh > &	GetList ()

template<>
FastList< Placement > &	GetList ()

template<>
FastList< PhysicsBiasing > &	GetList ()

template<>
FastList< SamplerPlacement > &	GetList ()

template<>
FastList< BLMPlacement > &	GetList ()

template<>
FastList< Modulator > &	GetList ()

template<>
FastList< Aperture > &	GetList ()

template<>
void	ExtendValue (const std::string &property, double value)

template<>
void	ExtendValue (const std::string &property, std::string value)

template<>
void	ExtendValue (const std::string &property, Array *value)

template<>
void	Add (bool unique, const std::string &className)


void	Store (double value)
	Add value to front of temporary list.

void	Store (const std::string &name)
	Add value to front of temporary list.


void	FillArray (Array *)

void	FillString (Array *)


void	PrintBeamline () const
	Print methods.

void	PrintElements () const
	Print methods.

void	PrintOptions () const
	Print methods.

Static Public Member Functions
static Parser *	Instance (const std::string &filename)
	Constructor method.

static Parser *	Instance ()
	Access method.

Data Fields

std::string	current_line
	Name of beamline.

std::string	current_start
	Name of beamline.

std::string	current_end
	Name of beamline.

Protected Member Functions
	Parser (std::string filename)
	Constructor from filename.

Protected Attributes
Beam	beam
	Beam instance;.

Options	options
	General options.

FastList< Element >	beamline_list
	Beamline.


FastList< Atom >	atom_list
	List of parser defined instances of that object.

FastList< NewColour >	colour_list
	List of parser defined instances of that object.

FastList< Crystal >	crystal_list
	List of parser defined instances of that object.

FastList< Field >	field_list
	List of parser defined instances of that object.

FastList< Material >	material_list
	List of parser defined instances of that object.

FastList< Query >	query_list
	List of parser defined instances of that object.

FastList< Region >	region_list
	List of parser defined instances of that object.

FastList< Tunnel >	tunnel_list
	List of parser defined instances of that object.

FastList< PhysicsBiasing >	xsecbias_list
	List of parser defined instances of that object.

FastList< Placement >	placement_list
	List of parser defined instances of that object.

FastList< CavityModel >	cavitymodel_list
	List of parser defined instances of that object.

FastList< SamplerPlacement >	samplerplacement_list
	List of parser defined instances of that object.

FastList< Scorer >	scorer_list
	List of parser defined instances of that object.

FastList< ScorerMesh >	scorermesh_list
	List of parser defined instances of that object.

FastList< Aperture >	aperture_list
	List of parser defined instances of that object.

FastList< BLMPlacement >	blm_list
	List of parser defined instances of that object.

FastList< Modulator >	modulator_list
	List of parser defined instances of that object.

Private Member Functions

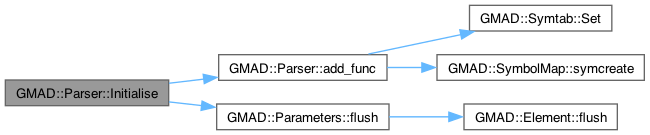

void	Initialise ()
	Initialisation of parser functions and constants.

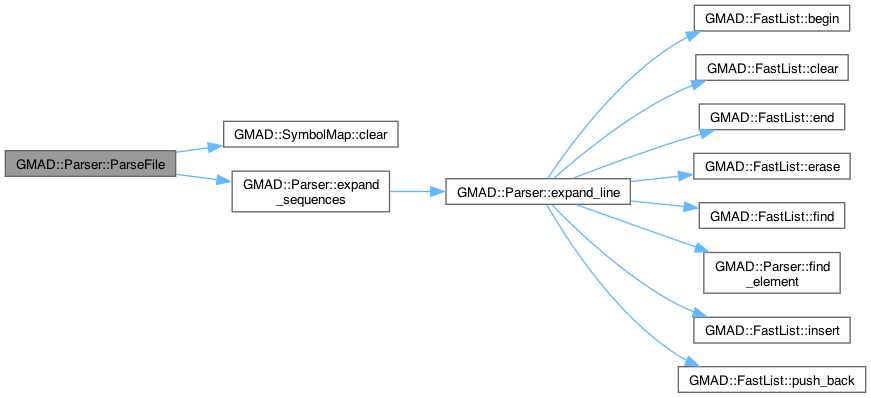

void	ParseFile (FILE *f)
	Parse the input file and construct beamline_list and options.

void	set_sampler (const std::string &name, int count, ElementType type, const std::string &samplerType, double samplerRadius=0, int particleSetID=-1)
	Set sampler.

void	add_func (std::string name, double(*func)(double))
	Add function to parser.

void	add_var (std::string name, double value, int is_reserved=0)

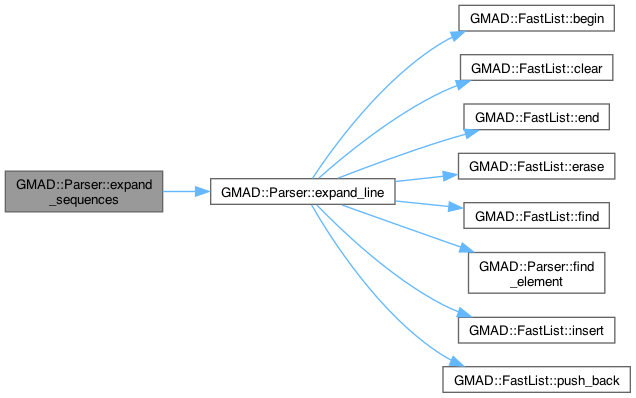

void	expand_sequences ()
	Expand all sequences define with 'line' into FastLists.

template<class C >

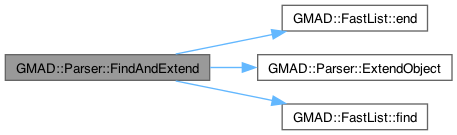

bool	FindAndExtend (const std::string &objectName)
	Find object by name in list.

template<class C >
void	ExtendObject (C &object)
	Extend object with maps.

Private Attributes
const int	MAX_EXPAND_ITERATIONS = 50
	maximum number of nested lines

std::vector< std::list< Element > * >	allocated_lines

std::map< std::string, double >	extendedNumbers
	Map for options of type double for extending objects.

std::map< std::string, std::string >	extendedStrings
	Map for options of type string for extending objects.

std::map< std::string, Array * >	extendedVectors
	Map for options of type vector for extending objects.

FastList< Element >	element_list
	List of all encountered elements.

FastList< Element >	placement_elements

std::list< Element >	tmp_list
	Temporary list.

std::vector< std::string >	sequences
	Names of all defined sequences in the parser with 'line'.

std::map< std::string, FastList< Element > * >	expandedSequences
	Cached copy of expanded sequences.

SymbolMap	symtab_map
	Parser symbol map.

std::vector< std::string * >	var_list
	Variable vector for memory storage.

std::set< std::set< int > >	samplerFilters

std::map< int, std::set< int > >	samplerFilterIDToSet

std::map< std::set< int >, int >	setToSamplerFilterID


std::list< double >	tmparray
	temporary list for reading of arrays in parser

std::list< std::string >	tmpstring
	temporary list for reading of arrays in parser


Parameters	params
	The one instance we fill before appending to a list.

Atom	atom
	The one instance we fill before appending to a list.

NewColour	colour
	The one instance we fill before appending to a list.

Crystal	crystal
	The one instance we fill before appending to a list.

Field	field
	The one instance we fill before appending to a list.

Material	material
	The one instance we fill before appending to a list.

PhysicsBiasing	xsecbias
	The one instance we fill before appending to a list.

Placement	placement
	The one instance we fill before appending to a list.

Query	query
	The one instance we fill before appending to a list.

Region	region
	The one instance we fill before appending to a list.

Tunnel	tunnel
	The one instance we fill before appending to a list.

CavityModel	cavitymodel
	The one instance we fill before appending to a list.

SamplerPlacement	samplerplacement
	The one instance we fill before appending to a list.

Scorer	scorer
	The one instance we fill before appending to a list.

ScorerMesh	scorermesh
	The one instance we fill before appending to a list.

Aperture	aperture
	The one instance we fill before appending to a list.

BLMPlacement	blm
	The one instance we fill before appending to a list.

Modulator	modulator
	The one instance we fill before appending to a list.

Static Private Attributes
static Parser *	instance = nullptr
	Instance.

Detailed Description

Parser class.

Parser class that holds all objects and relevant methods

Singleton pattern

Author: Jochem Snuverink

Definition at line 79 of file parser.h.

Constructor & Destructor Documentation

◆ ~Parser()

Parser::~Parser ( )

virtual

Destructor.

Definition at line 115 of file parser.cc.

References allocated_lines, beamline_list, and instance.

◆ Parser()

Parser::Parser ( std::string filename )

explicitprotected

Constructor from filename.

Definition at line 125 of file parser.cc.

References Initialise(), instance, and ParseFile().

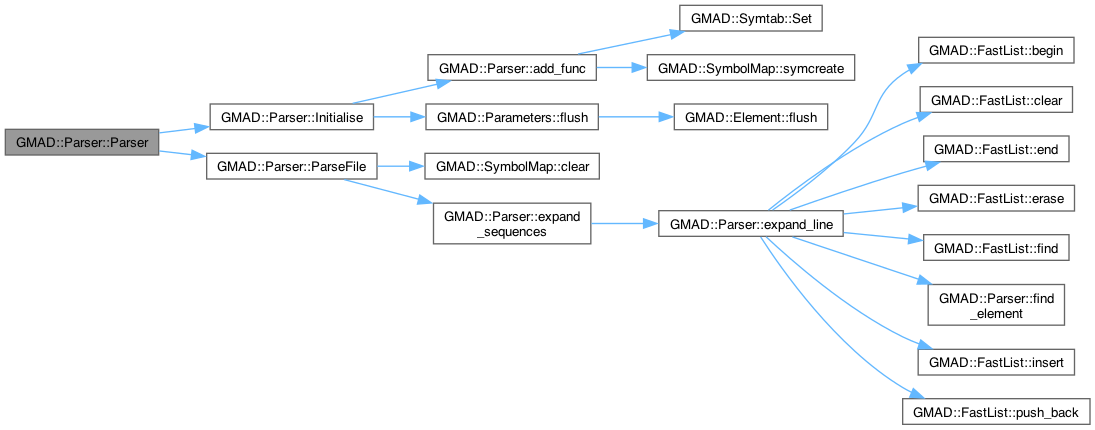

Here is the call graph for this function:

Member Function Documentation

◆ Add() [1/3]

template<class C , class Container >

void GMAD::Parser::Add

Insert global object of parser class C in Container class.

Definition at line 1035 of file parser.cc.

◆ Add() [2/3]

template<>

void GMAD::Parser::Add	(	bool	unique,
		const std::string &	className
	)

Specialisation for Placements where we separately cache an Element. Note we can't do a partial specialisation so we have to do a full explicit one. Therefore we also have to be careful about the order we declare this because of where these functions are used. Also, we can't implement it in the header because we'd get multiple symbols. Therefore, declared here, but implemented in cc file with explicit instantiation of templates we need in rest of cc file.

Definition at line 1069 of file parser.cc.

References GMAD::Placement::bdsimElement, GMAD::Placement::clear(), GMAD::Placement::name, and GMAD::Placement::print().

Here is the call graph for this function:

◆ Add() [3/3]

template<class C , class Container >

void GMAD::Parser::Add	(	bool	unique,
		const std::string &	className
	)

Definition at line 1049 of file parser.cc.

◆ add_element_temp()

void Parser::add_element_temp	(	const std::string &	name,
		int	number,
		bool	pushfront,
		ElementType	linetype
	)

add element to temporary element sequence tmp_list

Definition at line 641 of file parser.cc.

References GMAD::Element::lst, tmp_list, and GMAD::Element::type.

◆ add_func()

void Parser::add_func	(	std::string	name,
		double(*)(double)	func
	)

private

Add function to parser.

Definition at line 681 of file parser.cc.

References GMAD::Symtab::Set(), GMAD::SymbolMap::symcreate(), and symtab_map.

Referenced by Initialise().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ add_sampler()

void Parser::add_sampler	(	const std::string &	name,
		int	count,
		ElementType	type,
		std::string	samplerType,
		std::list< int > *	samplerPartIDListIn = `nullptr`
	)

insert a sampler into beamline_list

Definition at line 574 of file parser.cc.

References add_sampler_partIDSet(), and set_sampler().

Here is the call graph for this function:

◆ add_sampler_partIDSet()

int Parser::add_sampler_partIDSet ( std::list< int > * samplerPartIDListIn )

Add a particle set for a sampler and return a unique integer ID for that set. If no list or empty list given, returns -1, the default for 'no filter'.

Definition at line 556 of file parser.cc.

References samplerFilters.

Referenced by add_sampler().

Here is the caller graph for this function:

◆ add_var()

void Parser::add_var	(	std::string	name,
		double	value,
		int	is_reserved = `0`
	)

private

Definition at line 687 of file parser.cc.

◆ AddVariable()

void Parser::AddVariable ( std::string * name )

Add variable memory to variable list for memory management.

Definition at line 818 of file parser.cc.

References var_list.

◆ ArrayToList()

template<typename T >

std::list< T > * GMAD::Parser::ArrayToList ( Array * arrayIn )

Definition at line 343 of file parser.h.

◆ ClearParams()

void Parser::ClearParams ( )

Reset parameters

Definition at line 732 of file parser.cc.

References GMAD::Parameters::flush(), params, and samplerFilters.

Here is the call graph for this function:

◆ copy_element_to_params()

int Parser::copy_element_to_params ( const std::string & elementName )

copy properties from Element into params, returns element type as integer, returs _NONE if not found

Definition at line 666 of file parser.cc.

References find_element(), GMAD::Parameters::inherit_properties(), params, and GMAD::Element::type.

Here is the call graph for this function:

◆ expand_line() [1/2]

void Parser::expand_line	(	const std::string &	name,
		const std::string &	start,
		const std::string &	end
	)

Expand the main beamline as defined by the use command.

Definition at line 301 of file parser.cc.

References beamline_list, and expand_line().

Here is the call graph for this function:

◆ expand_line() [2/2]

void Parser::expand_line	(	FastList< Element > &	target,
		const std::string &	name,
		const std::string &	start = `""`,
		const std::string &	end = `""`
	)

Expand a sequence by name from start to end into the target list. This removes sublines from the beamline into one LINE.

Definition at line 308 of file parser.cc.

References GMAD::FastList< T >::begin(), GMAD::FastList< T >::clear(), element_list, GMAD::FastList< T >::end(), GMAD::FastList< T >::erase(), GMAD::FastList< T >::find(), find_element(), GMAD::FastList< T >::insert(), GMAD::Element::l, GMAD::Element::lst, MAX_EXPAND_ITERATIONS, GMAD::FastList< T >::push_back(), and GMAD::Element::type.

Referenced by expand_line(), and expand_sequences().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ expand_sequences()

void Parser::expand_sequences ( )

private

Expand all sequences define with 'line' into FastLists.

Definition at line 291 of file parser.cc.

References expand_line(), expandedSequences, and sequences.

Referenced by ParseFile().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ExtendObject()

template<class C >

void Parser::ExtendObject ( C & object )

private

Extend object with maps.

Definition at line 808 of file parser.cc.

References extendedNumbers, extendedStrings, and extendedVectors.

Referenced by FindAndExtend(), and Overwrite().

Here is the caller graph for this function:

◆ ExtendValue() [1/3]

template<>

void GMAD::Parser::ExtendValue	(	const std::string &	property,
		Array *	value
	)

Definition at line 1031 of file parser.cc.

◆ ExtendValue() [2/3]

template<>

void GMAD::Parser::ExtendValue	(	const std::string &	property,
		double	value
	)

Definition at line 1023 of file parser.cc.

◆ ExtendValue() [3/3]

template<>

void GMAD::Parser::ExtendValue	(	const std::string &	property,
		std::string	value
	)

Definition at line 1027 of file parser.cc.

◆ FillArray()

void Parser::FillArray ( Array * array )

Fill array object from temporary list and clear temporary list

Definition at line 720 of file parser.cc.

References GMAD::Array::Copy(), and tmparray.

Here is the call graph for this function:

◆ FillString()

void Parser::FillString ( Array * array )

Fill array object from temporary list and clear temporary list

Definition at line 726 of file parser.cc.

References GMAD::Array::Copy(), and tmpstring.

Here is the call graph for this function:

◆ find_element() [1/2]

Element & Parser::find_element ( const std::string & element_name )

find element

Definition at line 586 of file parser.cc.

References element_list.

Referenced by copy_element_to_params(), expand_line(), and property_lookup().

Here is the caller graph for this function:

◆ find_element() [2/2]

const Element & Parser::find_element ( const std::string & element_name ) const

find element (const)

Definition at line 600 of file parser.cc.

References element_list.

◆ find_element_safe()

const Element * Parser::find_element_safe ( const std::string & element_name ) const

find element by pointer - nullptr if not found - searches element_list

Definition at line 623 of file parser.cc.

References element_list.

Referenced by BDSParser::GetElement().

Here is the caller graph for this function:

◆ find_placement_element_safe()

const Element * Parser::find_placement_element_safe ( const std::string & element_name ) const

search placement_element

Definition at line 611 of file parser.cc.

References placement_elements.

Referenced by BDSParser::GetPlacementElement().

Here is the caller graph for this function:

◆ FindAndExtend()

template<class C >

bool Parser::FindAndExtend ( const std::string & objectName )

private

Find object by name in list.

Definition at line 795 of file parser.cc.

References GMAD::FastList< T >::end(), ExtendObject(), and GMAD::FastList< T >::find().

Here is the call graph for this function:

◆ get_sequence()

const FastList< Element > & Parser::get_sequence ( const std::string & name )

Find the sequence defined in the parser and expand it if not already done so. Cache result in map of fastlists.

Definition at line 461 of file parser.cc.

References expandedSequences.

Referenced by BDSParser::GetSequence().

Here is the caller graph for this function:

◆ GetBeamline()

const FastList< Element > & Parser::GetBeamline ( ) const

Beamline Access.

Definition at line 903 of file parser.cc.

References beamline_list.

Referenced by BDSDetectorConstruction::BuildBeamlines(), and BDSDetectorConstruction::UpdateSamplerDiameterAndCountSamplers().

Here is the caller graph for this function:

◆ GetGlobal()

template<>

Aperture & GMAD::Parser::GetGlobal ( )

Definition at line 912 of file parser.cc.

◆ GetList() [1/17]

template<>

FastList< Region > & GMAD::Parser::GetList ( )

Definition at line 921 of file parser.cc.

◆ GetList() [2/17]

template<>

FastList< NewColour > & GMAD::Parser::GetList ( )

Definition at line 927 of file parser.cc.

◆ GetList() [3/17]

template<>

FastList< Crystal > & GMAD::Parser::GetList ( )

Definition at line 933 of file parser.cc.

◆ GetList() [4/17]

template<>

FastList< Field > & GMAD::Parser::GetList ( )

Definition at line 939 of file parser.cc.

◆ GetList() [5/17]

template<>

FastList< Query > & GMAD::Parser::GetList ( )

Definition at line 945 of file parser.cc.

◆ GetList() [6/17]

template<>

FastList< Atom > & GMAD::Parser::GetList ( )

Definition at line 951 of file parser.cc.

◆ GetList() [7/17]

template<>

FastList< Material > & GMAD::Parser::GetList ( )

Definition at line 957 of file parser.cc.

◆ GetList() [8/17]

template<>

FastList< Tunnel > & GMAD::Parser::GetList ( )

Definition at line 963 of file parser.cc.

◆ GetList() [9/17]

template<>

FastList< CavityModel > & GMAD::Parser::GetList ( )

Definition at line 969 of file parser.cc.

◆ GetList() [10/17]

template<>

FastList< Scorer > & GMAD::Parser::GetList ( )

Definition at line 975 of file parser.cc.

◆ GetList() [11/17]

template<>

FastList< ScorerMesh > & GMAD::Parser::GetList ( )

Definition at line 981 of file parser.cc.

◆ GetList() [12/17]

template<>

FastList< Placement > & GMAD::Parser::GetList ( )

Definition at line 987 of file parser.cc.

◆ GetList() [13/17]

template<>

FastList< PhysicsBiasing > & GMAD::Parser::GetList ( )

Definition at line 993 of file parser.cc.

◆ GetList() [14/17]

template<>

FastList< SamplerPlacement > & GMAD::Parser::GetList ( )

Definition at line 999 of file parser.cc.

◆ GetList() [15/17]

template<>

FastList< BLMPlacement > & GMAD::Parser::GetList ( )

Definition at line 1005 of file parser.cc.

◆ GetList() [16/17]

template<>

FastList< Modulator > & GMAD::Parser::GetList ( )

Definition at line 1011 of file parser.cc.

◆ GetList() [17/17]

template<>

FastList< Aperture > & GMAD::Parser::GetList ( )

Definition at line 1017 of file parser.cc.

◆ GetSamplerFilterIDToSet()

const std::map< int, std::set< int > > & GMAD::Parser::GetSamplerFilterIDToSet ( ) const

inline

Definition at line 142 of file parser.h.

◆ GetSamplerFilters()

const std::set< std::set< int > > & GMAD::Parser::GetSamplerFilters ( ) const

inline

Definition at line 141 of file parser.h.

◆ GetValue()

template<class C >

double GMAD::Parser::GetValue ( std::string property )

Get value for parser class (only for doubles)

Definition at line 337 of file parser.h.

◆ Initialise()

void Parser::Initialise ( )

private

Initialisation of parser functions and constants.

Definition at line 188 of file parser.cc.

References add_func(), GMAD::Parameters::flush(), and params.

Referenced by Parser().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Instance() [1/2]

Parser * Parser::Instance ( )

static

Access method.

Definition at line 94 of file parser.cc.

References instance.

◆ Instance() [2/2]

Parser * Parser::Instance ( const std::string & filename )

static

Constructor method.

Definition at line 104 of file parser.cc.

References instance, and Parser().

Here is the call graph for this function:

◆ InvalidSymbolName()

bool Parser::InvalidSymbolName	(	const std::string &	s,
		std::string &	errorReason
	)

Definition at line 693 of file parser.cc.

◆ Overwrite()

void Parser::Overwrite ( const std::string & objectName )

Overwrite object with current values.

Definition at line 738 of file parser.cc.

References element_list, extendedNumbers, extendedStrings, extendedVectors, ExtendObject(), and xsecbias_list.

Here is the call graph for this function:

◆ ParseFile()

void Parser::ParseFile ( FILE * f )

private

Parse the input file and construct beamline_list and options.

Definition at line 156 of file parser.cc.

References GMAD::SymbolMap::clear(), element_list, expand_sequences(), symtab_map, tmp_list, and var_list.

Referenced by Parser().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ PrintBeamline()

void Parser::PrintBeamline ( ) const

Print methods.

Definition at line 823 of file parser.cc.

References beamline_list.

◆ PrintElements()

void Parser::PrintElements ( ) const

Print methods.

Definition at line 828 of file parser.cc.

References element_list.

◆ PrintOptions()

void Parser::PrintOptions ( ) const

Print methods.

Definition at line 833 of file parser.cc.

References options, and GMAD::OptionsBase::print().

Here is the call graph for this function:

◆ property_lookup()

double Parser::property_lookup	(	const std::string &	element_name,
		const std::string &	property_name
	)		const

access property of Element with element_name

Definition at line 635 of file parser.cc.

References find_element(), and GMAD::Element::property_lookup().

Here is the call graph for this function:

◆ quit()

void Parser::quit ( )

Exit method.

Definition at line 268 of file parser.cc.

◆ set_sampler()

void Parser::set_sampler	(	const std::string &	name,
		int	count,
		ElementType	type,
		const std::string &	samplerType,
		double	samplerRadius = `0`,
		int	particleSetID = `-1`
	)

private

Set sampler.

Definition at line 471 of file parser.cc.

References beamline_list.

Referenced by add_sampler().

Here is the caller graph for this function:

◆ SetValue()

template<class C , typename T >

void GMAD::Parser::SetValue	(	std::string	property,
		T	value
	)

Set value for parser class.

Definition at line 331 of file parser.h.

◆ Store() [1/2]

void Parser::Store ( const std::string & name )

Add value to front of temporary list.

Definition at line 715 of file parser.cc.

References tmpstring.

◆ Store() [2/2]

void Parser::Store ( double value )

Add value to front of temporary list.

Definition at line 710 of file parser.cc.

References tmparray.

◆ symcreate()

Symtab * Parser::symcreate ( const std::string & s )

create new parser symbol

Definition at line 701 of file parser.cc.

References GMAD::SymbolMap::symcreate(), and symtab_map.

Here is the call graph for this function:

◆ symlook()

Symtab * Parser::symlook ( const std::string & s )

look up parser symbol

Definition at line 706 of file parser.cc.

References GMAD::SymbolMap::symlook(), and symtab_map.

Here is the call graph for this function:

◆ TryPrintingObject()

bool Parser::TryPrintingObject ( const std::string & objectName ) const

Search each member vector for an object with the matching name. Return true if successfully printed.

Definition at line 838 of file parser.cc.

References aperture_list, atom_list, blm_list, cavitymodel_list, colour_list, crystal_list, field_list, material_list, modulator_list, placement_list, query_list, region_list, samplerplacement_list, scorer_list, scorermesh_list, tunnel_list, and xsecbias_list.

◆ write_table()

void Parser::write_table	(	std::string *	name,
		ElementType	type,
		bool	isLine = `false`
	)

Method that transfers parameters to element properties.

Definition at line 274 of file parser.cc.

References allocated_lines, element_list, GMAD::Element::lst, params, sequences, GMAD::Element::set(), and tmp_list.

Here is the call graph for this function:

Field Documentation

◆ allocated_lines

std::vector<std::list<Element>*> GMAD::Parser::allocated_lines

private

vector of defined lines for memory management

Definition at line 264 of file parser.h.

Referenced by write_table(), and ~Parser().

◆ aperture

Aperture GMAD::Parser::aperture

private

The one instance we fill before appending to a list.

Definition at line 282 of file parser.h.

◆ aperture_list

FastList<Aperture> GMAD::Parser::aperture_list

protected

List of parser defined instances of that object.

Definition at line 247 of file parser.h.

Referenced by BDSParser::GetApertures(), and TryPrintingObject().

◆ atom

Atom GMAD::Parser::atom

private

The one instance we fill before appending to a list.

Definition at line 268 of file parser.h.

◆ atom_list

FastList<Atom> GMAD::Parser::atom_list

protected

List of parser defined instances of that object.

Definition at line 233 of file parser.h.

Referenced by BDSParser::GetAtoms(), and TryPrintingObject().

◆ beam

Beam GMAD::Parser::beam

protected

Beam instance;.

Definition at line 227 of file parser.h.

Referenced by BDSParser::AmalgamateBeam(), BDSParser::CheckOptions(), BDSParser::GetBeam(), and BDSParser::GetBeamBase().

◆ beamline_list

FastList<Element> GMAD::Parser::beamline_list

protected

Beamline.

Definition at line 231 of file parser.h.

Referenced by expand_line(), GetBeamline(), PrintBeamline(), set_sampler(), and ~Parser().

◆ blm

BLMPlacement GMAD::Parser::blm

private

The one instance we fill before appending to a list.

Definition at line 283 of file parser.h.

◆ blm_list

FastList<BLMPlacement> GMAD::Parser::blm_list

protected

List of parser defined instances of that object.

Definition at line 248 of file parser.h.

Referenced by BDSParser::GetBLMs(), and TryPrintingObject().

◆ cavitymodel

CavityModel GMAD::Parser::cavitymodel

private

The one instance we fill before appending to a list.

Definition at line 278 of file parser.h.

◆ cavitymodel_list

FastList<CavityModel> GMAD::Parser::cavitymodel_list

protected

List of parser defined instances of that object.

Definition at line 243 of file parser.h.

Referenced by BDSParser::GetCavityModels(), and TryPrintingObject().

◆ colour

NewColour GMAD::Parser::colour

private

The one instance we fill before appending to a list.

Definition at line 269 of file parser.h.

◆ colour_list

FastList<NewColour> GMAD::Parser::colour_list

protected

List of parser defined instances of that object.

Definition at line 234 of file parser.h.

Referenced by BDSParser::GetColours(), and TryPrintingObject().

◆ crystal

Crystal GMAD::Parser::crystal

private

The one instance we fill before appending to a list.

Definition at line 270 of file parser.h.

◆ crystal_list

FastList<Crystal> GMAD::Parser::crystal_list

protected

List of parser defined instances of that object.

Definition at line 235 of file parser.h.

Referenced by BDSParser::GetCrystals(), and TryPrintingObject().

◆ current_end

std::string GMAD::Parser::current_end

Name of beamline.

Definition at line 205 of file parser.h.

◆ current_line

std::string GMAD::Parser::current_line

Name of beamline.

Definition at line 203 of file parser.h.

◆ current_start

std::string GMAD::Parser::current_start

Name of beamline.

Definition at line 204 of file parser.h.

◆ element_list

FastList<Element> GMAD::Parser::element_list

private

List of all encountered elements.

Definition at line 302 of file parser.h.

Referenced by expand_line(), find_element(), find_element_safe(), Overwrite(), ParseFile(), PrintElements(), and write_table().

◆ expandedSequences

std::map<std::string, FastList<Element>*> GMAD::Parser::expandedSequences

private

Cached copy of expanded sequences.

Definition at line 316 of file parser.h.

Referenced by expand_sequences(), and get_sequence().

◆ extendedNumbers

std::map<std::string, double> GMAD::Parser::extendedNumbers

private

Map for options of type double for extending objects.

Definition at line 295 of file parser.h.

Referenced by ExtendObject(), and Overwrite().

◆ extendedStrings

std::map<std::string, std::string> GMAD::Parser::extendedStrings

private

Map for options of type string for extending objects.

Definition at line 297 of file parser.h.

Referenced by ExtendObject(), and Overwrite().

◆ extendedVectors

std::map<std::string, Array*> GMAD::Parser::extendedVectors

private

Map for options of type vector for extending objects.

Definition at line 299 of file parser.h.

Referenced by ExtendObject(), and Overwrite().

◆ field

Field GMAD::Parser::field

private

The one instance we fill before appending to a list.

Definition at line 271 of file parser.h.

◆ field_list

FastList<Field> GMAD::Parser::field_list

protected

List of parser defined instances of that object.

Definition at line 236 of file parser.h.

Referenced by BDSParser::GetFields(), and TryPrintingObject().

◆ instance

Parser * Parser::instance = nullptr

staticprivate

Instance.

Definition at line 96 of file parser.h.

Referenced by Instance(), Parser(), and ~Parser().

◆ material

Material GMAD::Parser::material

private

The one instance we fill before appending to a list.

Definition at line 272 of file parser.h.

◆ material_list

FastList<Material> GMAD::Parser::material_list

protected

List of parser defined instances of that object.

Definition at line 237 of file parser.h.

Referenced by BDSParser::GetMaterials(), and TryPrintingObject().

◆ MAX_EXPAND_ITERATIONS

const int GMAD::Parser::MAX_EXPAND_ITERATIONS = 50

private

maximum number of nested lines

Definition at line 257 of file parser.h.

Referenced by expand_line().

◆ modulator

Modulator GMAD::Parser::modulator

private

The one instance we fill before appending to a list.

Definition at line 284 of file parser.h.

◆ modulator_list

FastList<Modulator> GMAD::Parser::modulator_list

protected

List of parser defined instances of that object.

Definition at line 249 of file parser.h.

Referenced by BDSParser::GetModulators(), and TryPrintingObject().

◆ options

Options GMAD::Parser::options

protected

General options.

Definition at line 229 of file parser.h.

Referenced by BDSParser::AmalgamateOptions(), BDSParser::CheckOptions(), BDSParser::GetOptions(), BDSParser::GetOptionsBase(), and PrintOptions().

◆ params

Parameters GMAD::Parser::params

private

The one instance we fill before appending to a list.

Definition at line 267 of file parser.h.

Referenced by ClearParams(), copy_element_to_params(), Initialise(), and write_table().

◆ placement

Placement GMAD::Parser::placement

private

The one instance we fill before appending to a list.

Definition at line 274 of file parser.h.

◆ placement_elements

FastList<Element> GMAD::Parser::placement_elements

private

List of element definitions that are used in placements - keep separately a copy so that when we clear all the lists after expanding the lines we still have the element definitions we need

Definition at line 307 of file parser.h.

Referenced by find_placement_element_safe().

◆ placement_list

FastList<Placement> GMAD::Parser::placement_list

protected

List of parser defined instances of that object.

Definition at line 242 of file parser.h.

Referenced by BDSParser::GetPlacements(), and TryPrintingObject().

◆ query

Query GMAD::Parser::query

private

The one instance we fill before appending to a list.

Definition at line 275 of file parser.h.

◆ query_list

FastList<Query> GMAD::Parser::query_list

protected

List of parser defined instances of that object.

Definition at line 238 of file parser.h.

Referenced by BDSParser::GetQuery(), and TryPrintingObject().

◆ region

Region GMAD::Parser::region

private

The one instance we fill before appending to a list.

Definition at line 276 of file parser.h.

◆ region_list

FastList<Region> GMAD::Parser::region_list

protected

List of parser defined instances of that object.

Definition at line 239 of file parser.h.

Referenced by BDSParser::GetRegions(), and TryPrintingObject().

◆ samplerFilterIDToSet

std::map<int, std::set<int> > GMAD::Parser::samplerFilterIDToSet

private

Definition at line 326 of file parser.h.

◆ samplerFilters

std::set<std::set<int> > GMAD::Parser::samplerFilters

private

Set of unique sets of particle IDs. This will allow us to build up unique Sensitive detectors for particles later on.

Definition at line 325 of file parser.h.

Referenced by add_sampler_partIDSet(), and ClearParams().

◆ samplerplacement

SamplerPlacement GMAD::Parser::samplerplacement

private

The one instance we fill before appending to a list.

Definition at line 279 of file parser.h.

◆ samplerplacement_list

FastList<SamplerPlacement> GMAD::Parser::samplerplacement_list

protected

List of parser defined instances of that object.

Definition at line 244 of file parser.h.

Referenced by BDSParser::GetSamplerPlacements(), and TryPrintingObject().

◆ scorer

Scorer GMAD::Parser::scorer

private

The one instance we fill before appending to a list.

Definition at line 280 of file parser.h.

◆ scorer_list

FastList<Scorer> GMAD::Parser::scorer_list

protected

List of parser defined instances of that object.

Definition at line 245 of file parser.h.

Referenced by BDSParser::GetScorers(), and TryPrintingObject().

◆ scorermesh

ScorerMesh GMAD::Parser::scorermesh

private

The one instance we fill before appending to a list.

Definition at line 281 of file parser.h.

◆ scorermesh_list

FastList<ScorerMesh> GMAD::Parser::scorermesh_list

protected

List of parser defined instances of that object.

Definition at line 246 of file parser.h.

Referenced by BDSParser::GetScorerMesh(), and TryPrintingObject().

◆ sequences

std::vector<std::string> GMAD::Parser::sequences

private

Names of all defined sequences in the parser with 'line'.

Definition at line 313 of file parser.h.

Referenced by expand_sequences(), and write_table().

◆ setToSamplerFilterID

std::map<std::set<int>, int> GMAD::Parser::setToSamplerFilterID

private

Definition at line 327 of file parser.h.

◆ symtab_map

SymbolMap GMAD::Parser::symtab_map

private

Parser symbol map.

Definition at line 319 of file parser.h.

Referenced by add_func(), ParseFile(), symcreate(), and symlook().

◆ tmp_list

std::list<Element> GMAD::Parser::tmp_list

private

Temporary list.

Definition at line 310 of file parser.h.

Referenced by add_element_temp(), ParseFile(), and write_table().

◆ tmparray

std::list<double> GMAD::Parser::tmparray

private

temporary list for reading of arrays in parser

Definition at line 260 of file parser.h.

Referenced by FillArray(), and Store().

◆ tmpstring

std::list<std::string> GMAD::Parser::tmpstring

private

temporary list for reading of arrays in parser

Definition at line 261 of file parser.h.

Referenced by FillString(), and Store().

◆ tunnel

Tunnel GMAD::Parser::tunnel

private

The one instance we fill before appending to a list.

Definition at line 277 of file parser.h.

◆ tunnel_list

FastList<Tunnel> GMAD::Parser::tunnel_list

protected

List of parser defined instances of that object.

Definition at line 240 of file parser.h.

Referenced by TryPrintingObject().

◆ var_list

std::vector<std::string*> GMAD::Parser::var_list

private

Variable vector for memory storage.

Definition at line 321 of file parser.h.

Referenced by AddVariable(), and ParseFile().

◆ xsecbias

PhysicsBiasing GMAD::Parser::xsecbias

private

The one instance we fill before appending to a list.

Definition at line 273 of file parser.h.

◆ xsecbias_list

FastList<PhysicsBiasing> GMAD::Parser::xsecbias_list

protected

List of parser defined instances of that object.

Definition at line 241 of file parser.h.

Referenced by BDSParser::GetBiasing(), BDSParser::GetBiasingVector(), Overwrite(), and TryPrintingObject().

The documentation for this class was generated from the following files:

/Users/lnevay/physics/reps/bdsim/parser/parser.h
/Users/lnevay/physics/reps/bdsim/parser/parser.cc

Public Member Functions

Static Public Member Functions

Data Fields

Protected Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Static Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ ~Parser()

◆ Parser()

Member Function Documentation

◆ Add() [1/3]

◆ Add() [2/3]

◆ Add() [3/3]

◆ add_element_temp()

◆ add_func()

◆ add_sampler()

◆ add_sampler_partIDSet()

◆ add_var()

◆ AddVariable()

◆ ArrayToList()

◆ ClearParams()

◆ copy_element_to_params()

◆ expand_line() [1/2]

◆ expand_line() [2/2]

◆ expand_sequences()

◆ ExtendObject()

◆ ExtendValue() [1/3]

◆ ExtendValue() [2/3]

◆ ExtendValue() [3/3]

◆ FillArray()

◆ FillString()

◆ find_element() [1/2]

◆ find_element() [2/2]

◆ find_element_safe()

◆ find_placement_element_safe()

◆ FindAndExtend()

◆ get_sequence()

◆ GetBeamline()

◆ GetGlobal()

◆ GetList() [1/17]

◆ GetList() [2/17]

◆ GetList() [3/17]

◆ GetList() [4/17]

◆ GetList() [5/17]

◆ GetList() [6/17]

◆ GetList() [7/17]

◆ GetList() [8/17]

◆ GetList() [9/17]

◆ GetList() [10/17]

◆ GetList() [11/17]

◆ GetList() [12/17]

◆ GetList() [13/17]

◆ GetList() [14/17]

◆ GetList() [15/17]

◆ GetList() [16/17]

◆ GetList() [17/17]

◆ GetSamplerFilterIDToSet()

◆ GetSamplerFilters()

◆ GetValue()

◆ Initialise()

◆ Instance() [1/2]

◆ Instance() [2/2]

◆ InvalidSymbolName()

◆ Overwrite()

◆ ParseFile()

◆ PrintBeamline()

◆ PrintElements()

◆ PrintOptions()

◆ property_lookup()

◆ quit()

◆ set_sampler()

◆ SetValue()

◆ Store() [1/2]

◆ Store() [2/2]

◆ symcreate()

◆ symlook()

◆ TryPrintingObject()
